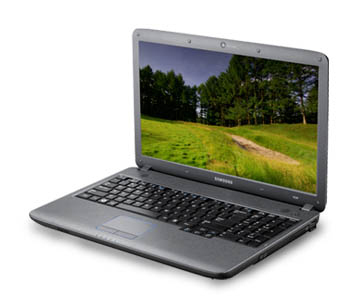

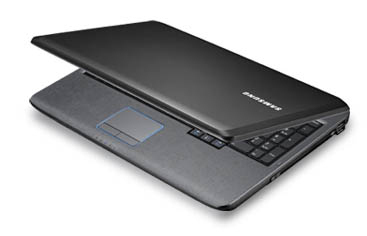

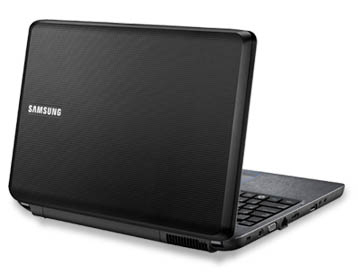

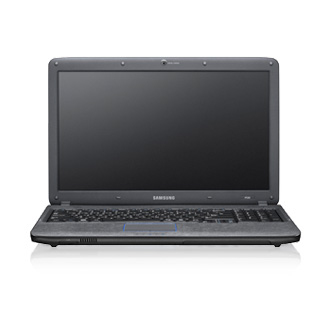

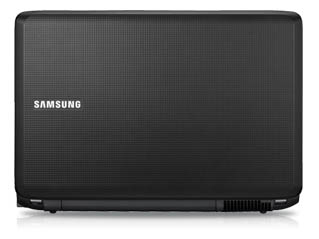

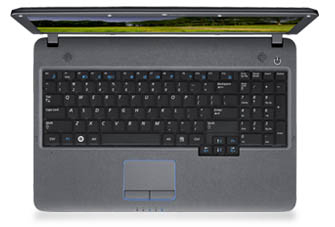

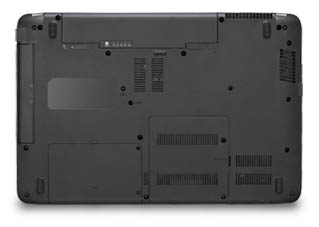

Samsung P P530-JA07IT Intel® Celeron® P4600

39.6 cm (15.6") 3 GB DDR2-SDRAM 320 GB Intel® GMA 4500MHD Windows 7 Professional Black

Model P530-JA07ITPart no. NP-P530-JA07ITEAN 8806071299303

149 specifications Checked 3 days ago

Display39.6 cm (15.6")
Resolution1366 x 768 pixels
ProcessorIntel® Celeron®
Memory3 GB
Storage320 GB
GraphicsIntel® GMA 4500MHD

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1366 x 768 pixels
Processor: Intel® Celeron®
Memory: 3 GB
Storage: 320 GB
Graphics: Intel® GMA 4500MHD

Brand: Samsung
Category: Laptop
Model: P530-JA07IT
Part number: NP-P530-JA07IT
EAN / UPC: 8806071299303
Also known as: Samsung P P530-JA07IT Intel® Celeron® P4600 39.6 cm (15.6") 3 GB DDR2-SDRAM 320 GB Intel® GMA 4500MHD Windows 7 Professional Black

Specifications

149 specifications in 22 groups

Design

Specification	Value
Product colour	Black

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1366 x 768 pixels
Display number of colours	16.78 million colours
LED backlight	Yes
Native aspect ratio	16:9
Contrast ratio (typical)	300:1

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor model	P4600
Processor cores	2
Processor threads	2
Processor frequency	2 GHz
System bus rate	2.5 GT/s
Processor cache	2 MB
Processor cache type	Smart Cache
Processor front side bus	1066 MHz
Processor socket	Socket 988
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Celeron Processor P4000 Series for Mobile
Processor codename	Arrandale
Bus type	DMI
FSB Parity	No
Stepping	K0
Thermal Design Power (TDP)	35 W
Tjunction	90 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16
PCI Express slots version	2.0
Number of Processing Die Transistors	382 M
Processing Die size	81 mm²
CPU multiplier (bus/core ratio)	15
ECC supported by processor	No

Memory

Specification	Value
Internal memory	3 GB
Internal memory type	DDR2-SDRAM
Memory clock speed	1066 MHz
Memory layout (slots x size)	1 x 1 + 1 x 2 GB
Memory slots	2x SO-DIMM

Storage

Specification	Value
Total storage capacity	320 GB
Number of HDDs installed	1
HDD capacity	320 GB
HDD interface	SATA
HDD speed	5400 RPM
Optical drive type	DVD Super Multi DL
Card reader integrated	Yes
Compatible memory cards	MMC, SD, SDHC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	Intel® GMA 4500MHD
Graphics card family	Intel
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
On-board graphics card base frequency	500 MHz
On-board graphics card dynamic frequency (max)	667 MHz

Audio

Specification	Value
Audio system	HD
Number of built-in speakers	2
Speaker power	1.5 W
Audio system direct 3D sound	Yes

Camera

Specification	Value
Front camera resolution (numeric)	0.3 MP

Optical drive

Specification	Value
CD read speed	24x
CD write speed	24x

Network

Specification	Value
Wi-Fi	Yes
Networking features	Gigabit Ethernet, WLAN
Wireless technology	Wi-Fi
Ethernet LAN	Yes
Bluetooth	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
eSATA/USB 2.0 ports quantity	0
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	0
Mini DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Thunderbolt ports quantity	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
Modem (RJ-11) ports	0
TV-out	No
PS/2 ports quantity	0

Performance

Specification	Value
Motherboard chipset	Intel® HM55 Express

Keyboard

Specification	Value
Pointing device	Touchpad

Software

Specification	Value
Operating system installed	Windows 7 Professional

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	45 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Physical Address Extension (PAE)	36 bit
Processor ARK ID	52301
Processor code	SLBZY
Processor package size	37.5x37.5 mm
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	6

Power

Specification	Value
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Password protection type	BIOS
HDD user password	Yes

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Weight & dimensions

Specification	Value
Weight	2.5 kg
Width	379.8 mm
Depth	255.5 mm
Height (front)	2.99 cm
Height (rear)	3.62 cm

Packaging content

Specification	Value
AC adapter included	Yes
Remote control included	No

Other features

Specification	Value
Infrared data port	No
Power requirements	100 - 240V
Power supply type	AC/DC
Internal modem	No
TV tuner integrated	No
Supplied AC adapter type	AC
