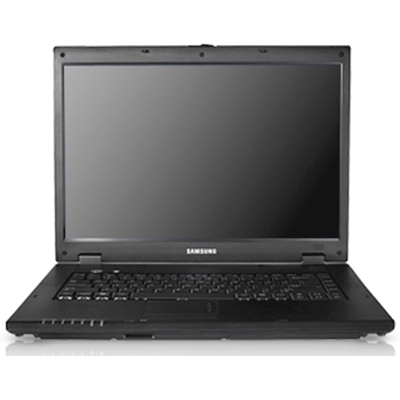

Samsung P P500-RA02UA Intel® Pentium® T2390

39.1 cm (15.4") 1 GB DDR2-SDRAM 160 GB AMD Radeon Xpress 1250 Windows XP Professional Black

Model P500-RA02UAPart no. NP-P500-RA02UA

132 specifications Checked 2 days ago

Display39.1 cm (15.4")
Resolution1280 x 800 pixels
ProcessorIntel® Pentium®
Memory1 GB
Storage160 GB
GraphicsAMD Radeon Xpress 1250

See all specifications

Overview

Display: 39.1 cm (15.4")
Resolution: 1280 x 800 pixels
Processor: Intel® Pentium®
Memory: 1 GB
Storage: 160 GB
Graphics: AMD Radeon Xpress 1250

Brand: Samsung
Category: Laptop
Model: P500-RA02UA
Part number: NP-P500-RA02UA
Also known as: Samsung P P500-RA02UA Intel® Pentium® T2390 39.1 cm (15.4") 1 GB DDR2-SDRAM 160 GB AMD Radeon Xpress 1250 Windows XP Professional Black

Specifications

132 specifications in 20 groups

Design

Specification	Value
Product colour	Black

Display

Specification	Value
Display diagonal	39.1 cm (15.4")
Display resolution	1280 x 800 pixels
Native aspect ratio	16:10
Display surface	Matt
Display brightness	200 cd/m²
Pixel pitch	0.25875 x 0.25875 mm

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Pentium®
Processor model	T2390
Processor cores	2
Processor threads	2
Processor frequency	1.86 GHz
Processor cache	1 MB
Processor cache type	L2
Processor front side bus	533 MHz
Processor socket	Socket M (mPGA478MT)
Processor lithography	65 nm
Processor operating modes	32-bit
Processor series	Intel Pentium T2000 Series for Mobile
Processor codename	Merom
Bus type	FSB
FSB Parity	No
Stepping	M0
Thermal Design Power (TDP)	35 W
Tjunction	100 °C
Number of Processing Die Transistors	291 M
Processing Die size	143 mm²
CPU multiplier (bus/core ratio)	14
ECC supported by processor	No

Memory

Specification	Value
Internal memory	1 GB
Internal memory type	DDR2-SDRAM
Memory clock speed	667 MHz
Maximum internal memory	4 GB

Storage

Specification	Value
Total storage capacity	160 GB
HDD interface	SATA
HDD speed	5400 RPM
Optical drive type	DVD Super Multi DL
Card reader integrated	Yes
Compatible memory cards	MMC, SD

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	AMD Radeon Xpress 1250
Maximum graphics card memory	0.256 GB

Audio

Specification	Value
Audio system	HD
Number of built-in speakers	2
Speaker power	4 W

Camera

Specification	Value
Front camera	No

Network

Specification	Value
Networking type	Ethernet LAN, WLAN
Wireless technology	802.11b/g
Bluetooth	Yes
Bluetooth version	2.0+EDR
Cabling technology	10/100Base-T(X)

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	Yes
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
Modem (RJ-11) ports	1
TV-in port	No
TV-out	No
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0

Performance

Specification	Value
Motherboard chipset	ATI RS600ME

Keyboard

Specification	Value
Keyboard number of keys	89

Software

Specification	Value
Operating system installed	Windows XP Professional
Drivers included	Yes
Bundled software	Samsung Magic Doctor Samsung Update Plus Samsung Recovery Solution II

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	35153
Processor code	SLA4H
Processor package size	35 x 35 mm
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	6
Battery life (max)	4 h

Power

Specification	Value
AC adapter power	60 W
AC adapter input voltage	100 - 240 V
AC adapter output current	3.16 A
AC adapter output voltage	19 V
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Password protection type	BIOS
HDD user password	Yes

Weight & dimensions

Specification	Value
Weight	2.68 kg
Width	358 mm
Depth	262 mm
Height (front)	3.1 cm
Height (rear)	3.5 cm

Packaging content

Specification	Value
AC adapter included	Yes

Other features

Specification	Value
Infrared data port	No
Display viewable area (HxV)	331.2 x 207 mm
Internal modem	Yes
Modem speed	56 Kbit/s
Modem type	V.92
Supplied AC adapter type	AC, UP
