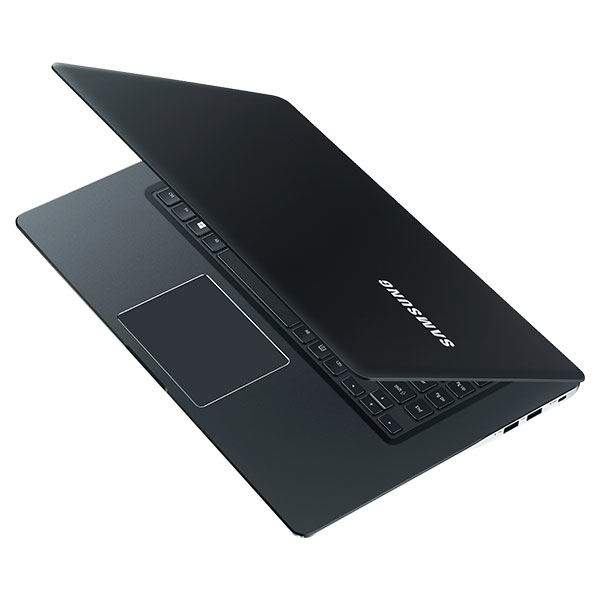

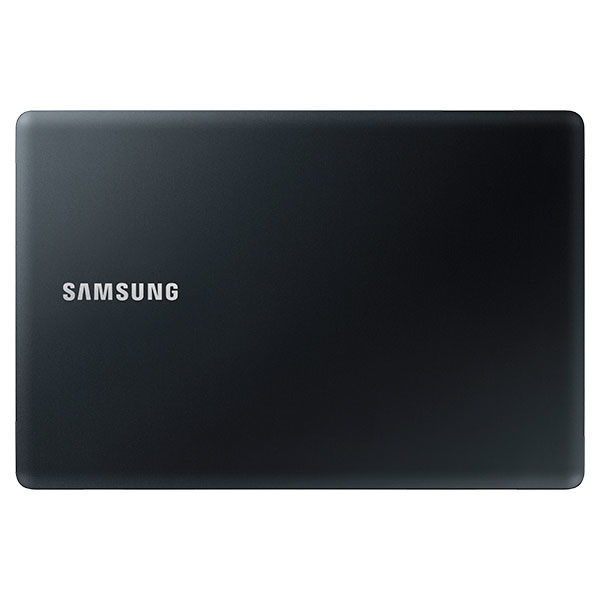

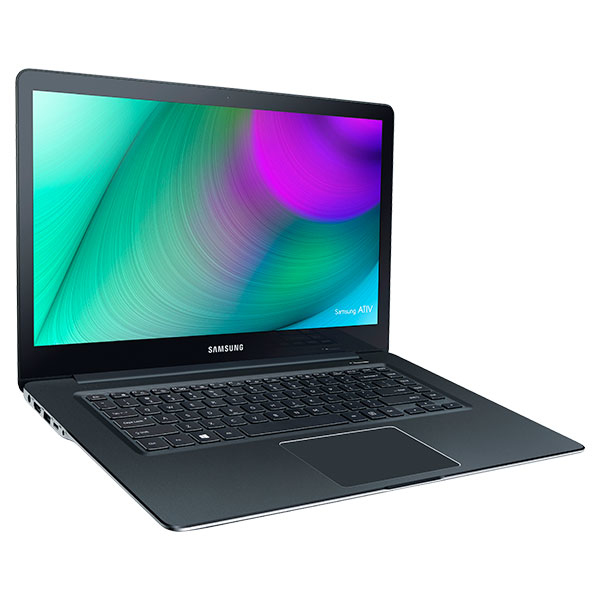

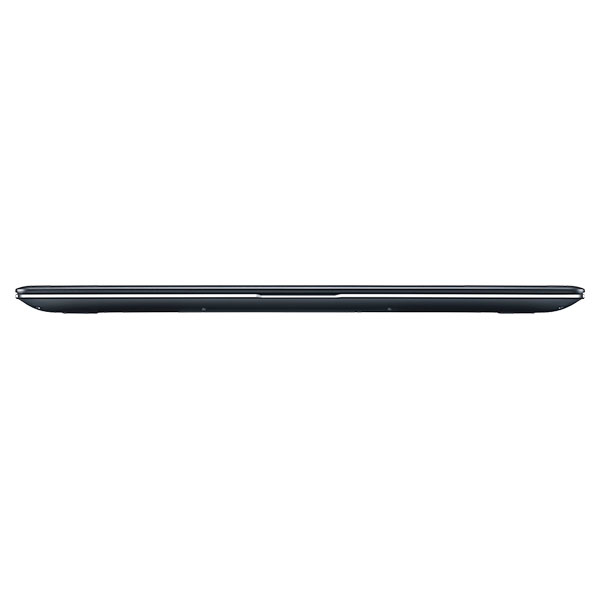

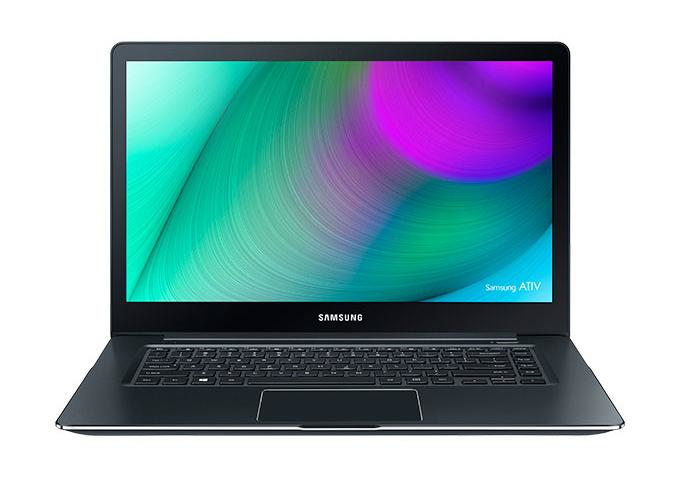

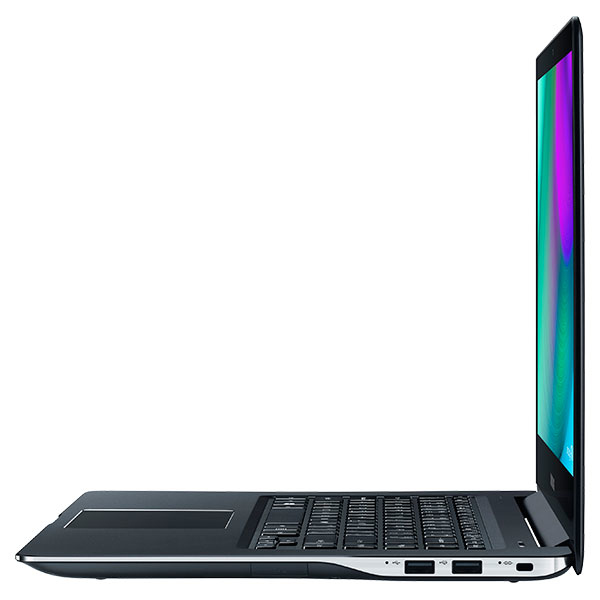

Samsung ATIV NP940Z5L Intel® Core™ i7 i7-6700HQ Laptop

39.6 cm (15.6") Touchscreen 4K Ultra HD 8 GB LPDDR3-SDRAM 256 GB SSD NVIDIA® GeForce® GTX 950M Windows 10

Model NP940Z5LPart no. NP940Z5L-X01US

162 specifications Checked 3 days ago

Display39.6 cm (15.6")
Resolution3840 x 2160 pixels
ProcessorIntel® Core™ i7
Memory8 GB
Storage256 GB
GraphicsNVIDIA® GeForce® GTX 950M

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 3840 x 2160 pixels
Processor: Intel® Core™ i7
Memory: 8 GB
Storage: 256 GB
Graphics: NVIDIA® GeForce® GTX 950M

Brand: Samsung
Category: Laptop
Model: NP940Z5L
Part number: NP940Z5L-X01US
Also known as: Samsung ATIV NP940Z5L Intel® Core™ i7 i7-6700HQ Laptop 39.6 cm (15.6") Touchscreen 4K Ultra HD 8 GB LPDDR3-SDRAM 256 GB SSD NVIDIA® GeForce® GTX 950M Windows 10

Specifications

162 specifications in 19 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Form factor	Clamshell
Market positioning	Gaming

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	3840 x 2160 pixels
Touchscreen	Yes
Touchscreen type	Capacitive
HD type	4K Ultra HD
LED backlight	Yes
Native aspect ratio	16:9
Display brightness	350 cd/m²

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	6th gen Intel® Core™ i7
Processor model	i7-6700HQ
Processor cores	4
Processor threads	8
Processor boost frequency	3.5 GHz
Processor frequency	2.6 GHz
System bus rate	8 GT/s
Processor cache	6 MB
Processor cache type	Smart Cache
Processor socket	BGA 1440
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-6700 Mobile series
Processor codename	Skylake
Bus type	DMI3
FSB Parity	No
Stepping	R0
Thermal Design Power (TDP)	45 W
Configurable TDP-down	35 W
Tjunction	100 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	LPDDR3-SDRAM
Memory clock speed	1866 MHz
Memory layout (slots x size)	1 x 8 GB
Maximum internal memory	8 GB

Storage

Specification	Value
Total storage capacity	256 GB
Storage media	SSD
Number of SSDs installed	1
SSD capacity	256 GB
SSD interface	SATA III
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA® GeForce® GTX 950M
Discrete graphics card memory	2 GB
Discrete graphics memory type	GDDR5
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 530
Maximum on-board graphics card memory	1.7 GB
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1050 MHz
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.4
On-board graphics card ID	0x191B
Graphics card Open GL support	Yes
CUDA	Yes
CUDA cores	640
NVIDIA GameWorks VR	Yes

Audio

Specification	Value
Audio system	SoundAlive
Number of built-in speakers	4
Speaker power	8 W

Camera

Specification	Value
Front camera	Yes
Rear camera	No

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	4.1

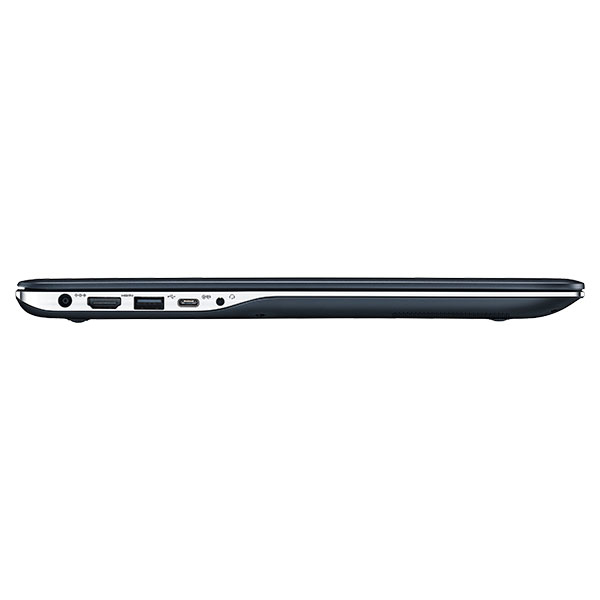

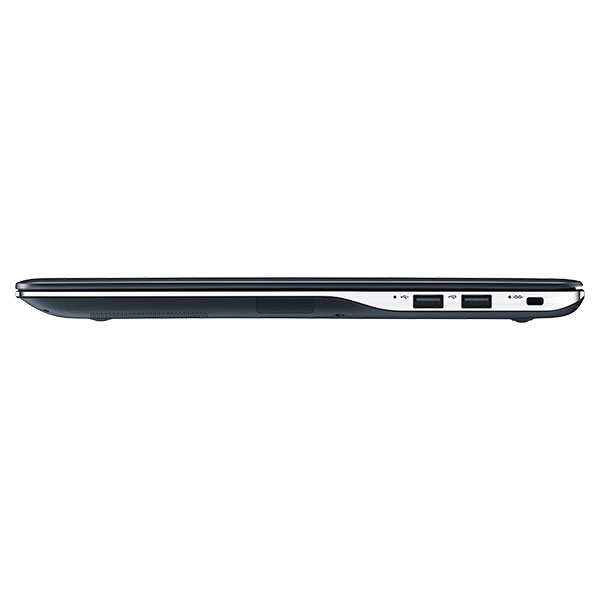

Ports & interfaces

Specification	Value
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
HDMI ports quantity	1
DisplayPorts quantity	1
DVI port	No
Headphone outputs	1
Combo headphone/mic port	Yes
Microphone in	Yes
Docking connector	No
USB Sleep-and-Charge	Yes

Performance

Specification	Value
Motherboard chipset	Intel® HM170

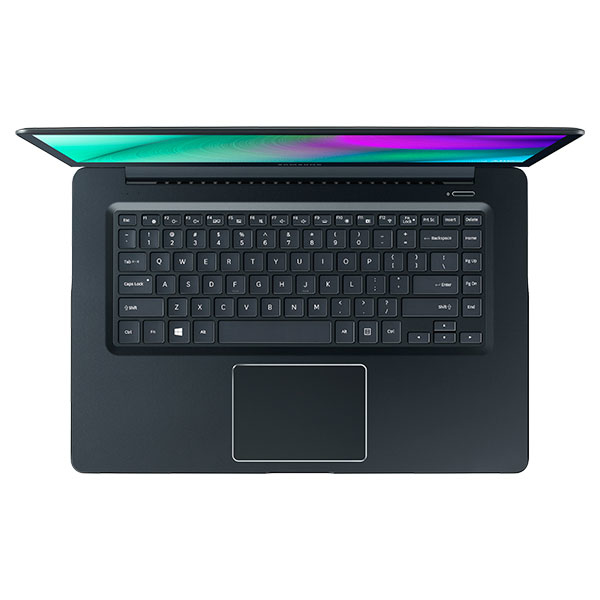

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	No
Full-size keyboard	No
Windows keys	Yes
Number of hot keys	86
Keyboard layout	QWERTY

Software

Specification	Value
Operating system installed	Windows 10 Home
Bundled software	Samsung SideSync 4.0 Samsung Link 2.0

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	14 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Smart Response Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	Yes
Intel® Smart Cache	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	88967
Processor code	SR2FQ
Processor package size	42 x 28 mm
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity	3780 mAh
Battery capacity	57 Wh
Battery life (max)	6.5 h

Power

Specification	Value
AC adapter power	90 W

Security

Specification	Value
Password protection	Yes
Password protection type	BIOS, HDD

Weight & dimensions

Specification	Value
Weight	2.02 kg
Width	373.8 mm
Depth	249.6 mm
Height	17.7 mm

Packaging content

Specification	Value
AC adapter included	Yes
