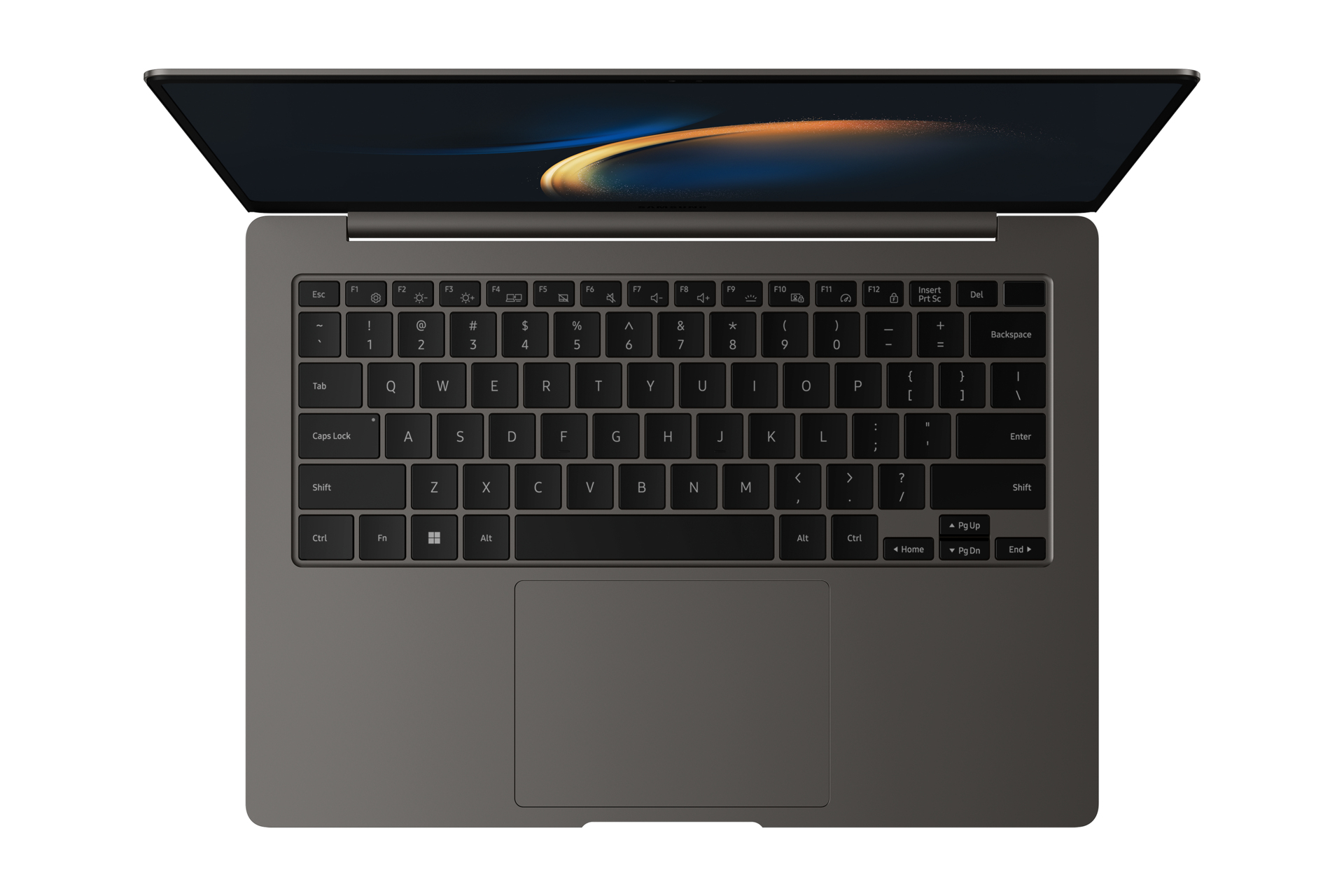

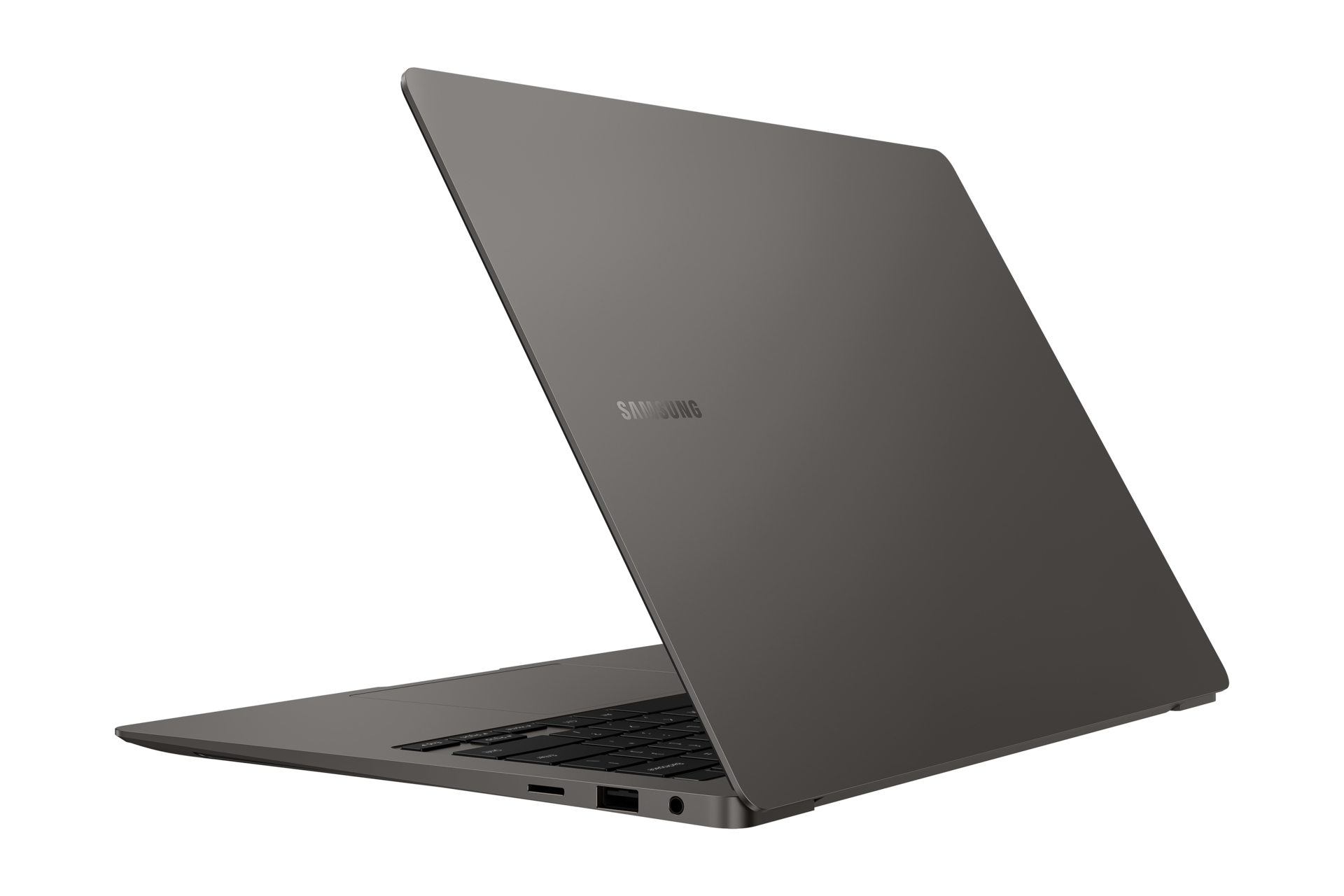

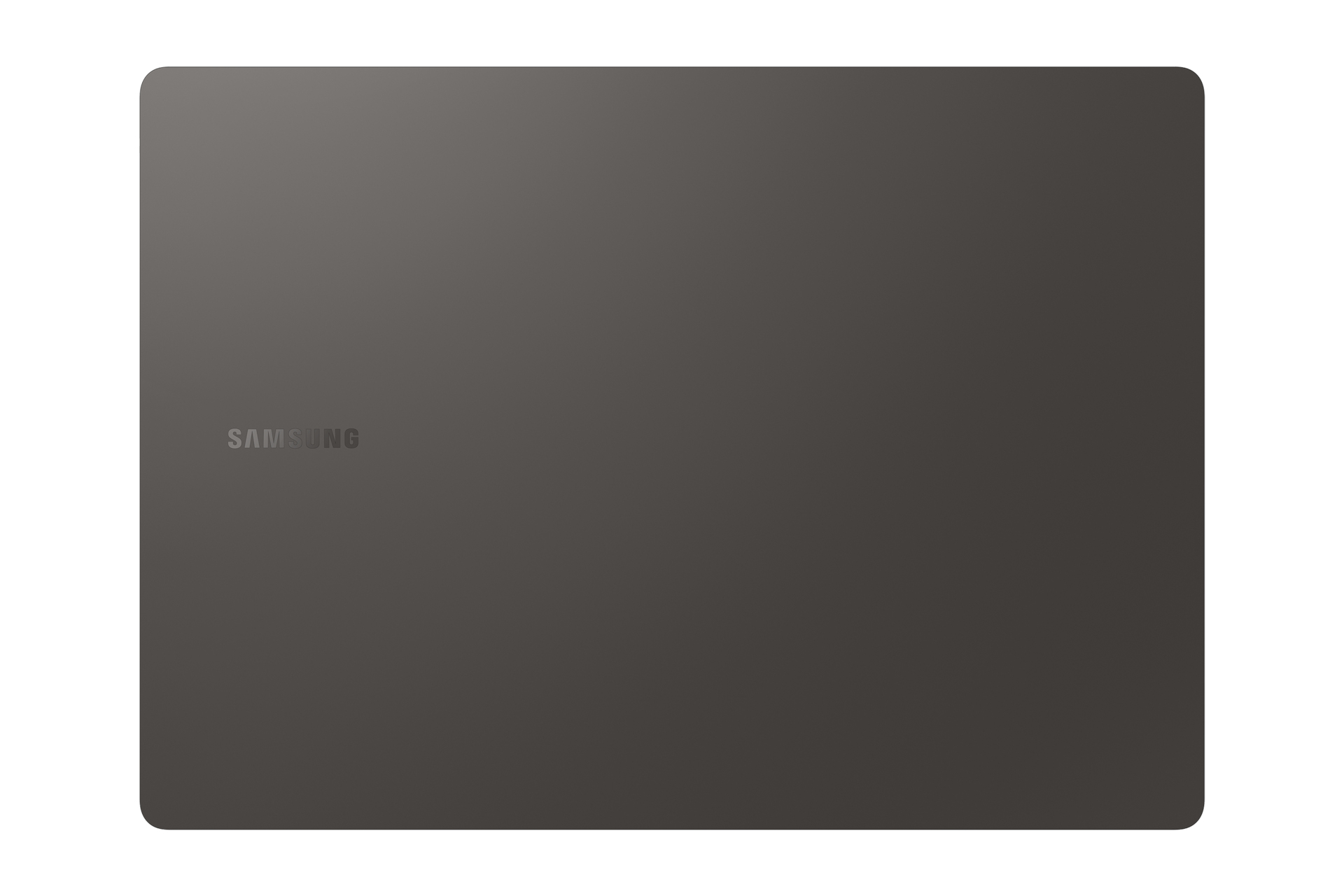

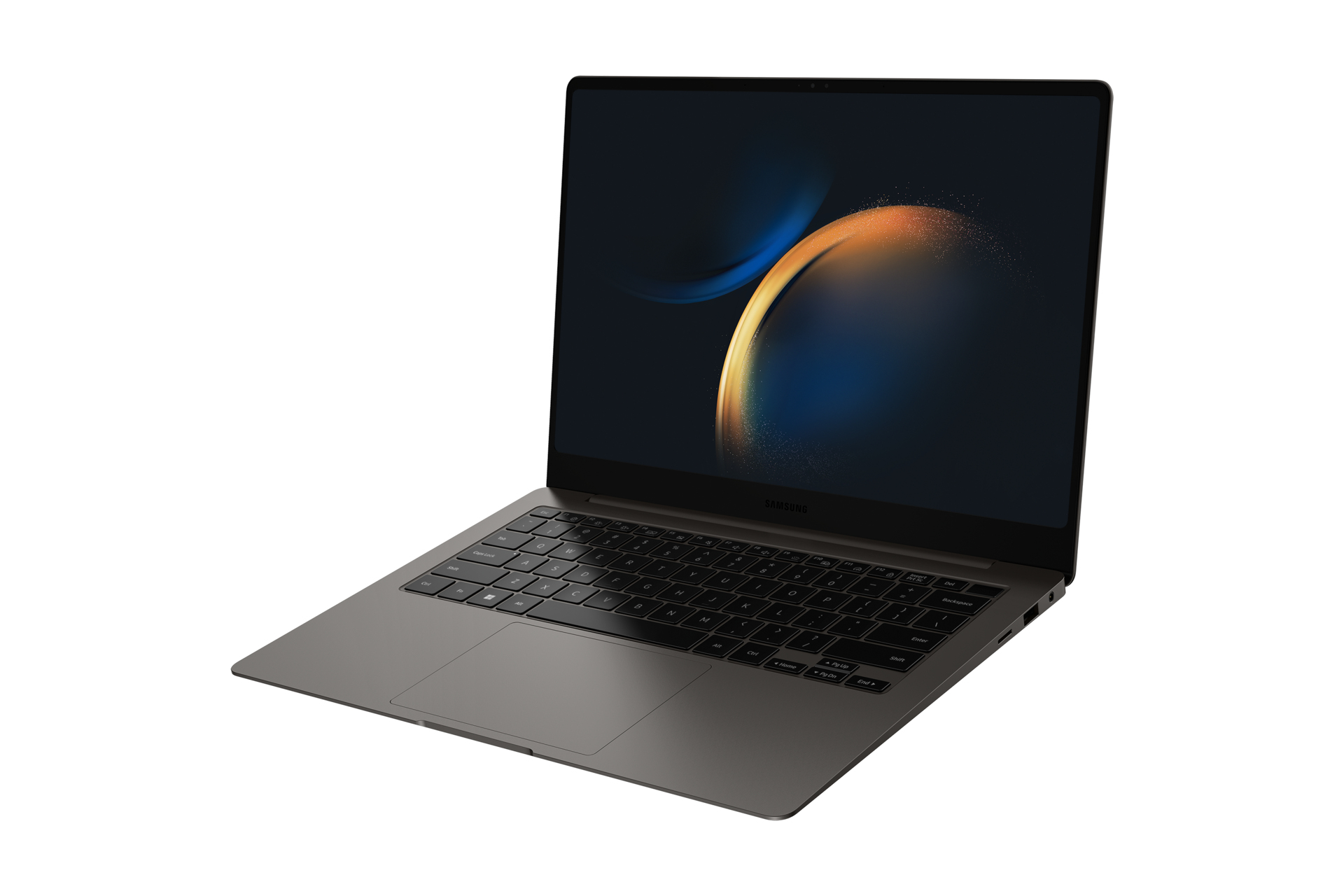

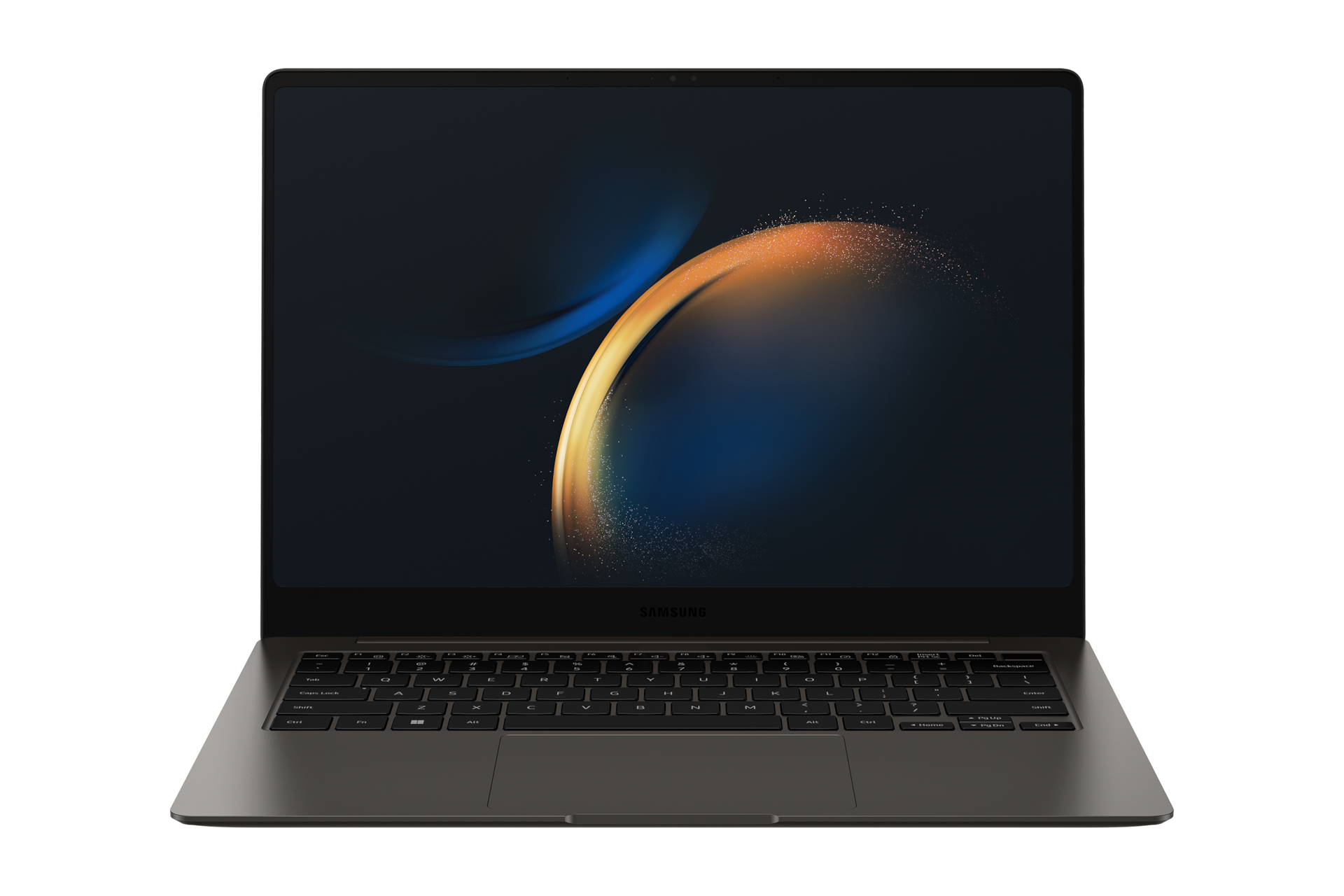

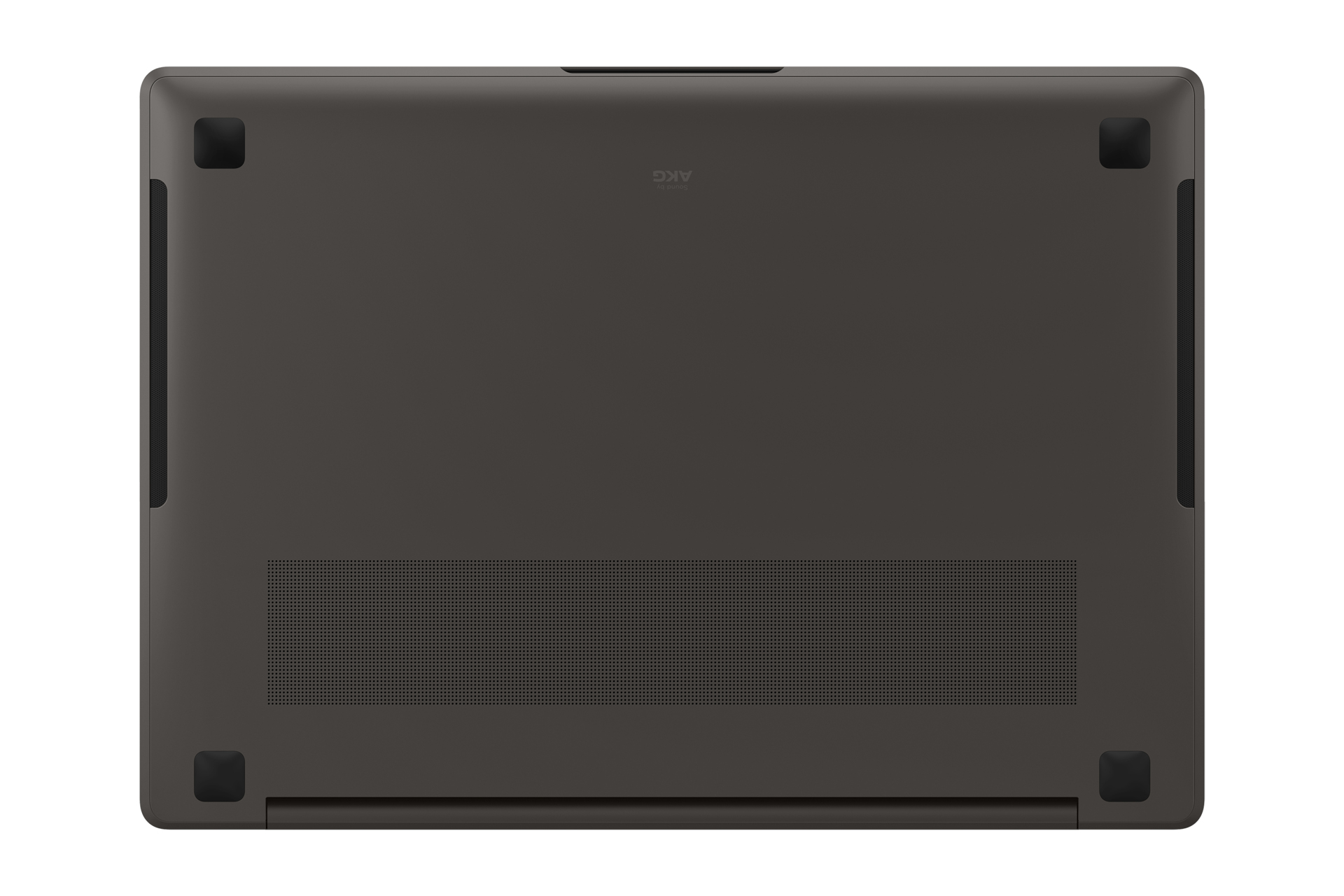

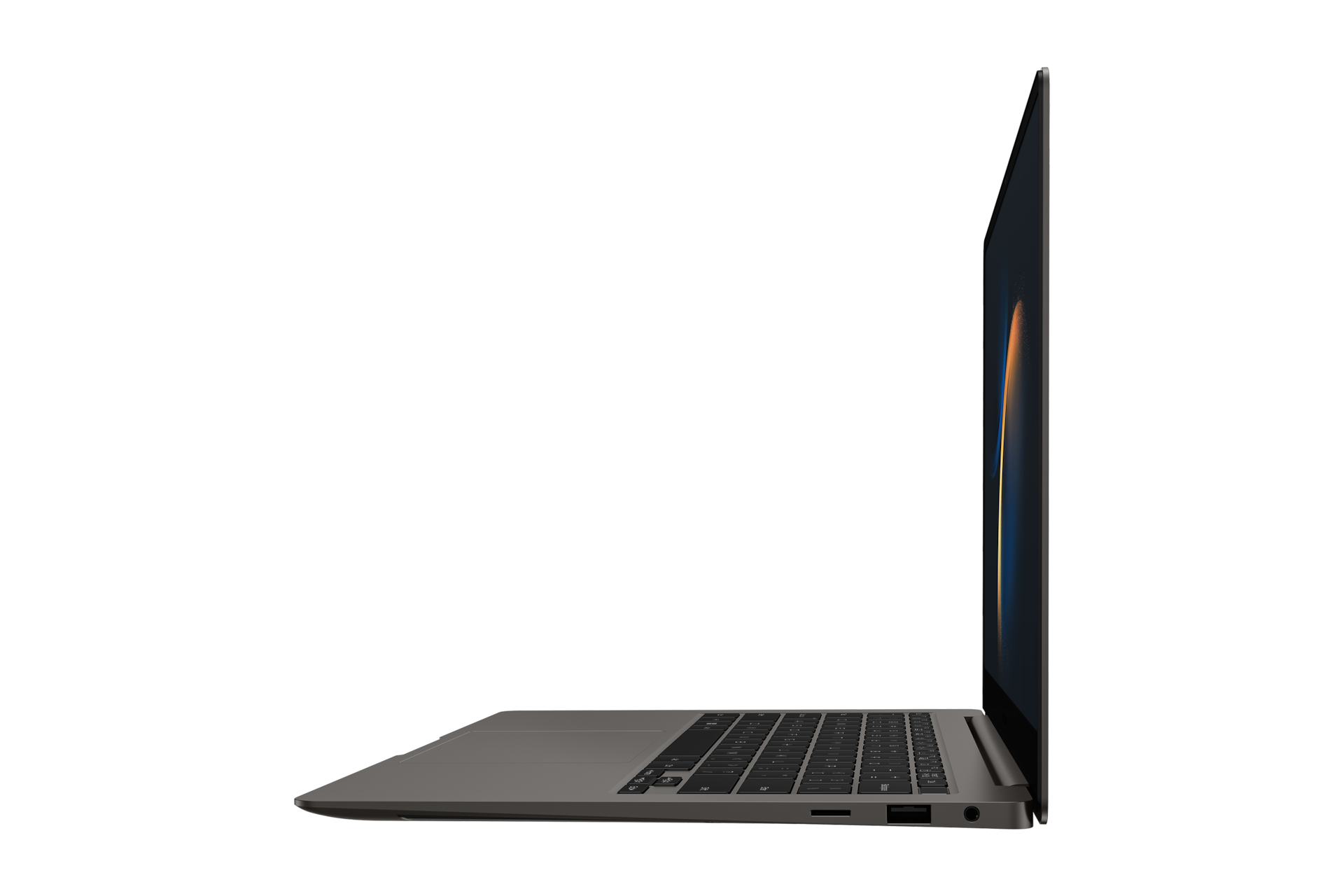

Samsung Galaxy Book3 Pro NP940XFGA Intel® Core™ i5 i5-1340P Laptop

Galaxy Book3 Pro NP940XFGA Intel® Core™ i5 i5-1340P Laptop

35.6 cm (14") WQXGA+ 8 GB LPDDR5-SDRAM 256 GB SSD Wi-Fi 6E (802.11ax) Windows 11 Home Graphit

Model NP940XFGAPart no. NP940XFG-KC1DEEAN 8806094881332

94 specifications Checked today

Display35.6 cm (14")
Resolution2880 x 1800 pixels
ProcessorIntel® Core™ i5
Memory8 GB
Storage256 GB
GraphicsNot available

See all specifications

Overview

Display: 35.6 cm (14")
Resolution: 2880 x 1800 pixels
Processor: Intel® Core™ i5
Memory: 8 GB
Storage: 256 GB
Graphics: Not available

Brand: Samsung
Category: Laptop
Model: NP940XFGA
Part number: NP940XFG-KC1DE
EAN / UPC: 8806094881332
Also known as: Samsung Galaxy Book3 Pro NP940XFGA Intel® Core™ i5 i5-1340P Laptop 35.6 cm (14") WQXGA+ 8 GB LPDDR5-SDRAM 256 GB SSD Wi-Fi 6E (802.11ax) Windows 11 Home Graphit

Specifications

94 specifications in 18 groups

Design

Specification	Value
Product type	Laptop
Product colour	Graphite
Form factor	Clamshell
Housing material	Aluminium
Introduction year	2023
Original brand name	Samsung

Display

Specification	Value
Display diagonal	35.6 cm (14")
Display resolution	2880 x 1800 pixels
Touchscreen	No
HD type	WQXGA+
Panel type	AMOLED
Native aspect ratio	16:10
Colour gamut	120%
Display diagonal (metric)	35.6 cm
RGB colour space	DCI-P3
Maximum refresh rate	120 Hz

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	13th gen Intel® Core™ i5
Processor model	i5-1340P
Processor cores	12
Processor threads	16
Processor boost frequency	4.6 GHz
Performance cores	4
Efficient cores	8
Performance-core Max Turbo Frequency	4.6 GHz
Efficient-core Max Turbo Frequency	3.4 GHz
Processor cache	12 MB
Processor cache type	Smart Cache
Maximum turbo power	64 W
Processor base power	28 W

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	LPDDR5-SDRAM
Memory form factor	On-board
Maximum internal memory	16 GB

Storage

Specification	Value
Total storage capacity	256 GB
Storage media	SSD
Total SSDs capacity	256 GB
Number of SSDs installed	1
SSD capacity	256 GB
NVMe	Yes
SSD interface	PCI Express
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card family	Intel Iris Xe Graphics
On-board graphics card model	Intel Iris Xe Graphics
On-board graphics card 4K support	Yes
On-board graphics card 6K support	Yes
Graphics card Open GL support	Yes

Audio

Specification	Value
Audio system	Dolby Atmos
Number of built-in speakers	4
Speakers manufacturer	AKG
Speaker power	2 W
Built-in subwoofer	Yes
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera HD type	Full HD
Front camera resolution	1920 x 1080 pixels

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
Antenna type	2x2
Bluetooth	Yes
Bluetooth version	5.1

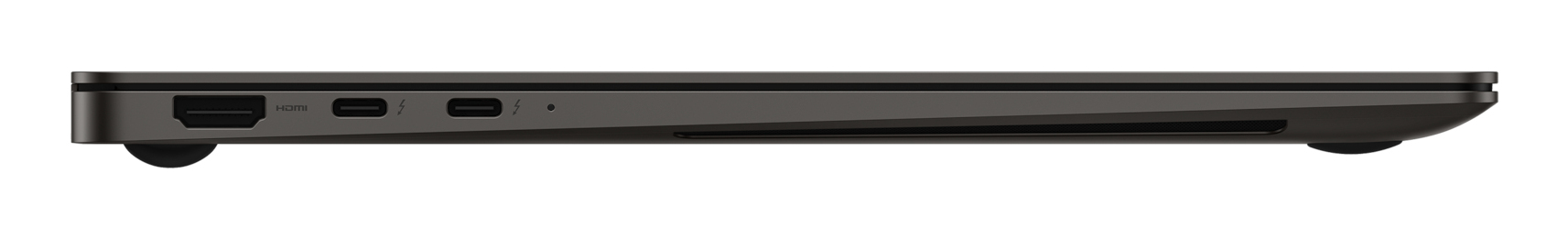

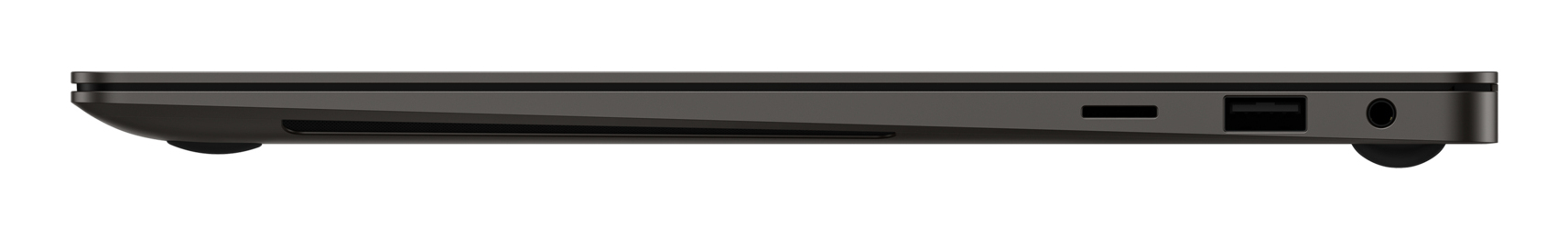

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
HDMI ports quantity	1
HDMI version	2.0
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes

Performance

Specification	Value
Ambient light sensor	Yes

Keyboard

Specification	Value
Pointing device	Clickpad
Keyboard backlit	Yes
Numeric keypad	No

Software

Specification	Value
Operating system installed	Windows 11 Home

Battery

Specification	Value
Battery capacity	63 Wh
Fast charging	Yes

Power

Specification	Value
AC adapter power	65 W
USB Type-C charging port	Yes

Security

Specification	Value
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes

Weight & dimensions

Specification	Value
Weight	1.17 kg
Width	312.3 mm
Depth	223.8 mm
Height	11.3 mm

Packaging content

Specification	Value
AC adapter included	Yes
