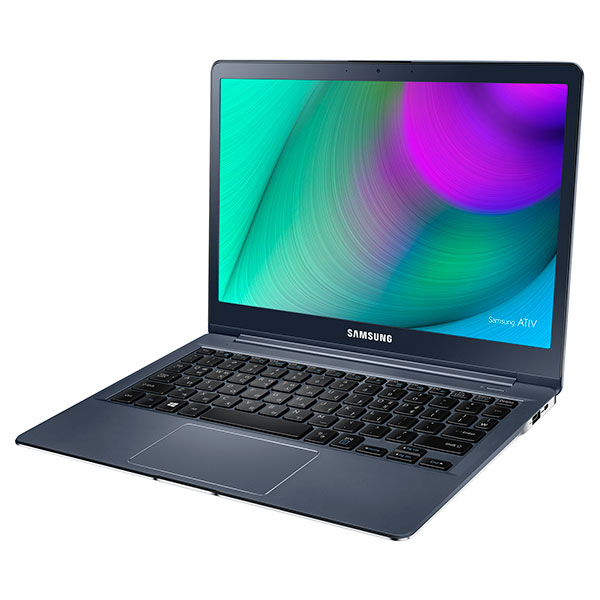

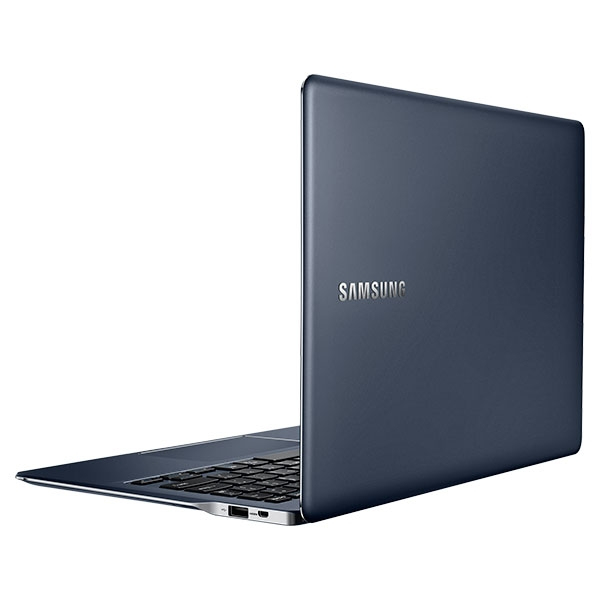

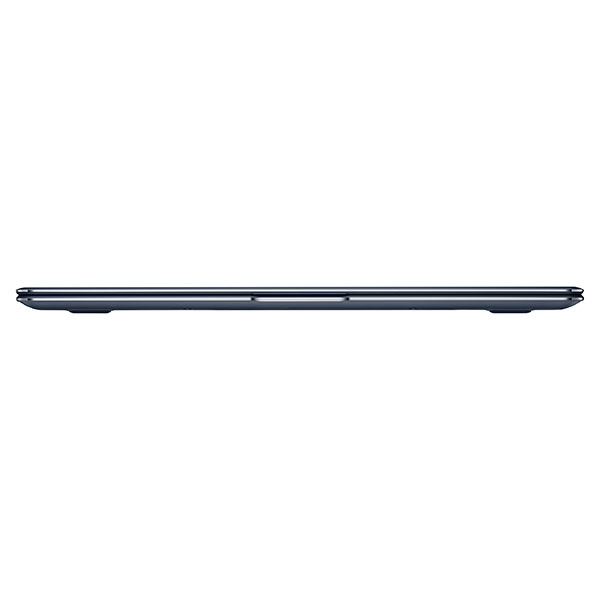

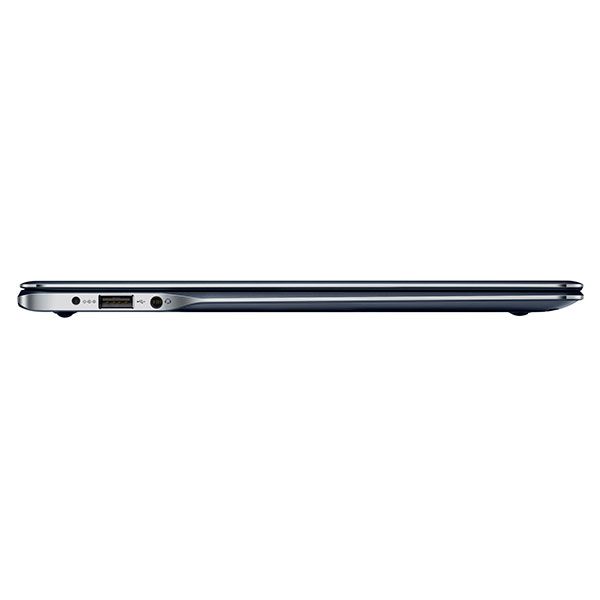

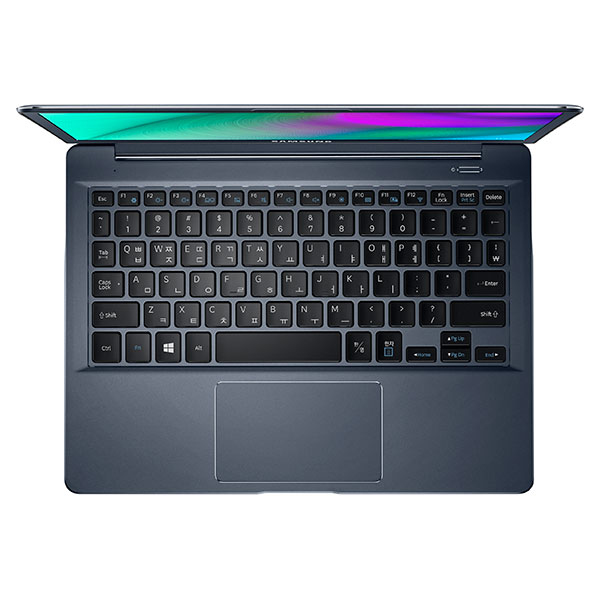

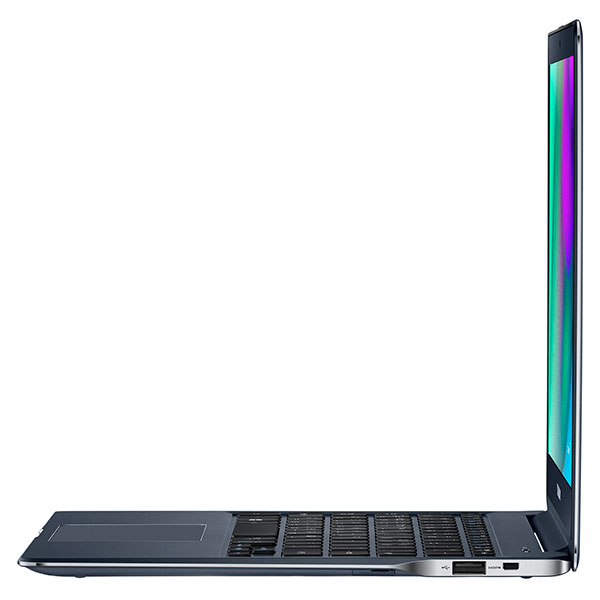

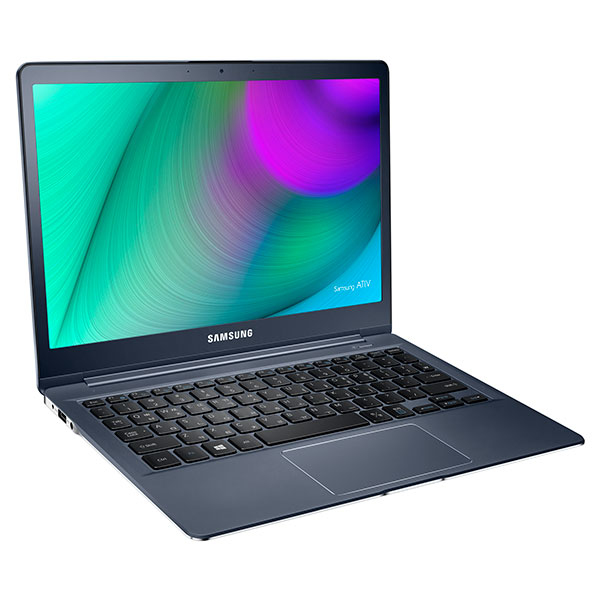

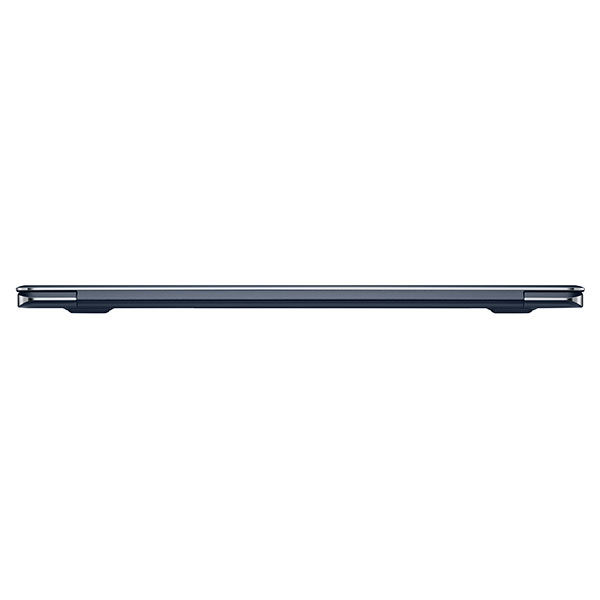

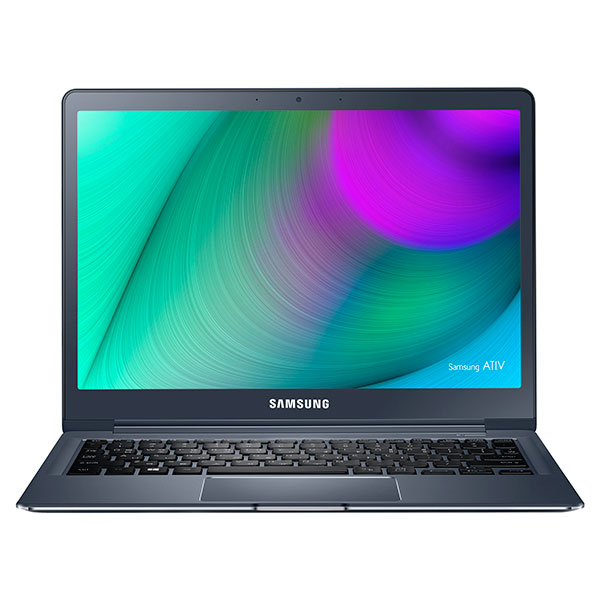

Samsung ATIV Book 9 NP930X2K Intel® Core™ M M-5Y31 Laptop

31 cm (12.2") Quad HD 4 GB LPDDR3L-SDRAM 128 GB SSD Wi-Fi 5 (802.11ac) Windows 8.1 Black

Model NP930X2KPart no. NP930X2K-K03USEAN 887276093482

163 specifications Checked 4 days ago

Display31 cm (12.2")
Resolution2560 x 1600 pixels
ProcessorIntel® Core™ M
Memory4 GB
Storage128 GB
GraphicsNot available

See all specifications

Overview

Display: 31 cm (12.2")
Resolution: 2560 x 1600 pixels
Processor: Intel® Core™ M
Memory: 4 GB
Storage: 128 GB
Graphics: Not available

Brand: Samsung
Category: Laptop
Model: NP930X2K
Part numbers: NP930X2K-K03US, NP930X2K-K06CN, NP930X2K-KW1BR, NP930X2K-K07CN, NP930X2K-KD1BR, NP930X2K-S02US +3 more
EAN / UPC: 887276093482, 887276093475, 8806088088051, 8806086867108
Also known as: Samsung ATIV Book 9 NP930X2K Intel® Core™ M M-5Y31 Laptop 31 cm (12.2") Quad HD 4 GB LPDDR3L-SDRAM 128 GB SSD Wi-Fi 5 (802.11ac) Windows 8.1 Black

Specifications

163 specifications in 19 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Form factor	Clamshell
Housing material	Aluminium

Display

Specification	Value
Display diagonal	31 cm (12.2")
Display resolution	2560 x 1600 pixels
Touchscreen	No
HD type	Quad HD
LED backlight	Yes
Native aspect ratio	16:10
Display brightness	350 cd/m²

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ M
Processor generation	Intel® Core™ m-5xxx
Processor model	M-5Y31
Processor cores	2
Processor threads	4
Processor boost frequency	2.4 GHz
Processor frequency	0.9 GHz
Processor cache	4 MB
Processor cache type	L3
Processor socket	BGA 1234
Processor lithography	14 nm
Processor operating modes	32-bit, 64-bit
Processor series	Intel Core M-5Y Mobile series
Processor codename	Broadwell
FSB Parity	No
Stepping	F0
Thermal Design Power (TDP)	4.5 W
Configurable TDP-up frequency	1.1 GHz
Configurable TDP-up	6 W
Configurable TDP-down	3.5 W
Configurable TDP-down frequency	0.6 GHz
Scenario Design Power (SDP)	3.5 W
Tjunction	95 °C
Maximum number of PCI Express lanes	12
PCI Express configurations	x1 (6), x2 (4), x4 (3)
PCI Express slots version	2.0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	LPDDR3L-SDRAM
Memory clock speed	1600 MHz
Memory layout (slots x size)	1 x 4 GB
Memory slots	1x SO-DIMM
Maximum internal memory	4 GB

Storage

Specification	Value
Total storage capacity	128 GB
Storage media	SSD
Number of SSDs installed	1
SSD capacity	128 GB
SSD interface	SATA III
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 5300
Maximum on-board graphics card memory	16 GB
On-board graphics card base frequency	300 MHz
On-board graphics card dynamic frequency (max)	850 MHz
On-board graphics card DirectX version	11.2
On-board graphics card ID	0x161E

Audio

Specification	Value
Number of built-in speakers	2
Speaker power	1.5 W
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes

Optical drive

Specification	Value
LightScribe	No

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	4.0

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	1
DVI port	No
Thunderbolt ports quantity	0
Micro HDMI ports quantity	1
Headphone outputs	1
S/PDIF out port	No
Combo headphone/mic port	Yes
Docking connector	No
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
USB Sleep-and-Charge	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	No
Keyboard number of keys	80
Windows keys	Yes

Software

Specification	Value
Operating system installed	Windows 8.1
Operating system architecture	64-bit
Bundled software	Samsung SideSync 3.0 Samsung Link 2.0

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	14 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Smart Response Technology version	1.00
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	No
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	Yes
Intel® Smart Cache	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	2.0
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
Processor ARK ID	84666
Processor code	SR23G
Processor package size	30 x 16.5 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Number of battery cells	2
Battery capacity	35 Wh
Battery capacity	4700 mAh
Battery life (max)	12.5 h

Power

Specification	Value
AC adapter power	26 W
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	No
Password protection	Yes
Password protection type	BIOS, HDD

Weight & dimensions

Specification	Value
Weight	948 g
Width	212.6 mm
Depth	284.2 mm
Height	11.7 mm

Packaging content

Specification	Value
AC adapter included	Yes
