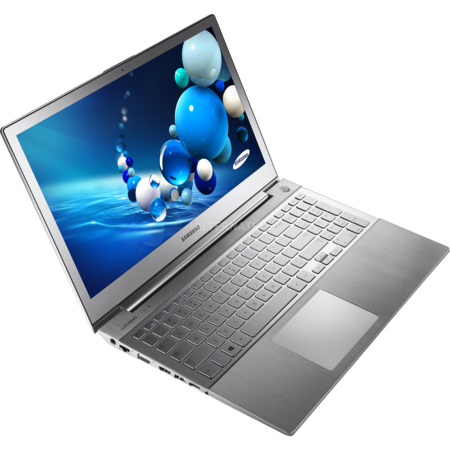

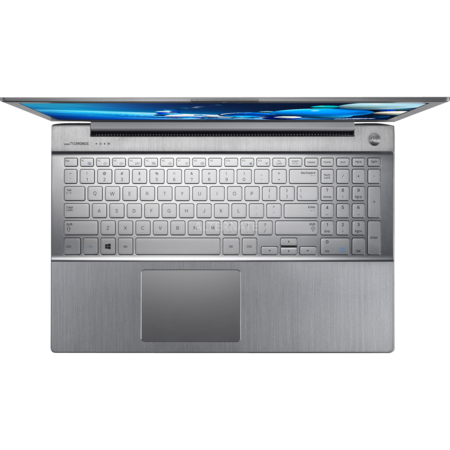

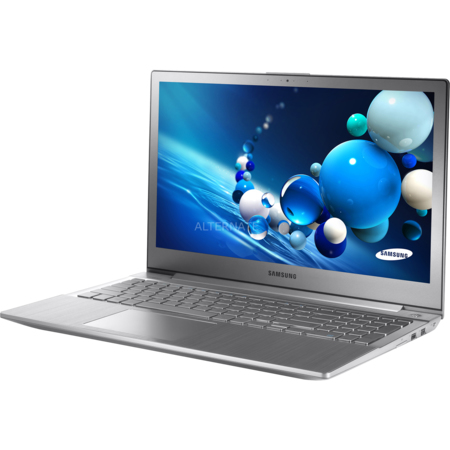

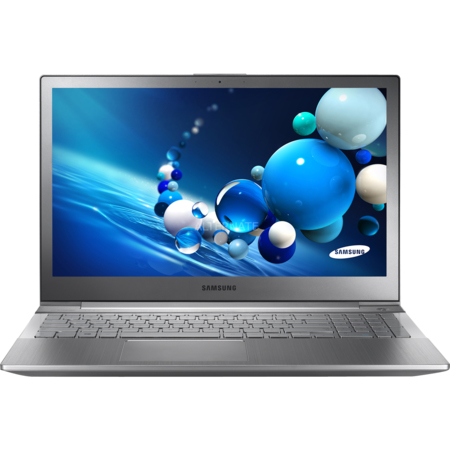

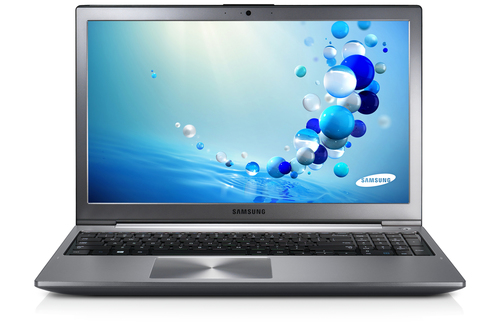

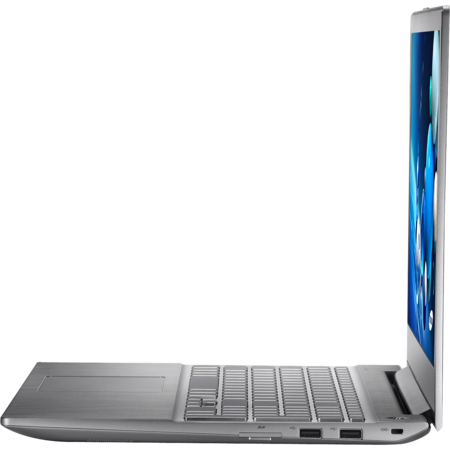

Samsung 7 NP770Z5E Intel® Core™ i7 i7-3635QM Laptop

39.6 cm (15.6") Full HD 8 GB DDR3-SDRAM 256 GB SSD AMD Radeon HD 8870M Windows 8 Pro Silver QWERTZ

Model NP770Z5EPart no. NP770Z5E-S01ITEAN 8806085410503

132 specifications Checked 2 days ago

Display39.6 cm (15.6")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i7
Memory8 GB
Storage256 GB
GraphicsAMD Radeon HD 8870M

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i7
Memory: 8 GB
Storage: 256 GB
Graphics: AMD Radeon HD 8870M

Brand: Samsung
Category: Laptop
Model: NP770Z5E
Part numbers: NP770Z5E-S01IT, NP770Z5E-S02SE, NP770Z5E-S01SG, NP770Z5E-S02CH, NP770Z5E-S02DE, NP770Z5E-S01DE
EAN / UPC: 8806085410503, 8806085377752, 8806085386105, 8806085493186
Also known as: Samsung 7 NP770Z5E Intel® Core™ i7 i7-3635QM Laptop 39.6 cm (15.6") Full HD 8 GB DDR3-SDRAM 256 GB SSD AMD Radeon HD 8870M Windows 8 Pro Silver QWERTZ

Specifications

132 specifications in 20 groups

Design

Specification	Value
Product type	Laptop
Product colour	Silver
Form factor	Clamshell

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
LED backlight	Yes
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	3rd gen Intel® Core™ i7
Processor model	i7-3635QM
Processor cores	4
Processor threads	8
Processor boost frequency	3.4 GHz
Processor frequency	2.4 GHz
System bus rate	5 GT/s
Processor cache	6 MB
Processor cache type	Smart Cache
Processor socket	BGA 1224
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-3600 Mobile series
Processor codename	Ivy Bridge
Bus type	DMI
Thermal Design Power (TDP)	35 W
Tjunction	105 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 1x8, 2x4, 2x8
PCI Express slots version	3.0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR3-SDRAM
Memory clock speed	1600 MHz

Storage

Specification	Value
Total storage capacity	256 GB
Storage media	SSD
Number of SSDs installed	1
SSD capacity	256 GB
Optical drive type	No
Card reader integrated	Yes

Graphics

Specification	Value
On-board graphics card	No
Discrete graphics card	Yes
Discrete graphics card model	AMD Radeon HD 8870M
Discrete graphics card memory	2 GB
Discrete graphics memory type	GDDR5
On-board graphics card model	Intel® HD Graphics 4000
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1200 MHz
On-board graphics card ID	0x166

Audio

Specification	Value
Audio system	High Definition Audio
Built-in speaker(s)	Yes
Number of built-in speakers	2

Camera

Specification	Value
Front camera resolution (numeric)	1.3 MP

Optical drive

Specification	Value
LightScribe	No

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	4.0
Integrated 4G WiMAX	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
eSATA/USB 2.0 ports quantity	0
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Thunderbolt ports quantity	0
Headphone outputs	0
S/PDIF out port	No
Combo headphone/mic port	Yes
Microphone in	No
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No

Performance

Specification	Value
Motherboard chipset	Intel HM76 Express

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	Yes
Keyboard layout	QWERTZ

Software

Specification	Value
Operating system installed	Windows 8 Pro
Operating system architecture	64-bit

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Demand Based Switching	No
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	71460
Processor package size	31 x 24 mm
Supported instruction sets	AVX
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Number of battery cells	8
Battery life (max)	8 h

Power

Specification	Value
AC adapter power	90 W
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	No

Weight & dimensions

Specification	Value
Weight	2.35 kg
Width	376 mm
Depth	250 mm
Height	21 mm

Packaging content

Specification	Value
AC adapter included	Yes
