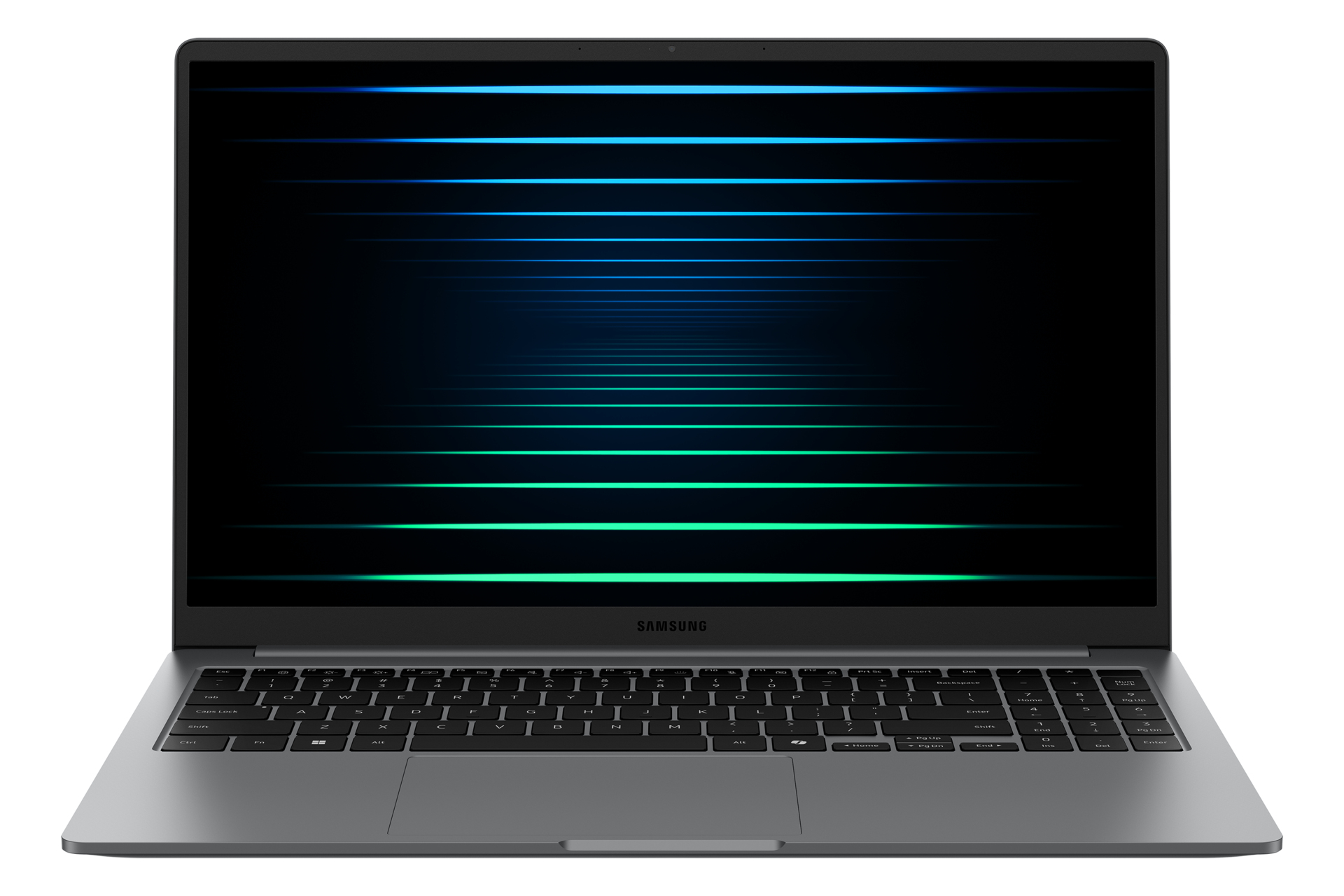

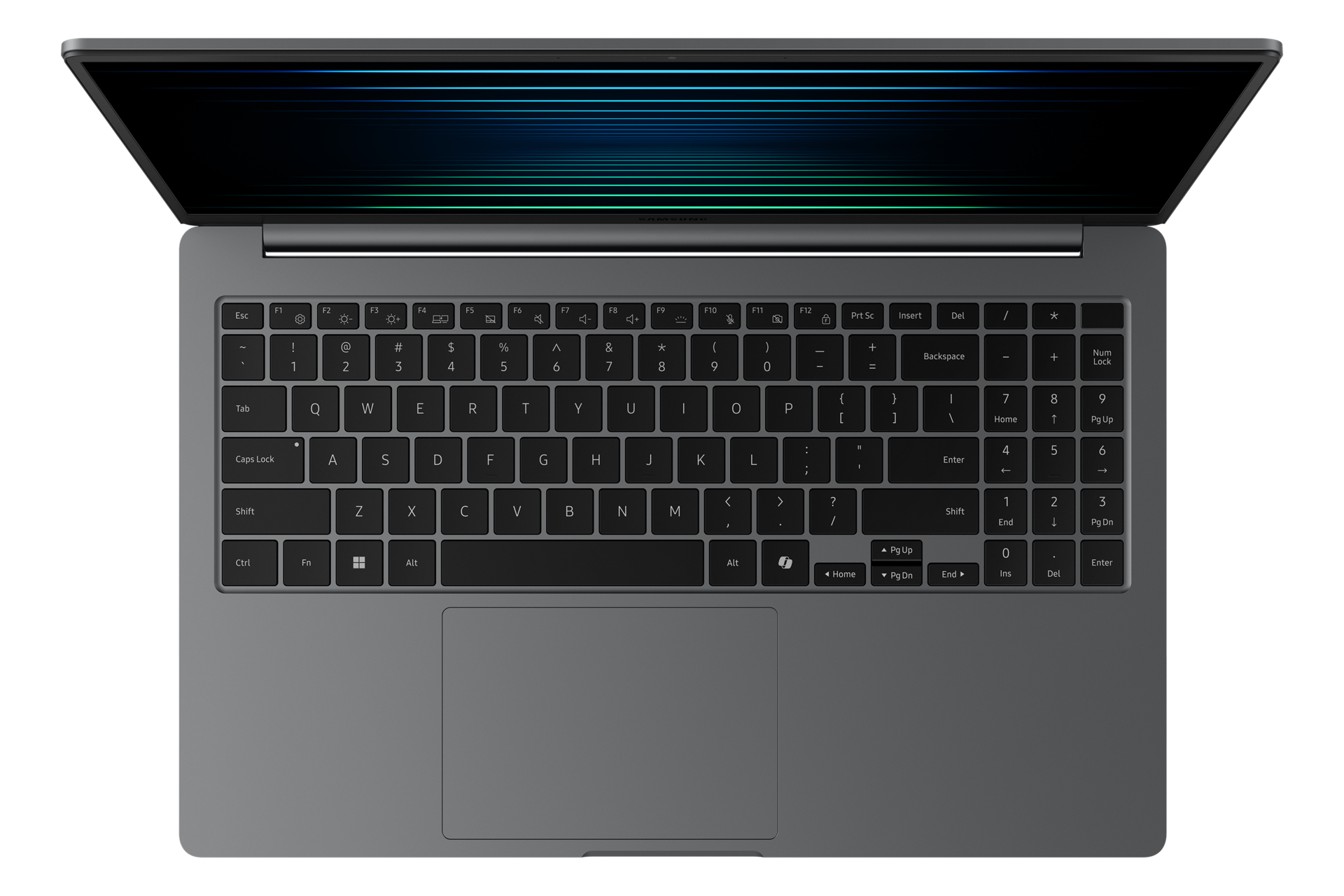

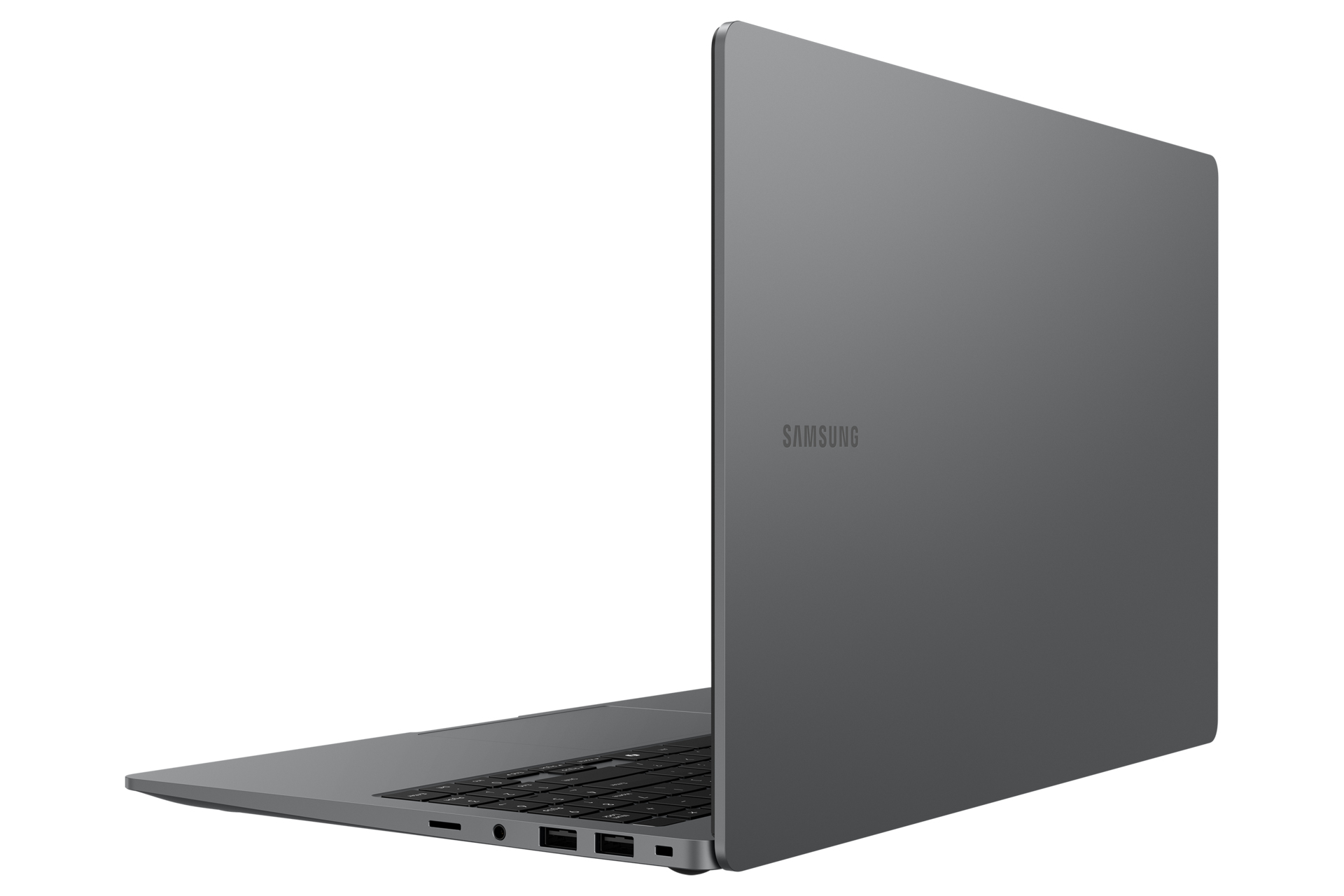

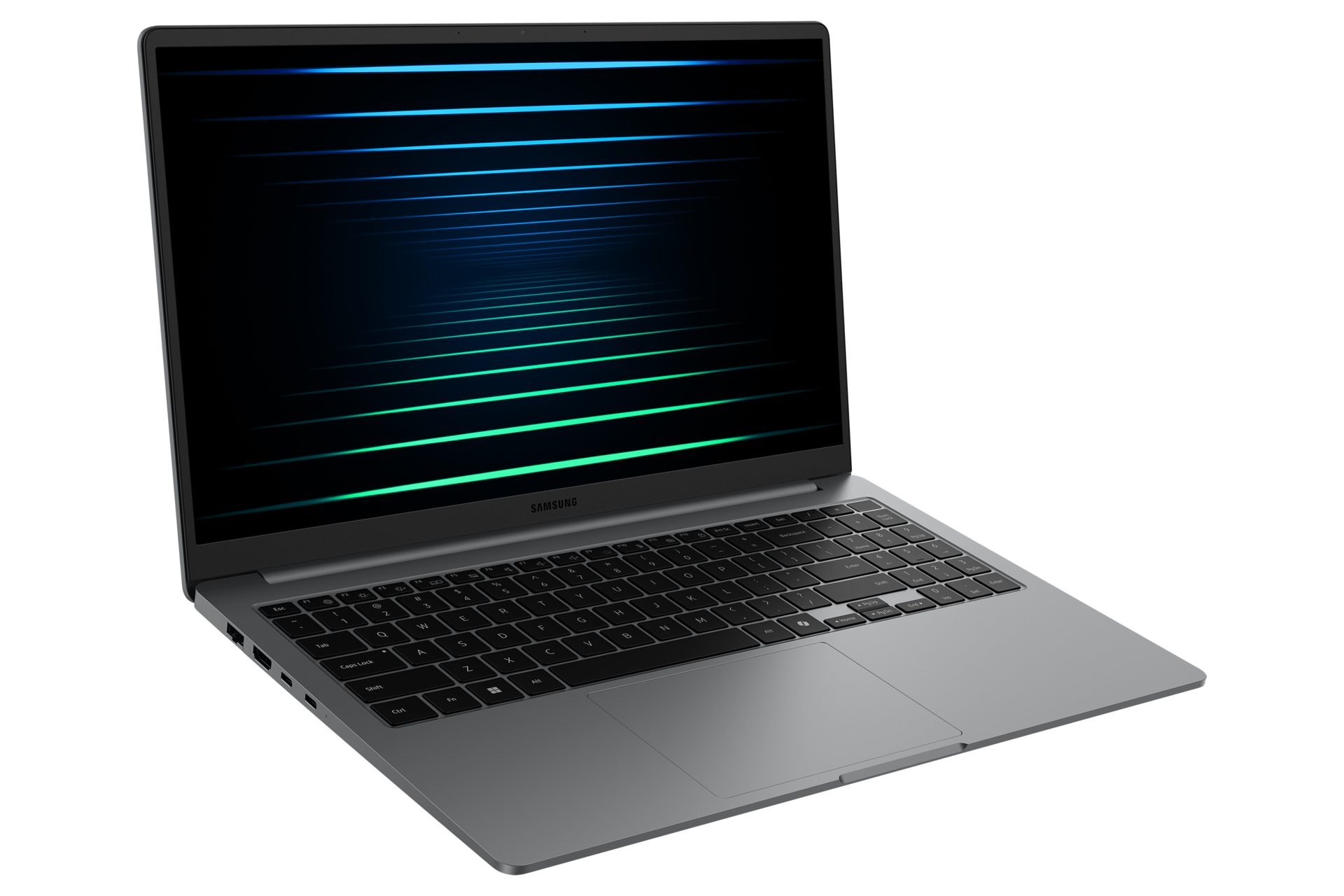

Galaxy Book5 NP750XHDA-EXP Intel Core Ultra 7 255U Laptop

39.6 cm (15.6") Full HD 16 GB LPDDR5x-SDRAM 512 GB SSD Wi-Fi 6 (802.11ax) Windows 11 Home Grey

Model NP750XHDA-EXPPart no. NP750XHD-KD3NLEAN 8806097622000

97 specifications Checked today

Overview

Brand: Samsung
Category: Laptop
Model: NP750XHDA-EXP
Part numbers: NP750XHD-KD3NL, NP750XHD-KB4NL
EAN / UPC: 8806097622000, 8806097622017
Also known as: Samsung Galaxy Book5 NP750XHDA-EXP Intel Core Ultra 7 255U Laptop 39.6 cm (15.6") Full HD 16 GB LPDDR5x-SDRAM 512 GB SSD Wi-Fi 6 (802.11ax) Windows 11 Home Grey

97 specifications in 18 groups

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Panel type	IPS
Display brightness	330 cd/m²
Maximum display brightness (HDR)	500 cd/m²
Maximum refresh rate	60 Hz

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Core Ultra 7
Processor generation	Intel Core Ultra (Series 2)
Processor model	255U
Processor cores	12
Processor threads	14
Processor boost frequency	5.2 GHz
Performance cores	2
Efficient cores	8
Low Power Efficient-cores	2
Performance-core Max Turbo Frequency	5.2 GHz
Efficient-core Max Turbo Frequency	4.2 GHz
Low Power Efficient-core Max Turbo Frequency	2.4 GHz
Performance-core base frequency	2 GHz
Efficient-core base frequency	1.7 GHz
Low Power Efficient-core Base Frequency	700 MHz
Processor cache	12 MB
Processor cache type	Smart Cache
Processor socket	BGA 2049
Maximum turbo power	57 W
Processor base power	15 W

Specification	Value
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	ONNX RT, OpenVINO, Windows ML
NPU performance up to	12 TOPs

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	PCI Express 4.0
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card model	Intel® Graphics
On-board graphics card DirectX version	12.2
On-board graphics card OpenGL version	4.6

Specification	Value
Front camera	Yes

Specification	Value
USB 3.2 Gen 2x2 Type-C ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes

Specification	Value
Repairability index	8.7

Specification	Value
Operating system installed	Windows 11 Home
