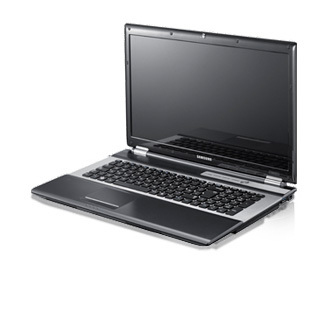

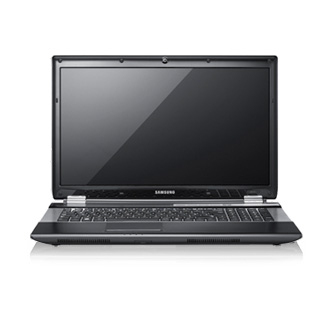

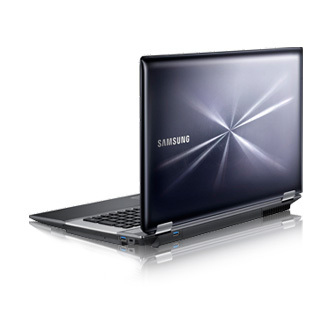

Samsung RF NP-RF711-S05PL laptop Intel® Core™ i7 i7-2630QM

43.9 cm (17.3") HD+ 6 GB DDR3-SDRAM 640 GB HDD NVIDIA® GeForce® GT 540M Windows 7 Home Premium QWERTY

Model NP-RF711-S05PLEAN 8806071655772

161 specifications Checked 3 days ago

Display43.9 cm (17.3")
Resolution1600 x 900 pixels
ProcessorIntel® Core™ i7
Memory6 GB
Storage640 GB
GraphicsNVIDIA® GeForce® GT 540M

See all specifications

Overview

Display: 43.9 cm (17.3")
Resolution: 1600 x 900 pixels
Processor: Intel® Core™ i7
Memory: 6 GB
Storage: 640 GB
Graphics: NVIDIA® GeForce® GT 540M

Brand: Samsung
Category: Laptop
Model: NP-RF711-S05PL
Part number: NP-RF711-S05PL
EAN / UPC: 8806071655772
Also known as: Samsung RF NP-RF711-S05PL laptop Intel® Core™ i7 i7-2630QM 43.9 cm (17.3") HD+ 6 GB DDR3-SDRAM 640 GB HDD NVIDIA® GeForce® GT 540M Windows 7 Home Premium QWERTY

Specifications

161 specifications in 20 groups

Display

Specification	Value
Display diagonal	43.9 cm (17.3")
Display resolution	1600 x 900 pixels
Touchscreen	No
HD type	HD+
LED backlight	Yes
Native aspect ratio	16:9
Display brightness	280 cd/m²

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	2nd gen Intel® Core™ i7
Processor model	i7-2630QM
Processor cores	4
Processor threads	8
Processor boost frequency	2.9 GHz
Processor frequency	2 GHz
System bus rate	5 GT/s
Processor cache	6 MB
Processor cache type	Smart Cache
Processor socket	Socket 988
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-2600 Mobile Series
Processor codename	Sandy Bridge
Bus type	DMI
FSB Parity	No
Stepping	D2
Thermal Design Power (TDP)	45 W
Tjunction	100 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	2.0
CPU multiplier (bus/core ratio)	20
ECC supported by processor	No

Memory

Specification	Value
Internal memory	6 GB
Internal memory type	DDR3-SDRAM
Memory clock speed	1333 MHz
Memory layout (slots x size)	1 x 2 + 1 x 4 GB
Memory slots	2x SO-DIMM

Storage

Specification	Value
Total storage capacity	640 GB
Storage media	HDD
Number of HDDs installed	1
HDD capacity	640 GB
HDD interface	SATA II
HDD speed	5400 RPM
Optical drive type	DVD Super Multi DL
Card reader integrated	Yes
Compatible memory cards	MMC, SD, SDHC, SDXC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA® GeForce® GT 540M
Discrete graphics card memory	2 GB
Graphics card family	NVIDIA
Discrete graphics memory type	GDDR3
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 3000
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
On-board graphics card ID	0x116
Number of discrete graphics cards	1

Audio

Specification	Value
Audio system	HDA
Number of built-in speakers	2
Speaker power	1.5 W
Built-in microphone	Yes

Camera

Specification	Value
Front camera resolution (numeric)	1.3 MP

Optical drive

Specification	Value
LightScribe	No
Labelflash	No

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Bluetooth	No
Cabling technology	10/100/1000Base-T(X)
Integrated 4G WiMAX	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Thunderbolt ports quantity	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
TV-out	No

Performance

Specification	Value
Motherboard chipset	Intel® HM65 Express

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	Yes
Keyboard number of keys	104
Windows keys	Yes
Keyboard layout	QWERTY

Software

Specification	Value
Operating system installed	Windows 7 Home Premium
Operating system architecture	64-bit
Trial software	Norton Internet Security
Bundled software	Cyberlink Power DVD Samsung Recovery Solution Samsung Update Plus Easy Display Manager Easy Battery Manager Easy Network Manager Easy SpeedUp Manager Easy Partition Manager Adobe Reader Microsoft Office Starter 2010 Samsung Support Center

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	32 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	52219
Processor code	SR02Y
Processor package size	37.5 x 37.5 (rPGA998)
Supported instruction sets	AVX
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	6

Power

Specification	Value
AC adapter power	120 W
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	No
Trusted Platform Module (TPM)	No

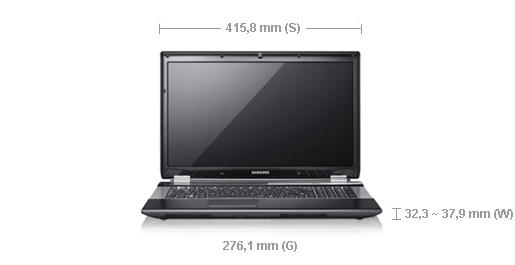

Weight & dimensions

Specification	Value
Weight	2.9 kg
Width	415.8 mm
Depth	276.1 mm
Height (front)	3.23 cm
Height (rear)	3.79 cm
Width (imperial)	41.4 cm (16.3")
Depth (imperial)	27.4 cm (10.8")
Height (front) (imperial)	3.23 cm (1.27")
Height (rear) (imperial)	3.78 cm (1.49")

Packaging content

Specification	Value
AC adapter included	Yes

Other features

Specification	Value
Infrared data port	No
3D	No
Number of products included	1 pc(s)
Internal modem	No
TV tuner integrated	No
Supplied AC adapter type	AC
