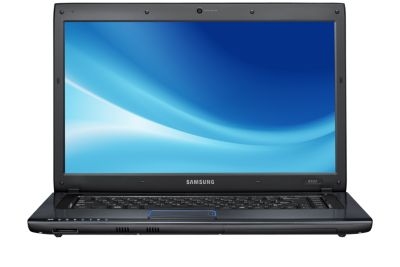

Samsung R NP-R522 Intel Pentium Mobile T4200 Laptop

39.6 cm (15.6") 4 GB DDR2-SDRAM 250 GB HDD AMD Mobility Radeon HD 4650 Windows Vista Business Black

Model NP-R522Part no. NP-R522-FS02PL

135 specifications Checked 4 days ago

Display39.6 cm (15.6")
Resolution1366 x 768 pixels
ProcessorIntel Pentium Mobile
Memory4 GB
Storage250 GB
GraphicsAMD Mobility Radeon HD 4650

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1366 x 768 pixels
Processor: Intel Pentium Mobile
Memory: 4 GB
Storage: 250 GB
Graphics: AMD Mobility Radeon HD 4650

Brand: Samsung
Category: Laptop
Model: NP-R522
Part numbers: NP-R522-FS02PL, NP-R522-FS03IT, NP-R522-FS02IT, NP-R522-JS02PL, NP-R522-JS04PL, NP-R522-PS01PL +5 more
Also known as: Samsung R NP-R522 Intel Pentium Mobile T4200 Laptop 39.6 cm (15.6") 4 GB DDR2-SDRAM 250 GB HDD AMD Mobility Radeon HD 4650 Windows Vista Business Black

Specifications

135 specifications in 19 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Form factor	Clamshell

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1366 x 768 pixels
Touchscreen	No
LED backlight	Yes
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Pentium Mobile
Processor model	T4200
Processor cores	2
Processor threads	2
Processor frequency	2 GHz
Processor cache	1 MB
Processor cache type	L2
Processor front side bus	800 MHz
Processor socket	LGA 3647 (Socket P)
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Pentium T4000 Series for Mobile
Processor codename	Penryn
Bus type	FSB
FSB Parity	No
Stepping	R0
Motherboard southbridge	Intel ICH9M
Thermal Design Power (TDP)	35 W
Tjunction	105 °C
Number of Processing Die Transistors	410 M
Processing Die size	107 mm²
CPU multiplier (bus/core ratio)	10
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR2-SDRAM
Memory layout (slots x size)	2 x 2 GB
Memory slots	2x SO-DIMM

Storage

Specification	Value
Total storage capacity	250 GB
Storage media	HDD
Number of HDDs installed	1
HDD capacity	250 GB
HDD interface	SATA
HDD speed	5400 RPM
Optical drive type	DVD Super Multi DL
Card reader integrated	Yes
Compatible memory cards	MMC, SD, SDHC

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	AMD Mobility Radeon HD 4650
Discrete graphics card memory	0.512 GB
Discrete graphics memory type	GDDR3

Audio

Specification	Value
Audio system	HDA
Number of built-in speakers	2
Speaker power	1.5 W
Built-in microphone	Yes

Camera

Specification	Value
Front camera resolution (numeric)	1.3 MP

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	No
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
eSATA/USB 2.0 ports quantity	0
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Thunderbolt ports quantity	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	Yes
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
Modem (RJ-11) ports	1

Performance

Specification	Value
Motherboard chipset	Intel® PM45 Express

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	No
Keyboard number of keys	88

Software

Specification	Value
Operating system installed	Windows Vista Business
Drivers included	Yes

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Turbo Boost Technology	No
Processor ARK ID	37251
Processor code	SLGJN
Processor package size	35 x 35 mm
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	6

Power

Specification	Value
AC adapter power	90 W
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington

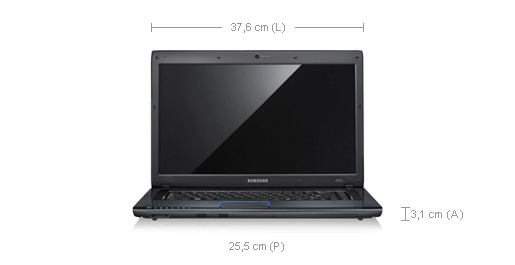

Weight & dimensions

Specification	Value
Weight	2.55 kg
Width	376 mm
Depth	255.8 mm
Height (front)	3.13 cm
Height (rear)	3.72 cm

Packaging content

Specification	Value
AC adapter included	Yes
Manual	Yes
Quick start guide	Yes
Warranty card	Yes
