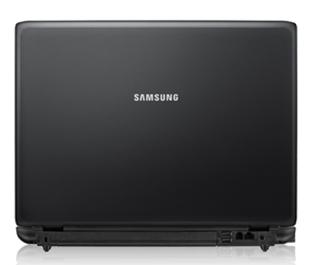

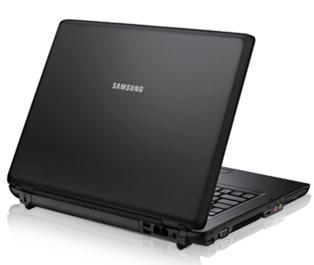

Samsung R NP-R509-XA02 laptop Intel® Pentium® T3200

39.1 cm (15.4") 4 GB DDR2-SDRAM 250 GB Intel® GMA X4500 Windows Vista Home Basic

Model NP-R509-XA02

91 specifications Checked 3 days ago

Display39.1 cm (15.4")
Resolution1280 x 800 pixels
ProcessorIntel® Pentium®
Memory4 GB
Storage250 GB
GraphicsIntel® GMA X4500

See all specifications

Overview

Display: 39.1 cm (15.4")
Resolution: 1280 x 800 pixels
Processor: Intel® Pentium®
Memory: 4 GB
Storage: 250 GB
Graphics: Intel® GMA X4500

Brand: Samsung
Category: Laptop
Model: NP-R509-XA02
Part number: NP-R509-XA02
Also known as: Samsung R NP-R509-XA02 laptop Intel® Pentium® T3200 39.1 cm (15.4") 4 GB DDR2-SDRAM 250 GB Intel® GMA X4500 Windows Vista Home Basic

Specifications

91 specifications in 17 groups

Display

Specification	Value
Display diagonal	39.1 cm (15.4")
Display resolution	1280 x 800 pixels
Native aspect ratio	16:10
Display surface	Gloss

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Pentium®
Processor model	T3200
Processor cores	2
Processor threads	2
Processor frequency	2 GHz
Processor cache	1 MB
Processor cache type	L2
Processor front side bus	667 MHz
Processor socket	LGA 3647 (Socket P)
Processor lithography	65 nm
Processor operating modes	64-bit
Processor codename	Merom
Bus type	FSB
FSB Parity	No
Stepping	M0
Thermal Design Power (TDP)	35 W
Tjunction	100 °C
Number of Processing Die Transistors	291 M
Processing Die size	143 mm²
CPU multiplier (bus/core ratio)	12

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR2-SDRAM
Memory clock speed	800 MHz
Memory layout (slots x size)	2 x 2 GB

Storage

Specification	Value
Total storage capacity	250 GB
HDD interface	SATA
HDD speed	5400 RPM
Optical drive type	DVD Super Multi DL
Card reader integrated	Yes
Compatible memory cards	MMC, SD, SDHC

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	Intel® GMA X4500

Audio

Specification	Value
Audio system	High Definition Audio
Number of built-in speakers	2
Speaker power	4 W

Camera

Specification	Value
Front camera resolution (numeric)	1.3 MP

Network

Specification	Value
Networking features	Gigabit Ethernet, WLAN
Wireless technology	802.11 b/g
Bluetooth	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	Yes
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
Modem (RJ-11) ports	0
TV-in port	No
TV-out	No
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0

Software

Specification	Value
Operating system installed	Windows Vista Home Basic
Trial software	Microsoft Office Professional
Bundled software	McAfee Virus Scan, CSAMSUNG Recovery Solution III, Adobe Acrobat Reader, Easy Battery Manager, Easy Display Manger, Easy Network Manager, Easy SpeedUp Manager, SAMSUNG Magic Doctor, SAMSUNG Update Plus.

Processor special features

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Intel 64	Yes
Intel Demand Based Switching	No
Intel Trusted Execution Technology	No
Intel Virtualization Technology (VT-x)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Turbo Boost Technology	No
Processor ARK ID	37160
Processor code	SLAVG

Battery

Specification	Value
Number of battery cells	6

Power

Specification	Value
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington

Weight & dimensions

Specification	Value
Weight	2.7 kg
Width	358 mm
Depth	269 mm
Height (front)	3.18 cm
Height (rear)	3.85 cm

Packaging content

Specification	Value
AC adapter included	Yes

Other features

Specification	Value
Infrared data port	No
Internal modem	No
Supplied AC adapter type	AC
