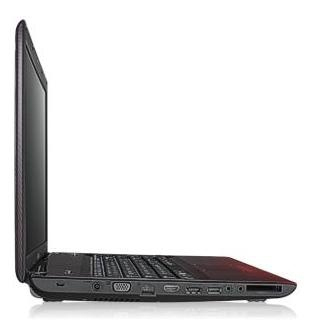

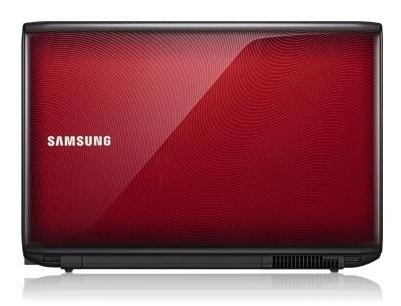

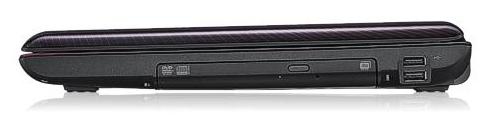

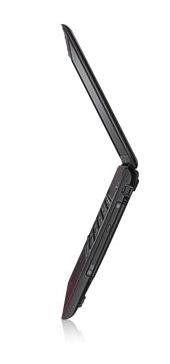

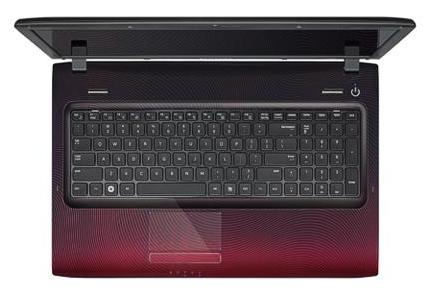

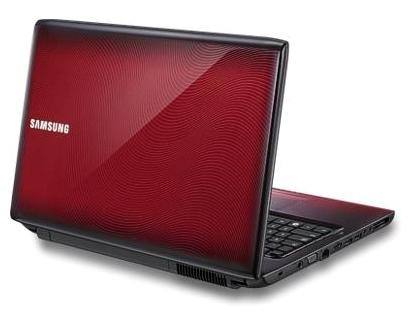

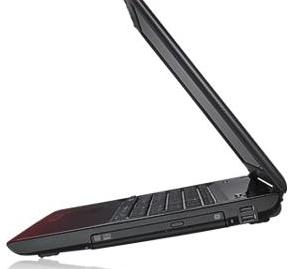

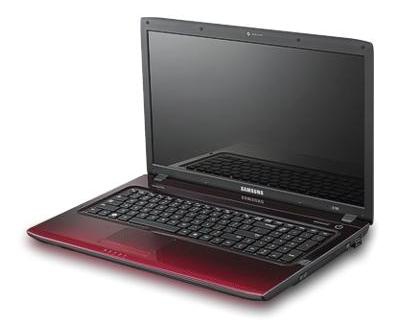

Samsung Notebook R780 Helix

Model Notebook R780 HelixPart no. NP-R780-JS0MDEEAN 8808993960170

147 specifications Checked 3 days ago

Display43.9 cm (17.3")
Resolution2048 x 1536 pixels
ProcessorIntel® Core™ i5
Memory4 GB
Storage640 GB
GraphicsNVIDIA® GeForce® GT 330M

See all specifications

Overview

Display: 43.9 cm (17.3")
Resolution: 2048 x 1536 pixels
Processor: Intel® Core™ i5
Memory: 4 GB
Storage: 640 GB
Graphics: NVIDIA® GeForce® GT 330M

Brand: Samsung
Category: Laptop
Model: Notebook R780 Helix
Part number: NP-R780-JS0MDE
EAN / UPC: 8808993960170
Also known as: Samsung R Notebook R780 Helix Intel® Core™ i5 i5-430M 43.9 cm (17.3") 2K Ultra HD 4 GB DDR3-SDRAM 640 GB NVIDIA® GeForce® GT 330M Windows 7 Home Premium Red

Specifications

147 specifications in 19 groups

Design

Specification	Value
Product colour	Red

Display

Specification	Value
Display diagonal	43.9 cm (17.3")
Display resolution	2048 x 1536 pixels
HD type	2K Ultra HD
LED backlight	Yes
Native aspect ratio	4:3
Display surface	Matt
Display brightness	220 cd/m²
Display response rise/fall	8 ms

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	4th gen Intel® Core™ i5
Processor model	i5-430M
Processor cores	2
Processor threads	4
Processor boost frequency	2.53 GHz
Processor frequency	2.26 GHz
System bus rate	2.5 GT/s
Processor cache	3 MB
Processor cache type	Smart Cache
Processor socket	BGA 1288
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Core i5-400 Series
Processor codename	Arrandale
Bus type	DMI
FSB Parity	No
Stepping	C2
Thermal Design Power (TDP)	35 W
Tjunction	105 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16
PCI Express slots version	2.0
Number of Processing Die Transistors	382 M
Processing Die size	81 mm²
CPU multiplier (bus/core ratio)	17
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Memory clock speed	1066 MHz
Memory layout (slots x size)	2 x 2 GB
Memory slots	2x SO-DIMM
Maximum internal memory	4 GB

Storage

Specification	Value
Total storage capacity	640 GB
HDD interface	SATA
HDD speed	5400 RPM
Optical drive type	DVD-ROM
Card reader integrated	Yes
Compatible memory cards	MMC, SD, SDHC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA® GeForce® GT 330M
Graphics card family	NVIDIA
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
On-board graphics card base frequency	500 MHz
On-board graphics card dynamic frequency (max)	766 MHz
Maximum graphics card memory	1.024 GB

Audio

Specification	Value
Number of built-in speakers	2
Speaker power	2 W

Camera

Specification	Value
Front camera resolution (numeric)	1.3 MP

Network

Specification	Value
Wi-Fi	Yes
Networking type	GigabitEtherbet, WLAN
Wireless technology	Wi-Fi
Bluetooth	No

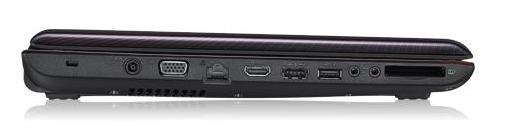

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
eSATA ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
Modem (RJ-11) ports	0
TV-in port	No
TV-out	No
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0

Performance

Specification	Value
Motherboard chipset	Intel® HM55 Express

Keyboard

Specification	Value
Pointing device	Touchpad

Software

Specification	Value
Operating system installed	Windows 7 Home Premium

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	45 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	1.0
Physical Address Extension (PAE)	36 bit
Physical Address Extension (PAE)	Yes
Processor ARK ID	43537
Processor code	SLBPM
Processor package size	rPGA 37.5x 37.5, BGA 34x28
Supported instruction sets	SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	6
Battery life (max)	4 h

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Password protection type	BIOS
HDD user password	Yes

Weight & dimensions

Specification	Value
Weight	2.84 kg
Width	411.4 mm
Depth	272.8 mm
Height (front)	3.2 cm
Height (rear)	3.98 cm

Packaging content

Specification	Value
AC adapter included	Yes

Other features

Specification	Value
Infrared data port	No
Compliance industry standards	802.11b/g/n
Internal modem	No
TV tuner integrated	No
Supplied AC adapter type	AC
