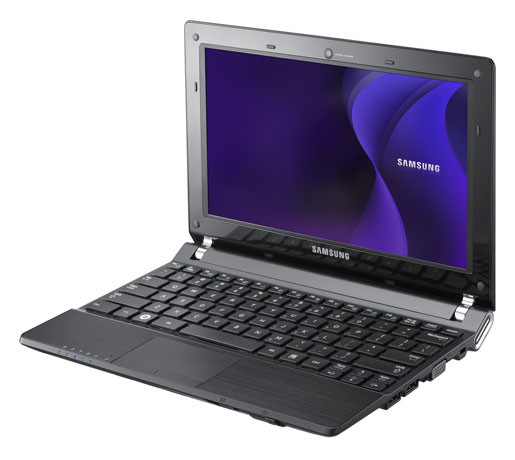

Samsung N230-HAV1DE Intel Atom® N450 Netbook

25.6 cm (10.1") 1 GB DDR2-SDRAM 250 GB Windows 7 Starter Black

Model N230-HAV1DEPart no. NP-N230-HAV1DEEAN 8806071122830

123 specifications Checked 3 days ago

Display25.6 cm (10.1")
Resolution1024 x 600 pixels
ProcessorIntel Atom®
Memory1 GB
Storage250 GB
TypeNetbook

See all specifications

Overview

Display: 25.6 cm (10.1")
Resolution: 1024 x 600 pixels
Processor: Intel Atom®
Memory: 1 GB
Storage: 250 GB
Type: Netbook

Brand: Samsung
Category: Laptop
Model: N230-HAV1DE
Part number: NP-N230-HAV1DE
EAN / UPC: 8806071122830
Also known as: Samsung N230-HAV1DE Intel Atom® N450 Netbook 25.6 cm (10.1") 1 GB DDR2-SDRAM 250 GB Windows 7 Starter Black

Specifications

123 specifications in 19 groups

Design

Specification	Value
Product type	Netbook
Product colour	Black

Display

Specification	Value
Display diagonal	25.6 cm (10.1")
Display resolution	1024 x 600 pixels
LED backlight	Yes
Native aspect ratio	5:3

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	N450
Processor cores	1
Processor threads	2
Processor frequency	1.66 GHz
Processor cache	0.512 MB
Processor cache type	L2
Processor front side bus	667 MHz
Processor socket	BGA 559
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Atom N400 Series
Processor codename	Pineview
Bus type	DMI
FSB Parity	No
Stepping	A0
Thermal Design Power (TDP)	5.5 W
Tjunction	100 °C
Number of Processing Die Transistors	123 M
Processing Die size	66 mm²
CPU multiplier (bus/core ratio)	10
ECC supported by processor	No

Memory

Specification	Value
Internal memory	1 GB
Internal memory type	DDR2-SDRAM
Memory clock speed	800 MHz
Memory layout (slots x size)	1 x 1 GB
Maximum internal memory	2 GB

Storage

Specification	Value
Total storage capacity	250 GB
HDD capacity	250 GB
HDD interface	SATA
HDD speed	5400 RPM
Card reader integrated	Yes
Compatible memory cards	MMC, SD, SDHC, SDXC

Graphics

Specification	Value
On-board graphics card	Yes
Graphics card family	Intel
Graphics card	GMA 3150

Audio

Specification	Value
Audio system	HD
Number of built-in speakers	2
Speaker power	1.5 W
Built-in microphone	Yes

Camera

Specification	Value
Front camera resolution (numeric)	0.3 MP

Network

Specification	Value
Mobile network connection	Yes
Mobile network generation	3G
2G standards	Edge, GPRS
3G standards	HSDPA, HSUPA
Wi-Fi	Yes
Networking features	Fast Ethernet
Wireless technology	802.11 b/g/n
Ethernet LAN	Yes
Ethernet LAN data rates	10,100 Mbit/s
Bluetooth	Yes
Bluetooth version	3.0+HS
Data network	3G
SIM card support	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
VGA (D-Sub) ports quantity	1
Headphone outputs	1
ExpressCard slot	No
ATI XGP ports quantity	0
Port replicator	No

Performance

Specification	Value
Motherboard chipset	Intel NM10
GPS (satellite)	No

Software

Specification	Value
Operating system installed	Windows 7 Starter
Drivers included	Yes
Bundled software	Easy Display Manager, Easy Network Manager, Easy SpeedUp Manager, Samsung Update Plus, Samsung Battery Manager, Battery Life Extender, AnyPC, Easy File Share, Easy Content Share, Google Toolbar, Game Console, Easy Resolution Manager, Adobe Acrobat Reader, Microsoft Office 2010 Starter

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	42503
Processor code	SLBMG
Processor package size	22 x 22 mm
Supported instruction sets	SSE2, SSE3, SSSE3
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	3
Battery life (max)	8 h

Power

Specification	Value
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
HDD user password	Yes

Weight & dimensions

Specification	Value
Weight	1.03 kg
Width	264 mm
Depth	188.9 mm
Height (front)	2.17 cm
Height (rear)	2.32 cm

Packaging content

Specification	Value
Remote control included	No

Other features

Specification	Value
Assisted GPS (A-GPS)	No
Supplied AC adapter type	AC
