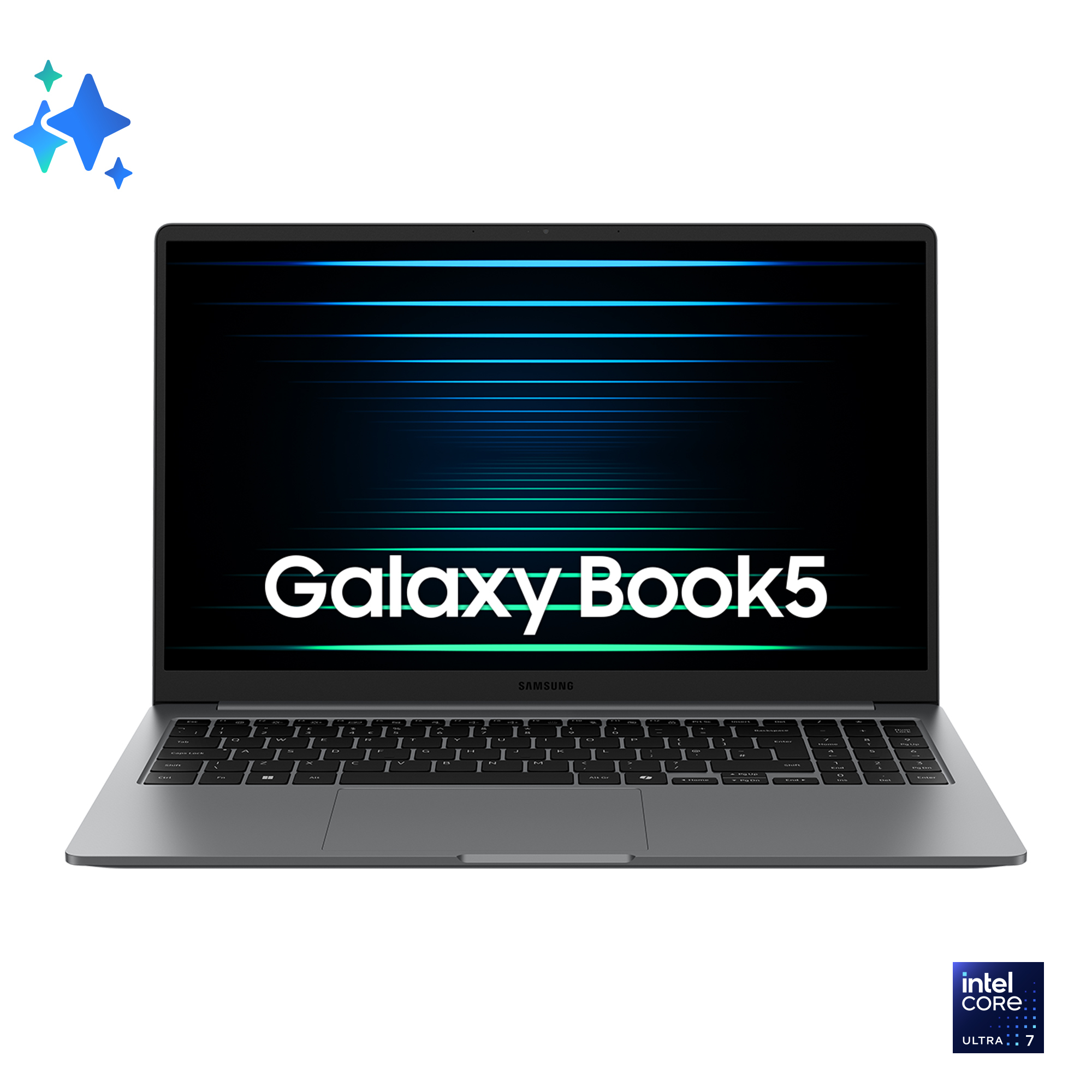

Samsung Galaxy Book5
Samsung

Galaxy Book5

Model Galaxy Book5Part no. NP754XHD-KD6ITEAN 8806099387044

109 specifications Checked today
  • Display39.6 cm (15.6")
  • Resolution1920 x 1080 pixels
  • ProcessorIntel Core Ultra 7
  • Memory32 GB
  • Storage1 TB
  • GraphicsNot available
See all specifications

Overview

Display
39.6 cm (15.6")
Resolution
1920 x 1080 pixels
Processor
Intel Core Ultra 7
Memory
32 GB
Storage
1 TB
Graphics
Not available
Brand
Samsung
Category
Laptop
Model
Galaxy Book5
Part numbers
NP754XHD-KD6IT, NP750XHD-KD5IT, NP750XHD-KD3SE, NP750XHD-KD1ES, NP750XHD-KD2ES, NP754XHD-KD6ES +1 more
EAN / UPC
8806099387044, 8806097621645, 8806097627562, 8806097626114 +3 more
Also known as
Samsung Galaxy Book5 Intel Core Ultra 7 255U Laptop 39.6 cm (15.6") Full HD 32 GB LPDDR5x-SDRAM 1 TB SSD Wi-Fi 6 (802.11ax) Windows 11 Home Grey

Specifications

109 specifications in 21 groups

Design

Product typeLaptop
Product colourGrey
Form factorClamshell

Display

Display diagonal39.6 cm (15.6")
Display resolution1920 x 1080 pixels
TouchscreenNo
HD typeFull HD
Panel typeIPS
Display brightness330 cd/m²
Maximum display brightness (HDR)500 cd/m²
Maximum refresh rate60 Hz

Processor

Processor manufacturerIntel
Processor familyIntel Core Ultra 7
Processor generationIntel Core Ultra (Series 2)
Processor model255U
Processor cores12
Processor threads14
Processor boost frequency5.2 GHz
Efficient cores8
Low Power Efficient-cores2
Performance-core Max Turbo Frequency5.2 GHz
Efficient-core Max Turbo Frequency4.2 GHz
Low Power Efficient-core Max Turbo Frequency2.4 GHz
Performance-core base frequency2 GHz
Efficient-core base frequency1.7 GHz
Low Power Efficient-core Base Frequency700 MHz
Processor cache12 MB
Processor socketBGA 2049
Maximum turbo power57 W
Processor base power15 W

Neural processor unit (NPU)

Neural processor unit (NPU)Intel AI Boost
Sparsity supportYes
Windows Studio effects supportYes
AI software frameworks supported by NPUONNX RT, OpenVINO, Windows ML
NPU performance up to12 TOPs

Memory

Internal memory32 GB
Internal memory typeLPDDR5x-SDRAM
Memory clock speed7467 MHz
Memory form factorOn-board

Storage

Total storage capacity1 TB
Storage mediaSSD
Total SSDs capacity1 TB
Number of SSDs installed1
SSD capacity1 TB
NVMeYes
SSD interfacePCI Express 4.0
SSD form factorM.2
Optical drive typeNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC

Graphics

On-board graphics cardYes
Discrete graphics cardNo
Discrete graphics card modelNot available
On-board graphics card modelIntel® Graphics
On-board graphics card DirectX version12.2
On-board graphics card OpenGL version4.6

Audio

Number of built-in speakers2
Speaker power2 W
Built-in microphoneYes
Number of microphones2

Camera

Front cameraYes

Network

Mobile network connectionNo
Top Wi-Fi standardWi-Fi 6 (802.11ax)
Wi-Fi standardsWi-Fi 6 (802.11ax)
Antenna type2x2
Ethernet LANYes
BluetoothYes
Bluetooth version5.2

Ports & interfaces

USB 3.2 Gen 2x2 Type-C ports quantity2
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
Intel® Thunderbolt 4Yes
Combo headphone/mic portYes

Performance

Repairability index8.7

Keyboard

Pointing deviceTouchpad
Numeric keypadYes

Software

Operating system installedWindows 11 Home

Processor special features

CPU configuration (max)1
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® OS GuardYes
Intel® Secure KeyYes
Supported instruction setsAVX 2.0, SSE4.1, SSE4.2

Battery

Battery technologyLithium-Ion (Li-Ion)
Number of battery cells4
Battery capacity3802 mAh
Battery capacity61.2 Wh
Battery voltage15.52 V
Battery life (max)19 h
Battery recharge time1.8 h

Power

AC adapter power45 W
USB Type-C charging portYes
USB Type-C required charging power (max)65 W
USB Type-C required charging power (min)45 W
USB Power Delivery (USB PD)Yes

Security

Cable lock slotYes
Cable lock slot typeKensington
Trusted Platform Module (TPM)Yes
Trusted Platform Module (TPM) version2.0

Weight & dimensions

Weight1.55 kg
Width356.6 mm
Depth228 mm
Height15.1 mm

Packaging data

Package width476 mm
Package depth279 mm
Package height53 mm

Packaging content

AC adapter includedYes
