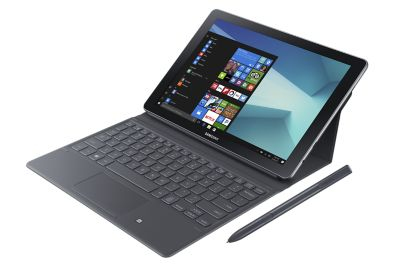

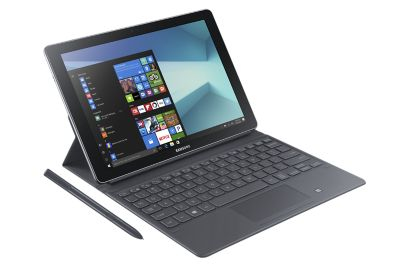

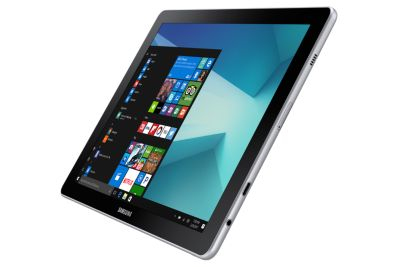

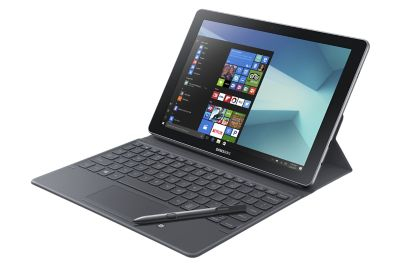

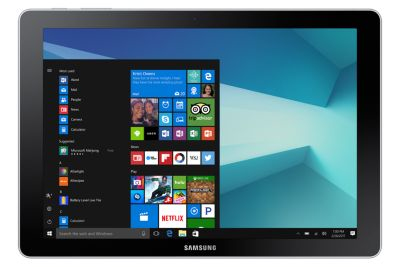

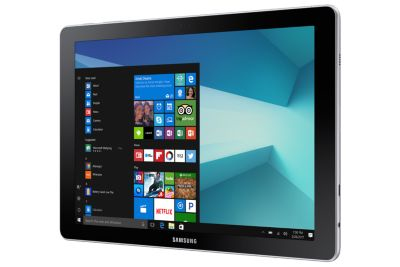

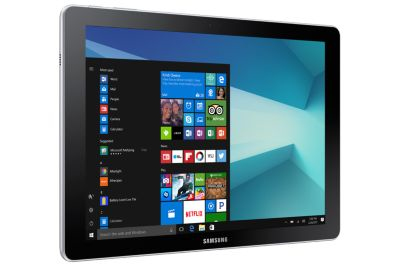

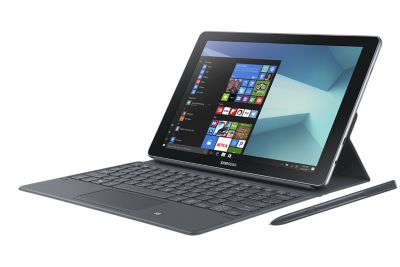

Samsung Galaxy Book 10.6

Model Galaxy Book 10.6Part no. SM-W620NZKAXSAEAN 8806088872575

132 specifications Checked 3 days ago

Display26.9 cm (10.6")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ m3
Memory4 GB
Storage128 GB
GraphicsNot available

See all specifications

Overview

Display: 26.9 cm (10.6")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ m3
Memory: 4 GB
Storage: 128 GB
Graphics: Not available

Brand: Samsung
Category: Laptop
Model: Galaxy Book 10.6
Part numbers: SM-W620NZKAXSA, SM-W620NZKAXAR, SM-W620NZKAMXO
EAN / UPC: 8806088872575, 8806088876788
Also known as: Samsung Galaxy Book 10.6 Intel® Core™ m3 m3-7Y30 Hybrid (2-in-1) 26.9 cm (10.6") Touchscreen Full HD 4 GB LPDDR3-SDRAM 128 GB Flash Wi-Fi 5 (802.11ac) Windows 1

Specifications

132 specifications in 17 groups

Design

Specification	Value
Product type	Hybrid (2-in-1)
Product colour	Silver
Form factor	Convertible (Detachable)

Display

Specification	Value
Display diagonal	26.9 cm (10.6")
Display resolution	1920 x 1080 pixels
Touchscreen	Yes
HD type	Full HD
Touch technology	Multi-touch
Panel type	TFT
LED backlight	Yes

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ m3
Processor generation	7th gen Intel® Core™ m3
Processor model	m3-7Y30
Processor cores	2
Processor threads	4
Processor boost frequency	2.6 GHz
Processor frequency	1 GHz
System bus rate	4 GT/s
Processor cache	4 MB
Processor cache type	Smart Cache
Processor socket	BGA 1515
Processor lithography	14 nm
Processor operating modes	64-bit
Processor codename	Kaby Lake
Bus type	OPI
Stepping	H0
Thermal Design Power (TDP)	4.5 W
Configurable TDP-up frequency	1.6 GHz
Configurable TDP-up	7 W
Configurable TDP-down	3.75 W
Configurable TDP-down frequency	0.6 GHz
Tjunction	100 °C
Maximum number of PCI Express lanes	10
PCI Express configurations	1x2+2x1, 1x4, 2x2, 4x1
PCI Express slots version	3.0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	LPDDR3-SDRAM

Storage

Specification	Value
Total storage capacity	128 GB
Storage media	Flash
Flash memory	128 GB
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card model	Intel® HD Graphics 615
Maximum on-board graphics card memory	16 GB
On-board graphics card base frequency	300 MHz
On-board graphics card dynamic frequency (max)	900 MHz
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.4
On-board graphics card ID	0x591E

Audio

Specification	Value
Number of built-in speakers	2
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	5 MP

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	No
Bluetooth	Yes
Bluetooth profiles	A2DP, AVRCP, DUN, HFP, HID, HOGP, OPP, PAN
Bluetooth version	4.1
Near Field Communication (NFC)	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	0
HDMI ports quantity	0
DisplayPorts quantity	0
Thunderbolt ports quantity	0
Combo headphone/mic port	Yes

Performance

Specification	Value
Accelerometer	Yes
Ambient light sensor	Yes

Keyboard

Specification	Value
Numeric keypad	No

Software

Specification	Value
Operating system installed	Windows 10 Home

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	14 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Smart Response Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	95449
Processor code	SR2ZY
Processor package size	20.5 X 16.5 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Battery

Specification	Value
Battery capacity	4000 mAh
Continuous video playback time (max)	9 h

Weight & dimensions

Specification	Value
Weight (tablet mode)	648 g
Width (tablet mode)	26.1 cm
Depth (tablet mode)	8.9 mm
Height (tablet mode)	17.9 cm

Packaging content

Specification	Value
AC adapter included	Yes
Stylus pen	Yes
Cables included	USB Type-C
Quick start guide	Yes
