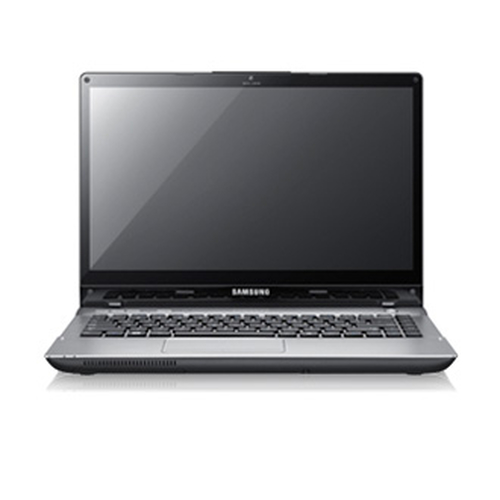

Samsung E E452-JA01DE Intel® Core™ i3 i3-380M Laptop

39.6 cm (15.6") HD 4 GB DDR3-SDRAM 320 GB HDD Windows 7 Home Premium Black, Silver

Model E452-JA01DEPart no. NP-E452-JA01DEEAN 8806071360430

191 specifications Checked 3 days ago

Display39.6 cm (15.6")
Resolution1366 x 768 pixels
ProcessorIntel® Core™ i3
Memory4 GB
Storage320 GB
GraphicsNot available

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1366 x 768 pixels
Processor: Intel® Core™ i3
Memory: 4 GB
Storage: 320 GB
Graphics: Not available

Brand: Samsung
Category: Laptop
Model: E452-JA01DE
Part number: NP-E452-JA01DE
EAN / UPC: 8806071360430
Also known as: Samsung E E452-JA01DE Intel® Core™ i3 i3-380M Laptop 39.6 cm (15.6") HD 4 GB DDR3-SDRAM 320 GB HDD Windows 7 Home Premium Black, Silver

Specifications

191 specifications in 23 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black, Silver
Form factor	Clamshell

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1366 x 768 pixels
Touchscreen	No
HD type	HD
LED backlight	Yes
Native aspect ratio	16:9
Display surface	Gloss
Display brightness	220 cd/m²
Display response rise/fall	8 ms

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	Intel® Core™ i3
Processor model	i3-380M
Processor cores	2
Processor threads	4
Processor frequency	2.53 GHz
System bus rate	2.5 GT/s
Processor cache	3 MB
Processor cache type	Smart Cache
Processor socket	PGA988
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Core i3-300 Mobile Series
Processor codename	Arrandale
Bus type	DMI
FSB Parity	No
Thermal Design Power (TDP)	35 W
Tjunction	90 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16
PCI Express slots version	2.0
Number of Processing Die Transistors	382 M
Processing Die size	81 mm²
CPU multiplier (bus/core ratio)	19
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Memory clock speed	1066 MHz
Memory layout (slots x size)	2 x 2 GB
Memory slots	2x SO-DIMM
Maximum internal memory	8 GB

Storage

Specification	Value
Total storage capacity	320 GB
Storage media	HDD
Number of HDDs installed	1
HDD capacity	320 GB
HDD interface	SATA
HDD speed	5400 RPM
Optical drive type	DVD-RW
Card reader integrated	Yes
Compatible memory cards	MMC, SD, SDHC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
Graphics card family	Intel
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
On-board graphics card base frequency	500 MHz
On-board graphics card dynamic frequency (max)	667 MHz

Audio

Specification	Value
Audio system	HD
Number of built-in speakers	2
Speaker power	1.5 W
Built-in subwoofer	No
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	0.3 MP
Rear camera	No

Optical drive

Specification	Value
Optical drive interface	SATA

Network

Specification	Value
Mobile network connection	No
Wi-Fi	Yes
Networking features	Fast Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100 Mbit/s
Bluetooth	No
WWAN	Not installed
Data network	Not supported
Cabling technology	10/100Base-T(X)
SIM card support	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Micro-USB 2.0 ports quantity	0
eSATA/USB 2.0 ports quantity	0
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	0
Mini DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Thunderbolt ports quantity	0
Mini HDMI ports quantity	0
Micro HDMI ports quantity	0
Mini VGA ports quantity	0
Headphone outputs	1
S/PDIF out port	No
Combo headphone/mic port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
Mini-USB 2.0 ports quantity	0
Modem (RJ-11) ports	0
S-Video port	No
TV-out	No
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0

Performance

Specification	Value
Motherboard chipset	Intel® HM55 Express
Ambient light sensor	No
Electronic compass	No
GPS (satellite)	No

Keyboard

Specification	Value
Pointing device	Touchpad + Scroll zone
Numeric keypad	Yes
Windows keys	Yes

Software

Specification	Value
Operating system installed	Windows 7 Home Premium
Operating system architecture	64-bit
Drivers included	Yes
Bundled software	Samsung Recovery Solution IV, Phoenix FailSafe, McAfee Security Center, Samsung Support Center, Easy Display Manager, Easy Network Manager, Easy SpeedUp Manager, Samsung Update Plus, Samsung Battery Manager, Battery Life Extender, AnyPC, Easy File Share, Easy Content Share, Google Toolbar, Game Cons

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	45 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Physical Address Extension (PAE)	36 bit
Processor ARK ID	50178
Processor package size	rPGA 37.5x 37.5, BGA 34x28
Supported instruction sets	SSE4.1/4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	6
Battery life (max)	4 h

Power

Specification	Value
AC adapter power	60 W
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	No
Trusted Platform Module (TPM)	No
Password protection type	BIOS
HDD user password	Yes

Certificates

Specification	Value
Wi-Fi certified	Yes

Weight & dimensions

Specification	Value
Weight	2.4 kg
Width	379.6 mm
Depth	255.5 mm
Height (front)	3.24 cm
Height (rear)	3.83 cm

Video

Specification	Value
HD-Ready	Yes

Packaging content

Specification	Value
AC adapter included	Yes
Bag included	No
Cables included	AC
Remote control included	No

Other features

Specification	Value
Infrared data port	No
3D	No
Assisted GPS (A-GPS)	No
Instant messaging (IM)	No
Intel Turbo Memory	0 GB
Internal modem	No
TV tuner integrated	No
Supplied AC adapter type	AC
