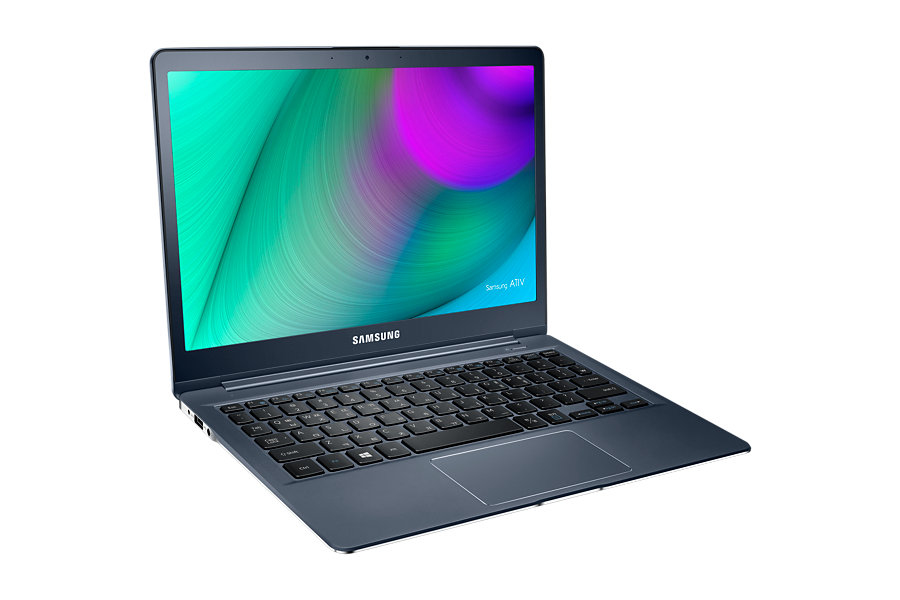

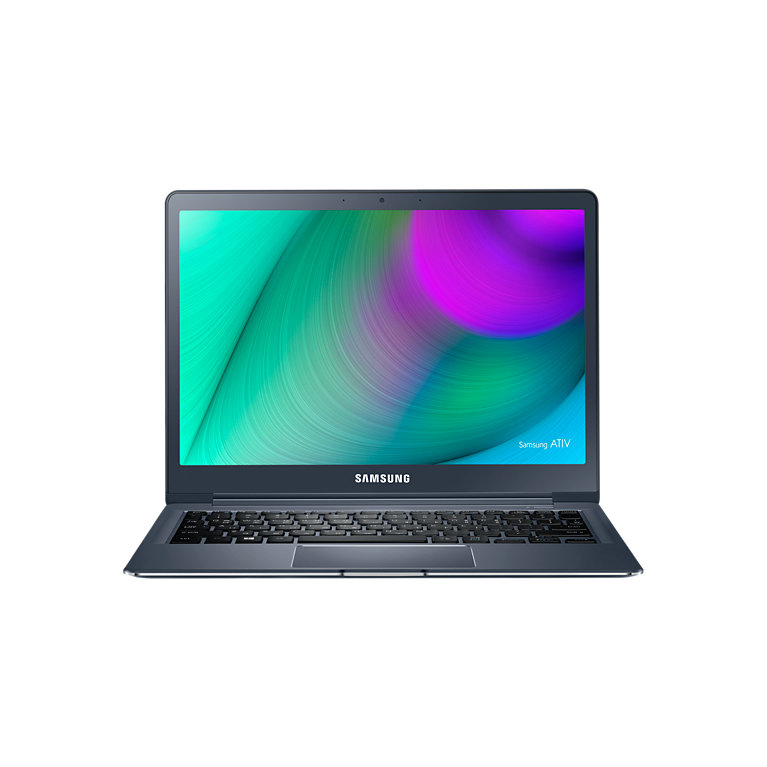

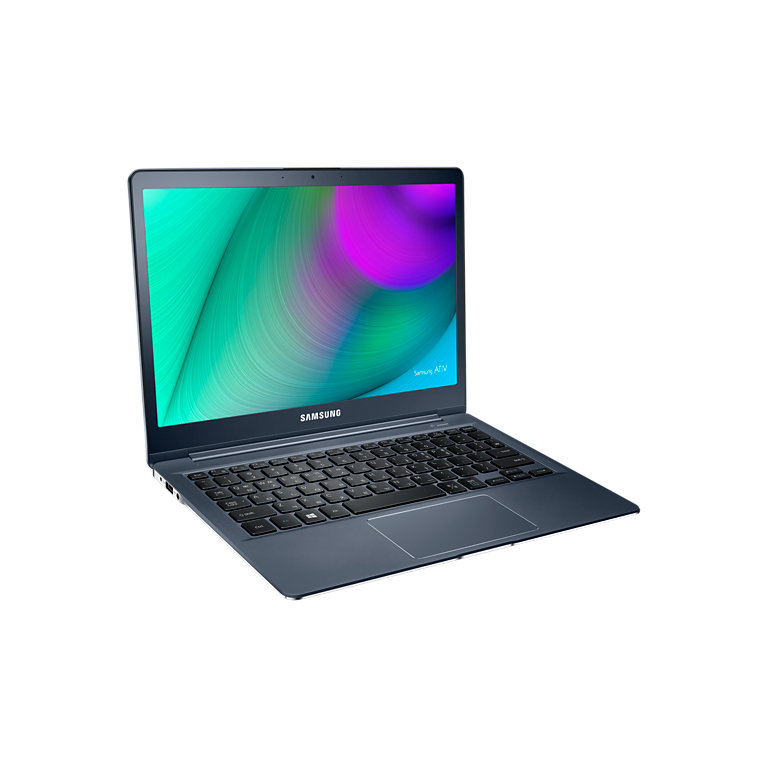

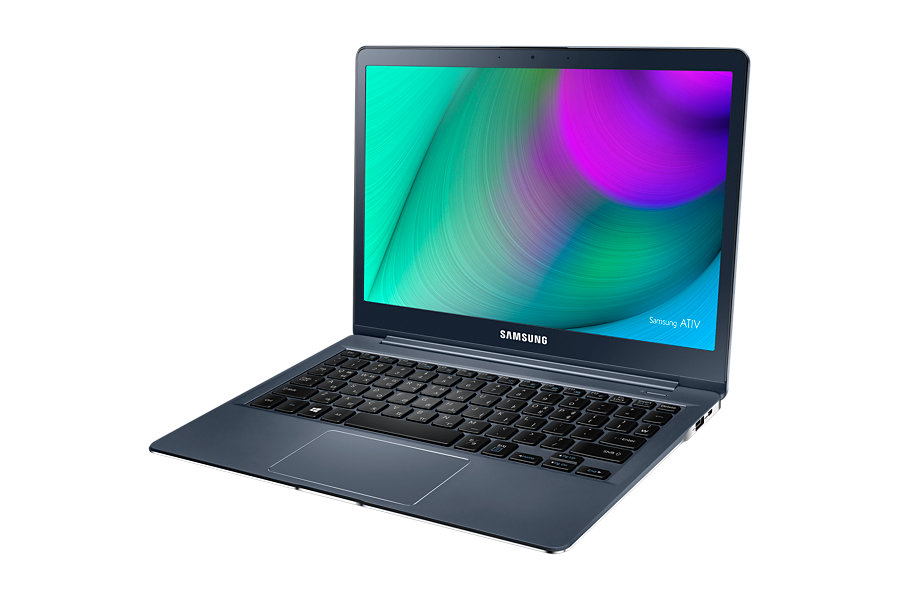

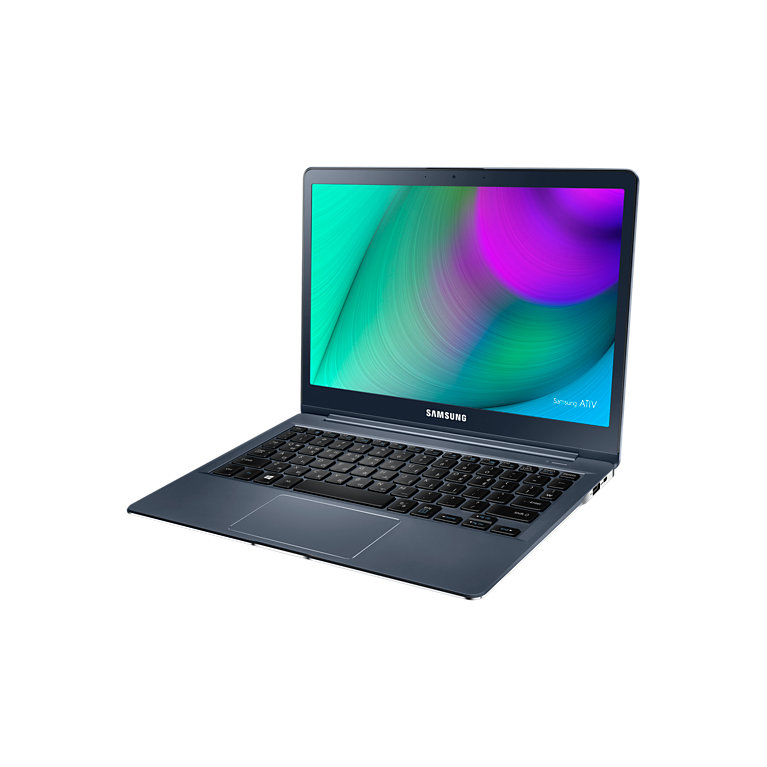

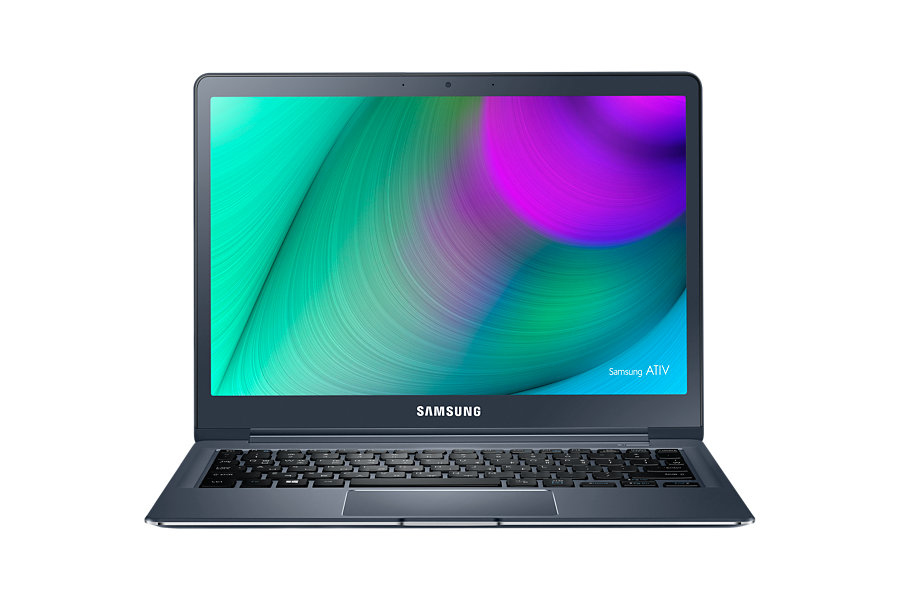

Samsung 930X2K Intel® Core™ M M-5Y31 Laptop

31 cm (12.2") Quad HD 8 GB LPDDR3-SDRAM 256 GB SSD Windows 10 Home Black

Model 930X2KPart no. NP930X2K-K04HK

182 specifications Checked 3 days ago

Display31 cm (12.2")
Resolution2560 x 1600 pixels
ProcessorIntel® Core™ M
Memory8 GB
Storage256 GB
GraphicsNot available

See all specifications

Overview

Display: 31 cm (12.2")
Resolution: 2560 x 1600 pixels
Processor: Intel® Core™ M
Memory: 8 GB
Storage: 256 GB
Graphics: Not available

Brand: Samsung
Category: Laptop
Model: 930X2K
Part number: NP930X2K-K04HK
Also known as: Samsung 930X2K Intel® Core™ M M-5Y31 Laptop 31 cm (12.2") Quad HD 8 GB LPDDR3-SDRAM 256 GB SSD Windows 10 Home Black

Specifications

182 specifications in 18 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Form factor	Clamshell
Market positioning	Business

Display

Specification	Value
Display diagonal	31 cm (12.2")
Display resolution	2560 x 1600 pixels
Touchscreen	No
HD type	Quad HD
LED backlight	Yes
Native aspect ratio	16:10

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ M
Processor generation	Intel® Core™ m-5xxx
Processor model	M-5Y31
Processor cores	2
Processor threads	4
Processor boost frequency	2.4 GHz
Processor frequency	0.9 GHz
Processor cache	4 MB
Processor cache type	L3
Processor socket	BGA 1234
Processor lithography	14 nm
Processor operating modes	32-bit, 64-bit
Processor series	Intel Core M-5Y Mobile series
Processor codename	Broadwell
FSB Parity	No
Stepping	F0
Thermal Design Power (TDP)	4.5 W
Configurable TDP-up frequency	1.1 GHz
Configurable TDP-up	6 W
Configurable TDP-down	3.5 W
Configurable TDP-down frequency	0.6 GHz
Scenario Design Power (SDP)	3.5 W
Tjunction	95 °C
Maximum number of PCI Express lanes	12
PCI Express configurations	x1 (6), x2 (4), x4 (3)
PCI Express slots version	2.0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	LPDDR3-SDRAM
Memory clock speed	1600 MHz
Memory form factor	On-board

Storage

Specification	Value
Total storage capacity	256 GB
Storage media	SSD
Number of SSDs installed	1
SSD capacity	256 GB
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 5300
Maximum on-board graphics card memory	16 GB
On-board graphics card base frequency	300 MHz
On-board graphics card dynamic frequency (max)	850 MHz
On-board graphics card DirectX version	11.2
On-board graphics card OpenGL version	4.3
On-board graphics card ID	0x161E
Graphics card Open GL support	Yes

Audio

Specification	Value
Audio system	Dolby Home Theater
Number of built-in speakers	2
Speaker power	1.5 W
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Rear camera	No

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	4.1
WWAN	Not installed
SIM card support	No

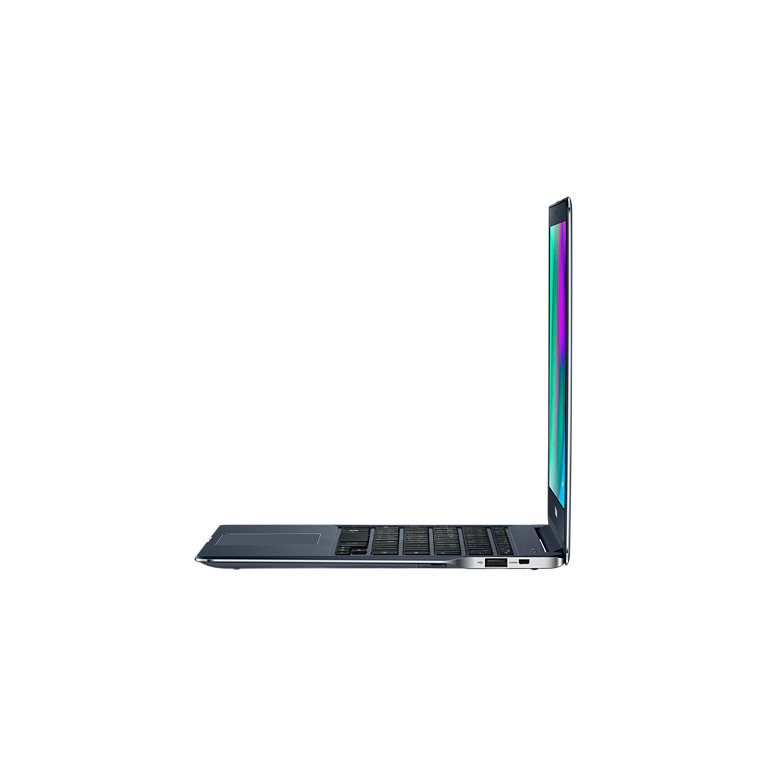

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	0
HDMI ports quantity	0
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	0
Thunderbolt ports quantity	0
Thunderbolt™ 3 Technology	No
Micro HDMI ports quantity	1
Headphone outputs	1
S/PDIF out port	No
Combo headphone/mic port	Yes
Microphone in	Yes
Docking connector	No
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No

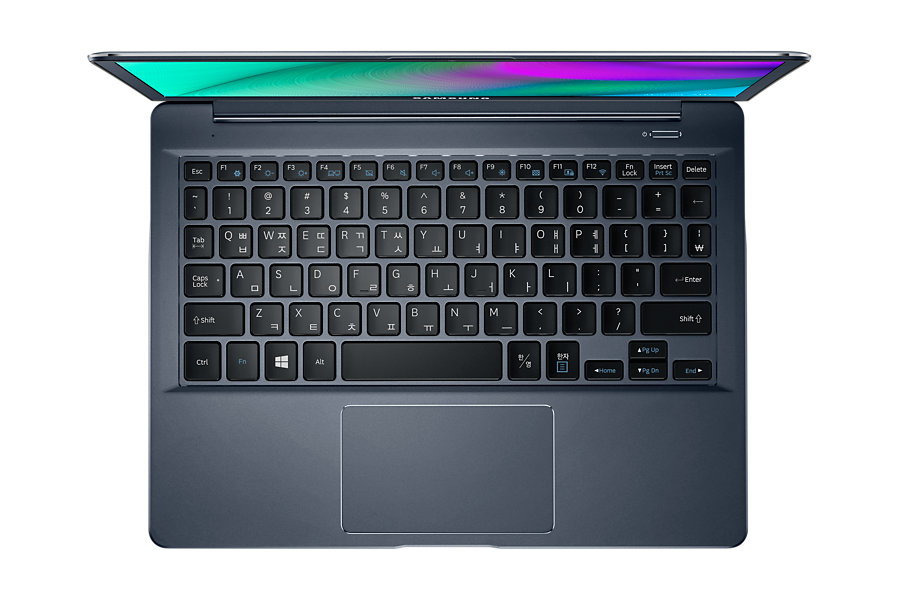

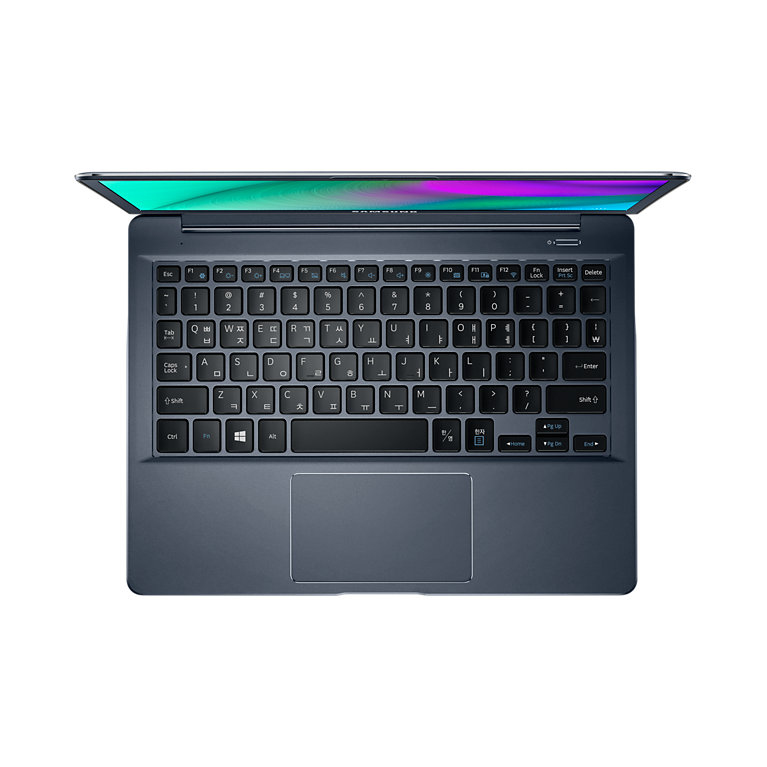

Keyboard

Specification	Value
Pointing device	Clickpad
Keyboard backlit	No
Numeric keypad	No
Island-style keyboard	Yes
Windows keys	Yes

Software

Specification	Value
Operating system installed	Windows 10 Home

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	14 nm
Idle States	Yes
Intel 64	Yes
Intel Advanced Vector Extensions	No
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel HD Boost	No
Intel I/O Acceleration Technology	No
Intel Identity Protection Technology version	1.00
Intel Instruction Replay Technology	No
Intel Power Management Technology	No
Intel QuickAssist Technology	No
Intel Rapid Storage Technology	No
Intel RealSense 3D Camera	No
Intel RealSense Snapshot	No
Intel Secure Boot	No
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Smart Connect Technology	No
Intel Smart Idle Technology	No
Intel Smart Response Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	No
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel Unite installed	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Active Management Technology (Intel® AMT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Built-in Visuals Technology	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® Matrix Storage Technology (Intel® MST)	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® OS Guard	Yes
Intel® Pro Wireless Display (Intel® Pro WiDi)	No
Intel® Quick Sync Video Technology	Yes
Intel® Rapid Start Technology	No
Intel® RealSense Technology	No
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	Yes
Intel® Smart Cache	Yes
Intel® Smart Response Technology	Yes
Intel® Smart Sound Technology	No
Intel® Turbo Boost Technology	2.0
Intel® Unite™	No
Intel® Wireless-AC Technology	No
Processor ARK ID	84666
Processor code	SR23G
Processor package size	30 x 16.5 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
UART	No
Conflict-Free processor	Yes

Battery

Specification	Value
Number of battery cells	2
Battery capacity	35 Wh

Power

Specification	Value
AC adapter power	26 W
DC-in jack	Yes

Security

Specification	Value
True Key™	No

Weight & dimensions

Specification	Value
Weight	950 g
Width	284.1 mm
Depth	212.7 mm
Height	11.8 mm

Other features

Specification	Value
TV tuner integrated	No
