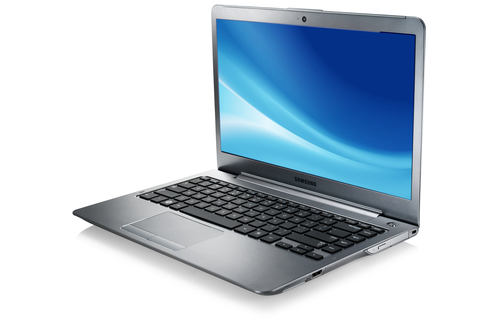

Samsung 5 530U4C-S01 Intel® Core™ i7 i7-3517M

35.6 cm (14") HD 8 GB DDR3-SDRAM 500 GB Hybrid-HDD NVIDIA® GeForce® GT 620M Windows 7 Home Premium Silver QWERTZ G

Model 530U4C-S01Part no. NP530U4C-S01DEEAN 8806085146181

128 specifications Checked 3 days ago

Display35.6 cm (14")
Resolution1366 x 768 pixels
ProcessorIntel® Core™ i7
Memory8 GB
Storage500 GB
GraphicsNVIDIA® GeForce® GT 620M

See all specifications

Overview

Display: 35.6 cm (14")
Resolution: 1366 x 768 pixels
Processor: Intel® Core™ i7
Memory: 8 GB
Storage: 500 GB
Graphics: NVIDIA® GeForce® GT 620M

Brand: Samsung
Category: Laptop
Model: 530U4C-S01
Part numbers: NP530U4C-S01DE, NP530U4C-S01IN
EAN / UPC: 8806085146181
Also known as: Samsung 5 530U4C-S01 Intel® Core™ i7 i7-3517M 35.6 cm (14") HD 8 GB DDR3-SDRAM 500 GB Hybrid-HDD NVIDIA® GeForce® GT 620M Windows 7 Home Premium Silver QWERTZ G

Specifications

128 specifications in 22 groups

Design

Specification	Value
Product colour	Silver
Form factor	Clamshell

Display

Specification	Value
Display diagonal	35.6 cm (14")
Display resolution	1366 x 768 pixels
HD type	HD
Display number of colours	16.78 million colours
LED backlight	Yes
Native aspect ratio	16:9
Display surface	Matt
Display brightness	300 cd/m²

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	3rd gen Intel® Core™ i7
Processor model	i7-3517M
Processor cores	2
Processor boost frequency	3 GHz
Processor frequency	1.9 GHz
System bus rate	5 GT/s
Processor cache	4 MB
Processor cache type	L3

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR3-SDRAM
Memory clock speed	1600 MHz
Memory layout (slots x size)	1 x 4 GB
Memory slots	1x SO-DIMM
Memory slots (available)	0
Maximum internal memory	8 GB
Maximum internal memory (64-bit)	8 GB

Storage

Specification	Value
Total storage capacity	500 GB
Storage media	Hybrid-HDD
Number of HDDs installed	1
HDD capacity	500 GB
HDD interface	SATA II
HDD speed	5400 RPM
HDD size	2.5"
Number of SSDs installed	0
Flash memory	24 GB
Optical drive type	DVD Super Multi DL
Card reader integrated	Yes
Compatible memory cards	SD

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA® GeForce® GT 620M
Graphics card family	Intel, NVIDIA
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 4000

Audio

Specification	Value
Audio system	HD
Built-in speaker(s)	Yes
Number of built-in speakers	2
Built-in microphone	Yes

Camera

Specification	Value
Front camera resolution (numeric)	1.3 MP

Optical drive

Specification	Value
LightScribe	No
Optical drive interface	SATA
DVD-R read speed	8x
DVD-R write speed	8x
DVD+R read speed	8x
DVD+R write speed	8x
DVD-RAM read speed	5x
DVD-RAM write speed	5x

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	4.0
Cabling technology	10/100/1000Base-T(X)

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	1.4
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Thunderbolt ports quantity	0
Headphone outputs	1
S/PDIF out port	No
Combo headphone/mic port	Yes
Microphone in	Yes
Headphone connectivity	3.5 mm

Performance

Specification	Value
Motherboard chipset	Intel HM76 Express

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	No
Full-size keyboard	Yes
Keyboard number of keys	81
Keyboard layout	QWERTZ
Keyboard language	German

Software

Specification	Value
Operating system installed	Windows 7 Home Premium
Operating system architecture	64-bit
Trial software	Norton Internet Security
Bundled software	Microsoft Office Starter 2010

Processor special features

Specification	Value
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Turbo Boost Technology	Yes

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Number of battery cells	8
Battery capacity	6100 mAh
Battery life (max)	6.5 h

Power

Specification	Value
AC adapter power	60 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output voltage	19 V
Power auto-sensing	Yes
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	No
Password protection type	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-15 - 60 °C
Operating relative humidity (H-H)	20 - 85%
Storage relative humidity (H-H)	10 - 90%

Weight & dimensions

Specification	Value
Weight	1.84 kg
Width	333 mm
Depth	229.5 mm
Height	20.9 mm

Packaging content

Specification	Value
AC adapter included	Yes
Cables included	AC
Manual	Yes
Quick start guide	Yes
Warranty card	Yes

Other features

Specification	Value
Infrared data port	No
3D	No
Supplied AC adapter type	AC
