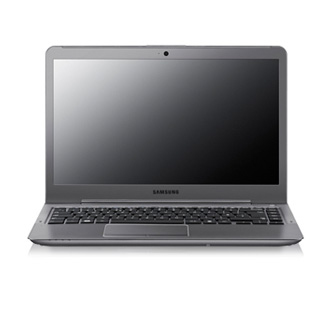

Samsung 5 530U4B-S02TR Intel® Core™ i5 i5-2467M

35.6 cm (14") HD 6 GB DDR3-SDRAM 1 TB HDD+SSD AMD Radeon HD 7550M Windows 7 Home Premium Titanium

Model 530U4B-S02TRPart no. NP530U4B-S02TREAN 8806071988900

162 specifications Checked 3 days ago

Display35.6 cm (14")
Resolution1366 x 768 pixels
ProcessorIntel® Core™ i5
Memory6 GB
Storage1 TB
GraphicsAMD Radeon HD 7550M

See all specifications

Overview

Display: 35.6 cm (14")
Resolution: 1366 x 768 pixels
Processor: Intel® Core™ i5
Memory: 6 GB
Storage: 1 TB
Graphics: AMD Radeon HD 7550M

Brand: Samsung
Category: Laptop
Model: 530U4B-S02TR
Part number: NP530U4B-S02TR
EAN / UPC: 8806071988900
Also known as: Samsung 5 530U4B-S02TR Intel® Core™ i5 i5-2467M 35.6 cm (14") HD 6 GB DDR3-SDRAM 1 TB HDD+SSD AMD Radeon HD 7550M Windows 7 Home Premium Titanium

Specifications

162 specifications in 22 groups

Design

Specification	Value
Product colour	Titanium
Form factor	Clamshell

Display

Specification	Value
Display diagonal	35.6 cm (14")
Display resolution	1366 x 768 pixels
HD type	HD
Display number of colours	16.78 million colours
LED backlight	Yes
Native aspect ratio	16:9
Display brightness	300 cd/m²

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	2nd gen Intel® Core™ i5
Processor model	i5-2467M
Processor cores	2
Processor threads	4
Processor boost frequency	2.3 GHz
Processor frequency	1.6 GHz
System bus rate	5 GT/s
Processor cache	3 MB
Processor cache type	L3
Processor socket	BGA 1023
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Core i5-2400 Mobile Series
Processor codename	Sandy Bridge
Bus type	DMI
FSB Parity	No
Stepping	J1
Thermal Design Power (TDP)	17 W
Tjunction	100 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	2.0
CPU multiplier (bus/core ratio)	16
ECC supported by processor	No

Memory

Specification	Value
Internal memory	6 GB
Internal memory type	DDR3-SDRAM
Memory clock speed	1333 MHz

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	HDD+SSD
Number of HDDs installed	1
HDD capacity	1 TB
HDD interface	SATA II
HDD speed	5400 RPM
Number of SSDs installed	1
SSD capacity	16 GB
Optical drive type	DVD Super Multi DL
Card reader integrated	Yes
Compatible memory cards	MMC, SD, SDHC, SDXC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	AMD Radeon HD 7550M
Graphics card family	AMD, Intel
Discrete graphics memory type	GDDR3
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 3000
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1150 MHz
On-board graphics card ID	0x116

Audio

Specification	Value
Audio system	HD
Built-in speaker(s)	Yes
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes

Camera

Specification	Value
Front camera resolution (numeric)	1.3 MP

Optical drive

Specification	Value
LightScribe	No
Optical drive interface	SATA

Network

Specification	Value
Wi-Fi	Yes
Networking features	Gigabit LAN, WLAN
Wireless technology	Wi-Fi, Bluetooth
Wi-Fi standards	802.11a, 802.11b, 802.11g
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	3.0+HS
Cabling technology	10/100/1000Base-T(X)
Integrated 4G WiMAX	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
eSATA/USB 2.0 ports quantity	0
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Thunderbolt ports quantity	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
TV-out	No

Performance

Specification	Value
Motherboard chipset	Intel® HM65 Express

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	No
Full-size keyboard	Yes

Software

Specification	Value
Operating system installed	Windows 7 Home Premium
Operating system architecture	64-bit
Drivers included	Yes

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	32 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	56858
Processor code	SR0D6
Processor package size	31.0 x 24.0 (BGA1023)
Supported instruction sets	AVX
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	8
Battery capacity	45.3 Wh
Battery life (max)	6 h

Power

Specification	Value
AC adapter power	60 W
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	No

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Operating relative humidity (H-H)	20 - 80%

Weight & dimensions

Specification	Value
Weight	1.79 kg
Width	333 mm
Depth	229.5 mm
Height	20.9 mm

Packaging content

Specification	Value
AC adapter included	Yes
Manual	Yes
Quick start guide	Yes

Other features

Specification	Value
Infrared data port	No
Supplied AC adapter type	AC
