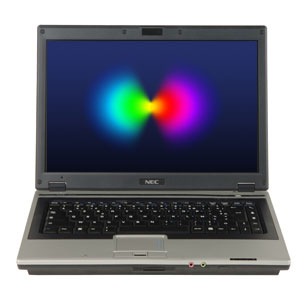

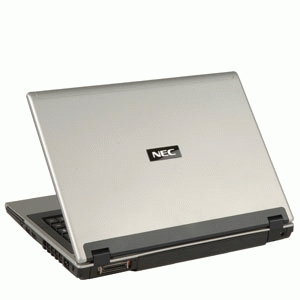

NEC Versa S970, FR

Model Versa S970, FRPart no. NNAJ1700702

125 specifications Checked yesterday

Display35.8 cm (14.1")
Resolution1280 x 800 pixels
ProcessorIntel® Core™2 Duo
Memory1 GB
Storage120 GB
GraphicsIntel® GMA X3100

See all specifications

Overview

Display: 35.8 cm (14.1")
Resolution: 1280 x 800 pixels
Processor: Intel® Core™2 Duo
Memory: 1 GB
Storage: 120 GB
Graphics: Intel® GMA X3100

Brand: NEC
Category: Laptop
Model: Versa S970, FR
Part numbers: NNAJ1700702, NNAJ1700102
Also known as: NEC Versa S970, FR Intel® Core™2 Duo T7250 35.8 cm (14.1") 1 GB DDR2-SDRAM 120 GB Intel® GMA X3100 Windows XP Professional

Specifications

125 specifications in 19 groups

Display

Specification	Value
Display diagonal	35.8 cm (14.1")
Display resolution	1280 x 800 pixels
Native aspect ratio	16:10

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	T7250
Processor cores	2
Processor threads	2
Processor frequency	2 GHz
Processor cache	2 MB
Processor cache type	L2
Processor front side bus	800 MHz
Processor socket	Socket 478
Processor lithography	65 nm
Processor operating modes	64-bit
Processor series	Intel Core 2 Duo T7000 Series
Processor codename	Merom
Bus type	FSB
FSB Parity	No
Stepping	M0
Thermal Design Power (TDP)	35 W
Tcase	68 °C
Tjunction	100 °C
Number of Processing Die Transistors	291 M
Processing Die size	143 mm²
CPU multiplier (bus/core ratio)	10
ECC supported by processor	No

Memory

Specification	Value
Internal memory	1 GB
Internal memory type	DDR2-SDRAM
Memory clock speed	667 MHz
Memory layout (slots x size)	1 x 1 GB
Maximum internal memory	4 GB

Storage

Specification	Value
Total storage capacity	120 GB
HDD interface	SATA
HDD speed	5400 RPM
Optical drive type	DVD-RW
Card reader integrated	Yes
Compatible memory cards	MMC, SD, xD

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	Intel® GMA X3100
Maximum graphics card memory	0.384 GB

Audio

Specification	Value
Audio system	Realtek HDA ALC888 Azalia
Number of built-in speakers	2
Speaker power	1.5 W

Camera

Specification	Value
Front camera	No

Network

Specification	Value
Networking features	WLAN, Gigabit Ethernet
Wireless technology	IEEE 802.11a/b/g
Bluetooth	Yes
Bluetooth version	2.0+EDR
Cabling technology	10/100/1000Base-T(X)

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
Ethernet LAN (RJ-45) ports	1
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	1
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	Yes
ExpressCard slot	No
CardBus PCMCIA slots quantity	1
CardBus PCMCIA slot type	Type II
SmartCard slot	No
Modem (RJ-11) ports	1
TV-in port	No
TV-out	Yes
TV-out type	S-Video
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0
USB 1.1 ports quantity	0

Keyboard

Specification	Value
Keyboard number of keys	87

Software

Specification	Value
Operating system installed	Windows XP Professional
Bundled software	Yes

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	31728
Processor code	SLA49
Processor package size	35 x 35 mm
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	6

Power

Specification	Value
AC adapter input voltage	100 - 240 V
AC adapter output current	4.73 A
AC adapter output voltage	19 V
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C

Weight & dimensions

Specification	Value
Weight	2.2 kg
Width	332 mm
Depth	240 mm
Height	35 mm

Packaging content

Specification	Value
AC adapter included	Yes

Other features

Specification	Value
Infrared data port	Yes
Internal modem	Yes
Modem speed	56 Kbit/s
Modem type	V.92
Supplied AC adapter type	AC
