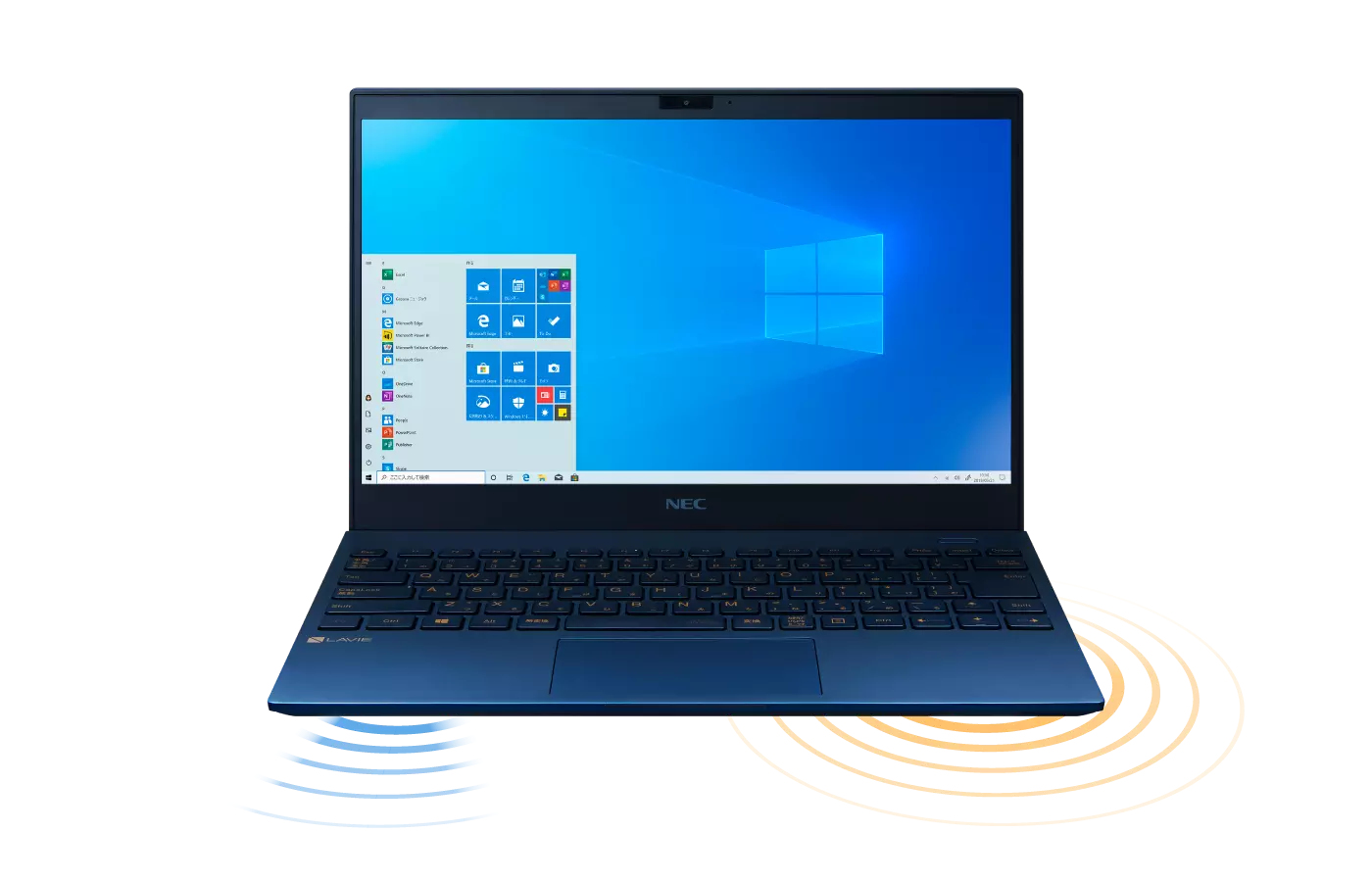

NEC LaVie Note Mobile PC-PM550BAL laptop Intel® Core™ i5 i5-1135G7

LaVie Note Mobile PC-PM550BAL laptop Intel® Core™ i5 i5-1135G7

33.8 cm (13.3") Full HD 8 GB DDR4-SDRAM 512 GB SSD Wi-Fi 6 (802.11ax) Windows 10 Home Blue

Model PC-PM550BAL

85 specifications Checked today

Display33.8 cm (13.3")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i5
Memory8 GB
Storage512 GB
GraphicsNot available

See all specifications

Overview

Display: 33.8 cm (13.3")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i5
Memory: 8 GB
Storage: 512 GB
Graphics: Not available

Brand: NEC
Category: Laptop
Model: PC-PM550BAL
Part number: PC-PM550BAL
Also known as: NEC LaVie Note Mobile PC-PM550BAL laptop Intel® Core™ i5 i5-1135G7 33.8 cm (13.3") Full HD 8 GB DDR4-SDRAM 512 GB SSD Wi-Fi 6 (802.11ax) Windows 10 Home Blue

Specifications

85 specifications in 17 groups

Design

Specification	Value
Product type	Laptop
Product colour	Blue
Colour name	Navy blue
Form factor	Clamshell

Display

Specification	Value
Display diagonal	33.8 cm (13.3")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Panel type	IPS
Anti-glare screen	Yes

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	11th gen Intel® Core™ i5
Processor model	i5-1135G7
Processor cores	4
Processor boost frequency	4.2 GHz
Processor cache	8 MB
Configurable TDP-up frequency	2.4 GHz
Configurable TDP-up	28 W
Configurable TDP-down	12 W
Configurable TDP-down frequency	0.9 GHz

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR4-SDRAM
Memory form factor	On-board
Maximum internal memory	8 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express
Optical drive type	DVD Super Multi
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card model	Intel Iris Xe Graphics
On-board graphics card memory	4 GB

Audio

Specification	Value
Number of built-in speakers	2
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera HD type	HD

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a, 802.11g, Wi-Fi 5 (802.11ac), 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax)
Ethernet LAN	Yes
Ethernet LAN data rates	10,1000,100 Mbit/s
Bluetooth	Yes
Bluetooth version	5.0

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	2
HDMI ports quantity	1
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes
USB Sleep-and-Charge	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	No
Keyboard number of keys	85

Software

Specification	Value
Operating system installed	Windows 10 Home
Operating system architecture	64-bit

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Idle States	Yes
Intel Software Guard Extensions (Intel SGX)	No
Intel Stable Image Platform Program (SIPP)	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Battery life (max)	24 h
Battery recharge time	2.3 h
Battery weight	210 g

Power

Specification	Value
AC adapter power	65 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
USB Power Delivery (USB PD)	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C

Weight & dimensions

Specification	Value
Weight	889 g
Width	307.2 mm
Depth	216 mm
Height	16.9 mm
