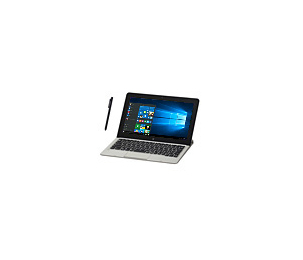

NEC LaVie E HS550/CAS Intel® Core™ M M-5Y71 Hybrid (2-in-1)

29.5 cm (11.6") Touchscreen Full HD 4 GB LPDDR3-SDRAM 128 GB SSD Windows 10 Home Black, Silver

Model HS550/CASPart no. PC-HS550CAS

184 specifications Checked 3 days ago

Display29.5 cm (11.6")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ M
Memory4 GB
Storage128 GB
GraphicsNot available

See all specifications

Overview

Display: 29.5 cm (11.6")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ M
Memory: 4 GB
Storage: 128 GB
Graphics: Not available

Brand: NEC
Category: Laptop
Model: HS550/CAS
Part number: PC-HS550CAS
Also known as: NEC LaVie E HS550/CAS Intel® Core™ M M-5Y71 Hybrid (2-in-1) 29.5 cm (11.6") Touchscreen Full HD 4 GB LPDDR3-SDRAM 128 GB SSD Windows 10 Home Black, Silver

Specifications

184 specifications in 22 groups

Design

Specification	Value
Product type	Hybrid (2-in-1)
Product colour	Black, Silver
Form factor	Convertible (Detachable)

Display

Specification	Value
Display diagonal	29.5 cm (11.6")
Display resolution	1920 x 1080 pixels
Touchscreen	Yes
Touchscreen type	Capacitive
HD type	Full HD
Touch technology	Multi-touch
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ M
Processor generation	Intel® Core™ m-5xxx
Processor model	M-5Y71
Processor cores	2
Processor threads	4
Processor boost frequency	2.9 GHz
Processor frequency	1.2 GHz
Processor cache	4 MB
Processor cache type	L3
Processor socket	BGA 1234
Processor lithography	14 nm
Processor operating modes	32-bit, 64-bit
Processor series	Intel Core M-5Y Mobile series
Processor codename	Broadwell
FSB Parity	No
Stepping	F0
Thermal Design Power (TDP)	4.5 W
Configurable TDP-up frequency	1.4 GHz
Configurable TDP-up	6 W
Configurable TDP-down	3.5 W
Configurable TDP-down frequency	0.6 GHz
Scenario Design Power (SDP)	3.5 W
Tjunction	95 °C
Maximum number of PCI Express lanes	12
PCI Express configurations	x1 (6), x2 (4), x4 (3)
PCI Express slots version	2.0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	LPDDR3-SDRAM
Memory form factor	On-board
Maximum internal memory	4 GB

Storage

Specification	Value
Total storage capacity	128 GB
Storage media	SSD
Number of SSDs installed	1
SSD capacity	128 GB
SSD interface	SATA
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSDHC, MicroSDXC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 5300
Maximum on-board graphics card memory	16 GB
On-board graphics card base frequency	300 MHz
On-board graphics card dynamic frequency (max)	900 MHz
On-board graphics card DirectX version	11.2
On-board graphics card OpenGL version	4.3
On-board graphics card ID	0x161E
Graphics card Open GL support	Yes

Audio

Specification	Value
Number of built-in speakers	2
Speaker power	0.7 W
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	5 MP
Swivel webcam	No
Rear camera	Yes
Rear camera resolution (numeric)	2 MP

Optical drive

Specification	Value
LightScribe	No

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wi-Fi data rate (max)	867 Mbit/s
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	4.0

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Ethernet LAN (RJ-45) ports	0
HDMI ports quantity	0
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	0
Thunderbolt ports quantity	0
Micro HDMI ports quantity	1
Headphone outputs	1
S/PDIF out port	No
Combo headphone/mic port	Yes
Docking connector	Yes
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No

Performance

Specification	Value
Accelerometer	Yes
Ambient light sensor	Yes
GPS (satellite)	No
Gyroscope	Yes
Orientation sensor	Yes

Keyboard

Specification	Value
Pointing device	Clickpad
Numeric keypad	No
Keyboard number of keys	88
Windows keys	Yes

Software

Specification	Value
Operating system installed	Windows 10 Home
Operating system architecture	64-bit
Trial software	Office Home & Business Premium

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	14 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Smart Response Technology version	1.00
Intel Stable Image Platform Program (SIPP)	Yes
Intel Stable Image Platform Program (SIPP) version	1.00
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	No
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	Yes
Intel® Smart Cache	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	84672
Processor code	SR23Q
Processor package size	30 x 16.5 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Battery life (max)	8 h
Battery recharge time	2.4 h

Power

Specification	Value
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	No

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	8 - 95%

Weight & dimensions

Specification	Value
Width	301.4 mm
Depth	216.7 mm
Height (front)	1.74 cm
Height (rear)	2.64 cm
Weight (tablet mode)	822 g
Width (tablet mode)	30.1 cm
Depth (tablet mode)	19.2 cm
Height (tablet mode)	9.6 mm

Packaging content

Specification	Value
AC adapter included	Yes
Stylus pen	Yes
Manual	Yes

Other features

Specification	Value
3D	No
Power consumption (standby)	0.5 W
Power consumption (typical)	7.6 W
Power adapter width	9.1 cm
Power adapter depth	2.7 cm
Power adapter height	3.5 cm
