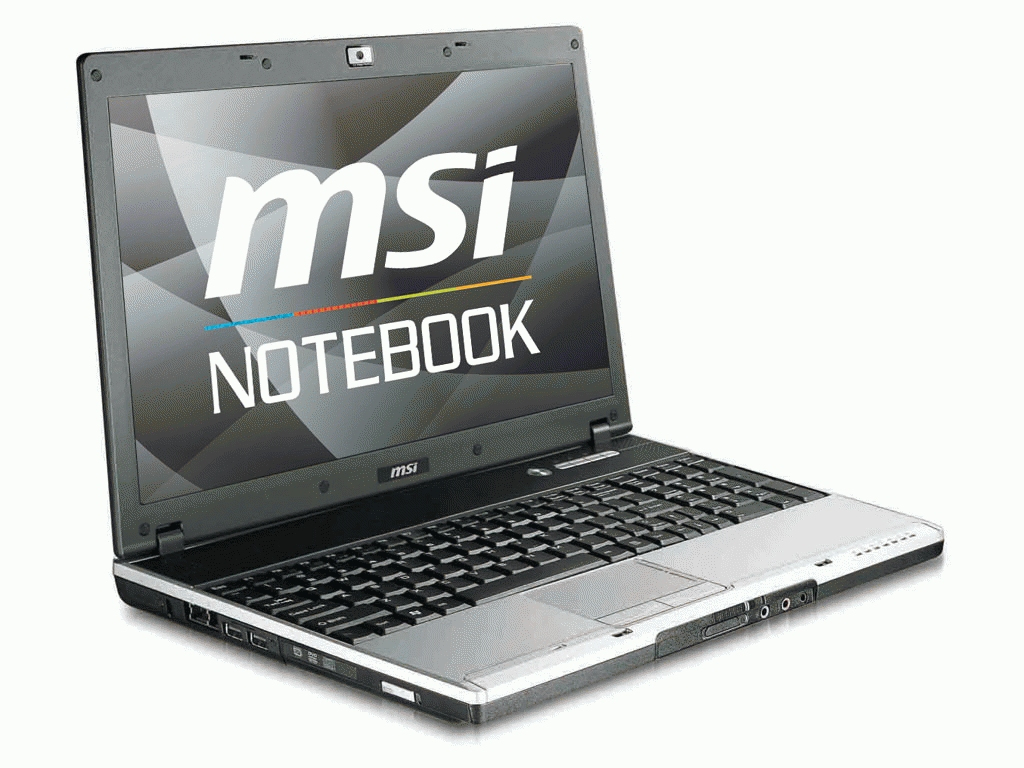

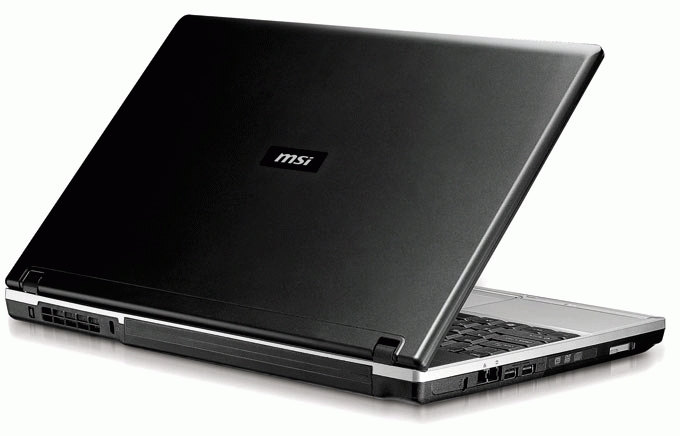

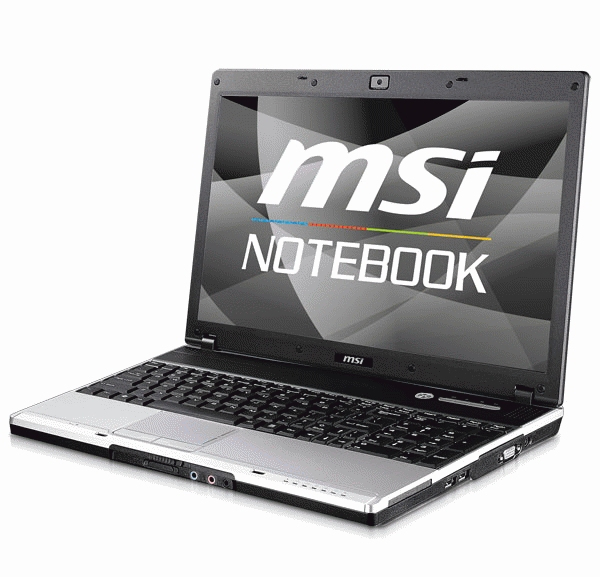

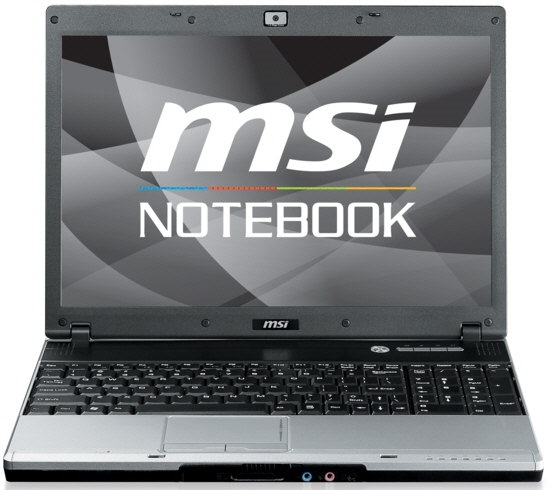

Megabook VR603-C5816FD Intel® Celeron® M 585
39.1 cm (15.4") 1 GB DDR2-SDRAM 160 GB FreeDOS Black
Model VR603-C5816FDPart no. 00163K1-SKU5EAN 4719072123192
111 specifications Checked today
- Display39.1 cm (15.4")
- Resolution1280 x 800 pixels
- ProcessorIntel® Celeron® M
- Memory1 GB
- Storage160 GB
- OSFreeDOS
Overview
- Display
- 39.1 cm (15.4")
- Resolution
- 1280 x 800 pixels
- Processor
- Intel® Celeron® M
- Memory
- 1 GB
- Storage
- 160 GB
- OS
- FreeDOS
- Brand
- MSI
- Category
- Laptop
- Model
- VR603-C5816FD
- Part number
- 00163K1-SKU5
- EAN / UPC
- 4719072123192
- Also known as
- MSI Megabook VR603-C5816FD Intel® Celeron® M 585 39.1 cm (15.4") 1 GB DDR2-SDRAM 160 GB FreeDOS Black
Specifications
111 specifications in 16 groups
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Display
| Specification | Value |
|---|---|
| Display diagonal | 39.1 cm (15.4") |
| Display resolution | 1280 x 800 pixels |
| Native aspect ratio | 16:10 |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Celeron® M |
| Processor model | 585 |
| Processor cores | 1 |
| Processor threads | 1 |
| Processor frequency | 2.16 GHz |
| Processor cache | 1 MB |
| Processor cache type | L2 |
| Processor front side bus | 667 MHz |
| Processor socket | Socket 478 |
| Processor lithography | 65 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Celeron Processor 500 Series for Mobile |
| Processor codename | Merom |
| Bus type | FSB |
| FSB Parity | No |
| Stepping | M0 |
| Thermal Design Power (TDP) | 31 W |
| Tcase | 100 °C |
| Number of Processing Die Transistors | 291 M |
| Processing Die size | 143 mm² |
| CPU multiplier (bus/core ratio) | 13.2 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 1 GB |
| Internal memory type | DDR2-SDRAM |
| Memory clock speed | 667 MHz |
| Maximum internal memory | 4 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 160 GB |
| HDD interface | SATA |
| Optical drive type | DVD Super Multi |
| Card reader integrated | Yes |
| Compatible memory cards | MMC, SD |
Audio
| Specification | Value |
|---|---|
| Number of built-in speakers | 2 |
Camera
| Specification | Value |
|---|---|
| Front camera resolution (numeric) | 1.3 MP |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |
| Wireless technology | 802.11b/g/n |
| Bluetooth | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 0 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| Headphone outputs | 1 |
| S/PDIF out port | No |
| Microphone in | Yes |
| Docking connector | No |
| ExpressCard slot | No |
| CardBus PCMCIA slots quantity | 0 |
| CardBus PCMCIA slot type | No |
| SmartCard slot | No |
| Modem (RJ-11) ports | 1 |
| TV-in port | No |
| TV-out | No |
| PS/2 ports quantity | 0 |
| Parallel ports quantity | 0 |
| Serial ports quantity | 0 |
| I/O ports | 1 x PCI Express |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® GL40 Express |
Software
| Specification | Value |
|---|---|
| Operating system installed | FreeDOS |
| Drivers included | Yes |
Processor special features
| Specification | Value |
|---|---|
| Intel® Wireless Display (Intel® WiDi) | No |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | No |
| Execute Disable Bit | Yes |
| Idle States | No |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | No |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Turbo Boost Technology | No |
| Processor ARK ID | 36681 |
| Processor code | SLB6L |
| Processor package size | 35 x 35 mm |
| Thermal Monitoring Technologies | No |
| Conflict-Free processor | No |
Battery
| Specification | Value |
|---|---|
| Number of battery cells | 6 |
Power
| Specification | Value |
|---|---|
| AC adapter power | 65 W |
| DC-in jack | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.7 kg |
| Width | 358 mm |
| Depth | 259 mm |
| Height | 27 mm |
| Height (front) | 2.7 cm |
| Height (rear) | 3.1 cm |
| Dimensions (WxDxH) | 358 x 259 x 27 mm |
Other features
| Specification | Value |
|---|---|
| Infrared data port | Yes |
| Internal modem | Yes |
| Supplied AC adapter type | AC |
