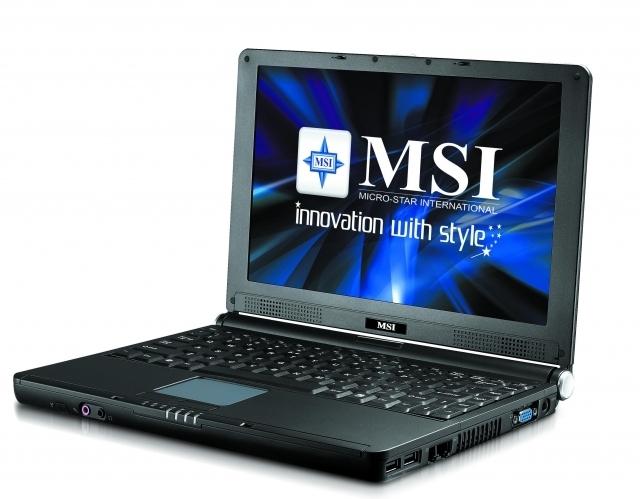

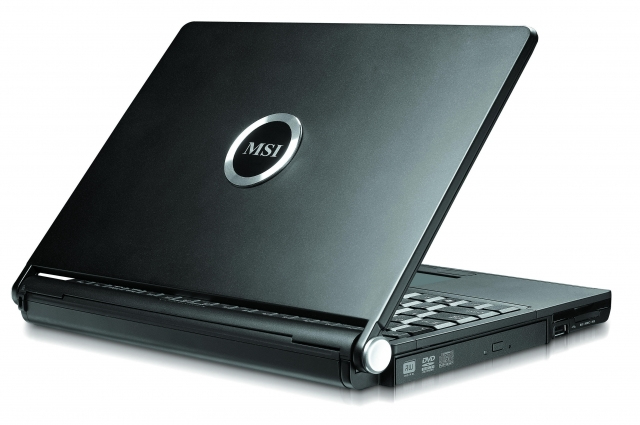

MSI Megabook VR201 Intel Pentium Mobile T2330

30.7 cm (12.1") 2 GB DDR2-SDRAM 160 GB Intel® GMA X3100 Windows Vista Home Premium

Model VR201Part no. VR201-017NE

107 specifications Checked 2 days ago

Display30.7 cm (12.1")
Resolution1280 x 800 pixels
ProcessorIntel Pentium Mobile
Memory2 GB
Storage160 GB
GraphicsIntel® GMA X3100

See all specifications

Overview

Display: 30.7 cm (12.1")
Resolution: 1280 x 800 pixels
Processor: Intel Pentium Mobile
Memory: 2 GB
Storage: 160 GB
Graphics: Intel® GMA X3100

Brand: MSI
Category: Laptop
Model: VR201
Part numbers: VR201-017NE, VR201X-019EU, VR201X-022HU, VR201X-020CZ, VR201X-021SK
Also known as: MSI Megabook VR201 Intel Pentium Mobile T2330 30.7 cm (12.1") 2 GB DDR2-SDRAM 160 GB Intel® GMA X3100 Windows Vista Home Premium

Specifications

107 specifications in 16 groups

Display

Specification	Value
Display diagonal	30.7 cm (12.1")
Display resolution	1280 x 800 pixels
Native aspect ratio	16:10

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Pentium Mobile
Processor model	T2330
Processor cores	2
Processor threads	2
Processor frequency	1.6 GHz
Processor cache	1 MB
Processor cache type	L2
Processor front side bus	533 MHz
Processor socket	Socket 478
Processor lithography	65 nm
Processor operating modes	64-bit
Processor series	Intel Pentium T2000 Series for Mobile
Processor codename	Merom
Bus type	FSB
FSB Parity	No
Stepping	M0
Thermal Design Power (TDP)	35 W
Tjunction	100 °C
Number of Processing Die Transistors	291 M
Processing Die size	143 mm²
CPU multiplier (bus/core ratio)	12
ECC supported by processor	No

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR2-SDRAM

Storage

Specification	Value
Total storage capacity	160 GB
HDD interface	SATA
HDD speed	5400 RPM
Optical drive type	DVD±RW

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	Intel® GMA X3100

Audio

Specification	Value
Audio system	SoundBlaster
Number of built-in speakers	2

Camera

Specification	Value
Front camera	No

Network

Specification	Value
Wireless technology	IEEE 802.11b/g
Bluetooth	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
Ethernet LAN (RJ-45) ports	1
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	Yes
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
Modem (RJ-11) ports	1
TV-in port	No
TV-out	No
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0

Keyboard

Specification	Value
Pointing device	Touchpad

Software

Specification	Value
Operating system installed	Windows Vista Home Premium

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	32432
Processor code	SLA4K
Processor package size	35 x 35 mm
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	8

Power

Specification	Value
AC adapter power	65 W
AC adapter output voltage	19 V
DC-in jack	Yes

Weight & dimensions

Specification	Value
Weight	1.9 kg
Width	303 mm
Depth	225 mm
Height (front)	2.8 cm
Height (rear)	3 cm

Other features

Specification	Value
Infrared data port	No
Power requirements	100-240V AC, 50/60Hz
Internal modem	Yes
Modem speed	56 Kbit/s
Model availability	US/NO/DK/SE/FI
Supplied AC adapter type	AC
