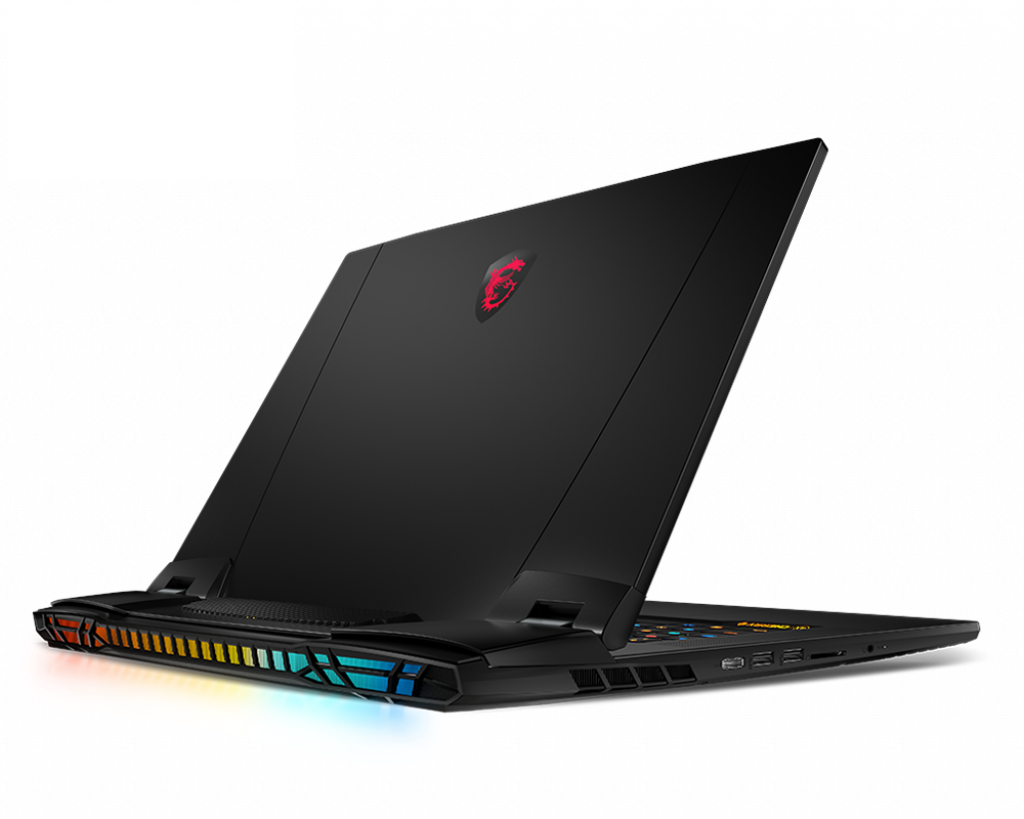

MSI Titan GT77 12UGS-048FR

Titan GT77 12UGS-048FR

Model Titan GT77 12UGS-048FRPart no. 9S7-17Q111-048EAN 4719072977047

98 specifications Checked today

Display43.9 cm (17.3")
Resolution3840 x 2160 pixels
ProcessorIntel® Core™ i7
Memory32 GB
Storage2 TB
GraphicsNVIDIA GeForce RTX 3070 Ti

See all specifications

Overview

Display: 43.9 cm (17.3")
Resolution: 3840 x 2160 pixels
Processor: Intel® Core™ i7
Memory: 32 GB
Storage: 2 TB
Graphics: NVIDIA GeForce RTX 3070 Ti

Brand: MSI
Category: Laptop
Model: Titan GT77 12UGS-048FR
Part number: 9S7-17Q111-048
EAN / UPC: 4719072977047
Also known as: MSI Gaming Titan GT77 12UGS-048FR Intel® Core™ i7 i7-12800HX Laptop 43.9 cm (17.3") 4K Ultra HD 32 GB DDR5-SDRAM 2 TB SSD NVIDIA GeForce RTX 3070 Ti Wi-Fi 6E (8

Specifications

98 specifications in 17 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Form factor	Clamshell
Market positioning	Gaming
Original brand name	MSI

Display

Specification	Value
Display diagonal	43.9 cm (17.3")
Display resolution	3840 x 2160 pixels
Touchscreen	No
HD type	4K Ultra HD
Panel type	IPS
Native aspect ratio	16:9
Display diagonal (metric)	43.9 cm
Maximum refresh rate	120 Hz

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	12th gen Intel® Core™ i7
Processor model	i7-12800HX
Processor cores	16
Processor boost frequency	4.8 GHz
Processor cache	25 MB
Processor cache type	Smart Cache
Bus type	DMI4
Configurable TDP-down	45 W

Memory

Specification	Value
Internal memory	32 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	4800 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	2 x 16 GB
Memory slots	4x SO-DIMM
Maximum internal memory	128 GB

Storage

Specification	Value
Total storage capacity	2 TB
Storage media	SSD
Total SSDs capacity	2 TB
Number of SSDs installed	1
SSD capacity	2 TB
NVMe	Yes
SSD interface	NVMe, PCI Express 4.0
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete GPU manufacturer	NVIDIA
Discrete graphics card model	NVIDIA GeForce RTX 3070 Ti
Discrete graphics card memory	8 GB
Discrete graphics memory type	GDDR6
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel® UHD Graphics
On-board graphics card 4K support	Yes
On-board graphics card 6K support	Yes
Graphics card Open GL support	Yes

Audio

Specification	Value
Number of built-in speakers	2
Speaker power	2 W

Camera

Specification	Value
Front camera	Yes
Front camera HD type	HD
Front camera resolution	1280 x 720 pixels
Video capturing speed	30 fps
Infrared (IR) camera	Yes

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Ethernet LAN	Yes
Ethernet LAN data rates	2500 Mbit/s
Bluetooth	Yes
Bluetooth version	5.2

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
Mini DisplayPorts quantity	1
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Keyboard backlit colour	RGB

Software

Specification	Value
Operating system installed	Windows 11 Pro

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Execute Disable Bit	Yes
Intel Flex Memory Access	Yes
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Number of battery cells	4
Battery capacity	99 Wh

Power

Specification	Value
AC adapter power	330 W

Weight & dimensions

Specification	Value
Weight	3.3 kg
Width	397 mm
Depth	330 mm
Height	23 mm

Packaging content

Specification	Value
Mouse included	Yes
