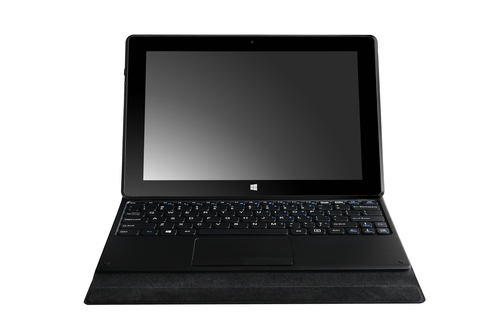

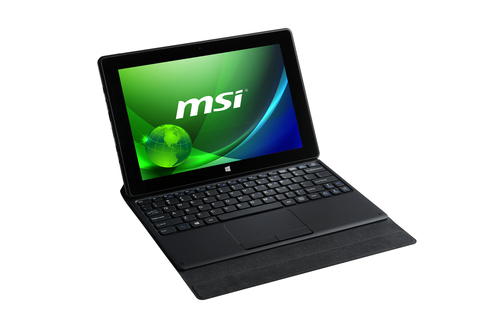

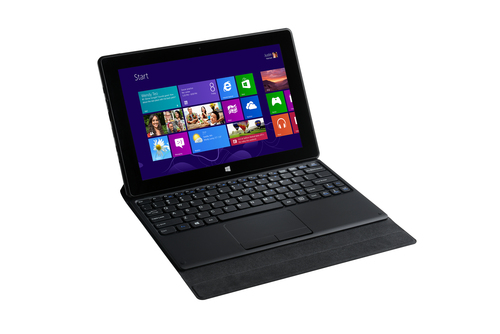

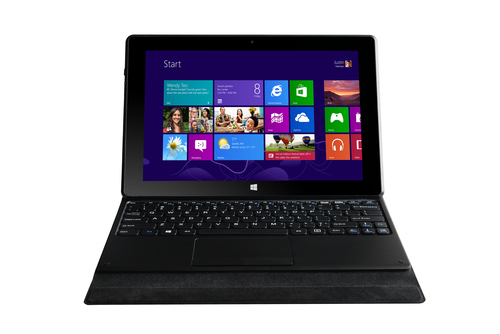

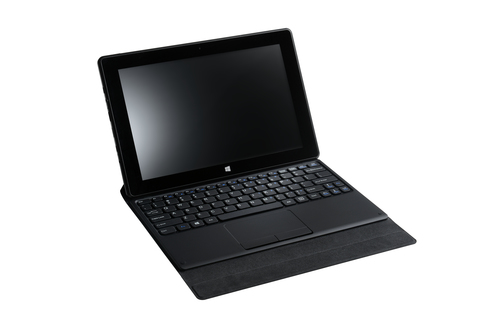

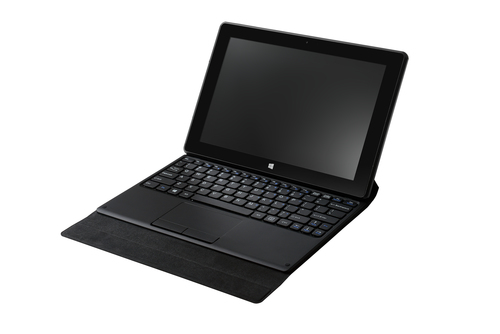

MSI S Series S100-017US Intel Atom® Z3740D Hybrid (2-in-1)

25.6 cm (10.1") Touchscreen 2 GB DDR3L-SDRAM 64 GB Flash Windows 8.1 Black

Model S100-017USPart no. 9S7-ND1111-017EAN 824142027387

135 specifications Checked 2 days ago

Display25.6 cm (10.1")
Resolution1280 x 800 pixels
ProcessorIntel Atom®
Memory2 GB
Storage64 GB
GraphicsNot available

See all specifications

Overview

Display: 25.6 cm (10.1")
Resolution: 1280 x 800 pixels
Processor: Intel Atom®
Memory: 2 GB
Storage: 64 GB
Graphics: Not available

Brand: MSI
Category: Laptop
Model: S100-017US
Part number: 9S7-ND1111-017
EAN / UPC: 824142027387, 8241420273878
Also known as: MSI S Series S100-017US Intel Atom® Z3740D Hybrid (2-in-1) 25.6 cm (10.1") Touchscreen 2 GB DDR3L-SDRAM 64 GB Flash Windows 8.1 Black

Specifications

135 specifications in 21 groups

Design

Specification	Value
Product type	Hybrid (2-in-1)
Product colour	Black
Form factor	Convertible (Detachable)

Display

Specification	Value
Display diagonal	25.6 cm (10.1")
Display resolution	1280 x 800 pixels
Touchscreen	Yes
HD type	Not supported
Touch technology	Multi-touch
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:10

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	Z3740D
Processor cores	4
Processor threads	4
Processor boost frequency	1.83 GHz
Processor frequency	1.33 GHz
Processor cache	2 MB
Processor cache type	L2
Processor socket	BGA 1380
Processor lithography	22 nm
Processor operating modes	32-bit, 64-bit
Processor series	Intel Atom Z3700 Series
Processor codename	Bay Trail
FSB Parity	No
Stepping	B3
Thermal Design Power (TDP)	2.2 W
Scenario Design Power (SDP)	2.2 W
Tjunction	90 °C
ECC supported by processor	No

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR3L-SDRAM

Storage

Specification	Value
Total storage capacity	64 GB
Storage media	Flash
Flash memory	64 GB
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
On-board graphics card base frequency	313 MHz
On-board graphics card burst frequency	688 MHz

Audio

Specification	Value
Number of built-in speakers	1
Speaker power	1 W
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	2 MP
Rear camera	Yes
Rear camera resolution (numeric)	2 MP

Optical drive

Specification	Value
LightScribe	No

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	4.0

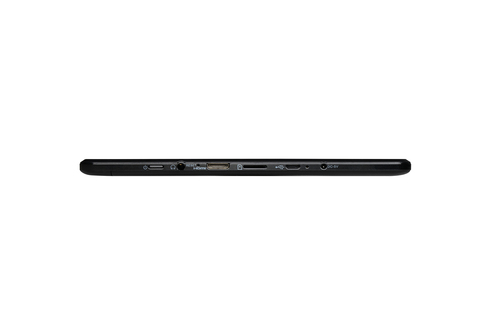

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Micro-USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	0
HDMI ports quantity	0
HDMI version	1.4a
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	0
Thunderbolt ports quantity	0
Mini HDMI ports quantity	1
Headphone outputs	1
S/PDIF out port	No
Microphone in	No

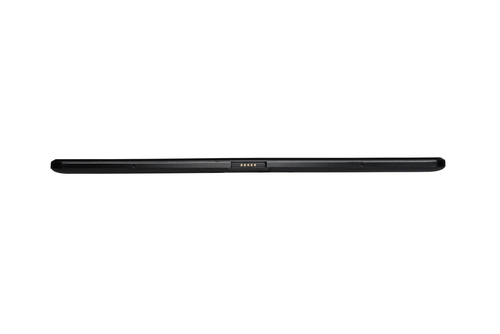

Docking connector	Yes
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No

Performance

Specification	Value
Gyroscope	Yes
Orientation sensor	Yes

Keyboard

Specification	Value
Numeric keypad	No

Software

Specification	Value
Operating system installed	Windows 8.1

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	No
Execute Disable Bit	No
Graphics & IMC lithography	22 nm
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Turbo Boost Technology	No
Intel® Virtualization Technology (Intel® VT)	VT-x
Processor ARK ID	78416
Processor code	SR1S0
Processor package size	17 x 17 mm
Thermal Monitoring Technologies	No
Conflict-Free processor	Yes

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Battery capacity	27.8 Wh
Battery capacity	7500 mAh
Battery voltage	3.7 V

Power

Specification	Value
AC adapter output current	1.5 A
AC adapter output voltage	12 V

Security

Specification	Value
Cable lock slot	No

Weight & dimensions

Specification	Value
Weight	890 g
Width	262.2 mm
Depth	173.6 mm
Height	9.8 mm
Weight (tablet mode)	595 g

Packaging content

Specification	Value
AC adapter included	Yes

Other features

Specification	Value
3D	No
