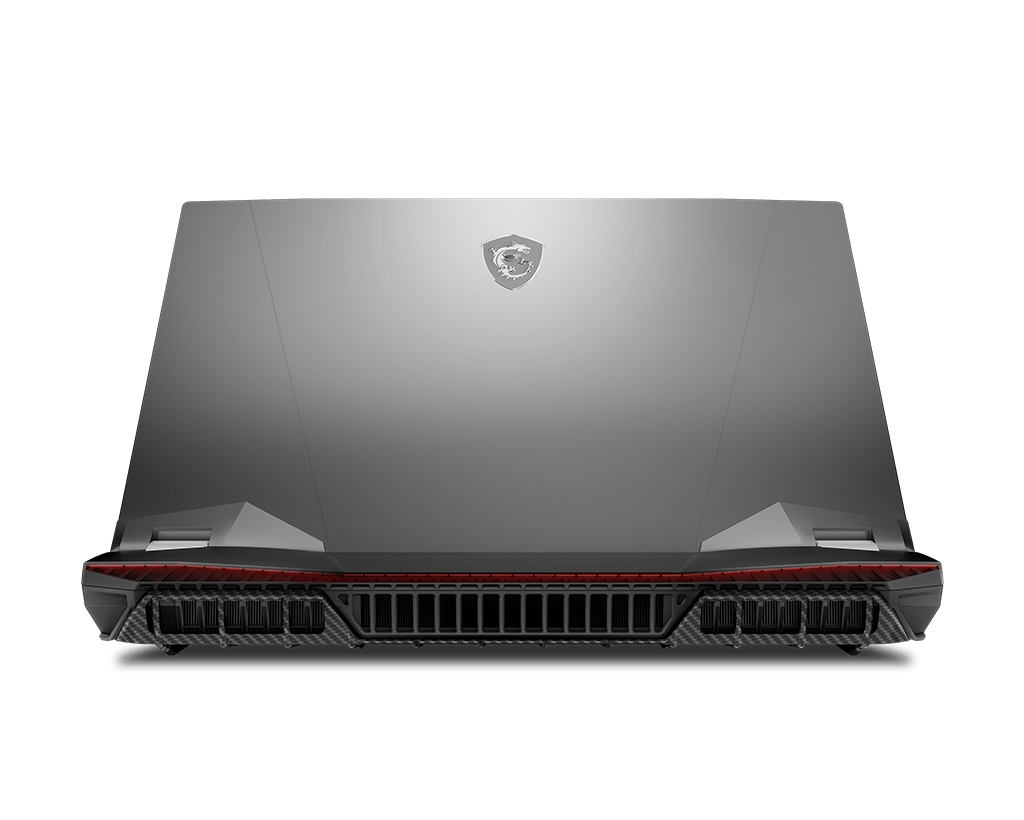

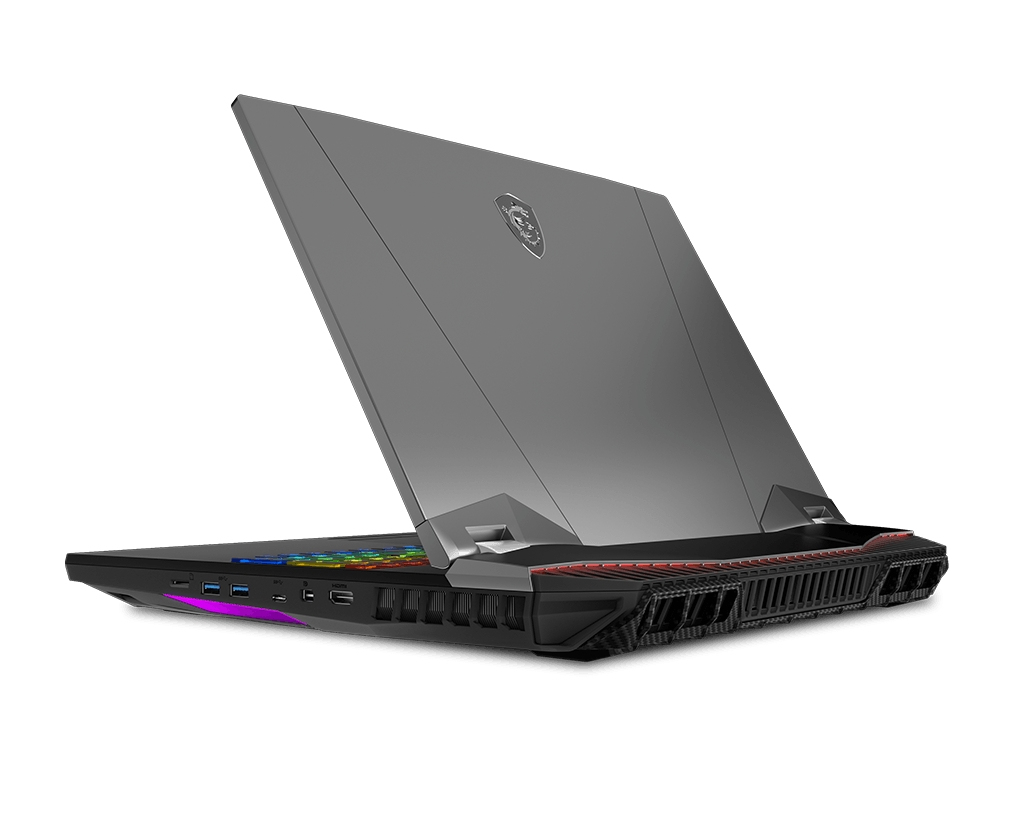

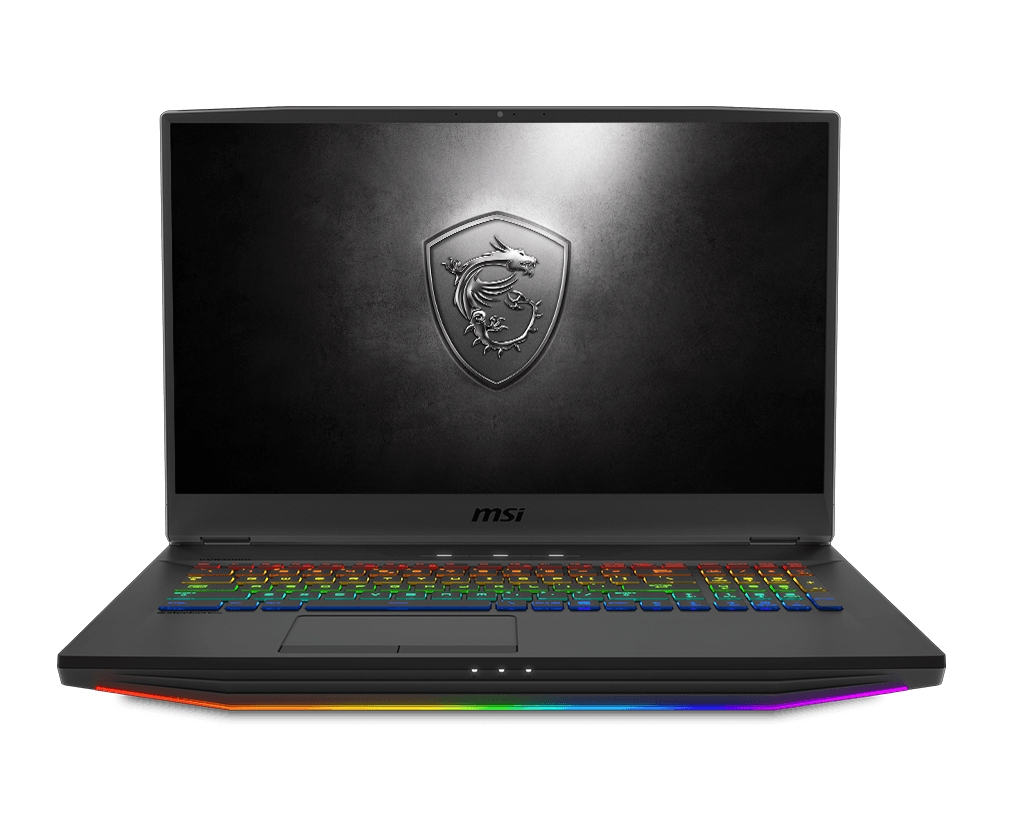

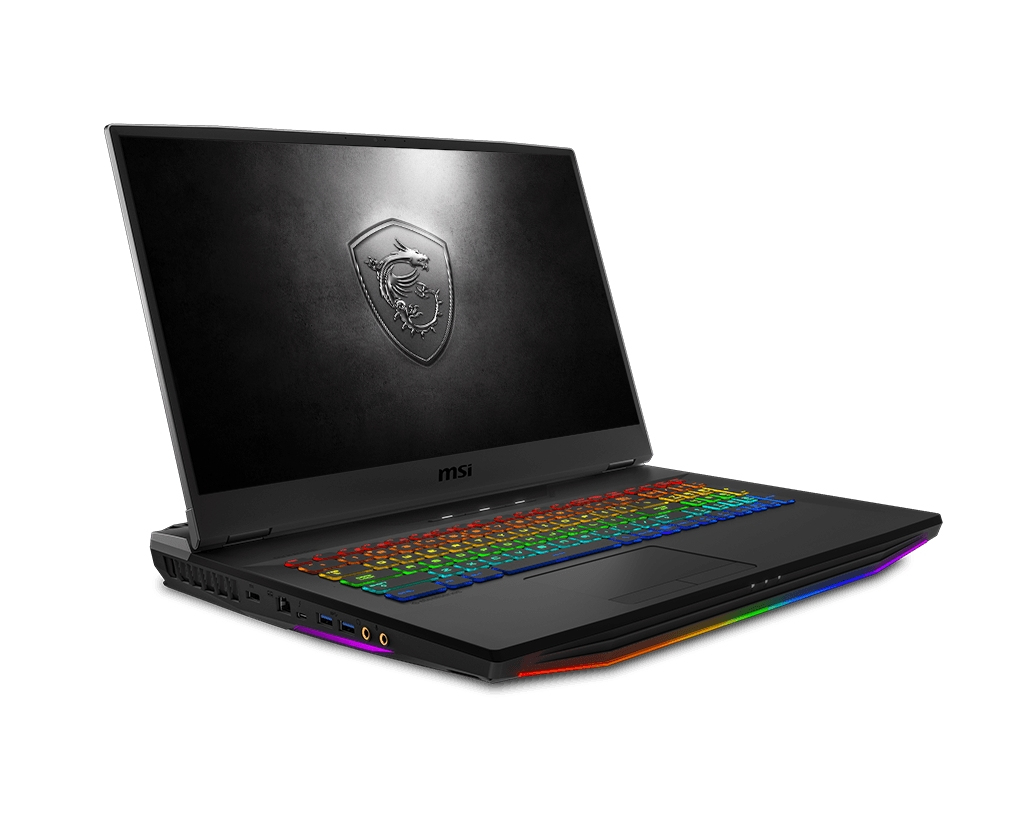

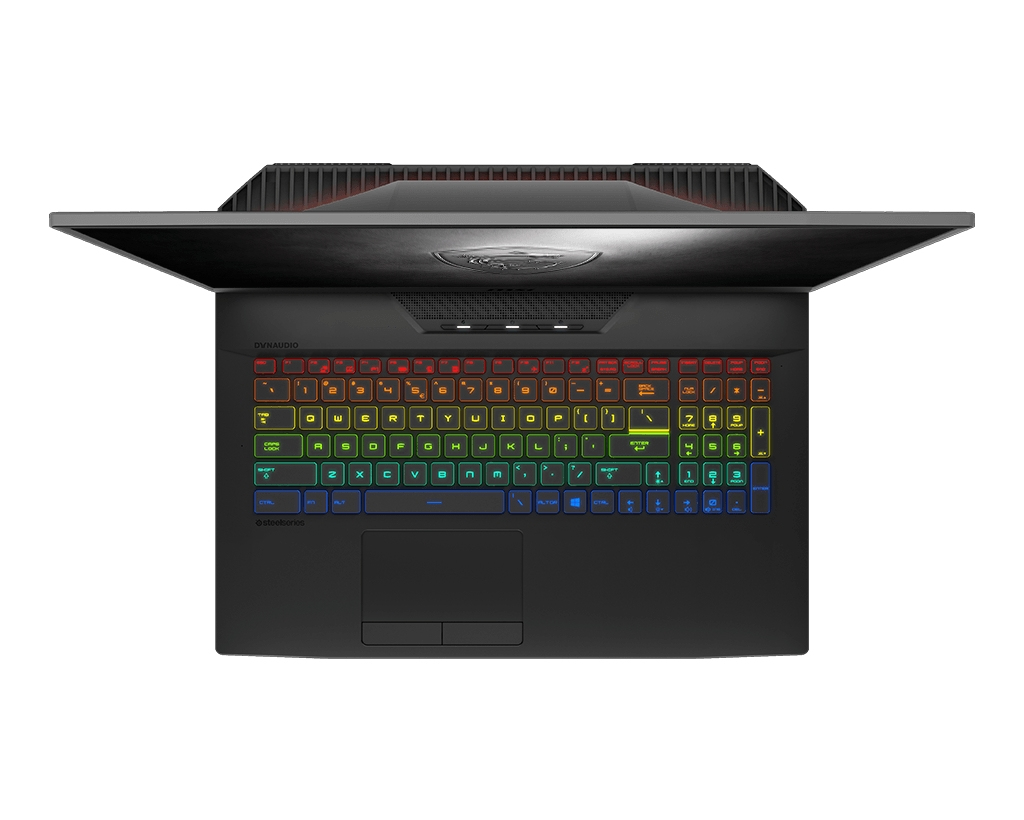

MSI GT76 Titan DT 10SFS-009FR

GT76 Titan DT 10SFS-009FR

Model GT76 Titan DT 10SFS-009FRPart no. 9S7-17H312-009EAN 4719072723132

117 specifications Checked today

Display43.9 cm (17.3")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i7
Memory32 GB
Storage2 TB
GraphicsNVIDIA GeForce RTX 2070 SUPER

See all specifications

Overview

Display: 43.9 cm (17.3")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i7
Memory: 32 GB
Storage: 2 TB
Graphics: NVIDIA GeForce RTX 2070 SUPER

Brand: MSI
Category: Laptop
Model: GT76 Titan DT 10SFS-009FR
Part number: 9S7-17H312-009
EAN / UPC: 4719072723132
Also known as: MSI Gaming GT76 Titan DT 10SFS-009FR Intel® Core™ i7 i7-10700K Laptop 43.9 cm (17.3") Full HD 32 GB DDR4-SDRAM 2 TB HDD+SSD NVIDIA GeForce RTX 2070 SUPER Wi-Fi

Specifications

117 specifications in 18 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Form factor	Clamshell
Market positioning	Gaming
Original brand name	MSI

Display

Specification	Value
Display diagonal	43.9 cm (17.3")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Native aspect ratio	16:9
Colour gamut	100%
Display diagonal (metric)	43.9 cm
RGB colour space	sRGB
Maximum refresh rate	240 Hz

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	10th gen Intel® Core™ i7
Processor model	i7-10700K
Processor cores	8
Processor boost frequency	5.1 GHz
Processor frequency	3.8 GHz
Processor cache	16 MB
Processor cache type	Smart Cache
Configurable TDP-down	95 W
Configurable TDP-down frequency	3.5 GHz

Memory

Specification	Value
Internal memory	32 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	2666 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	4 x 8 GB
Memory slots	4x SO-DIMM
Maximum internal memory	128 GB

Storage

Specification	Value
Total storage capacity	2 TB
Storage media	HDD+SSD
Number of HDDs installed	1
HDD capacity	1 TB
HDD interface	SATA
HDD speed	7200 RPM
Total SSDs capacity	1 TB
Number of SSDs installed	2
SSD capacity	512 GB
NVMe	Yes
SSD interface	NVMe, PCI Express
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete GPU manufacturer	NVIDIA
Discrete graphics card model	NVIDIA GeForce RTX 2070 SUPER
Discrete graphics card memory	8 GB
Discrete graphics memory type	GDDR6
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel® UHD Graphics 630

Audio

Specification	Value
Audio system	Nahimic 3D
Number of built-in speakers	2
Speaker power	4 W
Built-in subwoofer	Yes
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera HD type	HD
Front camera resolution	1280 x 720 pixels
Video capturing speed	30 fps
Infrared (IR) camera	Yes

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Antenna type	2x2
WLAN controller manufacturer	Killer
WLAN controller model	Killer Wireless-AX 1650
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Bluetooth	Yes
Bluetooth version	5.1

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.0
Mini DisplayPorts quantity	1
Thunderbolt 3 ports quantity	1
Headphone outputs	1
Microphone in	Yes

Performance

Specification	Value
Repairability index	5.7

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Keyboard backlit colour	Various

Software

Specification	Value
Operating system installed	Windows 10 Pro

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	8
Battery capacity	90 Wh

Power

Specification	Value
AC adapter power	460 W
DC-in jack	Yes

Weight & dimensions

Specification	Value
Weight	4.2 kg
Width	397 mm
Depth	330 mm
Height (front)	3.3 cm
Height (rear)	4.2 cm

Packaging content

Specification	Value
Cables included	AC
