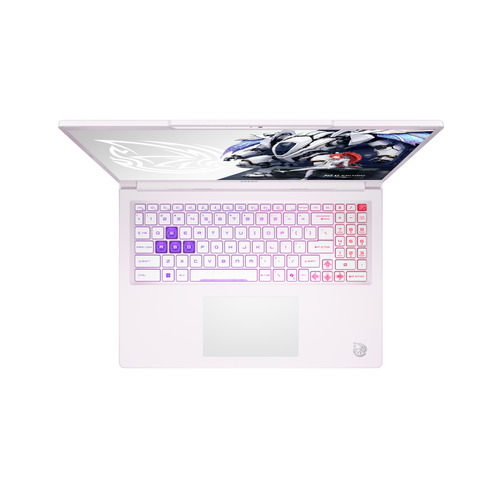

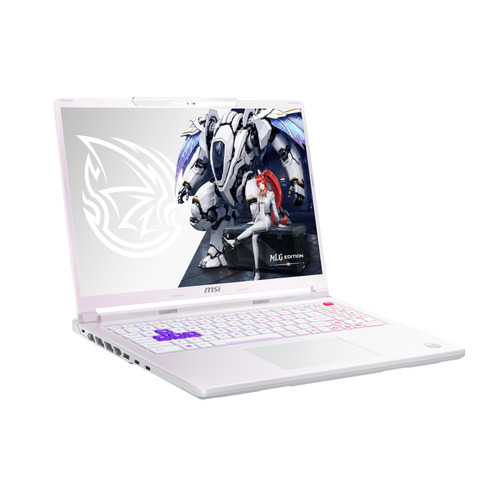

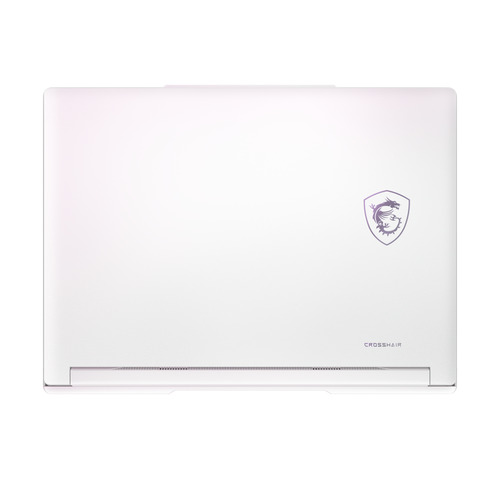

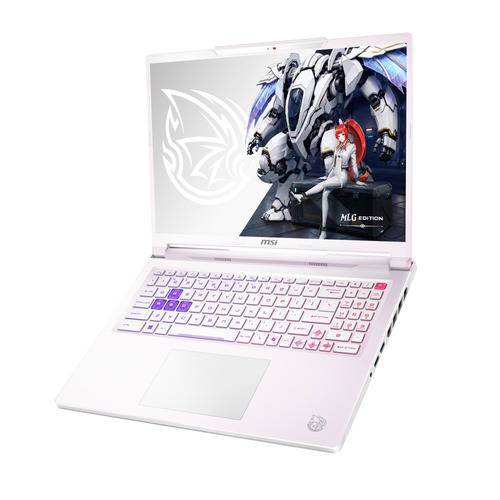

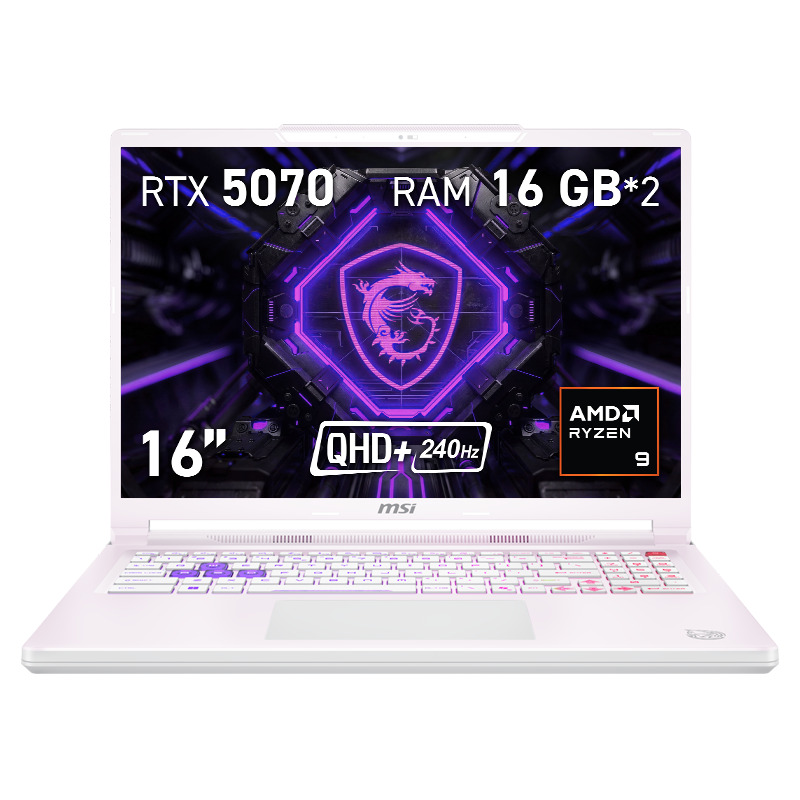

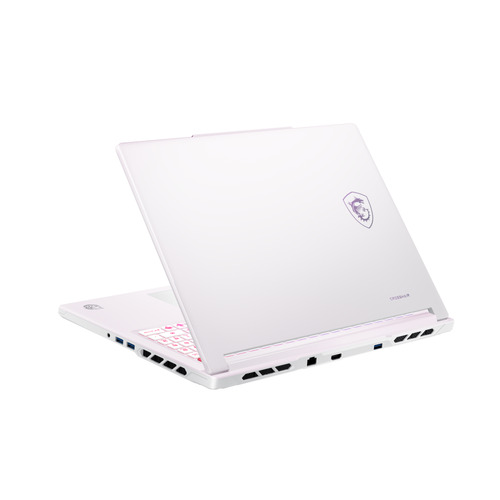

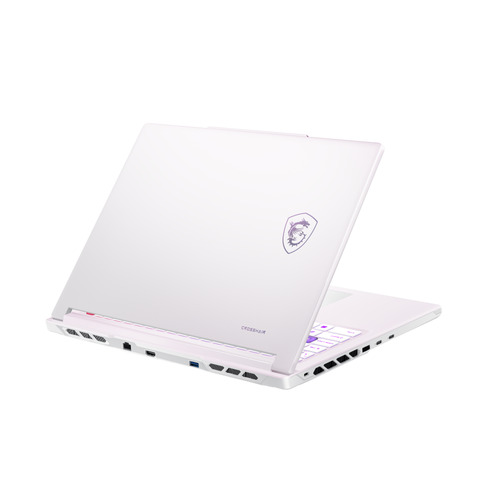

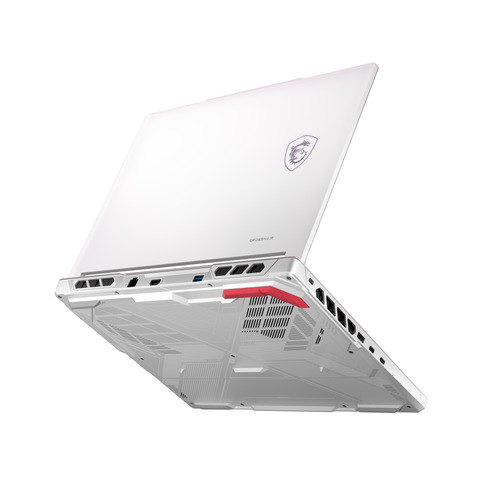

Crosshair A16 HX MLG Edition E8WGK-207ESY

Crosshair A16 HX MLG Edition E8WGK-207ESY

Model Crosshair A16 HX MLG Edition E8WGK-207ESYPart no. CROSSHAIR A16 HX MLG EDITION E8WGK-207ESYEAN 4711377483940

113 specifications Checked today

Display40.6 cm (16")
Resolution2560 x 1600 pixels
ProcessorAMD Ryzen™ 9
Memory32 GB
Storage1 TB
GraphicsNVIDIA GeForce RTX 5070

See all specifications

Overview

Display: 40.6 cm (16")
Resolution: 2560 x 1600 pixels
Processor: AMD Ryzen™ 9
Memory: 32 GB
Storage: 1 TB
Graphics: NVIDIA GeForce RTX 5070

Brand: MSI
Category: Laptop
Model: Crosshair A16 HX MLG Edition E8WGK-207ESY
Part number: CROSSHAIR A16 HX MLG EDITION E8WGK-207ESY
EAN / UPC: 4711377483940
Also known as: MSI Crosshair A16 HX MLG Edition E8WGK-207ESY Copilot+ PC AMD Ryzen™ 9 8940HX Laptop 40.6 cm (16") Quad HD+ 32 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 5070 Wi

Specifications

113 specifications in 20 groups

Design

Specification	Value
Product type	Laptop
Product colour	White
Colour name	Stellar White
Form factor	Clamshell
Housing material	Metal, Plastic
Market positioning	Gaming
Original brand name	MSI

Display

Specification	Value
Display diagonal	40.6 cm (16")
Display resolution	2560 x 1600 pixels
Touchscreen	No
HD type	Quad HD+
Panel type	IPS-Level
Anti-glare screen	Yes
Display brightness	500 cd/m²
Colour gamut	100%
RGB colour space	DCI-P3
Display response rise/fall	3 ms
Maximum refresh rate	240 Hz

Processor

Specification	Value
Processor manufacturer	AMD
Processor family	AMD Ryzen™ 9
Processor generation	AMD Ryzen 8000 Series
Processor model	8940HX
Processor cores	16
Processor threads	32
Processor boost frequency	5.3 GHz
Processor frequency	2.4 GHz
Performance-core Max Turbo Frequency	5.3 GHz
Processor cache	64 MB
Processor cache type	L2 & L3

Neural processor unit (NPU)

Specification	Value
Copilot+ PC	Yes

Memory

Specification	Value
Internal memory	32 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	5200 MHz
Memory layout (slots x size)	2 x 16 GB
Memory slots	2x SO-DIMM
Maximum internal memory	96 GB

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	SSD
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
NVMe	Yes
SSD interface	PCI Express 4.0
SSD form factor	M.2
Optical drive type	No
Card reader integrated	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete GPU manufacturer	NVIDIA
Discrete graphics card model	NVIDIA GeForce RTX 5070
Discrete graphics card memory	8 GB
Discrete graphics memory type	GDDR7
On-board GPU manufacturer	AMD
On-board graphics card family	AMD Radeon Graphics
On-board graphics card model	AMD Radeon 610M
NVIDIA G-SYNC	Yes

Audio

Specification	Value
Audio system	Nahimic 3
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera HD type	HD
Front camera resolution	1280 x 720 pixels
Video capturing speed	30 fps
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
WLAN controller manufacturer	AMD
WLAN controller model	AMD RZ616
Ethernet LAN	Yes
Ethernet LAN data rates	1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.4

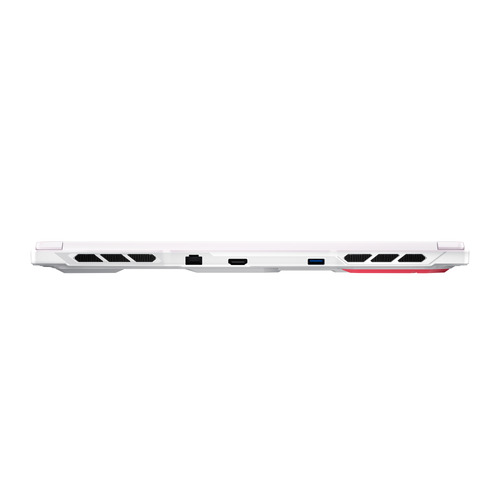

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
USB Type-C DisplayPort Alternate Mode	Yes

Performance

Specification	Value
Motherboard chipset	AMD SoC

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Keyboard backlit colour	RGB
Keyboard backlit zone	4-zone RGB
Keyboard number of keys	99
Keyboard layout	QWERTY
Keyboard language	Spanish
Copilot key	Yes

Software

Specification	Value
Operating system installed	Windows 11 Home

Battery

Specification	Value
Number of battery cells	4
Battery capacity	5120 mAh
Battery capacity	80 Wh
Battery weight	283.8 g

Power

Specification	Value
AC adapter power	240 W
AC adapter input voltage	90 - 264 V
USB Type-C charging port	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0

Weight & dimensions

Specification	Value
Weight	2.3 kg
Width	363 mm
Depth	269.7 mm
Height (front)	2.19 cm
Height (rear)	2.38 cm

Packaging content

Specification	Value
AC adapter included	Yes

Other features

Specification	Value
Warranty period	3 year(s)
