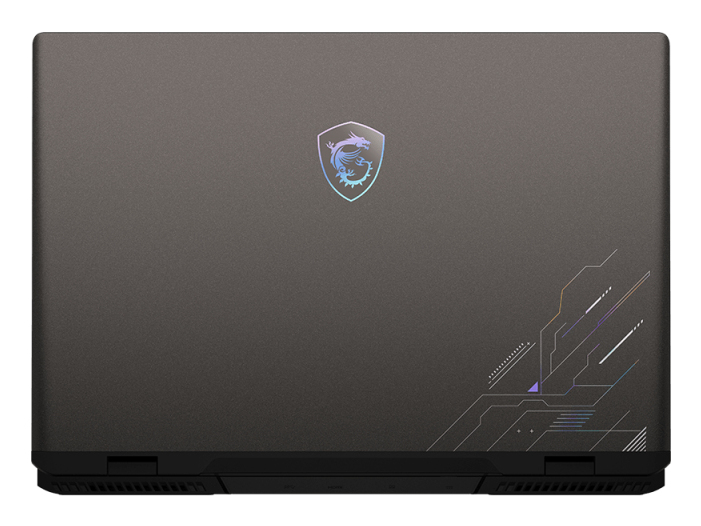

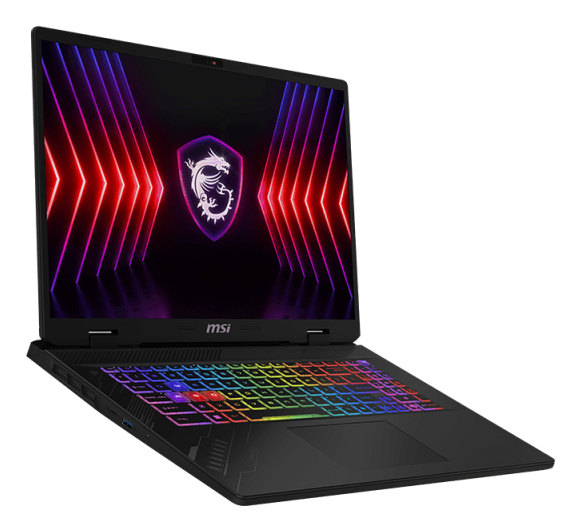

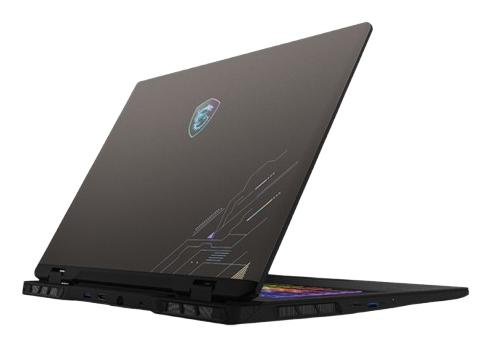

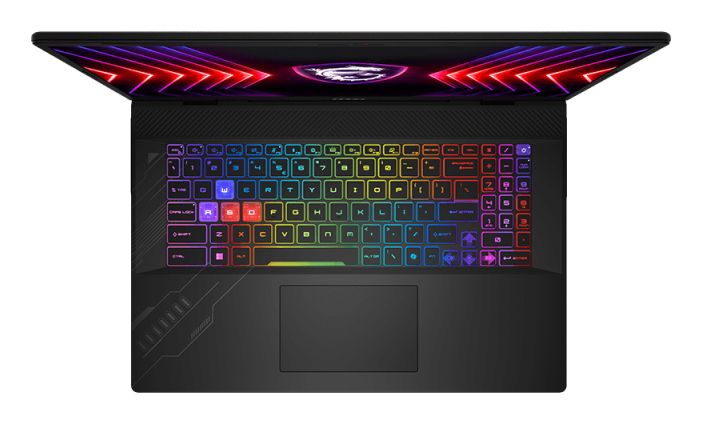

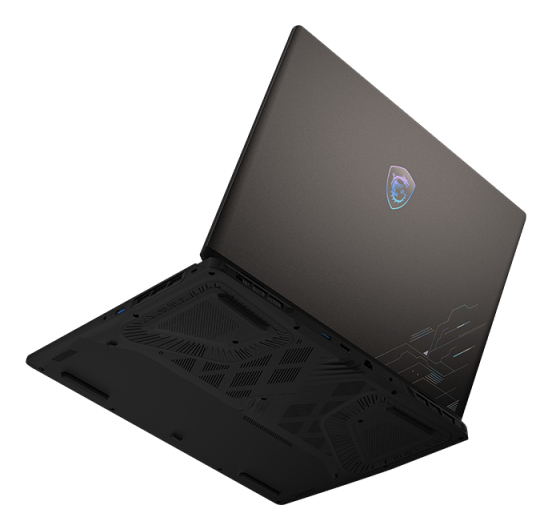

MSI Crosshair 17 HX D14VGKG-072XES

Crosshair 17 HX D14VGKG-072XES

Model Crosshair 17 HX D14VGKG-072XESPart no. D14VGKG-072XESEAN 4711377222082

103 specifications Checked today

Display43.2 cm (17")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i7
Memory32 GB
Storage1 TB
GraphicsNVIDIA GeForce RTX 4070

See all specifications

Overview

Display: 43.2 cm (17")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i7
Memory: 32 GB
Storage: 1 TB
Graphics: NVIDIA GeForce RTX 4070

Brand: MSI
Category: Laptop
Model: Crosshair 17 HX D14VGKG-072XES
Part number: D14VGKG-072XES
EAN / UPC: 4711377222082
Also known as: MSI Crosshair 17 HX D14VGKG-072XES Intel® Core™ i7 i7-14650HX Laptop 43.2 cm (17") Full HD+ 32 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 4070 Wi-Fi 6E (802.11ax

Specifications

103 specifications in 18 groups

Design

Specification	Value
Product type	Laptop
Product colour	Grey
Colour name	Cosmos Gray
Form factor	Clamshell
Market positioning	Gaming

Display

Specification	Value
Display diagonal	43.2 cm (17")
Display resolution	1920 x 1080 pixels
HD type	Full HD+
Panel type	IPS-Level
Native aspect ratio	16:10
Colour gamut	100%
RGB colour space	sRGB
Maximum refresh rate	165 Hz

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	Intel® Core™ i7 (14th gen)
Processor model	i7-14650HX
Processor cores	16
Processor threads	24
Processor boost frequency	5.2 GHz
Processor frequency	5.2 GHz
Performance cores	8
Efficient cores	8
Performance-core Max Turbo Frequency	5.2 GHz
Efficient-core Max Turbo Frequency	3.7 GHz
Performance-core base frequency	2.2 GHz
Efficient-core base frequency	1.6 GHz
Processor cache	30 MB
Processor cache type	Smart Cache
Maximum turbo power	157 W
Processor base power	55 W

Memory

Specification	Value
Internal memory	32 GB
Internal memory type	DDR5-SDRAM
Memory layout (slots x size)	2 x 16 GB
Memory slots	2x SO-DIMM
Maximum internal memory	96 GB
Memory data transfer rate	5600 MT/s

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	SSD
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
NVMe	Yes
SSD interface	PCI Express 4.0
SSD form factor	M.2

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete GPU manufacturer	NVIDIA
Discrete graphics card model	NVIDIA GeForce RTX 4070
Discrete graphics card memory	8 GB
Discrete graphics memory type	GDDR6
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel® UHD Graphics

Audio

Specification	Value
Audio chip	Nahimic
Audio system	Hi-Res Audio
Number of built-in speakers	2
Speaker power	2 W
Built-in subwoofer	Yes

Camera

Specification	Value
Front camera	Yes
Front camera HD type	HD
Video capturing speed	30 fps

Network

Specification	Value
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
WLAN controller manufacturer	Intel
Ethernet LAN	Yes
Ethernet LAN data rates	1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.3

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	1
Headphone outputs	1
Combo headphone/mic port	Yes
Microphone in	Yes

Performance

Specification	Value
Motherboard chipset	Intel HM770

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	No
Keyboard backlit colour	RGB
Keyboard backlit zone	24-zone RGB
Copilot key	Yes

Software

Specification	Value
Operating system installed	No

Battery

Specification	Value
Number of battery cells	4
Battery capacity	90 Wh

Power

Specification	Value
AC adapter power	240 W
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Face recognition	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0

Weight & dimensions

Specification	Value
Weight	2.8 kg
Width	383.2 mm
Depth	279.9 mm
Height (front)	2.22 cm
Height (rear)	2.79 cm

Other features

Specification	Value
USB Power Delivery revision	3.0
Warranty period	3 year(s)
