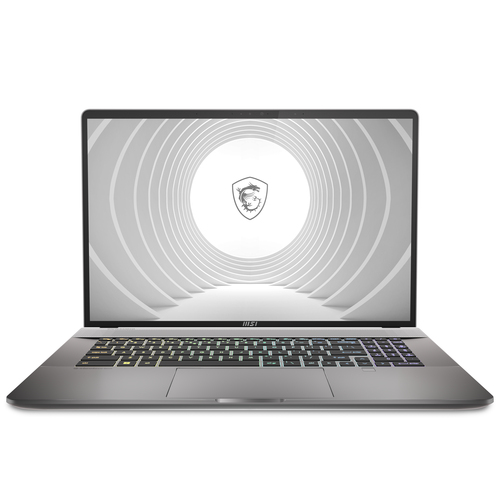

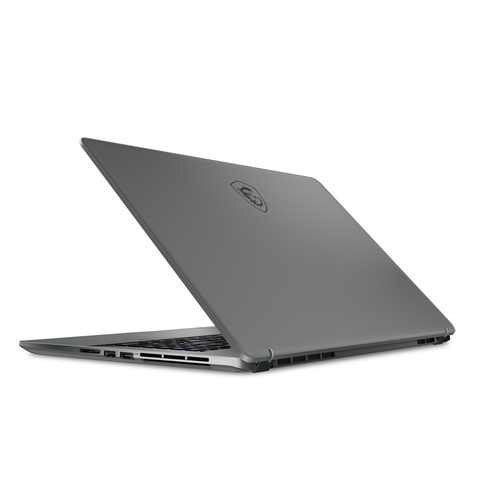

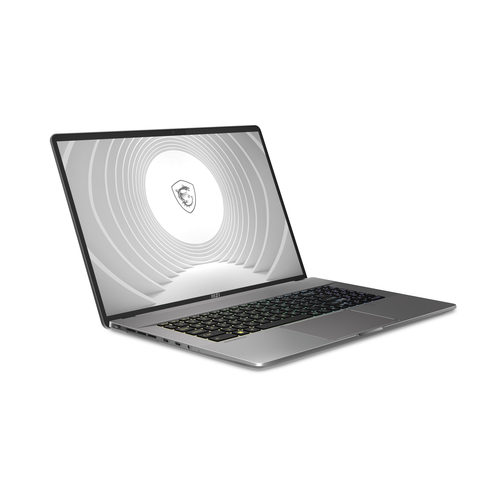

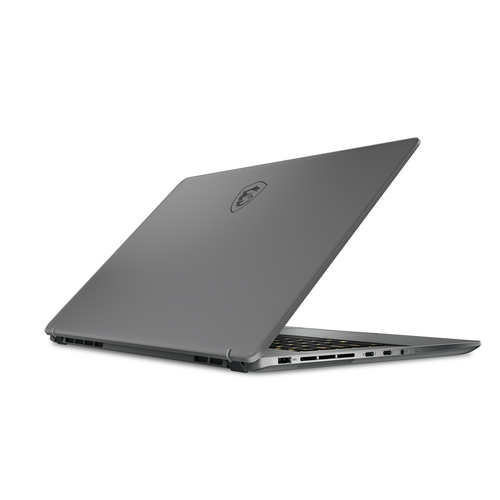

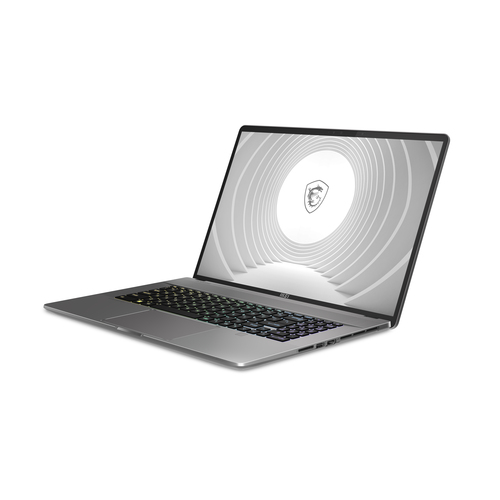

CreatorPro Z17 A12UKST-086BE
Model CreatorPro Z17 A12UKST-086BEPart no. CREATORPRO Z17 A12UKST-086BEEAN 4719072960773
105 specifications Checked today
- Display43.2 cm (17")
- Resolution2560 x 1600 pixels
- ProcessorIntel® Core™ i9
- Memory32 GB
- Storage1 TB
- GraphicsNVIDIA RTX A3000
Overview
- Display
- 43.2 cm (17")
- Resolution
- 2560 x 1600 pixels
- Processor
- Intel® Core™ i9
- Memory
- 32 GB
- Storage
- 1 TB
- Graphics
- NVIDIA RTX A3000
- Brand
- MSI
- Category
- Laptop
- Model
- CreatorPro Z17 A12UKST-086BE
- Part number
- CREATORPRO Z17 A12UKST-086BE
- EAN / UPC
- 4719072960773
- Also known as
- MSI CreatorPro Z17 A12UKST-086BE Intel® Core™ i9 i9-12900H Mobile workstation 43.2 cm (17") Touchscreen Quad HD+ 32 GB DDR5-SDRAM 1 TB SSD NVIDIA RTX A3000 Wi-F
Specifications
105 specifications in 19 groups
Design
| Specification | Value |
|---|---|
| Product type | Mobile workstation |
| Product colour | Grey |
| Colour name | Lunar Gray |
| Form factor | Clamshell |
| Housing material | Glass, Metal |
| Original brand name | MSI |
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Display resolution | 2560 x 1600 pixels |
| Touchscreen | Yes |
| HD type | Quad HD+ |
| Native aspect ratio | 16:10 |
| Display brightness | 400 cd/m² |
| Colour gamut | 100% |
| RGB colour space | DCI-P3 |
| Maximum refresh rate | 165 Hz |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i9 |
| Processor generation | 12th gen Intel® Core™ i9 |
| Processor model | i9-12900H |
| Processor cores | 14 |
| Processor threads | 20 |
| Processor boost frequency | 5 GHz |
| Performance cores | 6 |
| Efficient cores | 8 |
| Performance-core Max Turbo Frequency | 5 GHz |
| Efficient-core Max Turbo Frequency | 3.8 GHz |
| Processor cache | 24 MB |
| Processor cache type | Smart Cache |
| Maximum turbo power | 115 W |
| Processor base power | 45 W |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
| Memory clock speed | 4800 MHz |
| Memory form factor | SO-DIMM |
| Memory layout (slots x size) | 2 x 16 GB |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 64 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| Storage media | SSD |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| NVMe | Yes |
| SSD interface | PCI Express 4.0 |
| Optical drive type | No |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card | Yes |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card model | NVIDIA RTX A3000 |
| Discrete graphics card memory | 12 GB |
| Discrete graphics memory type | GDDR6 |
| On-board GPU manufacturer | Intel |
Audio
| Specification | Value |
|---|---|
| Number of built-in speakers | 4 |
| Speaker power | 2 W |
Camera
| Specification | Value |
|---|---|
| Front camera | Yes |
| Front camera HD type | Full HD |
| Video capturing speed | 30 fps |
| Infrared (IR) camera | Yes |
Network
| Specification | Value |
|---|---|
| Mobile network connection | No |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Antenna type | 2x2 |
| WLAN controller manufacturer | Killer |
| WLAN controller model | Killer Wi-Fi 6E AX1675 |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| HDMI ports quantity | 0 |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel SoC |
| Ambient light sensor | Yes |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Numeric keypad | Yes |
| Keyboard backlit colour | RGB |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Intel Flex Memory Access | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Battery
| Specification | Value |
|---|---|
| Number of battery cells | 4 |
| Battery capacity | 90 Wh |
Power
| Specification | Value |
|---|---|
| AC adapter power | 240 W |
Security
| Specification | Value |
|---|---|
| Fingerprint reader | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.49 kg |
| Width | 382 mm |
| Depth | 260 mm |
| Height | 19 mm |
Other features
| Specification | Value |
|---|---|
| Warranty period | 3 year(s) |
