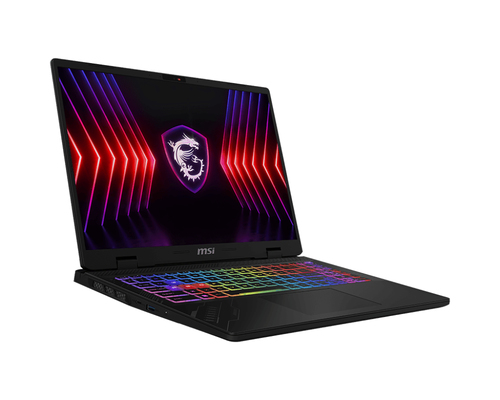

MSI CreatorPro X17 HX A13VKS-246

MSI CreatorPro X17 HX A13VKS-246

Model CreatorPro X17 HX A13VKS-246Part no. CREATORPRO X17 HX A13VKS-246EAN 4711377110280

105 specifications Checked yesterday

Display43.9 cm (17.3")
Resolution3840 x 2160 pixels
ProcessorIntel® Core™ i9
Memory64 GB
Storage4 TB
GraphicsNVIDIA RTX 3500 Ada

See all specifications

Overview

Display: 43.9 cm (17.3")
Resolution: 3840 x 2160 pixels
Processor: Intel® Core™ i9
Memory: 64 GB
Storage: 4 TB
Graphics: NVIDIA RTX 3500 Ada

Brand: MSI
Category: Laptop
Model: CreatorPro X17 HX A13VKS-246
Part number: CREATORPRO X17 HX A13VKS-246
EAN / UPC: 4711377110280
Also known as: MSI CreatorPro X17 HX A13VKS-246 Intel® Core™ i9 i9-13980HX Mobile workstation 43.9 cm (17.3") 4K Ultra HD 64 GB DDR5-SDRAM 4 TB SSD NVIDIA RTX 3500 Ada Wi-Fi 6

Specifications

105 specifications in 18 groups

Design

Specification	Value
Product type	Mobile workstation
Product colour	Black
Form factor	Clamshell

Display

Specification	Value
Display diagonal	43.9 cm (17.3")
Display resolution	3840 x 2160 pixels
Touchscreen	No
HD type	4K Ultra HD
Panel type	Mini LED
Native aspect ratio	16:9
Colour gamut	100%
RGB colour space	DCI-P3
Maximum refresh rate	144 Hz
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	High Dynamic Range (HDR) 1000

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i9
Processor generation	13th gen Intel® Core™ i9
Processor model	i9-13980HX
Processor cores	24
Processor boost frequency	5.6 GHz
Performance cores	8
Efficient cores	16
Performance-core Max Turbo Frequency	5.6 GHz
Efficient-core Max Turbo Frequency	4 GHz
Processor cache	36 MB
Processor cache type	Smart Cache
Maximum turbo power	157 W
Processor base power	55 W

Memory

Specification	Value
Internal memory	64 GB
Internal memory type	DDR5-SDRAM
Memory form factor	SO-DIMM
Memory layout (slots x size)	2 x 32 GB
Memory slots	4x SO-DIMM
Maximum internal memory	128 GB

Storage

Specification	Value
Total storage capacity	4 TB
Storage media	SSD
Total SSDs capacity	4 TB
Number of SSDs installed	2
SSD capacity	2 TB
NVMe	Yes
SSD interface	PCI Express 4.0
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete GPU manufacturer	NVIDIA
Discrete graphics card model	NVIDIA RTX 3500 Ada
Discrete graphics card memory	12 GB
Discrete graphics memory type	GDDR6
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel® UHD Graphics

Audio

Specification	Value
Audio system	Hi-Res Audio
Number of built-in speakers	2
Speaker power	2 W

Camera

Specification	Value
Front camera	Yes
Front camera HD type	HD
Front camera resolution	1280 x 720 pixels
Video capturing speed	30 fps
Infrared (IR) camera	Yes
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
WLAN controller manufacturer	Intel
WLAN controller model	Intel Wi-Fi 6E AX1690i
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Bluetooth	Yes
Bluetooth version	5.3

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
Mini DisplayPorts quantity	1
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes

Performance

Specification	Value
Motherboard chipset	Intel HM770

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Keyboard backlit colour	RGB
Keyboard number of keys	99

Software

Specification	Value
Operating system installed	Windows 11 Pro

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Number of battery cells	4
Battery capacity	99 Wh

Power

Specification	Value
AC adapter power	330 W
DC-in jack	Yes
USB Type-C charging port	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0

Weight & dimensions

Specification	Value
Weight	3.3 kg
Width	397 mm
Depth	330 mm
Height	23 mm

Packaging content

Specification	Value
AC adapter included	Yes
