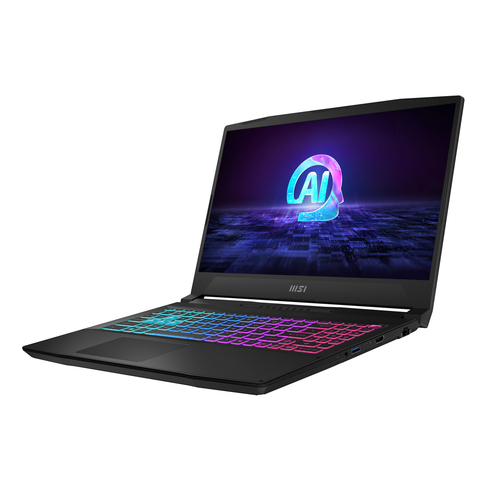

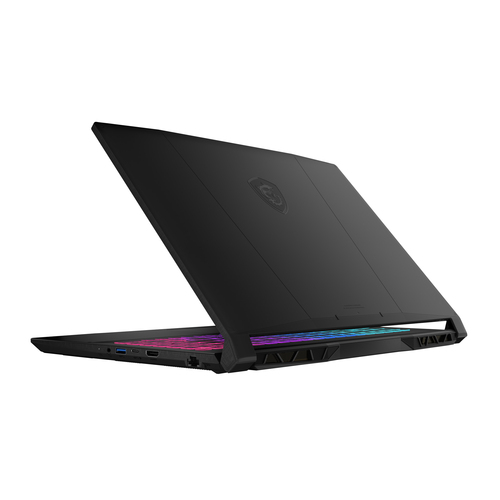

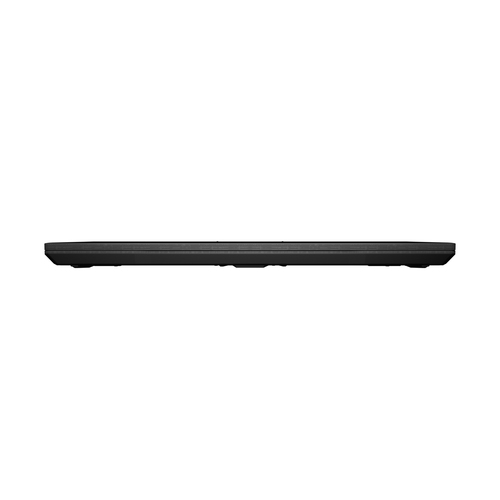

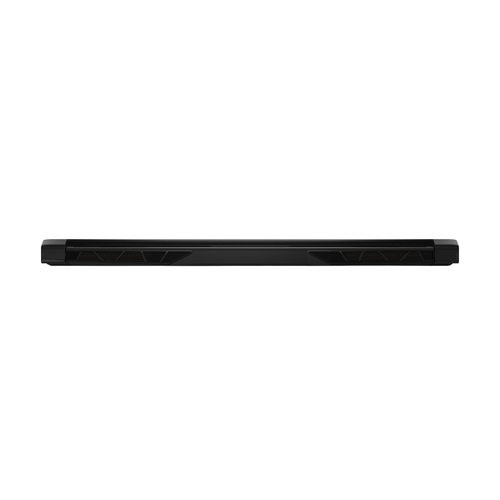

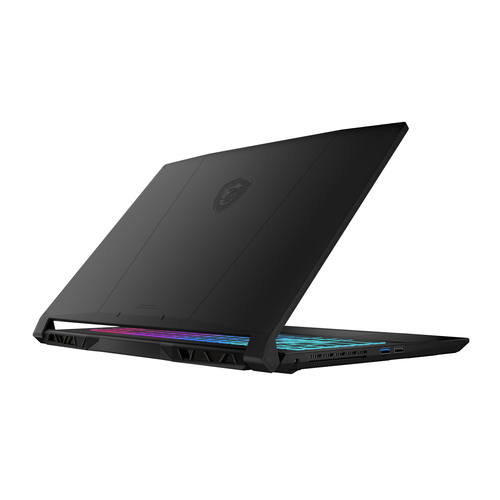

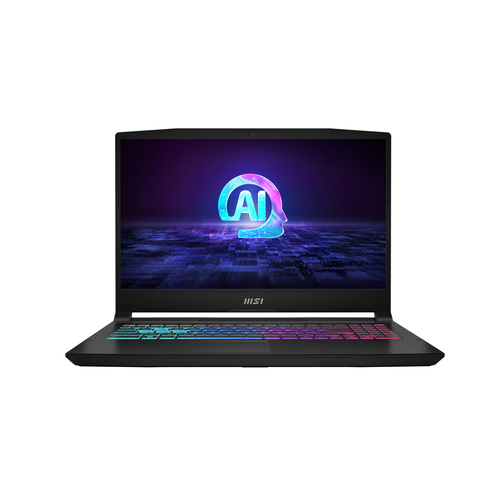

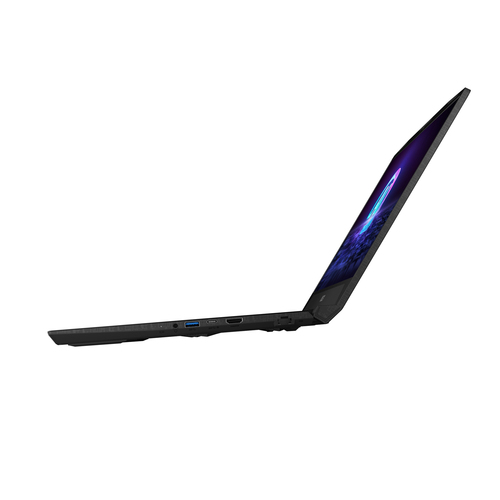

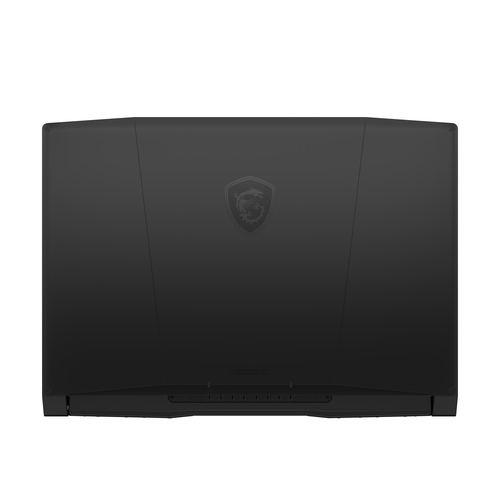

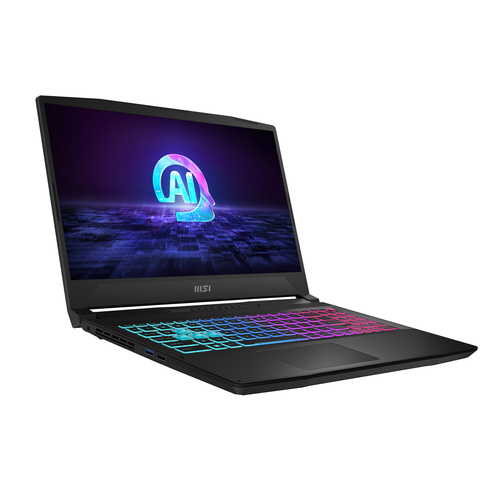

MSI AI B8VG-484XFR

AI B8VG-484XFR

Model AI B8VG-484XFRPart no. KATANA A15 AI B8VG-484XFREAN 4711377256742

88 specifications Checked today

Display39.6 cm (15.6")
Resolution1920 x 1080 pixels
ProcessorAMD Ryzen™ 9
Memory16 GB
Storage1 TB
GraphicsNVIDIA GeForce RTX 4070

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1920 x 1080 pixels
Processor: AMD Ryzen™ 9
Memory: 16 GB
Storage: 1 TB
Graphics: NVIDIA GeForce RTX 4070

Brand: MSI
Category: Laptop
Model: AI B8VG-484XFR
Part number: KATANA A15 AI B8VG-484XFR
EAN / UPC: 4711377256742
Also known as: MSI Katana AI B8VG-484XFR AMD Ryzen™ 9 8945HS Laptop 39.6 cm (15.6") Full HD 16 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 4070 Wi-Fi 6E (802.11ax) FreeDOS Black

Specifications

88 specifications in 18 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Form factor	Clamshell
Original brand name	MSI

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Native aspect ratio	16:9
Anti-glare screen	Yes
Maximum refresh rate	144 Hz

Processor

Specification	Value
Processor manufacturer	AMD
Processor family	AMD Ryzen™ 9
Processor generation	AMD Ryzen 8000 Series
Processor model	8945HS
Processor cores	8
Processor boost frequency	5.2 GHz
Processor frequency	4 GHz
Processor cache	24 MB
Processor cache type	L2 & L3

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	5600 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	2 x 8 GB
Memory slots	2x SO-DIMM
Maximum internal memory	64 GB

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	SSD
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
NVMe	Yes
SSD interface	PCI Express 4.0
SSD form factor	M.2
Optical drive type	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete GPU manufacturer	NVIDIA
Discrete graphics card model	NVIDIA GeForce RTX 4070
Discrete graphics card memory	8 GB
Discrete graphics memory type	GDDR6
On-board GPU manufacturer	AMD
On-board graphics card model	AMD Radeon 780M

Audio

Specification	Value
Audio system	NAHIMIC 3
Number of built-in speakers	2
Speakers manufacturer	Nahimic
Speaker power	2 W

Camera

Specification	Value
Front camera	Yes
Front camera HD type	HD
Front camera resolution	1280 x 720 pixels
Video capturing speed	30 fps

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
WLAN controller manufacturer	AMD
WLAN controller model	AMD RZ616
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.3

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes

Performance

Specification	Value
Repairability index	8.1

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Keyboard backlit colour	RGB
Keyboard backlit zone	4-zone RGB

Software

Specification	Value
Operating system installed	FreeDOS
Bundled software	MSI System Control Manager MSI BurnRecovery MSI Remind Manager MSI Battery Calibration MSI Help Desk Norton Internet Security (trail 60days) Norton Studio (Metro) (permanent free) Nvidia GeForce Experience Microsoft Office 2016 (trial 30 days, 1 year per purchase) True Color 2.0 Nahimic 3 Dragon Cen

Battery

Specification	Value
Number of battery cells	3
Battery capacity	4700 mAh
Battery capacity	53.5 Wh

Power

Specification	Value
AC adapter power	200 W

Security

Specification	Value
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0

Weight & dimensions

Specification	Value
Weight	2.25 kg
Width	359 mm
Depth	259 mm
Height	24.9 mm

Other features

Specification	Value
Warranty period	2 year(s)
