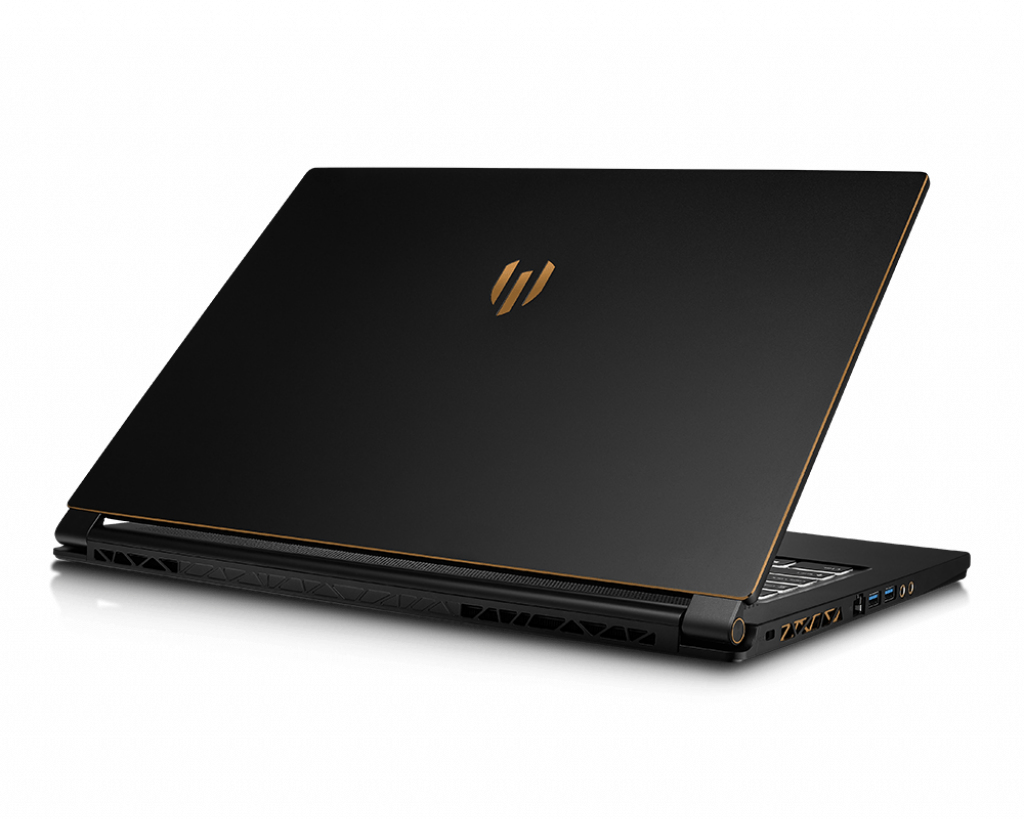

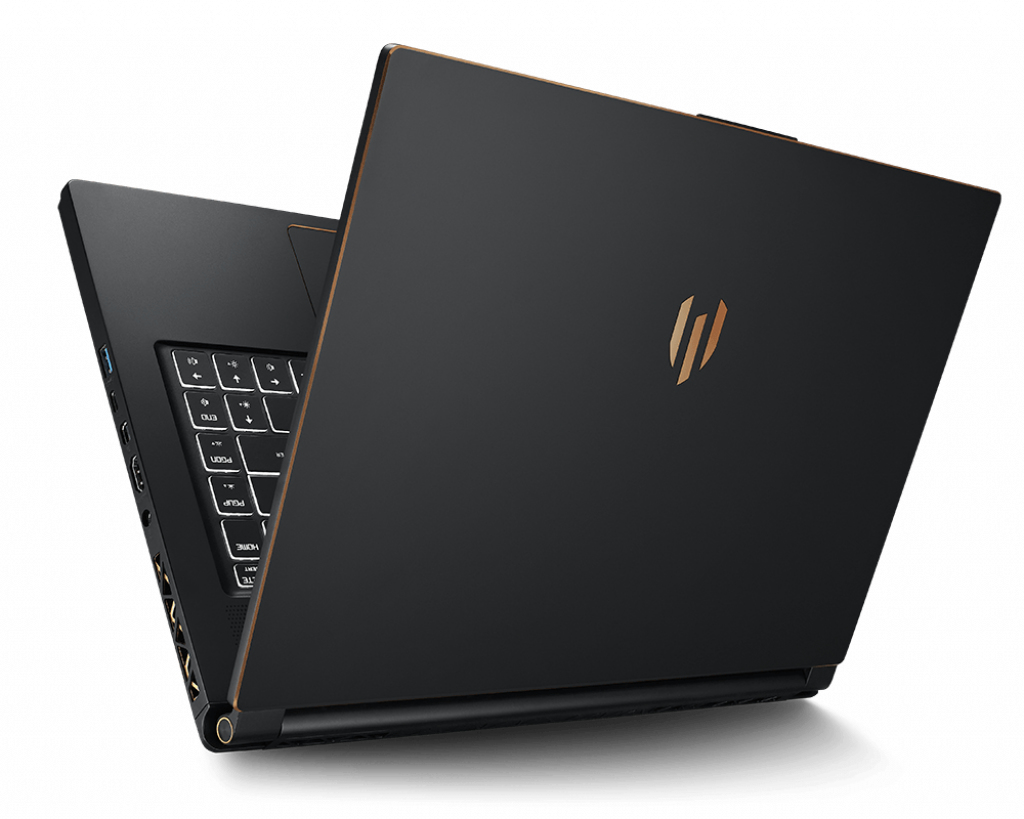

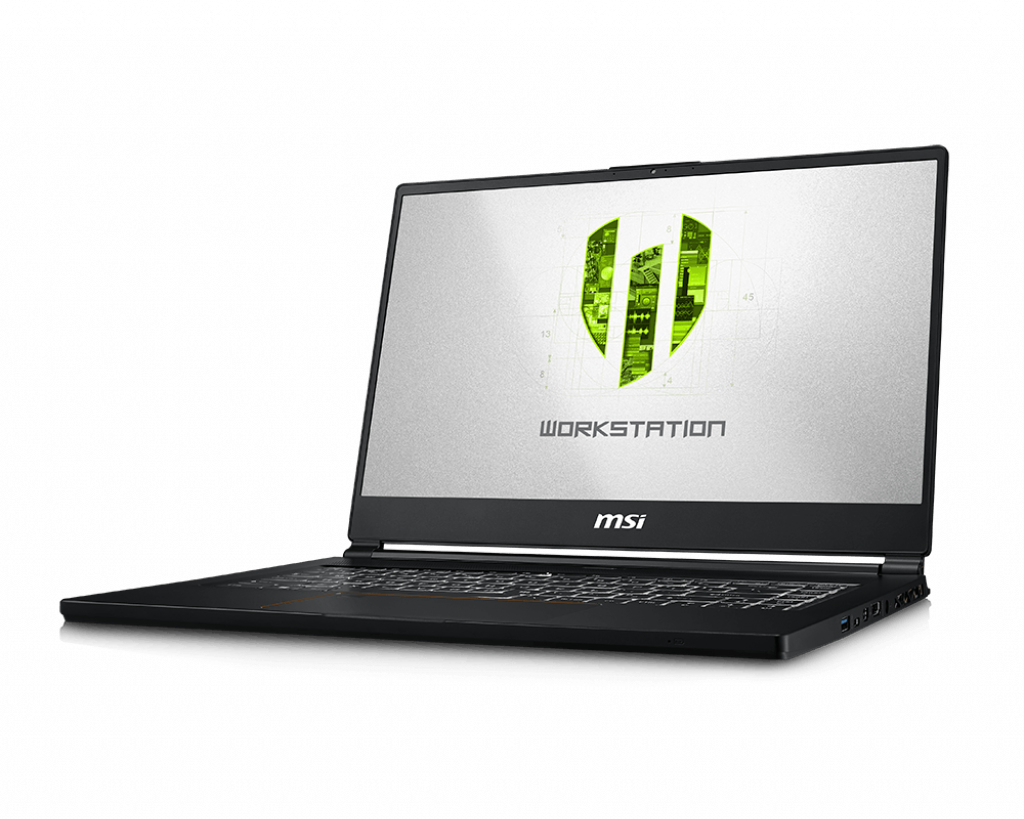

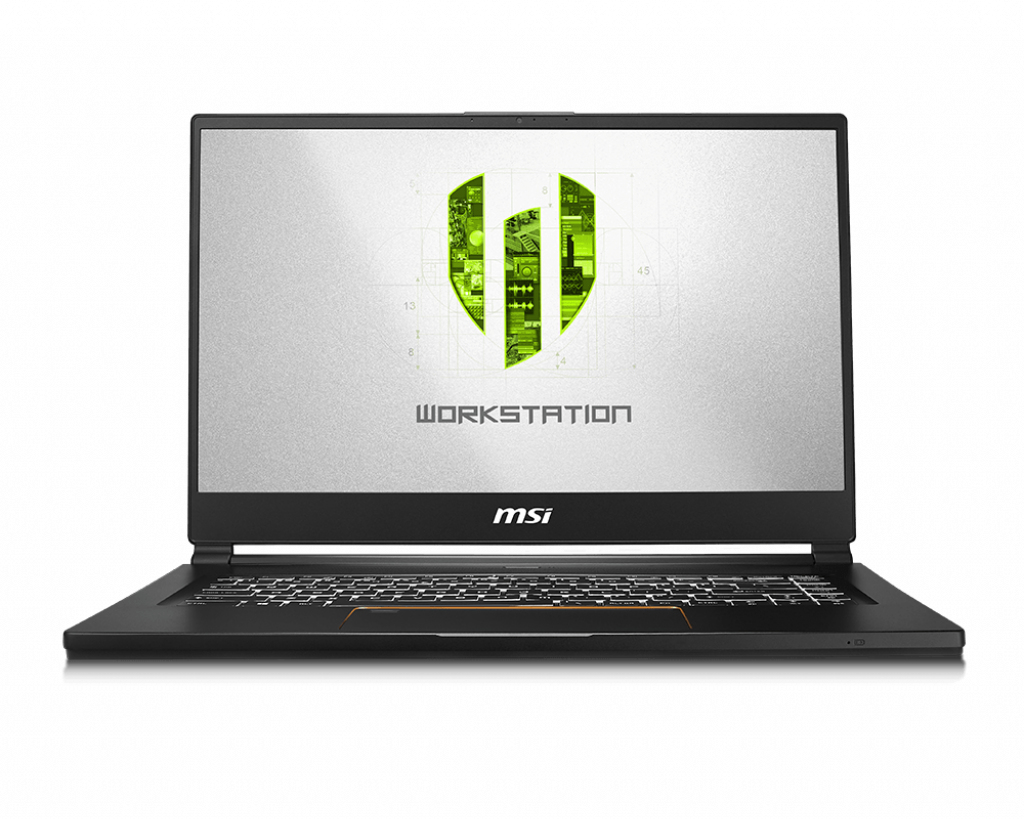

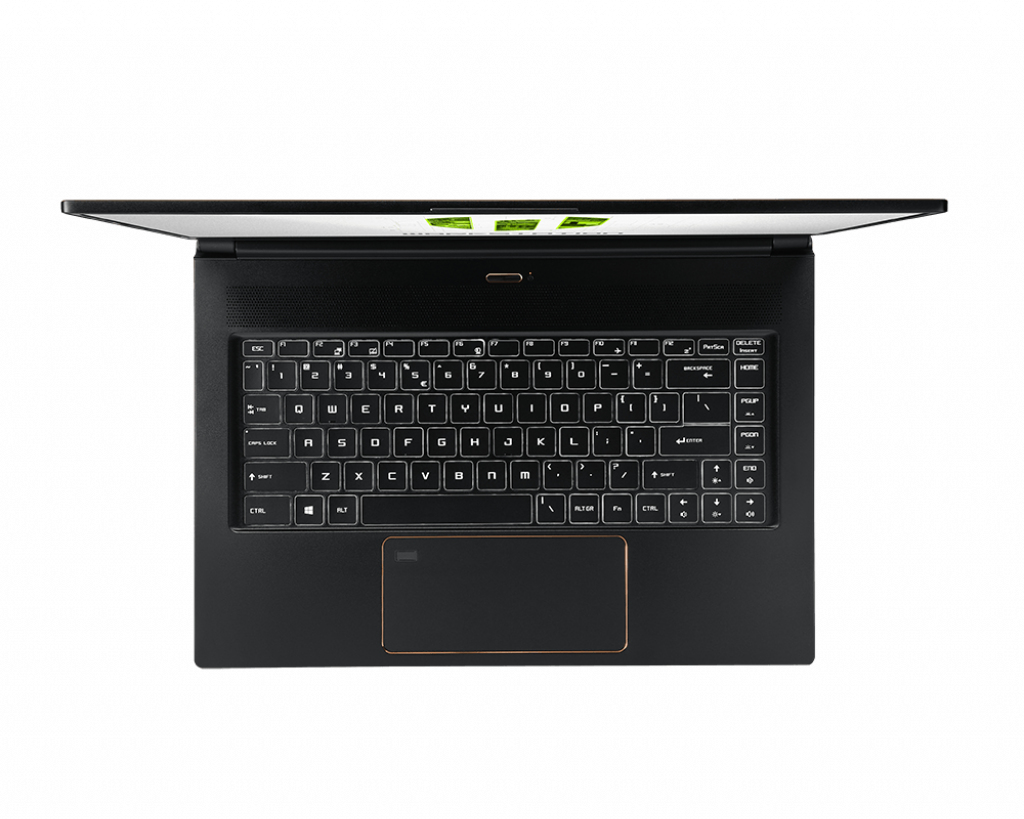

MSI Workstation 9TK-688 Intel® Core™ i7 i7-9750H Laptop

Workstation 9TK-688 Intel® Core™ i7 i7-9750H Laptop

39.6 cm (15.6") Full HD 32 GB DDR4-SDRAM 512 GB SSD NVIDIA Quadro RTX 3000 Wi-Fi 5 (802.11ac) Windows 10

Model 9TK-688Part no. WS65688EAN 824142185216

91 specifications Checked today

Display39.6 cm (15.6")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i7
Memory32 GB
Storage512 GB
GraphicsNVIDIA Quadro RTX 3000

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i7
Memory: 32 GB
Storage: 512 GB
Graphics: NVIDIA Quadro RTX 3000

Brand: MSI
Category: Laptop
Model: 9TK-688
Part number: WS65688
EAN / UPC: 824142185216
Also known as: MSI Workstation 9TK-688 Intel® Core™ i7 i7-9750H Laptop 39.6 cm (15.6") Full HD 32 GB DDR4-SDRAM 512 GB SSD NVIDIA Quadro RTX 3000 Wi-Fi 5 (802.11ac) Windows 10

Specifications

91 specifications in 17 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Colour name	Matte Black with Gold Diamond cut
Form factor	Clamshell
Market positioning	Business

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Panel type	IPS
Native aspect ratio	16:9
Colour gamut	72%
RGB colour space	NTSC
Maximum refresh rate	60 Hz

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	9th gen Intel® Core™ i7
Processor model	i7-9750H
Processor cores	6
Processor boost frequency	4.5 GHz
Processor frequency	2.6 GHz
Processor cache	12 MB
Processor cache type	Smart Cache
Configurable TDP-down	35 W

Memory

Specification	Value
Internal memory	32 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	2666 MHz
Memory layout (slots x size)	2 x 16 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
SSD capacity	512 GB
NVMe	Yes
SSD interface	NVMe
Card reader integrated	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete GPU manufacturer	NVIDIA
Discrete graphics card model	NVIDIA Quadro RTX 3000
Discrete graphics card memory	6 GB
Discrete graphics memory type	GDDR6
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel® UHD Graphics 630
On-board graphics card 4K support	Yes

Audio

Specification	Value
Number of built-in speakers	2
Speaker power	2 W

Camera

Specification	Value
Front camera	Yes
Front camera HD type	HD

Network

Specification	Value
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Antenna type	2x2
WLAN controller manufacturer	Intel
WLAN controller model	Intel Dual Band Wireless-AC 9560
Ethernet LAN	Yes
Bluetooth	Yes
Bluetooth version	5.0

Ports & interfaces

Specification	Value
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
HDMI ports quantity	1
Mini DisplayPorts quantity	1
Thunderbolt 3 ports quantity	1
Headphone outputs	1
Microphone in	Yes

Performance

Specification	Value
Motherboard chipset	Intel® HM370

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	No
Keyboard backlit colour	White

Software

Specification	Value
Operating system installed	Windows 10 Pro
Windows 11 free upgrade	Yes

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Flex Memory Access	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel TSX-NI	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes

Battery

Specification	Value
Number of battery cells	4
Battery capacity	82 Wh

Power

Specification	Value
AC adapter power	230 W

Weight & dimensions

Specification	Value
Weight	1.88 kg
Width	357.6 mm
Depth	247.7 mm
Height	17.8 mm
