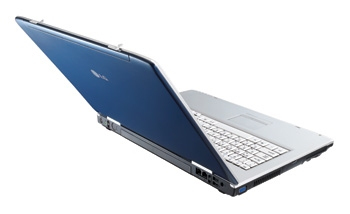

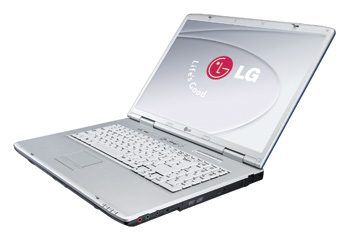

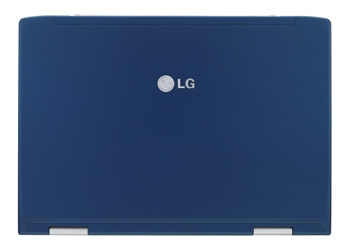

LG W1-JDGBG laptop Intel® Core™2 Duo T7200

43.4 cm (17.1") 2 GB DDR2-SDRAM 160 GB AMD Mobility Radeon X1600 Windows XP Media Center Edition 2005 QWERTY

Model W1-JDGBGEAN 8801031121489

117 specifications Checked 3 days ago

Display43.4 cm (17.1")
Resolution1680 x 1050 pixels
ProcessorIntel® Core™2 Duo
Memory2 GB
Storage160 GB
GraphicsAMD Mobility Radeon X1600

See all specifications

Overview

Display: 43.4 cm (17.1")
Resolution: 1680 x 1050 pixels
Processor: Intel® Core™2 Duo
Memory: 2 GB
Storage: 160 GB
Graphics: AMD Mobility Radeon X1600

Brand: LG
Category: Laptop
Model: W1-JDGBG
Part number: W1-JDGBG
EAN / UPC: 8801031121489
Also known as: LG W1-JDGBG laptop Intel® Core™2 Duo T7200 43.4 cm (17.1") 2 GB DDR2-SDRAM 160 GB AMD Mobility Radeon X1600 Windows XP Media Center Edition 2005 QWERTY

Specifications

117 specifications in 17 groups

Display

Specification	Value
Display diagonal	43.4 cm (17.1")
Display resolution	1680 x 1050 pixels
Native aspect ratio	16:10

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	T7200
Processor cores	2
Processor threads	2
Processor frequency	2 GHz
Processor cache	4 MB
Processor cache type	L2
Processor front side bus	667 MHz
Processor socket	Socket 479
Processor lithography	65 nm
Processor operating modes	64-bit
Processor series	Intel Core 2 Duo T7000 Series
Processor codename	Merom
Bus type	FSB
FSB Parity	No
Stepping	B2
Thermal Design Power (TDP)	34 W
Tjunction	100 °C
Processor core voltage (AC)	1.0375 - 1.30 V
Number of Processing Die Transistors	291 M
Processing Die size	143 mm²
CPU multiplier (bus/core ratio)	12
ECC supported by processor	No

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR2-SDRAM
Memory clock speed	667 MHz
Memory layout (slots x size)	2 x 1 GB
Maximum internal memory	2 GB

Storage

Specification	Value
Total storage capacity	160 GB
HDD interface	SATA
HDD speed	5400 RPM
Optical drive type	DVD Super Multi DL
Card reader integrated	Yes

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	AMD Mobility Radeon X1600
Maximum graphics card memory	0.256 GB

Audio

Specification	Value
Audio system	5.1
Number of built-in speakers	2
Speaker power	2 W

Camera

Specification	Value
Front camera	No

Network

Specification	Value
Networking features	WLAN
Bluetooth	Yes
Bluetooth version	2.0+EDR

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	1
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	1
Headphone outputs	0
S/PDIF out port	Yes
Microphone in	Yes
Docking connector	No
ExpressCard slot	No
CardBus PCMCIA slots quantity	1
CardBus PCMCIA slot type	Type II
SmartCard slot	No
Modem (RJ-11) ports	1
TV-in port	No
TV-out	Yes
TV-out type	S-Video
PS/2 ports quantity	0
Parallel ports quantity	1
Serial ports quantity	0
USB 1.1 ports quantity	0

Performance

Specification	Value
Motherboard chipset	Intel® 945PM Express

Keyboard

Specification	Value
Pointing device	Touchpad + Scroll zone
Keyboard layout	QWERTY

Software

Specification	Value
Operating system installed	Windows XP Media Center Edition 2005

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	No
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	27255
Processor package size	35 x 35 mm
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	6
Battery capacity	5200 mAh
Battery life (max)	3 h

Power

Specification	Value
AC adapter power	90 W
DC-in jack	Yes

Weight & dimensions

Specification	Value
Weight	3.1 kg
Width	392 mm
Depth	276 mm
Height	30.6 mm

Other features

Specification	Value
Infrared data port	Yes
Compliance industry standards	802.11 a/b/g
Internal modem	Yes
Modem speed	56 Kbit/s
