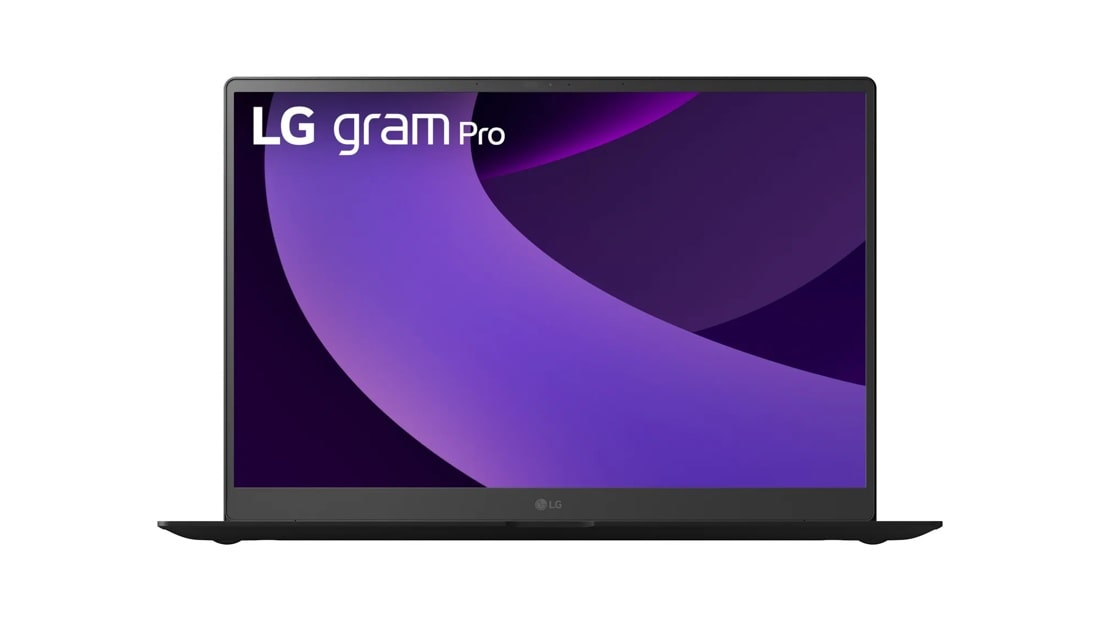

LG Gram Pro 16Z90TR-E.AZB9U1 laptop Copilot+ PC Intel Core Ultra 9 285H

Gram Pro 16Z90TR-E.AZB9U1 laptop Copilot+ PC Intel Core Ultra 9 285H

40.6 cm (16") WQXGA 32 GB LPDDR5x-SDRAM 2 TB SSD NVIDIA® GeForce RTX™ 5050 Wi-Fi 7 (802.

Model 16Z90TR-E.AZB9U1EAN 195174136652

92 specifications Checked today

Display40.6 cm (16")
Resolution2560 x 1600 pixels
ProcessorIntel Core Ultra 9
Memory32 GB
Storage2 TB
GraphicsNVIDIA® GeForce RTX™ 5050

See all specifications

Overview

Display: 40.6 cm (16")
Resolution: 2560 x 1600 pixels
Processor: Intel Core Ultra 9
Memory: 32 GB
Storage: 2 TB
Graphics: NVIDIA® GeForce RTX™ 5050

Brand: LG
Category: Laptop
Model: 16Z90TR-E.AZB9U1
Part number: 16Z90TR-E.AZB9U1
EAN / UPC: 195174136652
Also known as: LG Gram Pro 16Z90TR-E.AZB9U1 laptop Copilot+ PC Intel Core Ultra 9 285H 40.6 cm (16") WQXGA 32 GB LPDDR5x-SDRAM 2 TB SSD NVIDIA® GeForce RTX™ 5050 Wi-Fi 7 (802.

Specifications

92 specifications in 18 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Colour name	Obsidian Black
Form factor	Clamshell
Certified refurbished	No

Display

Specification	Value
Display diagonal	40.6 cm (16")
Display resolution	2560 x 1600 pixels
Touchscreen	No
HD type	WQXGA
Native aspect ratio	16:10
Display brightness	400 cd/m²
Colour gamut	99%
RGB colour space	DCI-P3
Maximum refresh rate	144 Hz

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Core Ultra 9
Processor generation	Intel Core Ultra (Series 2)
Processor model	285H
Processor cores	16
Processor threads	16
Processor boost frequency	5.4 GHz
Performance cores	6
Efficient cores	8
Low Power Efficient-cores	2
Performance-core Max Turbo Frequency	5.4 GHz
Efficient-core Max Turbo Frequency	4.5 GHz
Low Power Efficient-core Max Turbo Frequency	2.5 GHz
Performance-core base frequency	2.9 GHz
Efficient-core base frequency	2.7 GHz
Low Power Efficient-core Base Frequency	1000 MHz
Processor cache	24 MB
Maximum turbo power	115 W
Processor base power	45 W

Neural processor unit (NPU)

Specification	Value
Copilot+ PC	Yes
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to	99 TOPs
NPU performance up to	13 TOPs
GPU performance up to	77 TOPs

Memory

Specification	Value
Internal memory	32 GB
Internal memory type	LPDDR5x-SDRAM
Memory clock speed	8400 MHz

Storage

Specification	Value
Total storage capacity	2 TB
Storage media	SSD
Total SSDs capacity	2 TB
Number of SSDs installed	2
SSD capacity	1 TB
NVMe	Yes
SSD form factor	M.2
Optical drive type	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA® GeForce RTX™ 5050
Discrete graphics card memory	8 GB
Discrete graphics memory type	GDDR7
On-board GPU manufacturer	Intel
On-board graphics card family	Intel Arc Graphics
On-board graphics card model	Intel Arc 140T

Audio

Specification	Value
Audio system	Dolby Atmos
Number of built-in speakers	4
Speaker power	3 W
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera HD type	Full HD
Infrared (IR) camera	Yes

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Bluetooth	Yes
Bluetooth version	5.4

Ports & interfaces

Specification	Value
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
HDMI ports quantity	1
Thunderbolt 4 ports quantity	2
Combo headphone/mic port	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Keyboard language	English

Software

Specification	Value
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Battery capacity	90 Wh

Power

Specification	Value
AC adapter power	100 W
USB Type-C charging port	Yes

Security

Specification	Value
Face recognition	Yes

Weight & dimensions

Specification	Value
Weight	1.4 kg
Width	358.1 mm
Depth	251.5 mm
Height (front)	1.45 cm
Height (rear)	1.57 cm

Packaging content

Specification	Value
AC adapter included	Yes
