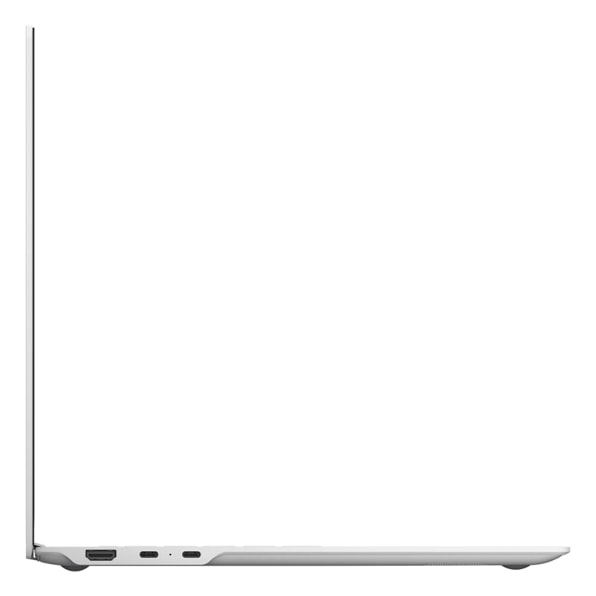

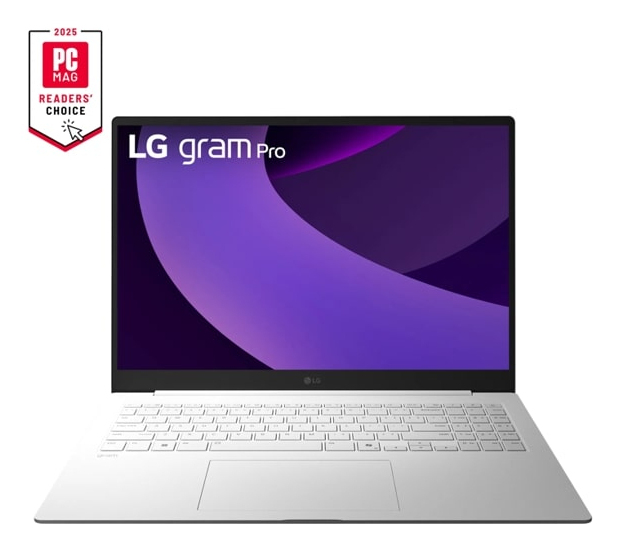

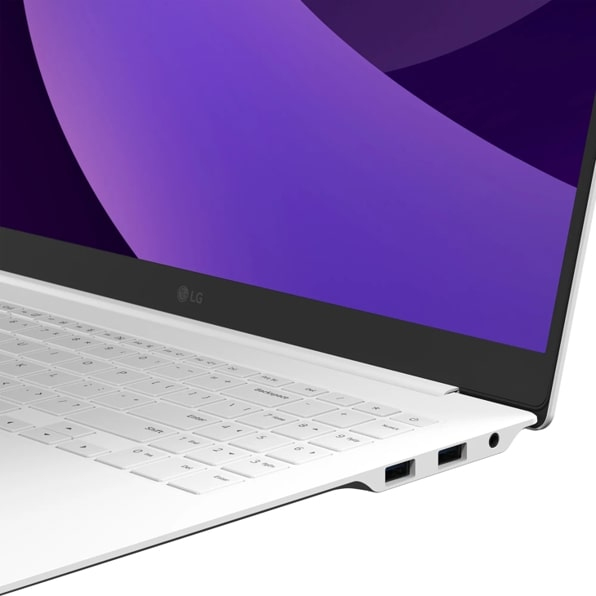

LG Gram Pro 16Z90TP-K.AAW4U1 laptop Intel Core Ultra 7 255H

Gram Pro 16Z90TP-K.AAW4U1 laptop Intel Core Ultra 7 255H

40.6 cm (16") WQXGA+ 16 GB LPDDR5x-SDRAM 1 TB SSD Wi-Fi 7 (802.11be) Windows 11 Home White

Model 16Z90TP-K.AAW4U1EAN 195174110119

101 specifications Checked today

Display40.6 cm (16")
Resolution2880 x 1800 pixels
ProcessorIntel Core Ultra 7
Memory16 GB
Storage1 TB
GraphicsNot available

See all specifications

Overview

Display: 40.6 cm (16")
Resolution: 2880 x 1800 pixels
Processor: Intel Core Ultra 7
Memory: 16 GB
Storage: 1 TB
Graphics: Not available

Brand: LG
Category: Laptop
Model: 16Z90TP-K.AAW4U1
Part number: 16Z90TP-K.AAW4U1
EAN / UPC: 195174110119
Also known as: LG Gram Pro 16Z90TP-K.AAW4U1 laptop Intel Core Ultra 7 255H 40.6 cm (16") WQXGA+ 16 GB LPDDR5x-SDRAM 1 TB SSD Wi-Fi 7 (802.11be) Windows 11 Home White

Specifications

101 specifications in 20 groups

Design

Specification	Value
Product type	Laptop
Product colour	White
Form factor	Clamshell
Introduction year	2025
Country of origin	China

Display

Specification	Value
Display diagonal	40.6 cm (16")
Display resolution	2880 x 1800 pixels
Touchscreen	No
HD type	WQXGA+
Panel type	OLED
Colour gamut	1000%
RGB colour space	DCI-P3
Maximum refresh rate	120 Hz

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Core Ultra 7
Processor generation	Intel Core Ultra (Series 2)
Processor model	255H
Processor cores	16
Processor threads	16
Performance cores	6
Efficient cores	8
Low Power Efficient-cores	2
Performance-core Max Turbo Frequency	5.1 GHz
Efficient-core Max Turbo Frequency	4.4 GHz
Low Power Efficient-core Max Turbo Frequency	2.5 GHz
Performance-core base frequency	2 GHz
Efficient-core base frequency	1.5 GHz
Low Power Efficient-core Base Frequency	700 MHz
Processor cache	24 MB
Processor cache type	Smart Cache
Maximum turbo power	115 W
Processor base power	28 W

Neural processor unit (NPU)

Specification	Value
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
AI software frameworks supported by NPU	DirectML, ONNX RT, OpenVINO, WebNN, Windows ML
NPU performance up to	13 TOPs
GPU performance up to	74 TOPs

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	LPDDR5x-SDRAM
Memory clock speed	8400 MHz
Maximum internal memory	128 GB
Memory channels	Dual-channel
ECC	No

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	SSD
Total SSDs capacity	1 TB
Number of SSDs installed	1
NVMe	Yes
SSD form factor	M.2
Optical drive type	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card family	Intel Arc Graphics
On-board graphics card model	Intel Arc 140T
On-board graphics card 4K support	Yes
On-board graphics card DirectX version	12.2
On-board graphics card 8K support	Yes
On-board graphics card OpenGL version	4.6

Audio

Specification	Value
Built-in microphone	Yes
Number of microphones	2
Audio decoders	Dolby Atmos

Camera

Specification	Value
Front camera	Yes
Front camera HD type	Full HD
Infrared (IR) camera	Yes

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Bluetooth	Yes
Bluetooth version	5.4

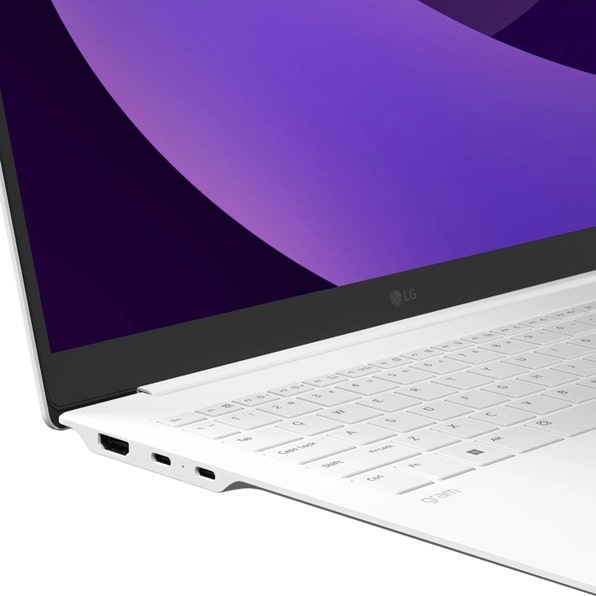

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
HDMI ports quantity	1
Thunderbolt 4 ports quantity	2
Headphone outputs	1
USB Type-C DisplayPort Alternate Mode	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes

Software

Specification	Value
Operating system installed	Windows 11 Home
Microsoft Copilot	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Battery capacity	77 Wh
Continuous video playback time (max)	19.5 h

Power

Specification	Value
USB Type-C charging port	Yes

Security

Specification	Value
Cable lock slot	No
Face recognition	Yes

Weight & dimensions

Specification	Value
Weight	1.2 kg
Width	358 mm
Depth	251 mm
Height	12.7 mm

Packaging data

Specification	Value
Package width	475 mm
Package depth	61 mm
Package height	290 mm
Package weight	2.35 kg

Video

Specification	Value
Video formats supported	AV1, H.264, H.265, VP9

Packaging content

Specification	Value
Mouse included	No
AC adapter included	Yes
Cables included	AC
Manual	Yes
