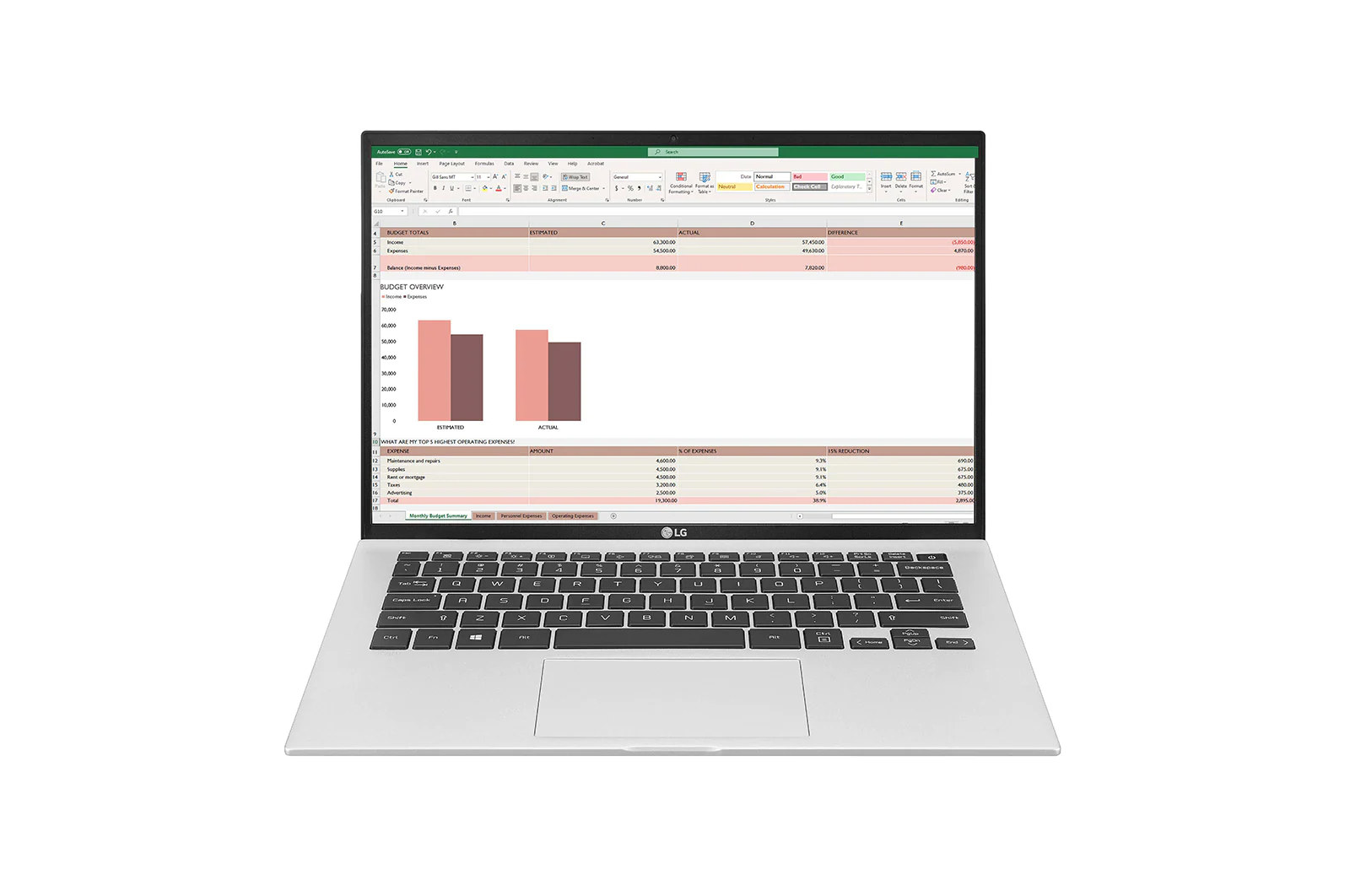

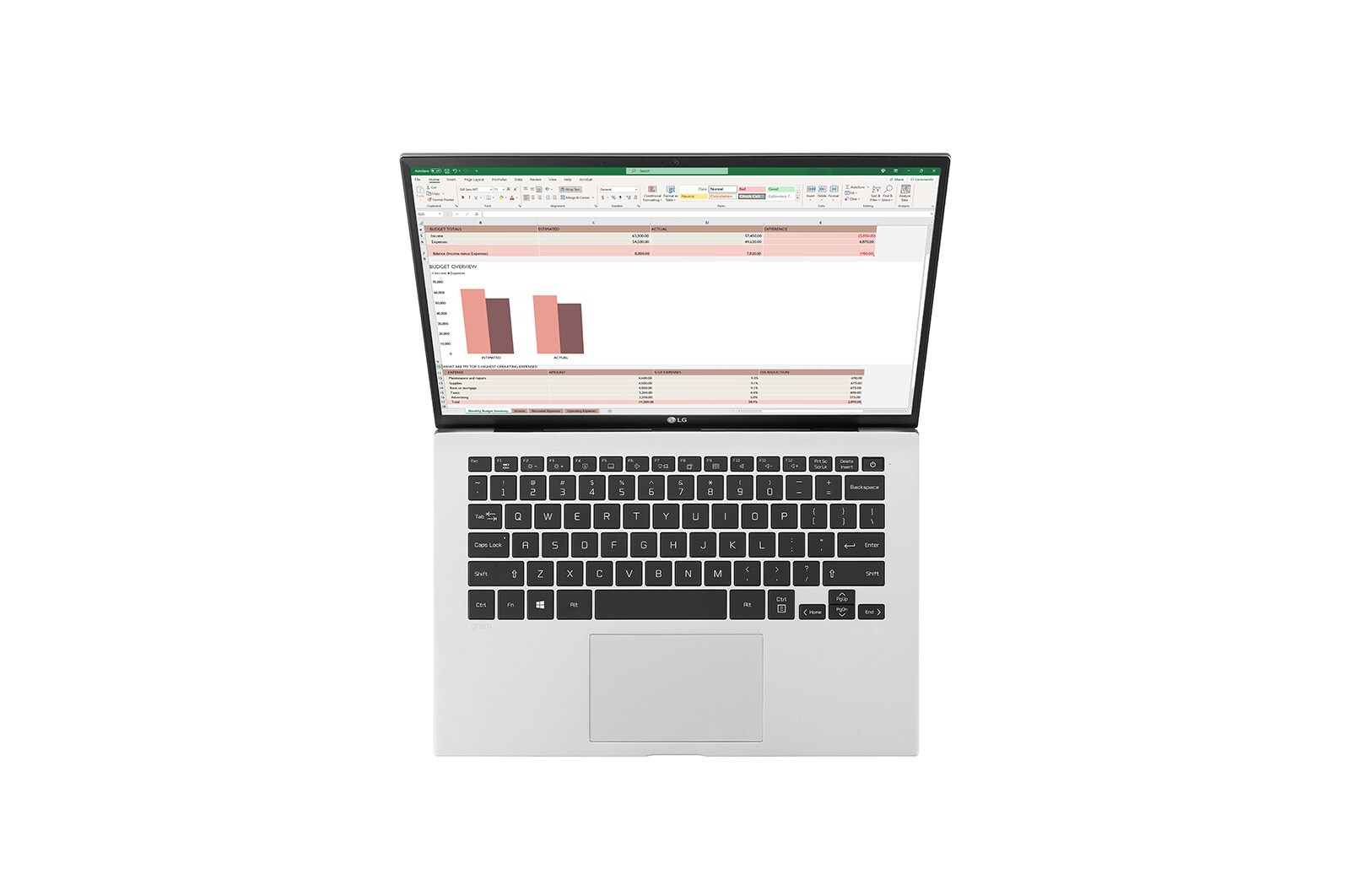

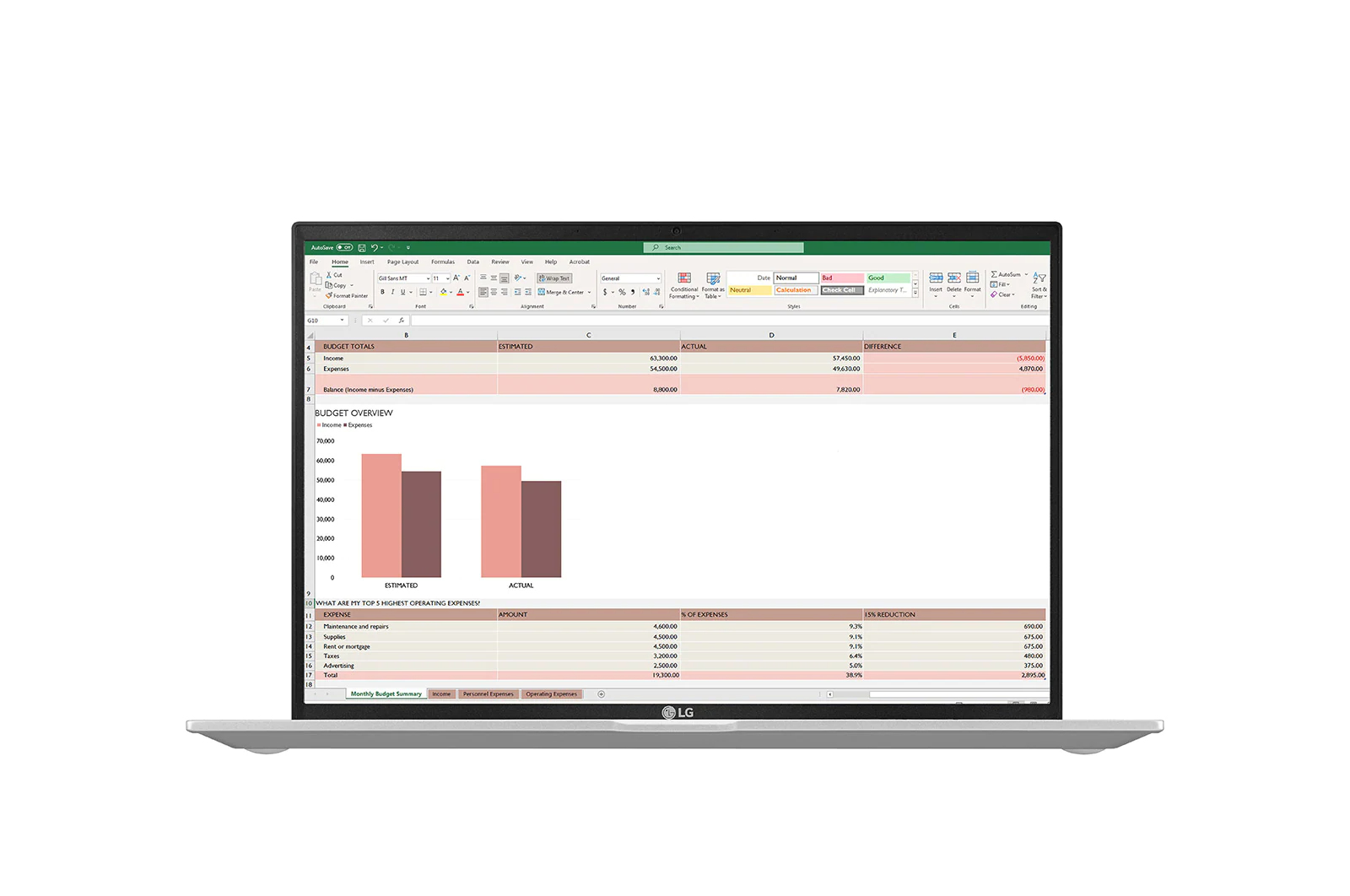

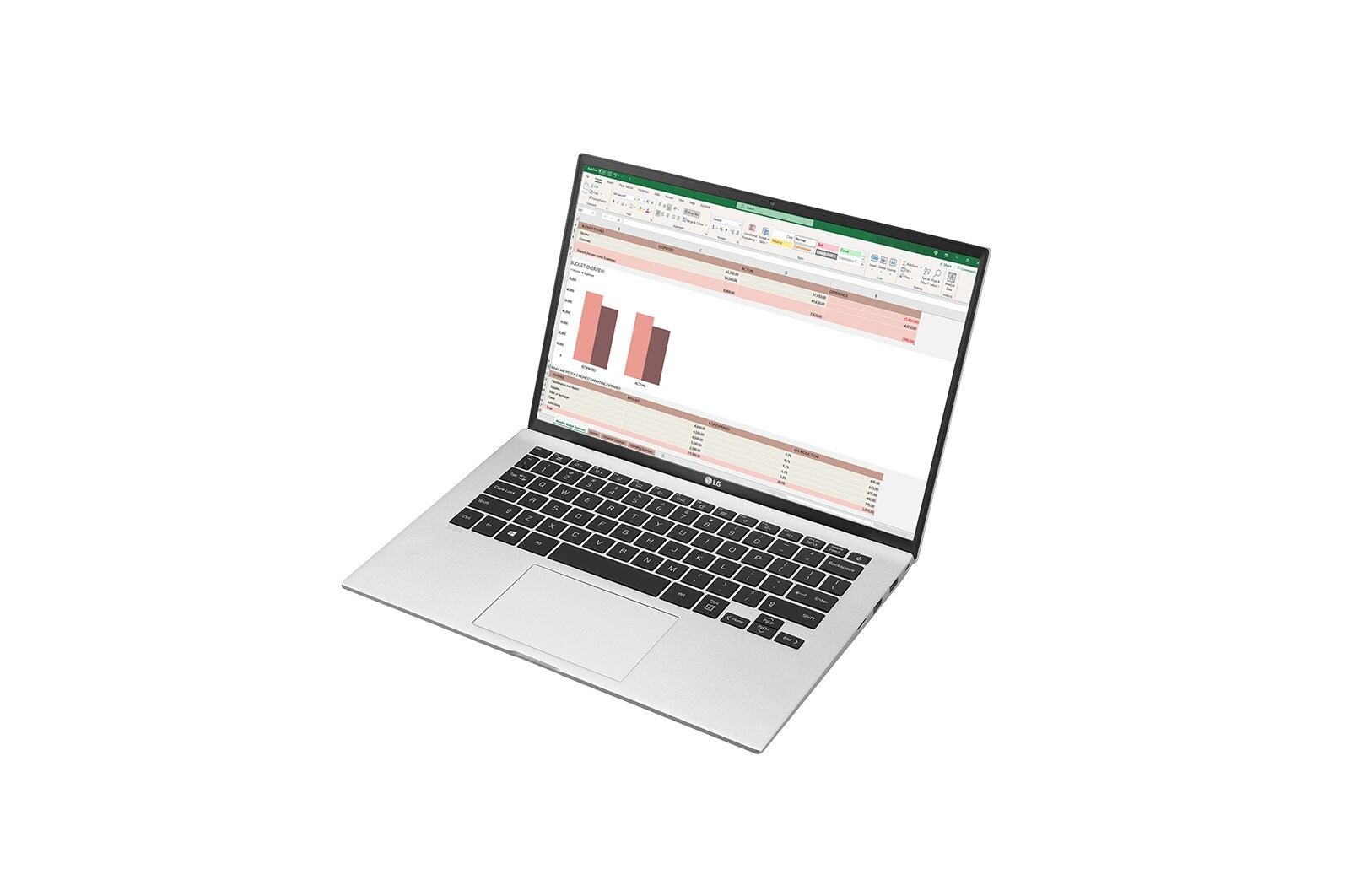

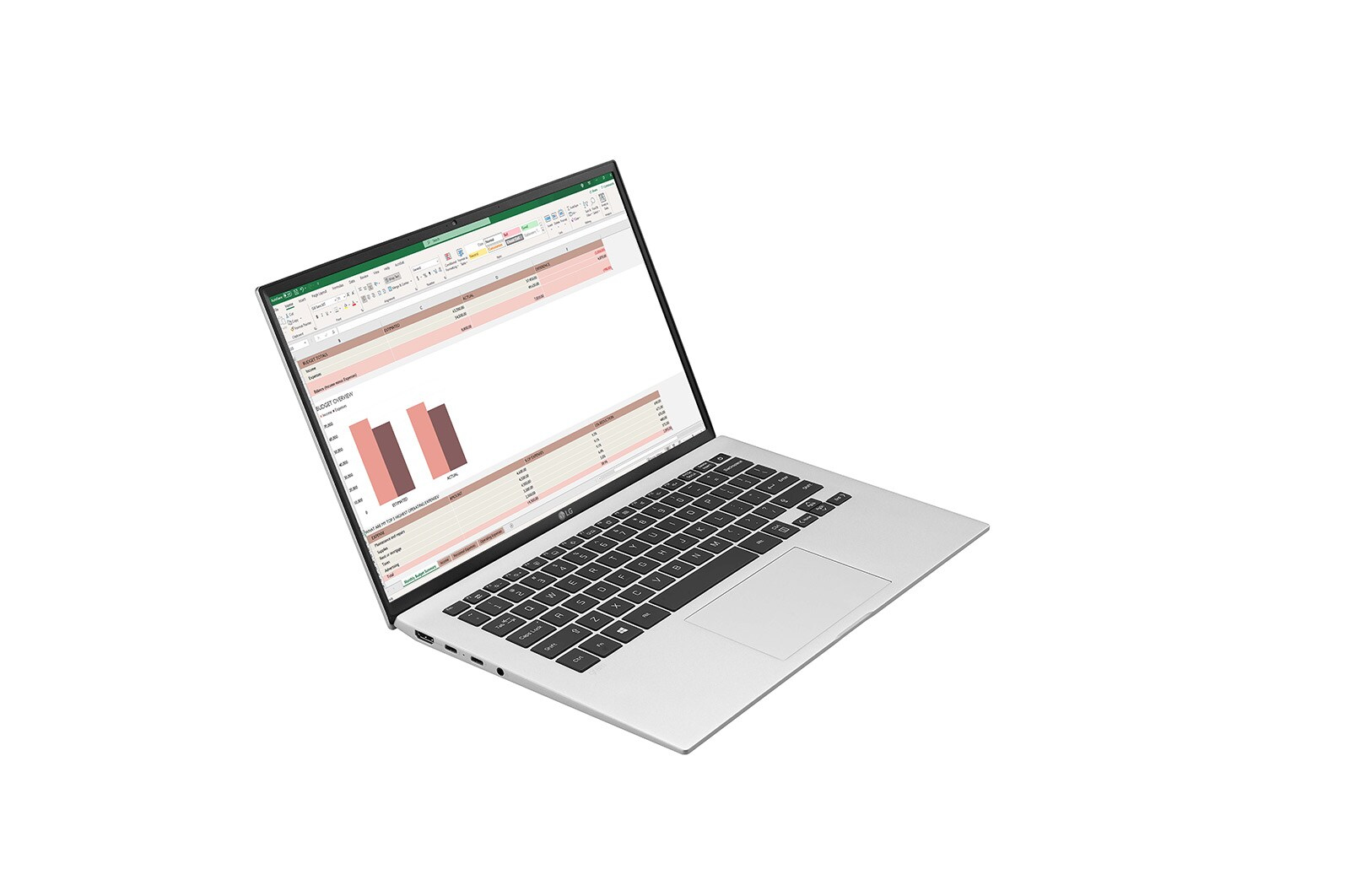

LG Gram 14ZT90P-G.AM13U1 laptop Intel® Pentium® 7505

Gram 14ZT90P-G.AM13U1 laptop Intel® Pentium® 7505

35.6 cm (14") WUXGA 8 GB LPDDR4x-SDRAM 256 GB SSD Wi-Fi 6 (802.11ax) Windows 10 IoT Enterprise Silver

Model 14ZT90P-G.AM13U1EAN 195174021828

103 specifications Checked today

Display35.6 cm (14")
Resolution1920 x 1200 pixels
ProcessorIntel® Pentium®
Memory8 GB
Storage256 GB
GraphicsNot available

See all specifications

Overview

Display: 35.6 cm (14")
Resolution: 1920 x 1200 pixels
Processor: Intel® Pentium®
Memory: 8 GB
Storage: 256 GB
Graphics: Not available

Brand: LG
Category: Laptop
Model: 14ZT90P-G.AM13U1
Part number: 14ZT90P-G.AM13U1
EAN / UPC: 195174021828
Also known as: LG Gram 14ZT90P-G.AM13U1 laptop Intel® Pentium® 7505 35.6 cm (14") WUXGA 8 GB LPDDR4x-SDRAM 256 GB SSD Wi-Fi 6 (802.11ax) Windows 10 IoT Enterprise Silver

Specifications

103 specifications in 18 groups

Design

Specification	Value
Product type	Laptop
Product colour	Silver
Form factor	Clamshell
Intel® vPro™ Platform Eligibility	No

Display

Specification	Value
Display diagonal	35.6 cm (14")
Display resolution	1920 x 1200 pixels
Touchscreen	No
HD type	WUXGA
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:10
Display diagonal (metric)	35.5 cm

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Pentium®
Processor model	7505
Processor cores	2
Processor boost frequency	3.5 GHz
Processor frequency	2 GHz
Processor cache	4 MB
Processor cache type	Smart Cache
Configurable TDP-up frequency	2 GHz
Configurable TDP-up	15 W

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	LPDDR4x-SDRAM
Memory clock speed	3733 MHz
Memory channels	Dual-channel
ECC	No

Storage

Specification	Value
Total storage capacity	256 GB
Storage media	SSD
Number of SSDs installed	1
SSD capacity	256 GB
NVMe	Yes
SSD interface	NVMe
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel® UHD Graphics
On-board graphics card 4K support	Yes
On-board graphics card 6K support	Yes
Graphics card Open GL support	Yes

Audio

Specification	Value
Number of built-in speakers	2
Speaker power	2 W

Camera

Specification	Value
Front camera	Yes
Front camera HD type	HD

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Antenna type	2x2
WLAN controller manufacturer	Intel
WLAN controller model	Intel Wi-Fi 6 AX201
Bluetooth	Yes
Bluetooth version	5.1

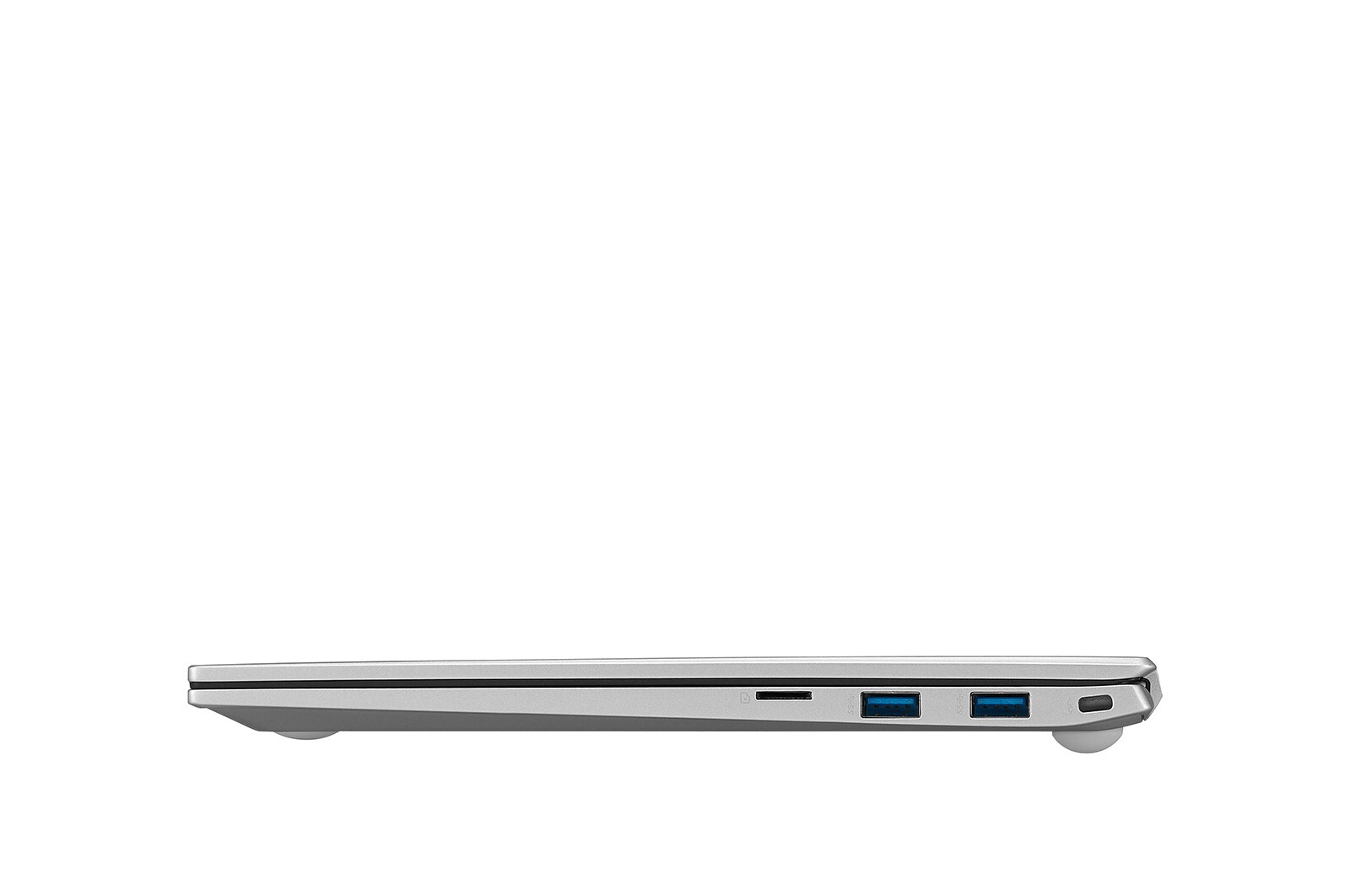

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
HDMI ports quantity	1
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Headphone outputs	1

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	No
Keyboard number of keys	79
Physical layout	ANSI

Software

Specification	Value
Operating system installed	Windows 10 IoT Enterprise
Bundled software	LG Easy Guide, - LG Cloud Agent, - LG Cloud Panel Software, - LG Cloud Launcher Software, - VDI Client : Citrix Workspace, VMware Horizon Client, PCoIP Client, - LG Recovery, - LG Cloud Device Manager Software

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Idle States	Yes
Intel Software Guard Extensions (Intel SGX)	No
Intel Stable Image Platform Program (SIPP)	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® High Definition Audio (Intel® HD Audio)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Smart Sound Technology	Yes
Intel® Turbo Boost Technology	2.0
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Battery capacity	72 Wh

Power

Specification	Value
AC adapter power	65 W
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes

Weight & dimensions

Specification	Value
Weight	999 g
Width	313.4 mm
Depth	215.2 mm
Height	16.8 mm

Packaging content

Specification	Value
Cables included	AC
