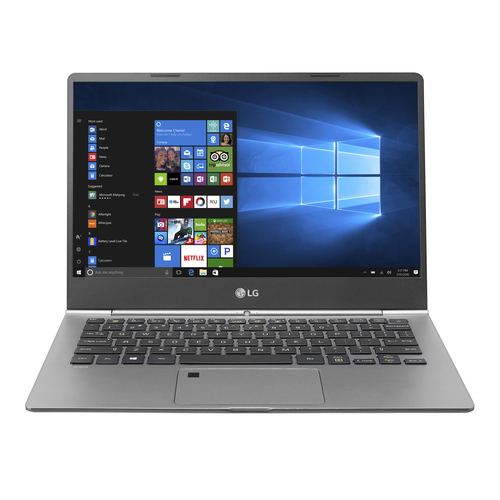

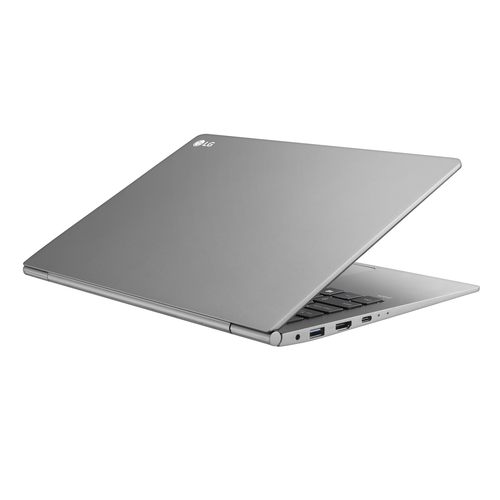

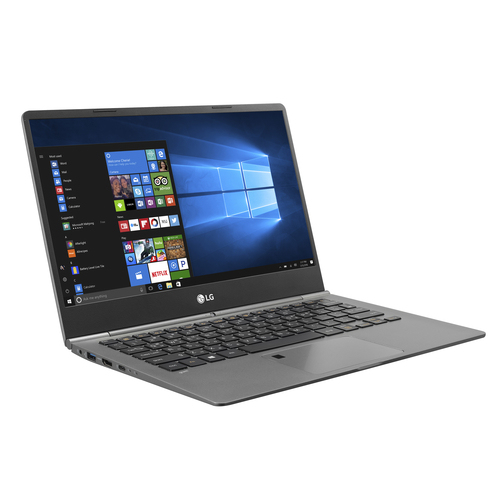

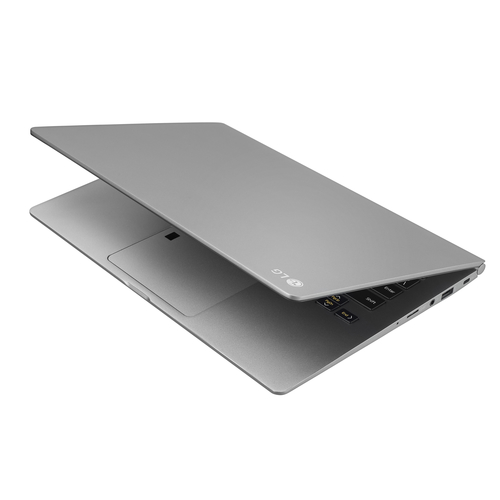

Z series 13Z970-A.AAS5U1 laptop Intel® Core™ i5 i5-7200U

33.8 cm (13.3") Touchscreen Full HD 8 GB DDR4-SDRAM 256 GB SSD Windows 10 Home Silver

Model 13Z970-A.AAS5U1EAN 719192613805

149 specifications Checked today

Display33.8 cm (13.3")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i5
Memory8 GB
Storage256 GB
Battery60 Wh

See all specifications

Overview

Display: 33.8 cm (13.3")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i5
Memory: 8 GB
Storage: 256 GB
Battery: 60 Wh

Brand: LG
Category: Laptop
Model: 13Z970-A.AAS5U1
Part number: 13Z970-A.AAS5U1
EAN / UPC: 719192613805
Also known as: LG Z series 13Z970-A.AAS5U1 laptop Intel® Core™ i5 i5-7200U 33.8 cm (13.3") Touchscreen Full HD 8 GB DDR4-SDRAM 256 GB SSD Windows 10 Home Silver

Specifications

149 specifications in 19 groups

Design

Specification	Value
Product type	Laptop
Product colour	Silver
Form factor	Clamshell
Housing material	Magnesium

Display

Specification	Value
Display diagonal	33.8 cm (13.3")
Display resolution	1920 x 1080 pixels
Touchscreen	Yes
HD type	Full HD
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	7th gen Intel® Core™ i5
Processor model	i5-7200U
Processor cores	2
Processor threads	4
Processor boost frequency	3.1 GHz
Processor frequency	2.5 GHz
System bus rate	4 GT/s
Processor cache	3 MB
Processor cache type	Smart Cache
Processor socket	BGA 1356
Processor lithography	14 nm
Processor operating modes	64-bit
Processor codename	Kaby Lake
Bus type	OPI
Stepping	H0
Thermal Design Power (TDP)	15 W
Configurable TDP-up frequency	2.7 GHz
Configurable TDP-up	25 W
Configurable TDP-down	7.5 W
Configurable TDP-down frequency	0.8 GHz
Tjunction	100 °C
Maximum number of PCI Express lanes	12
PCI Express configurations	1x2+2x1, 1x4, 2x2, 4x1
PCI Express slots version	3.0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	2133 MHz
Maximum internal memory	12 GB
Maximum internal memory (64-bit)	12 GB

Storage

Specification	Value
Total storage capacity	256 GB
Storage media	SSD
Number of HDDs installed	0
Number of SSDs installed	1
SSD capacity	256 GB
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Graphics

Specification	Value
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 620
Maximum on-board graphics card memory	32 GB
On-board graphics card base frequency	300 MHz
On-board graphics card dynamic frequency (max)	1000 MHz
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.4
On-board graphics card ID	0x5916

Audio

Specification	Value
Number of built-in speakers	2
Speaker power	2 W
Audio decoders	DTS

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	1 MP

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	4.1

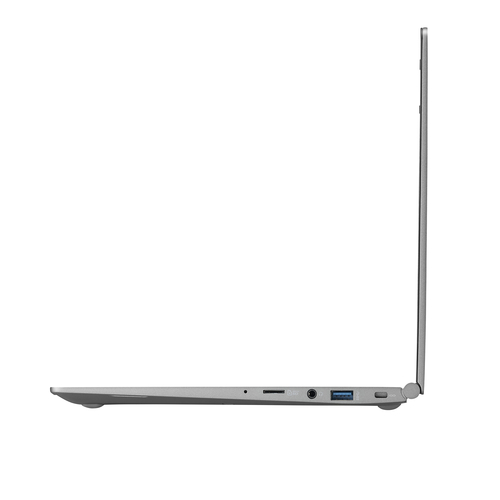

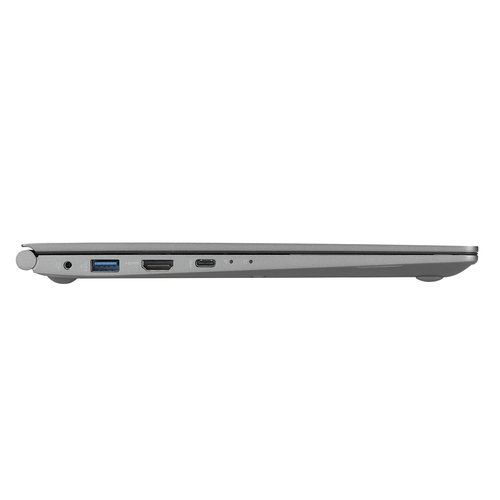

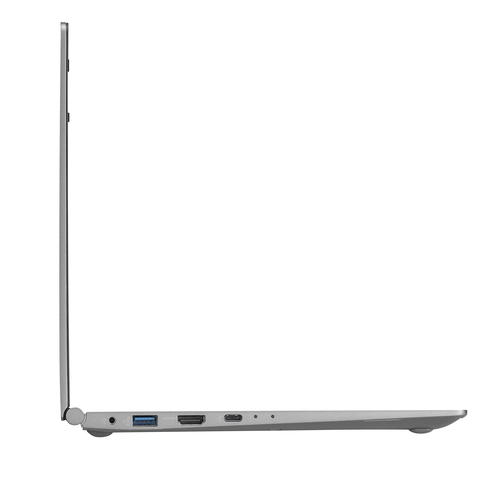

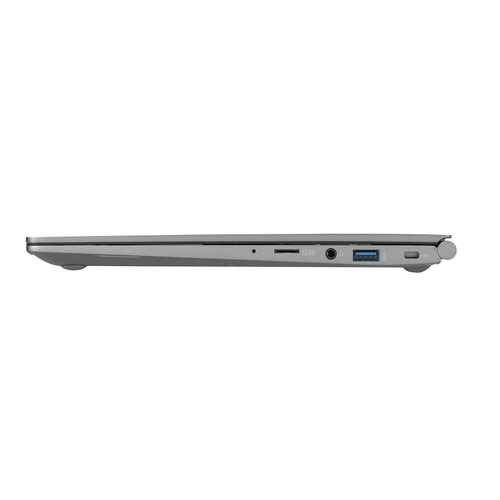

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	0
HDMI ports quantity	1
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	0
Thunderbolt ports quantity	0
Headphone outputs	1

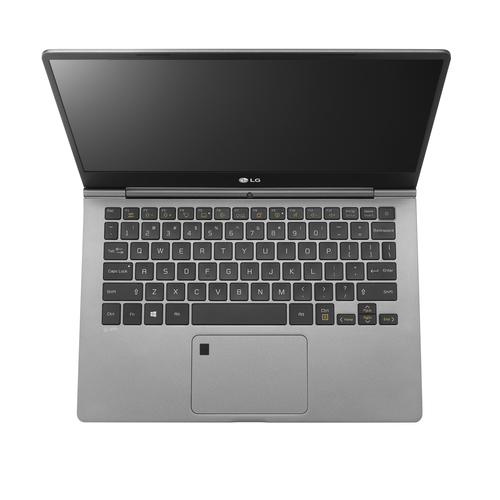

Keyboard

Specification	Value
Pointing device	Trackpad
Keyboard backlit	Yes
Numeric keypad	No
Windows keys	Yes

Software

Specification	Value
Operating system installed	Windows 10 Home
Operating system architecture	64-bit

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	14 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Smart Response Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	95443
Processor code	SR2ZU
Processor package size	42 x 24 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes
