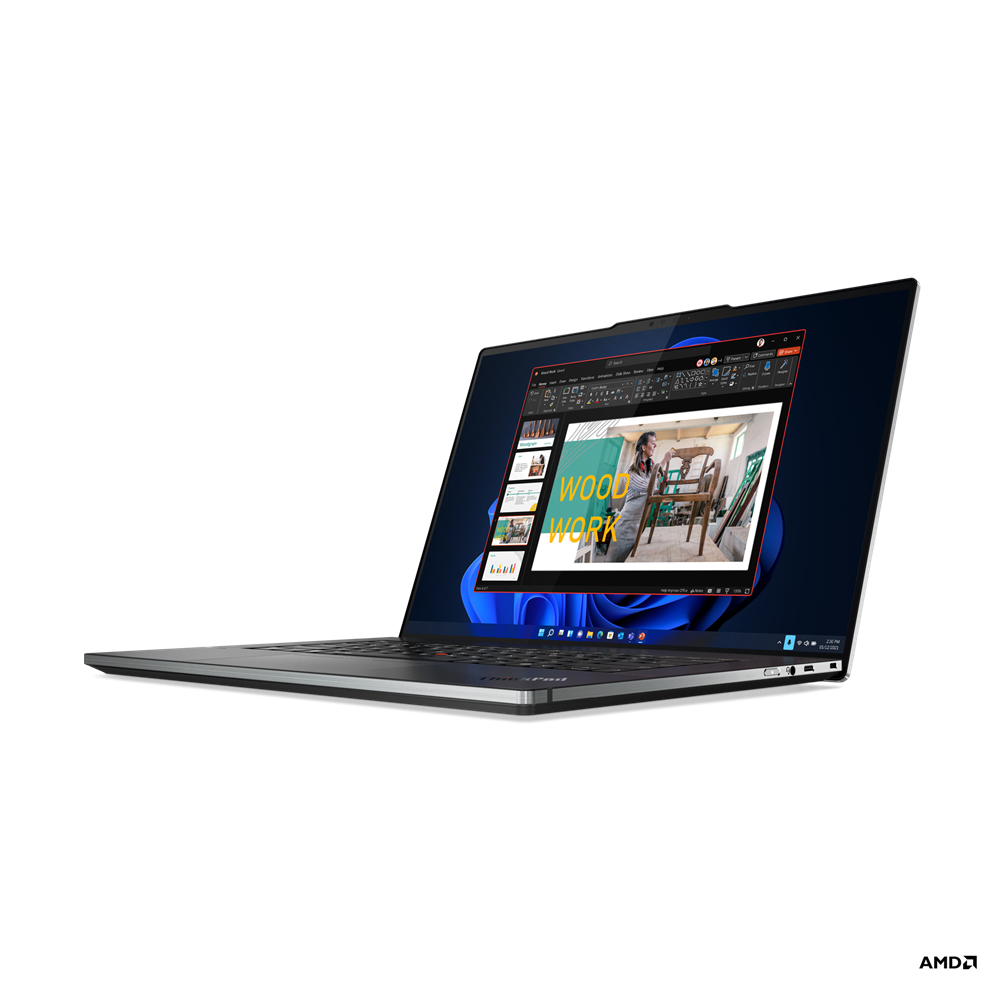

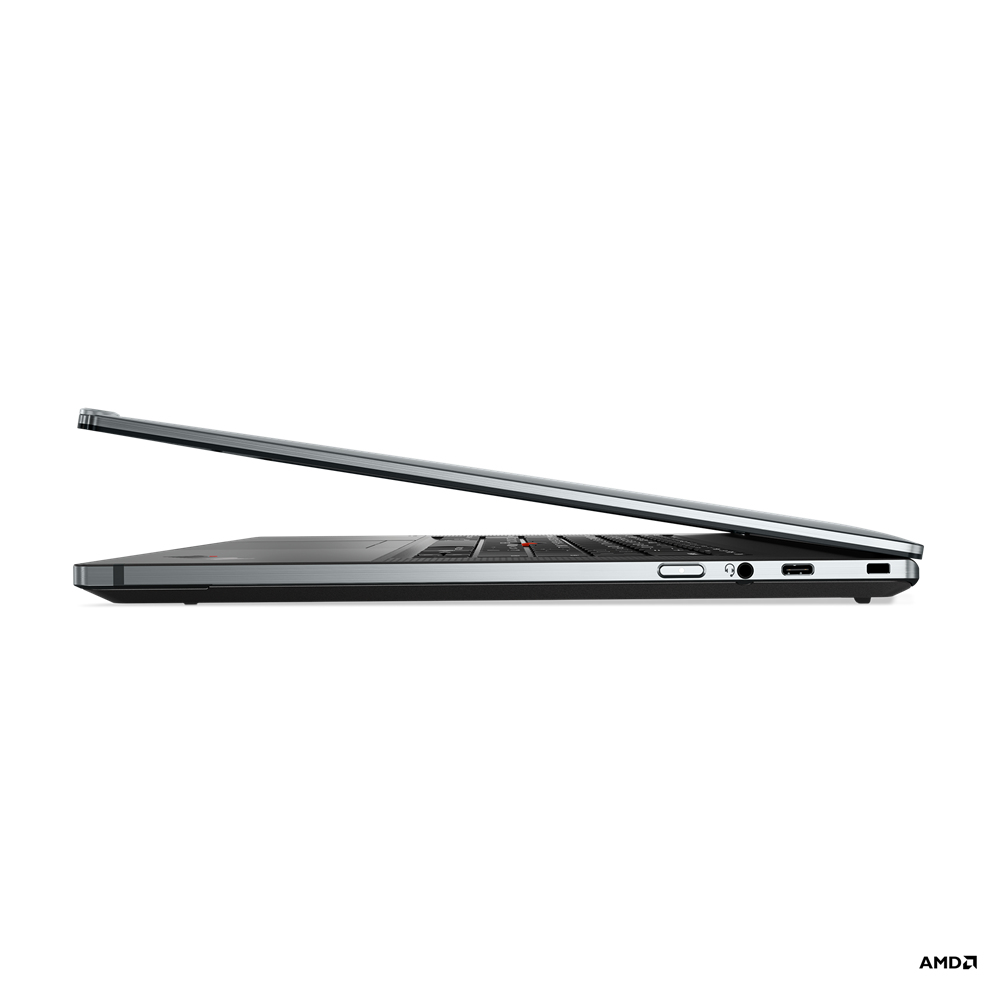

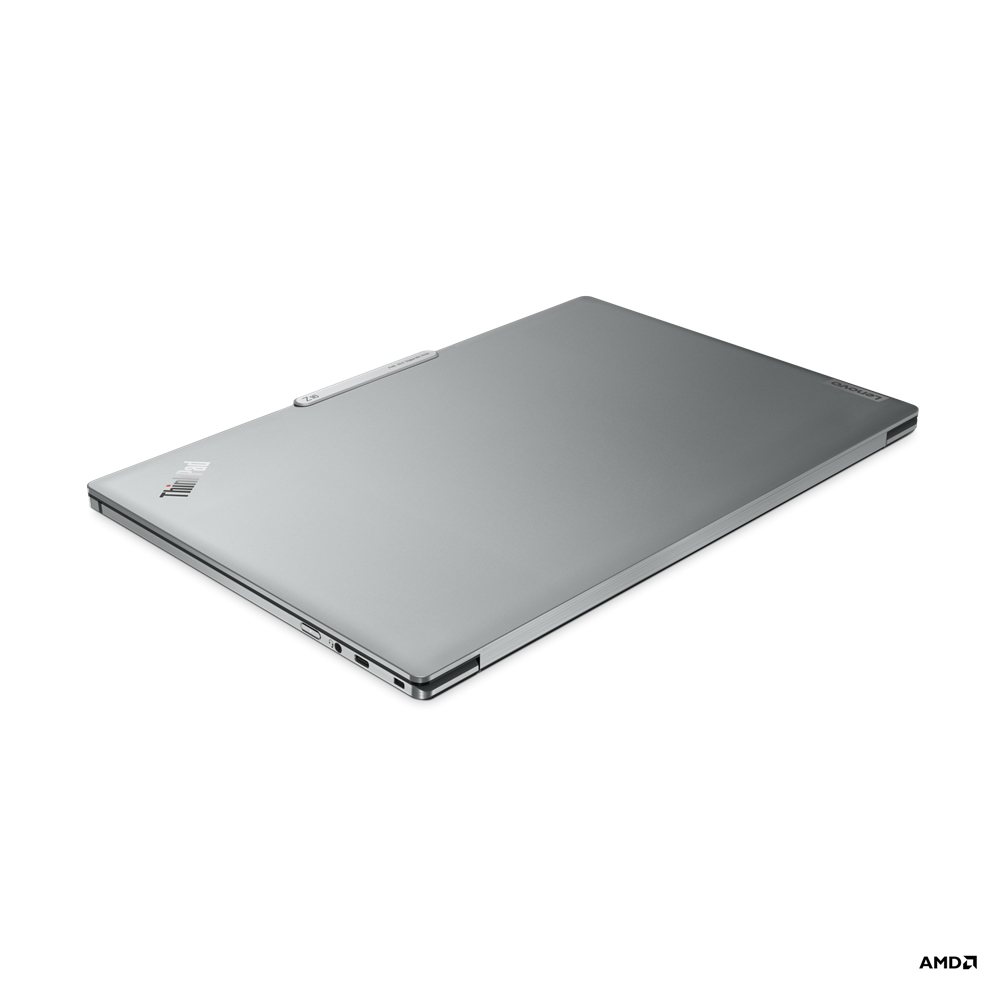

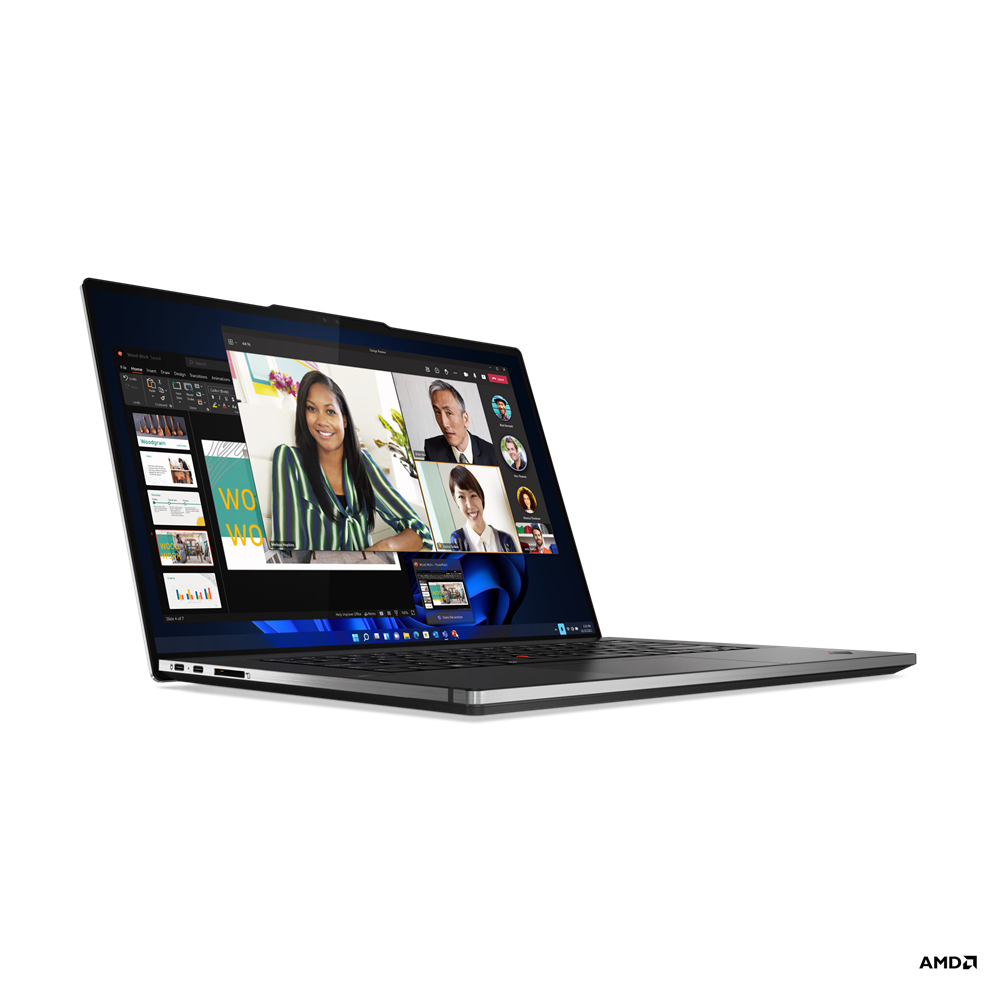

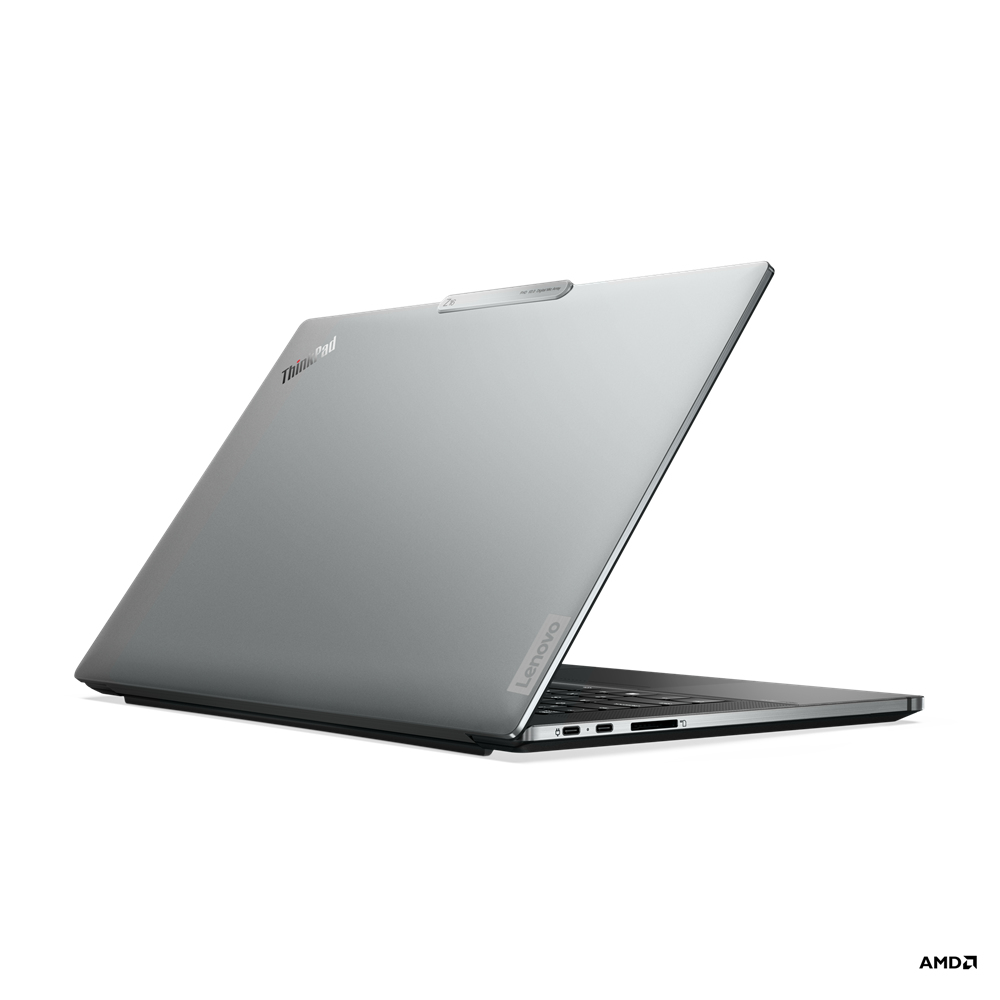

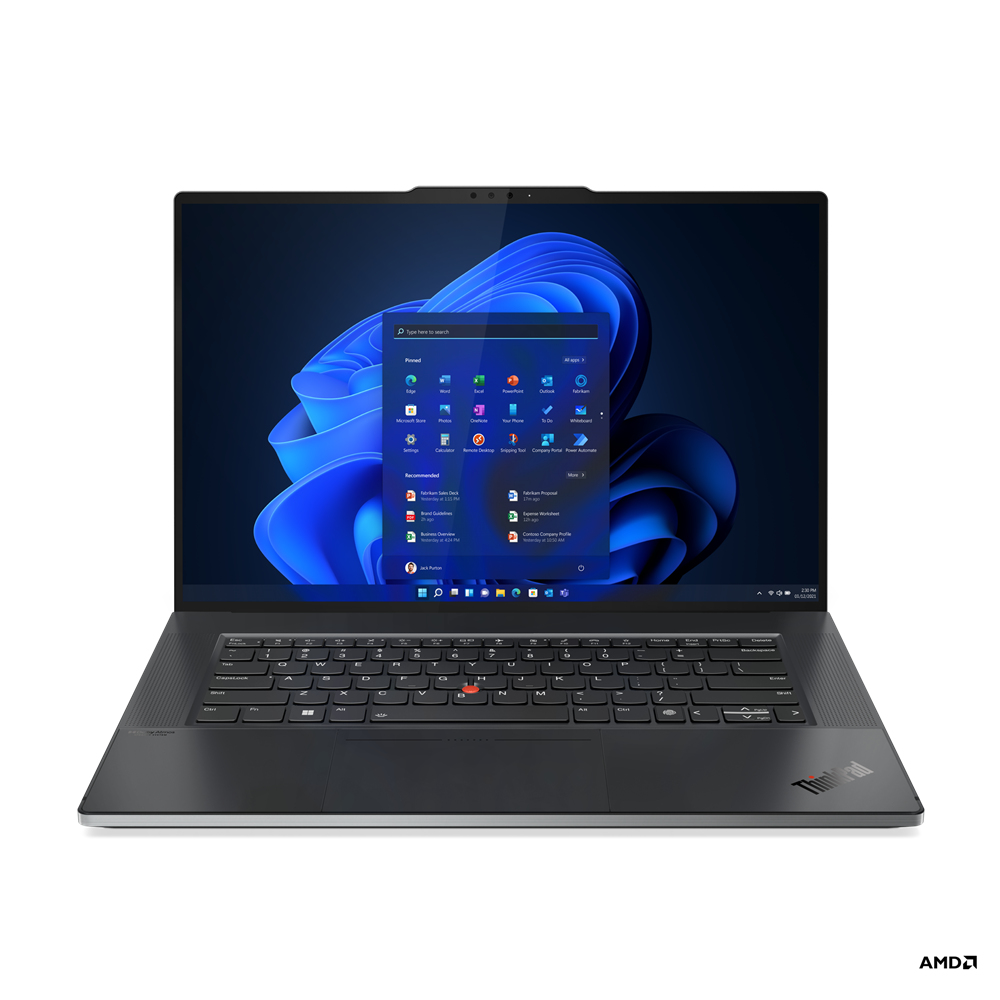

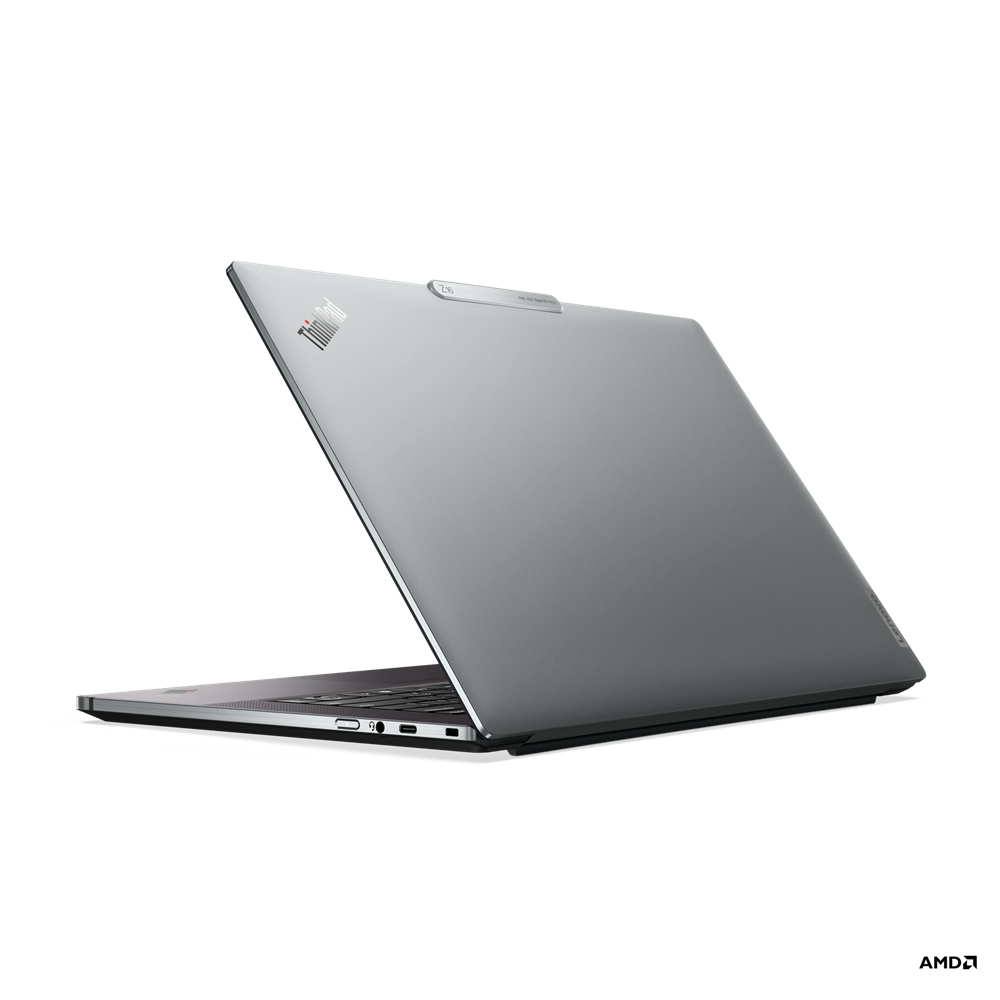

Lenovo ThinkPad Z16 AMD Ryzen™ 5 PRO 6650H Laptop

ThinkPad Z16 AMD Ryzen™ 5 PRO 6650H Laptop

40.6 cm (16") WUXGA 16 GB LPDDR5-SDRAM 512 GB SSD AMD Radeon RX 6500M Wi-Fi 6E (802.11ax) Windows 11 Pro Grey,

Model Z16Part no. 21D5S09A09EAN 196800302076

114 specifications Checked today

Display40.6 cm (16")
Resolution1920 x 1200 pixels
ProcessorAMD Ryzen™ 5 PRO
Memory16 GB
Storage512 GB
GraphicsAMD Radeon RX 6500M

See all specifications

Overview

Display: 40.6 cm (16")
Resolution: 1920 x 1200 pixels
Processor: AMD Ryzen™ 5 PRO
Memory: 16 GB
Storage: 512 GB
Graphics: AMD Radeon RX 6500M

Brand: Lenovo
Category: Laptop
Model: Z16
Part numbers: 21D5S09A09, 21D5S0BM01, 21D4000LUS, 21JX0025US, 21JX0026US, 21JX0027US +7 more
EAN / UPC: 196800302076, 197528201856, 197528188386, 197528189147 +2 more
Also known as: Lenovo ThinkPad Z16 AMD Ryzen™ 5 PRO 6650H Laptop 40.6 cm (16") WUXGA 16 GB LPDDR5-SDRAM 512 GB SSD AMD Radeon RX 6500M Wi-Fi 6E (802.11ax) Windows 11 Pro Grey,

Specifications

114 specifications in 19 groups

Design

Specification	Value
Product type	Laptop
Product colour	Grey, Black
Colour name	Arctic grey (top), black (bottom)
Form factor	Clamshell
Housing material	Aluminium

Display

Specification	Value
Display diagonal	40.6 cm (16")
Display resolution	1920 x 1200 pixels
Touchscreen	No
HD type	WUXGA
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:10
Anti-glare screen	Yes
Display brightness	400 cd/m²
Colour gamut	100%
RGB colour space	sRGB
Contrast ratio (typical)	1000:1

Processor

Specification	Value
Processor manufacturer	AMD
Processor family	AMD Ryzen™ 5 PRO
Processor generation	AMD Ryzen PRO 6000 Series
Processor model	6650H
Processor cores	6
Processor boost frequency	4.5 GHz
Processor frequency	3.3 GHz
Processor cache type	L2 & L3

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	LPDDR5-SDRAM
Memory clock speed	6400 MHz
Memory form factor	On-board
Maximum internal memory	16 GB
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	NVMe, PCI Express 4.0
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete GPU manufacturer	AMD
Discrete graphics card model	AMD Radeon RX 6500M
Discrete graphics card memory	4 GB
Discrete graphics memory type	GDDR6
On-board graphics card model	AMD Radeon 660M

Audio

Specification	Value
Audio chip	Realtek ALC3306
Audio system	Dolby Atmos
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera HD type	Full HD
Front camera resolution	1920 x 1080 pixels
Infrared (IR) camera	Yes
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
WLAN controller manufacturer	Qualcomm
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	5.1
Near Field Communication (NFC)	No

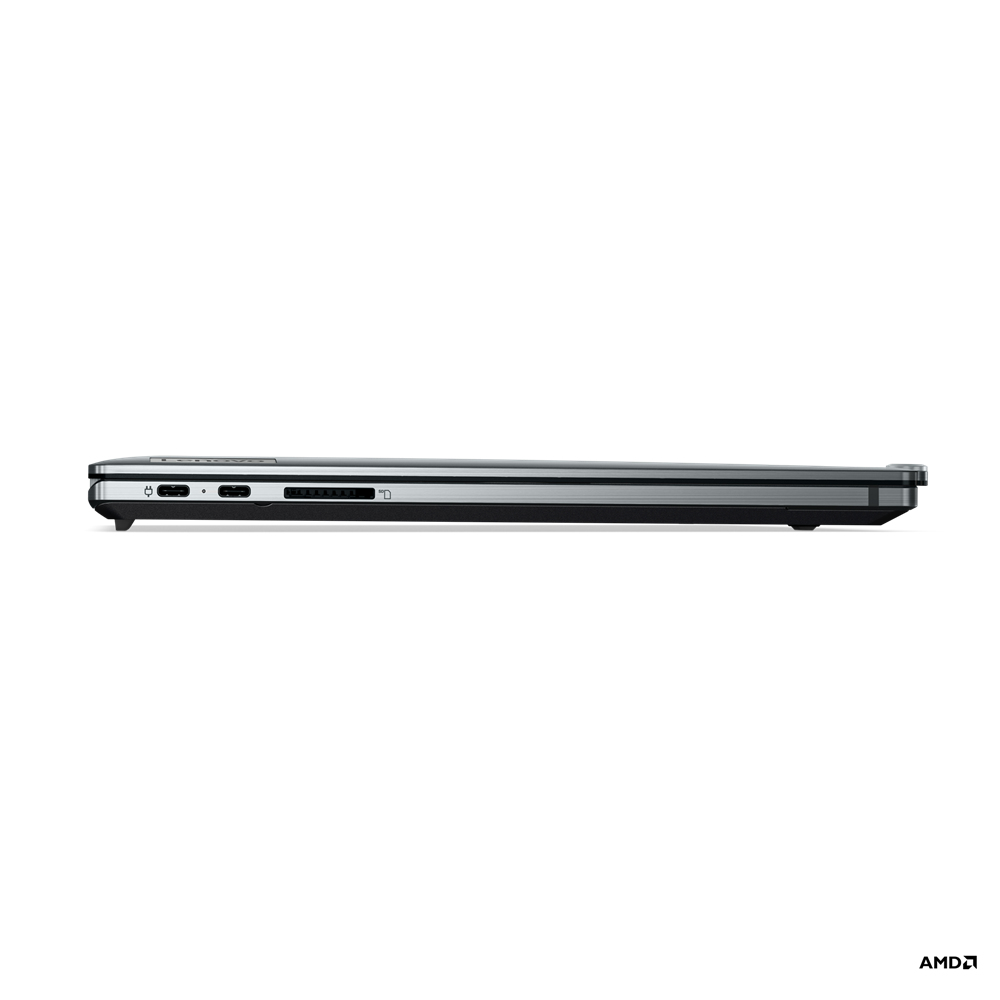

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB4 Gen 3x2 ports quantity	2
HDMI ports quantity	0
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes

Performance

Specification	Value
Motherboard chipset	AMD SoC

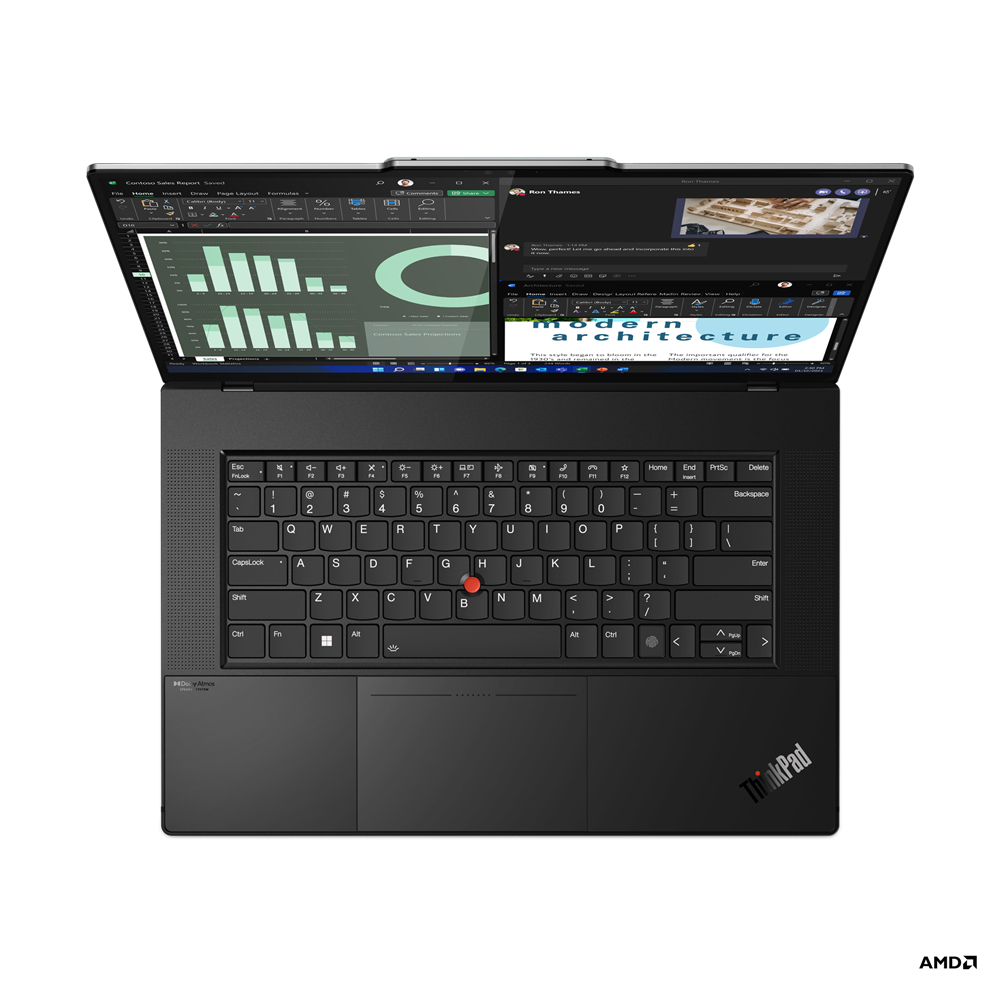

Keyboard

Specification	Value
Pointing device	ThinkPad UltraNav
Keyboard backlit	Yes
Numeric keypad	No
Spill-resistant keyboard	Yes
Keyboard layout	QWERTY
Keyboard language	English

Software

Specification	Value
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Operating system language	English

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Battery capacity	72 Wh
Fast charging	Yes

Power

Specification	Value
AC adapter power	135 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Smart card reader	No
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Password protection	Yes
Password protection type	BIOS, Power on, Supervisor, SSD

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95%
Storage relative humidity (H-H)	5 - 95%
Maximum shipping altitude	3048 m

Certificates

Specification	Value
Certification	EPEAT Gold ENERGY STAR 8.0 ErP Lot 3 TCO Certified 9.0 RoHS compliant MIL-STD-810H TÜV

Weight & dimensions

Specification	Value
Weight	1.81 kg
Width	354.4 mm
Depth	237.4 mm
Height	15.8 mm
