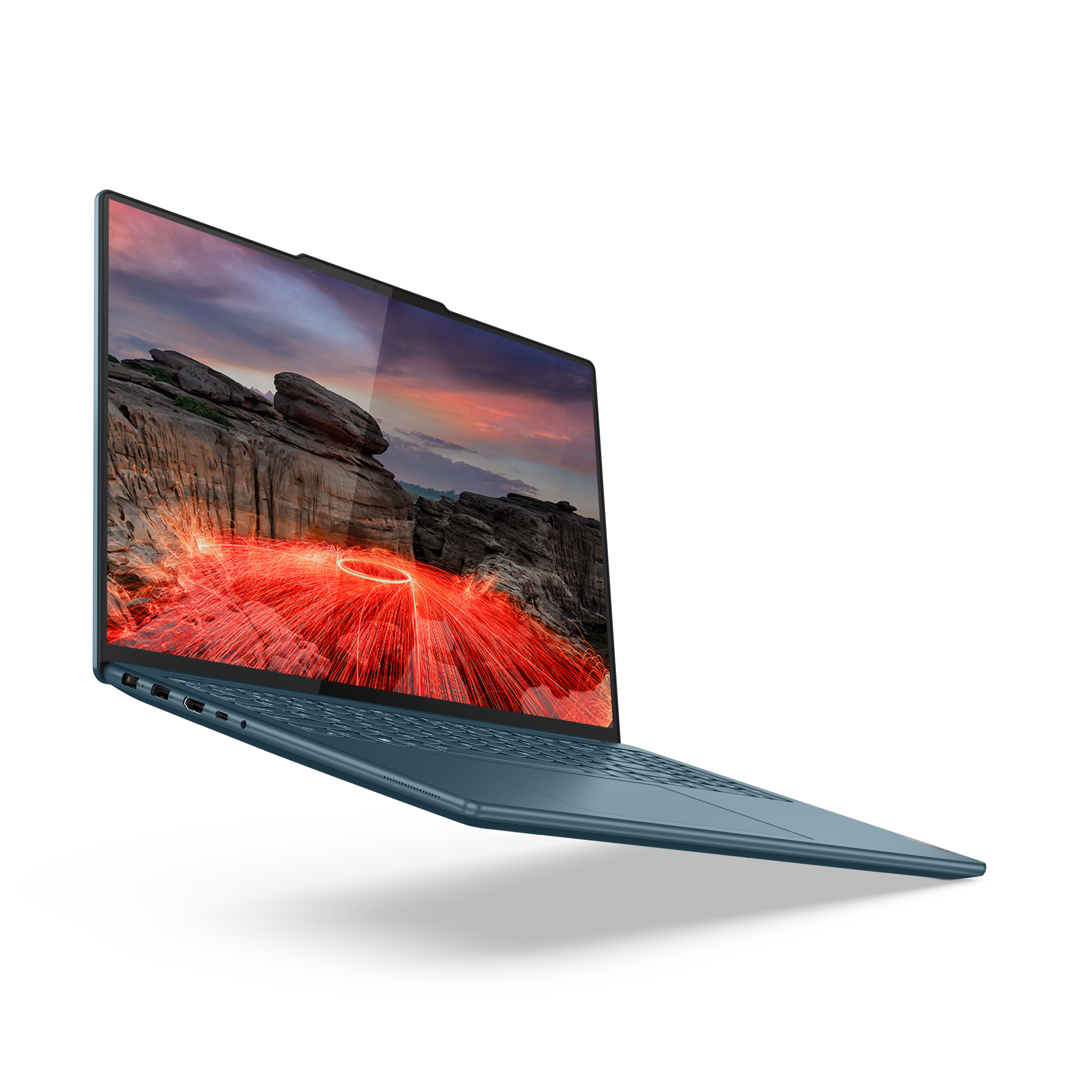

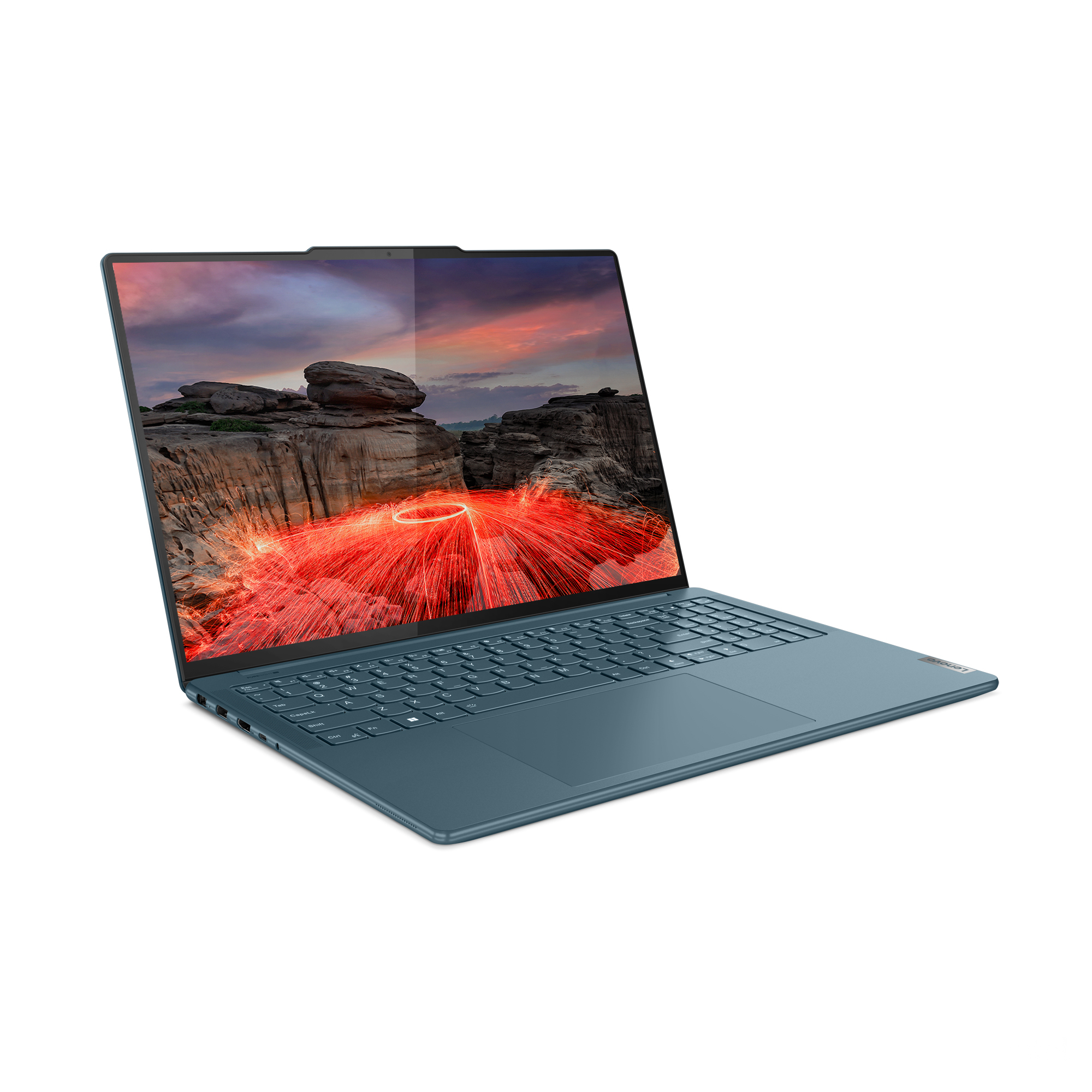

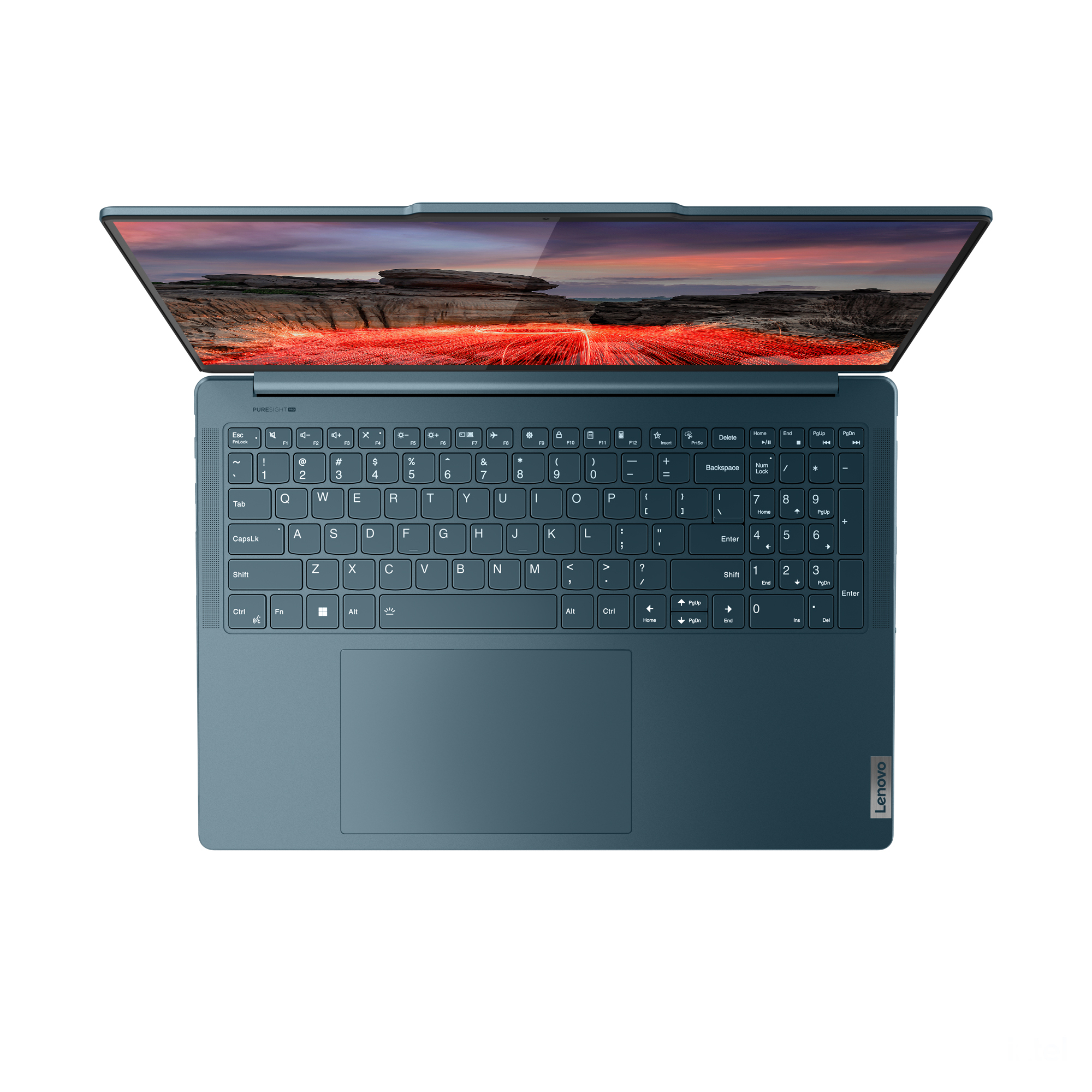

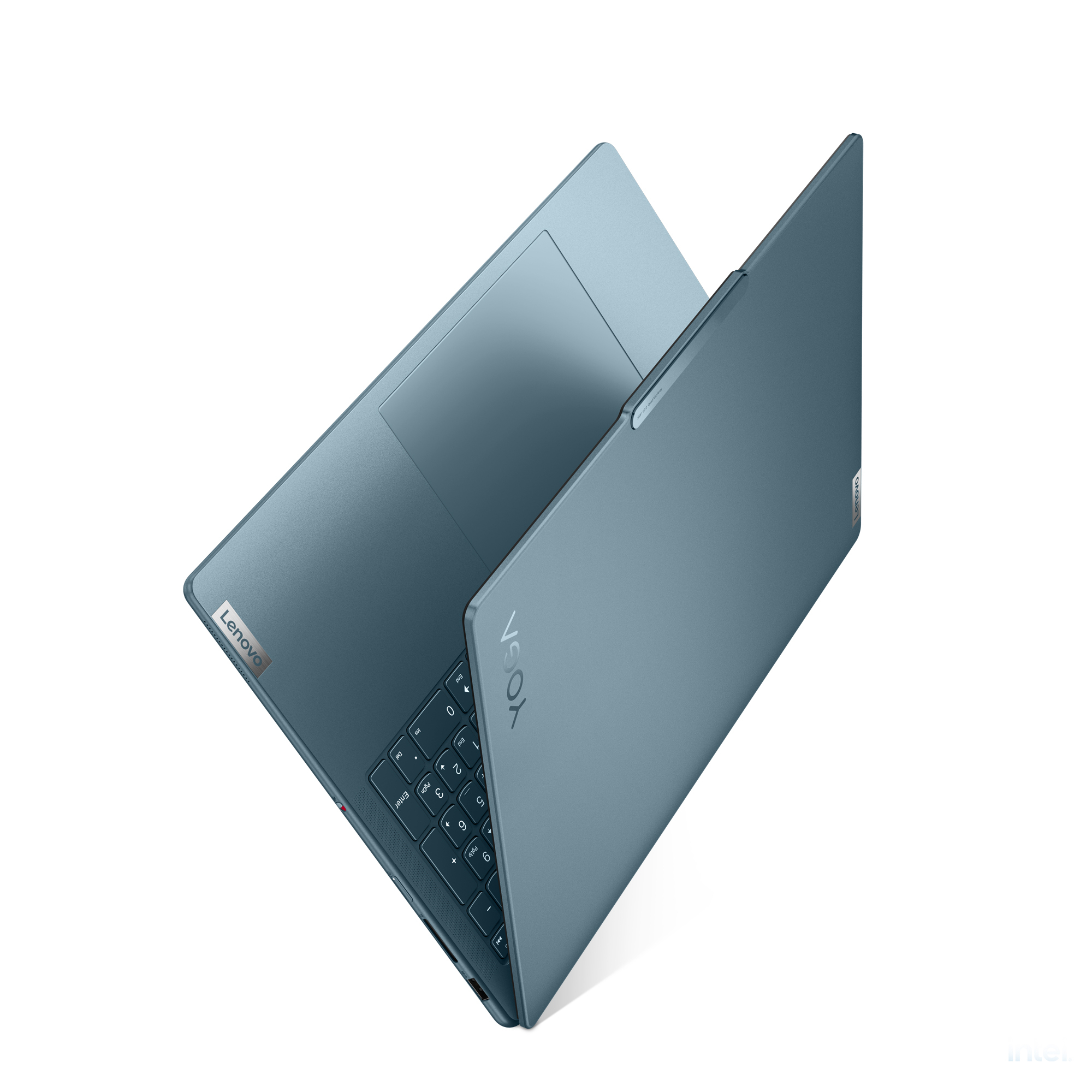

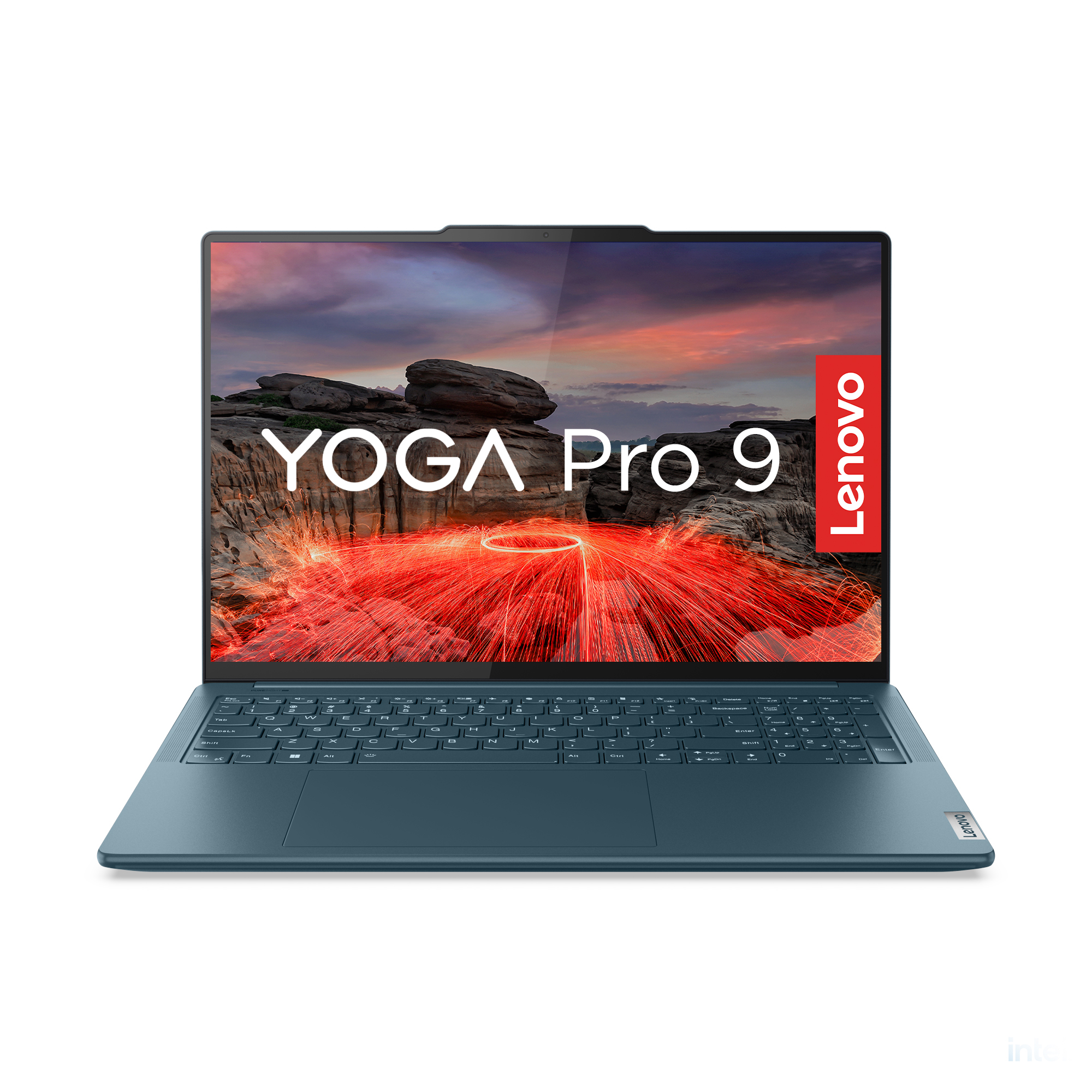

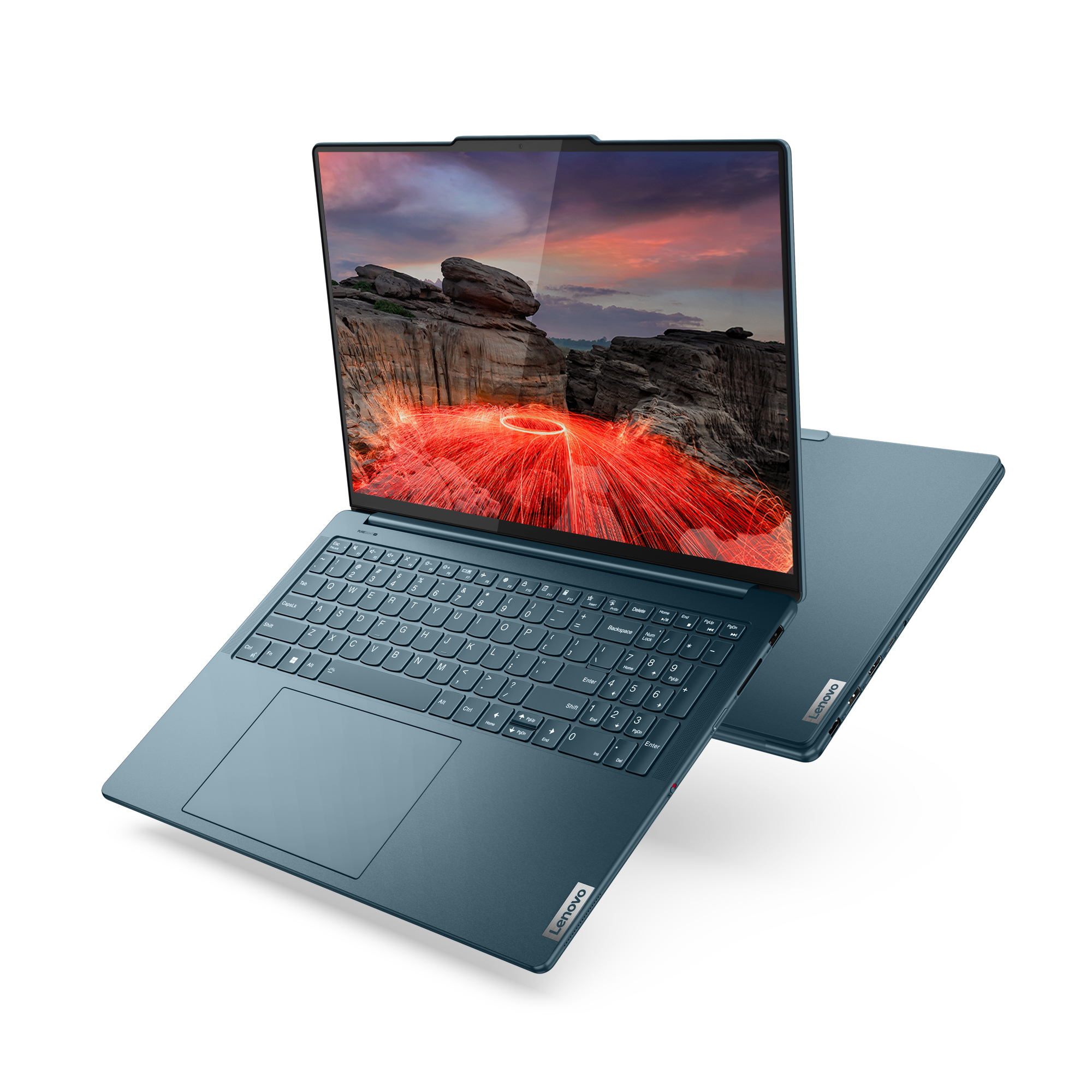

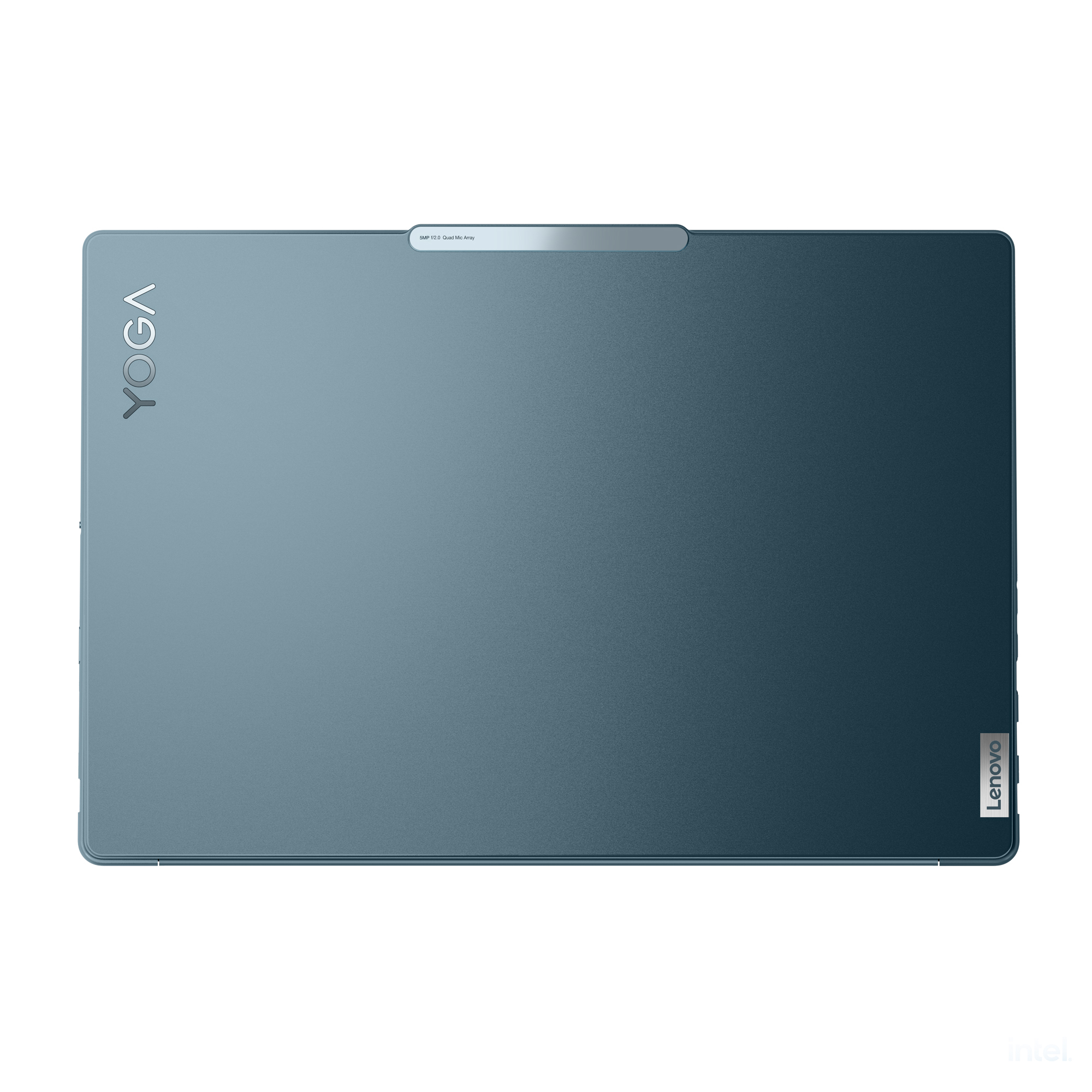

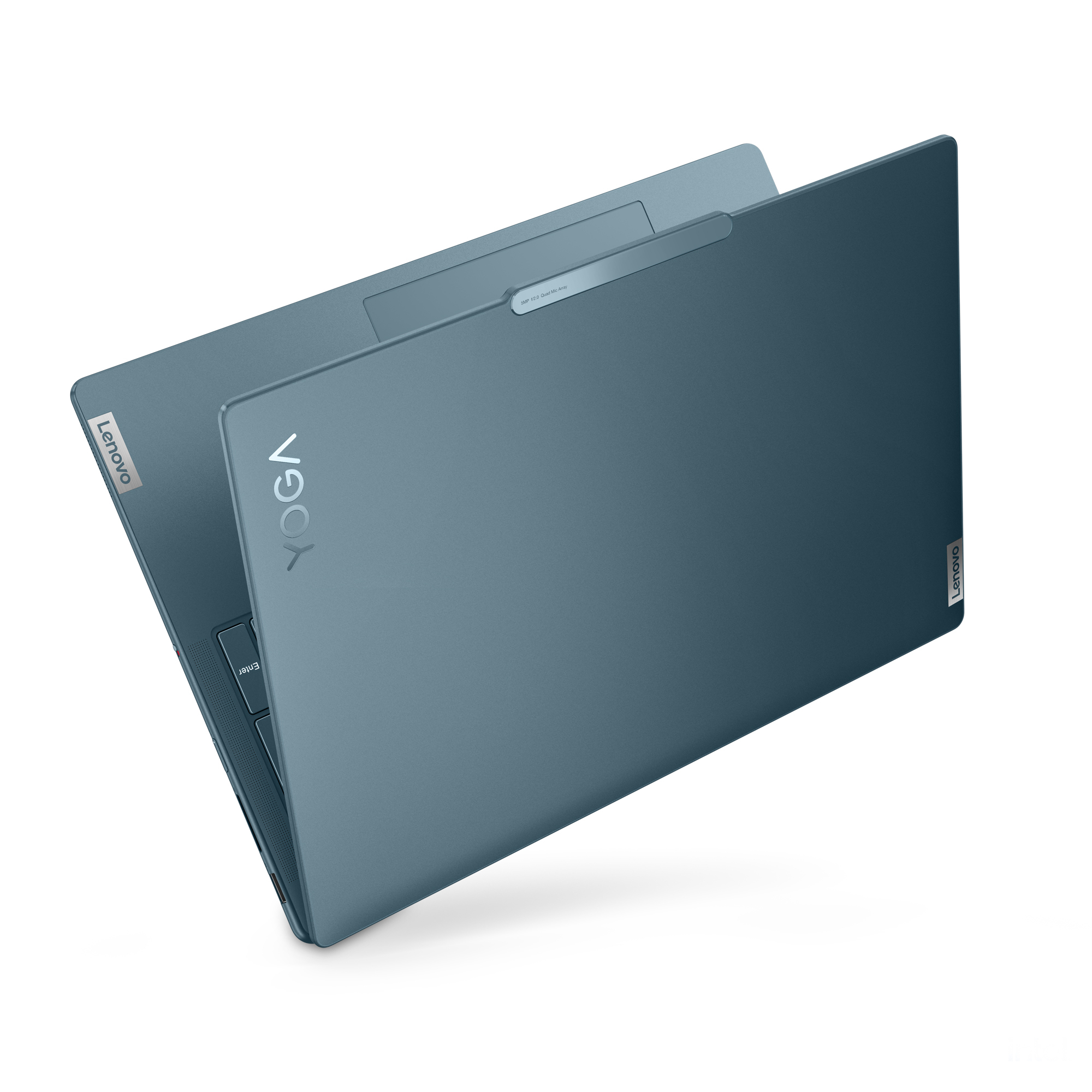

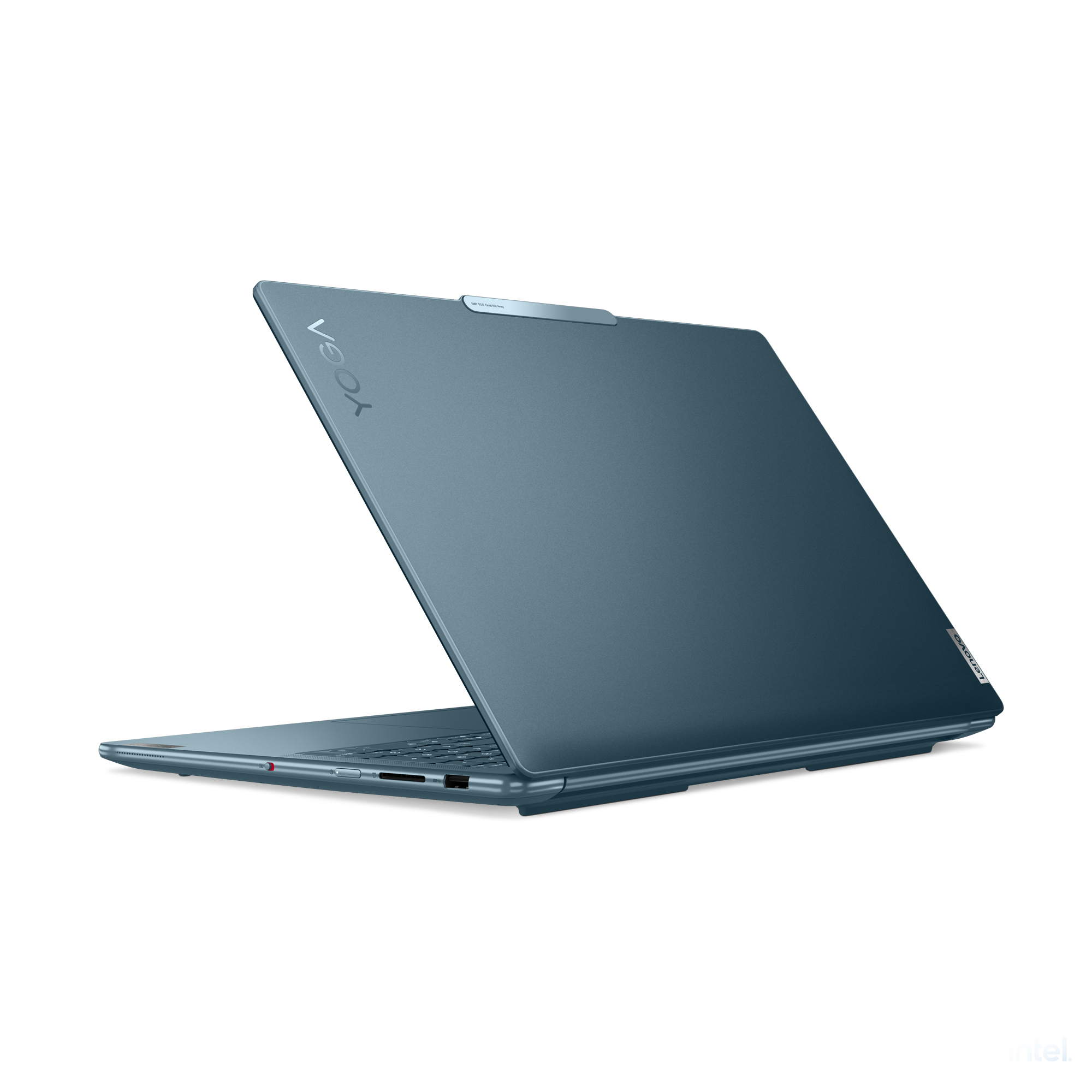

Lenovo Yoga Pro 9 16IRP8

Yoga Pro 9 16IRP8

Model Yoga Pro 9 16IRP8Part no. 83BY006XMBEAN 197529832394

132 specifications Checked today

Display40.6 cm (16")
Resolution3200 x 2000 pixels
ProcessorIntel® Core™ i7
Memory16 GB
Storage1 TB
GraphicsNVIDIA GeForce RTX 4060

See all specifications

Overview

Display: 40.6 cm (16")
Resolution: 3200 x 2000 pixels
Processor: Intel® Core™ i7
Memory: 16 GB
Storage: 1 TB
Graphics: NVIDIA GeForce RTX 4060

Brand: Lenovo
Category: Laptop
Model: Yoga Pro 9 16IRP8
Part numbers: 83BY006XMB, 83BY001CIX, 83BY000PGE, 83BY000QGE, 83BY000RGE, 83BY006YMB +34 more
EAN / UPC: 197529832394, 196804783895, 196804483894, 196804483900 +56 more
Also known as: Lenovo Yoga Pro 9 16IRP8 Intel® Core™ i7 i7-13705H Laptop 40.6 cm (16") 3.2K 16 GB LPDDR5x-SDRAM 1 TB SSD NVIDIA GeForce RTX 4060 Wi-Fi 6E (802.11ax) Windows 11

Specifications

132 specifications in 23 groups

Design

Specification	Value
Product type	Laptop
Product colour	Teal
Colour name	Tidal Teal
Form factor	Clamshell
Housing material	Aluminium
Market positioning	High performance
Introduction year	2023
Introduction month	May

Display

Specification	Value
Display diagonal	40.6 cm (16")
Display resolution	3200 x 2000 pixels
Touchscreen	No
HD type	3.2K
Panel type	Mini LED
LED backlight	Yes
Display surface	Gloss
Display brightness	1200 cd/m²
Colour gamut	100%
RGB colour space	sRGB
Maximum refresh rate	165 Hz
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	DisplayHDR 1000, Dolby Vision

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	13th gen Intel® Core™ i7
Processor model	i7-13705H
Processor cores	14
Processor boost frequency	5 GHz
Performance cores	6
Efficient cores	8
Performance-core Max Turbo Frequency	5 GHz
Efficient-core Max Turbo Frequency	3.7 GHz
Processor cache	24 MB
Processor cache type	Smart Cache
Configurable TDP-down	35 W
Maximum turbo power	115 W
Processor base power	45 W

Neural processor unit (NPU)

Specification	Value
Neural processor unit (NPU)	No

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	LPDDR5x-SDRAM
Memory clock speed	6400 MHz
Memory form factor	On-board
Maximum internal memory	16 GB
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	SSD
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
NVMe	Yes
SSD interface	PCI Express 4.0
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MMC, SD, SDHC, SDXC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete GPU manufacturer	NVIDIA
Discrete graphics card model	NVIDIA GeForce RTX 4060
Discrete graphics card memory	8 GB
Discrete graphics memory type	GDDR6
On-board GPU manufacturer	Intel
On-board graphics card family	Intel Iris Xe Graphics
On-board graphics card model	Intel Iris Xe Graphics
On-board graphics card 4K support	Yes
Graphics card Open GL support	Yes

Audio

Specification	Value
Audio chip	Realtek ALC3306
Audio system	Dolby Atmos
Number of built-in speakers	6
Speaker power	2 W
Built-in microphone	Yes
Number of microphones	4

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	5 MP
Infrared (IR) camera	Yes
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	5.1

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
HDMI ports quantity	1
Thunderbolt 4 ports quantity	1
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes
USB Sleep-and-Charge	Yes
USB Sleep-and-Charge ports	1

Performance

Specification	Value
Motherboard chipset	Intel SoC

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Island-style keyboard	Yes
Keyboard language	Italian

Software

Specification	Value
Operating system installed	Windows 11 Home
Operating system architecture	64-bit
Operating system language	English, Italian
Trial software	Office Trial

Processor special features

Specification	Value
Intel® Evo™ Platform Verified	Yes
CPU configuration (max)	1

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Battery capacity	75 Wh
Battery life (max)	6.4 h
Continuous video playback time (max)	9.5 h

Power

Specification	Value
AC adapter power	170 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
DC-in jack	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Windows Hello	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Password protection	Yes
Password protection type	BIOS, SSD, Supervisor, User

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 2438 m

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	Eyesafe® Certified 2.0, TÜV Rheinland® Low Blue Light, MIL-STD-810H

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR, EPEAT Gold, ErP

Weight & dimensions

Specification	Value
Weight	2.23 kg
Width	362.4 mm
Depth	244.8 mm
Height	18.2 mm

Other features

Specification	Value
Warranty period	2 year(s)
