Lenovo Yoga 7 2-in-1 16AHP9

Yoga 7 2-in-1 16AHP9

Model Yoga 7 2-in-1 16AHP9Part no. 83DM0004USEAN 197531583918

128 specifications Checked today

Display40.6 cm (16")
Resolution1920 x 1200 pixels
ProcessorAMD Ryzen™ 7
Memory16 GB
Storage512 GB
GraphicsNot available

See all specifications

Overview

Display: 40.6 cm (16")
Resolution: 1920 x 1200 pixels
Processor: AMD Ryzen™ 7
Memory: 16 GB
Storage: 512 GB
Graphics: Not available

Brand: Lenovo
Category: Laptop
Model: Yoga 7 2-in-1 16AHP9
Part numbers: 83DM0004US, 83DM0006US, 83DM0005US, 83DM0003US
EAN / UPC: 197531583918, 198155959332, 197531583925, 197531583895
Also known as: Lenovo Yoga 7 2-in-1 16AHP9 AMD Ryzen™ 7 8840HS Hybrid (2-in-1) 40.6 cm (16") Touchscreen WUXGA 16 GB LPDDR5x-SDRAM 512 GB SSD Wi-Fi 6E (802.11ax) Windows 11 Ho

Specifications

128 specifications in 22 groups

Design

Specification	Value
Product type	Hybrid (2-in-1)
Product colour	Grey
Colour name	Arctic Grey
Form factor	Convertible (Folder)
Housing material	Aluminium

Display

Specification	Value
Display diagonal	40.6 cm (16")
Display resolution	1920 x 1200 pixels
Touchscreen	Yes
HD type	WUXGA
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:10
Display surface	Gloss
Display brightness	300 cd/m²
Colour gamut	45%
RGB colour space	NTSC
Maximum refresh rate	60 Hz
Contrast ratio (typical)	800:1
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	Dolby Vision

Processor

Specification	Value
Processor manufacturer	AMD
Processor family	AMD Ryzen™ 7
Processor generation	AMD Ryzen 8000 Series
Processor model	8840HS
Processor cores	8
Processor threads	16
Processor boost frequency	5.1 GHz
Processor frequency	3.3 GHz
Processor cache type	L2 & L3
L3 cache	16 MB
L2 cache	8 MB

Neural processor unit (NPU)

Specification	Value
Neural processor unit (NPU)	AMD Ryzen AI
Total processor performance up to	39 TOPs
NPU performance up to	16 TOPs

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	LPDDR5x-SDRAM
Memory clock speed	6400 MHz
Memory form factor	On-board
Maximum internal memory	16 GB
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	PCI Express 4.0
M.2 SSD size	2242 (22 x 42 mm)
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	AMD
On-board graphics card family	AMD Radeon
On-board graphics card model	AMD Radeon 780M

Audio

Specification	Value
Audio chip	Realtek ALC3306
Audio system	Dolby Atmos
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera HD type	Full HD
Front camera resolution	1920 x 1080 pixels
Infrared (IR) camera	Yes
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	5.3
WWAN	Not installed

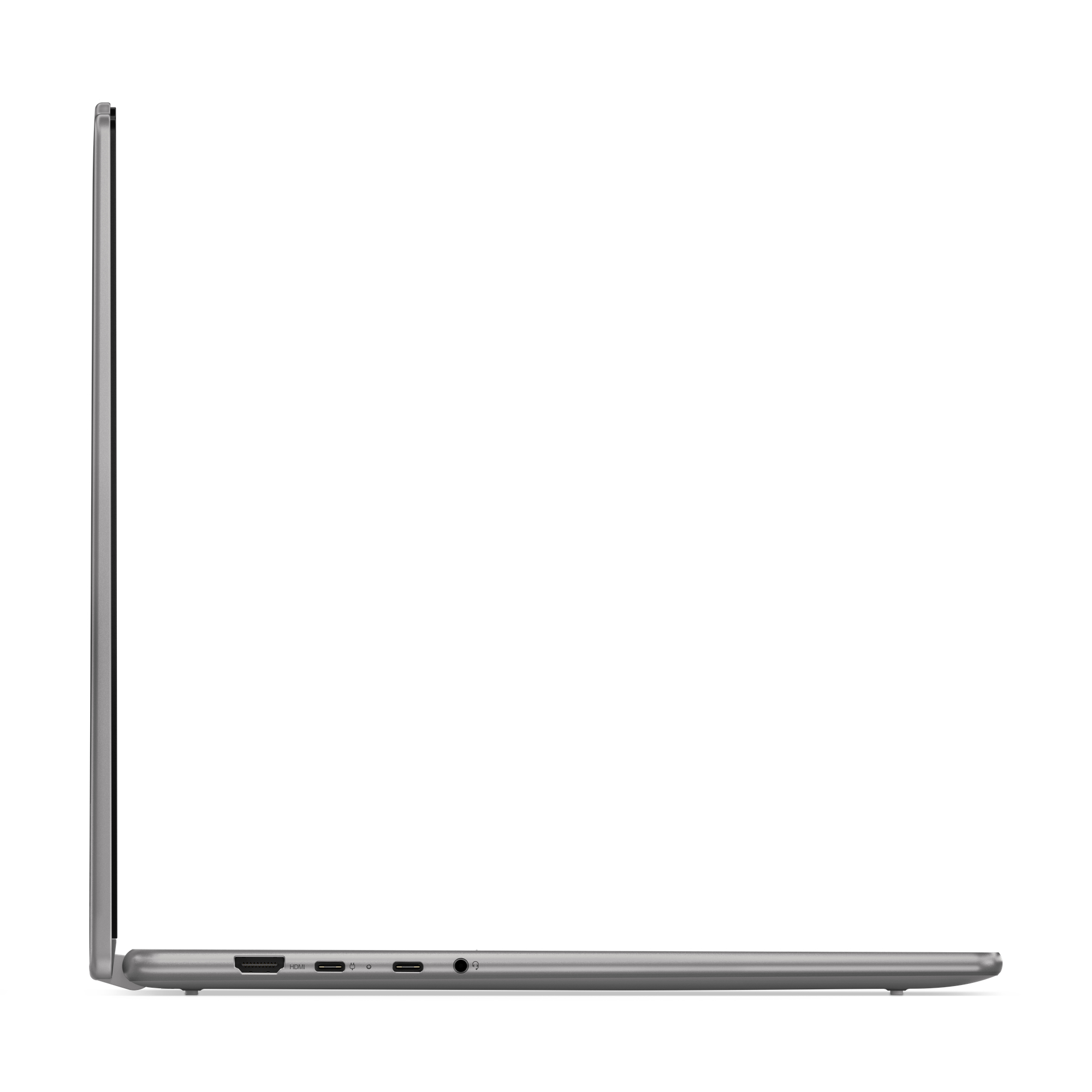

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
HDMI ports quantity	1
HDMI version	2.1
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes
USB Sleep-and-Charge	Yes
USB Sleep-and-Charge ports	1

Performance

Specification	Value
Motherboard chipset	AMD SoC
Accelerometer	Yes
Hall sensor	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Keyboard language	US English
Copilot key	Yes

Software

Specification	Value
Operating system installed	Windows 11 Home
Operating system language	English
Trial software	Office Trial

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Battery capacity	71 Wh
Battery life (max)	12 h
Continuous video playback time (max)	19.5 h
Fast charging	Yes

Power

Specification	Value
AC adapter power	65 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
USB Type-C charging port	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Fingerprint reader	Yes
Windows Hello	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Password protection	Yes
Password protection type	BIOS, Power on, Supervisor

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95%
Storage relative humidity (H-H)	5 - 95%
Maximum shipping altitude	3048 m

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	ErP Lot 6 ErP Lot 26 MIL-STD-810H TÜV Rheinland® Low Blue Light (Software Solution)

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR, EPEAT Gold

Weight & dimensions

Specification	Value
Weight	1.99 kg
Width	361.8 mm
Depth	249.9 mm
Height	17 mm

Packaging content

Specification	Value
AC adapter included	Yes
