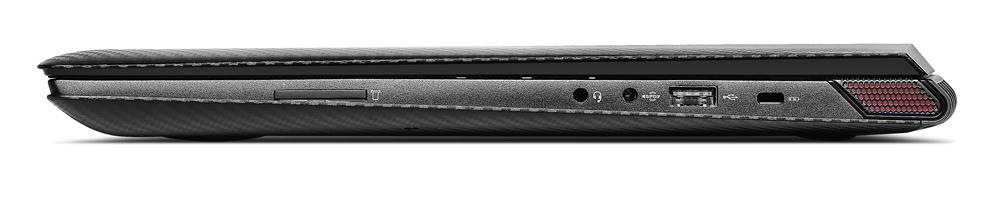

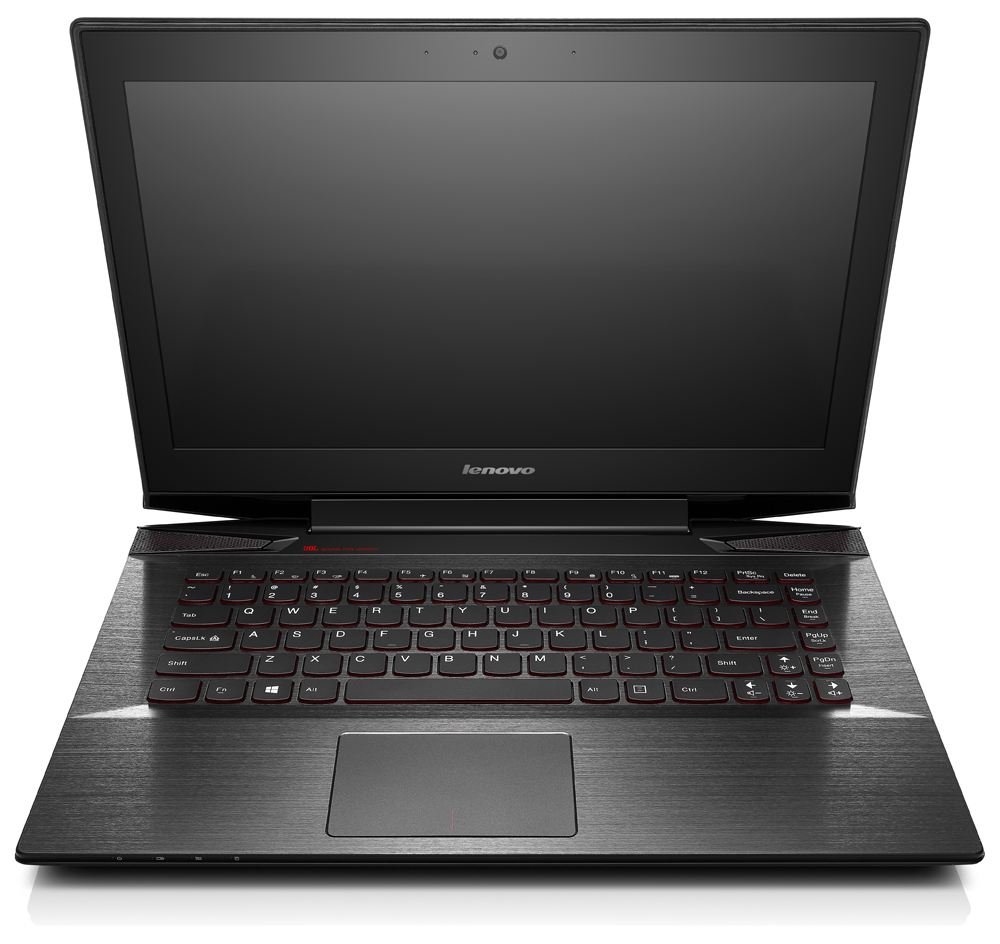

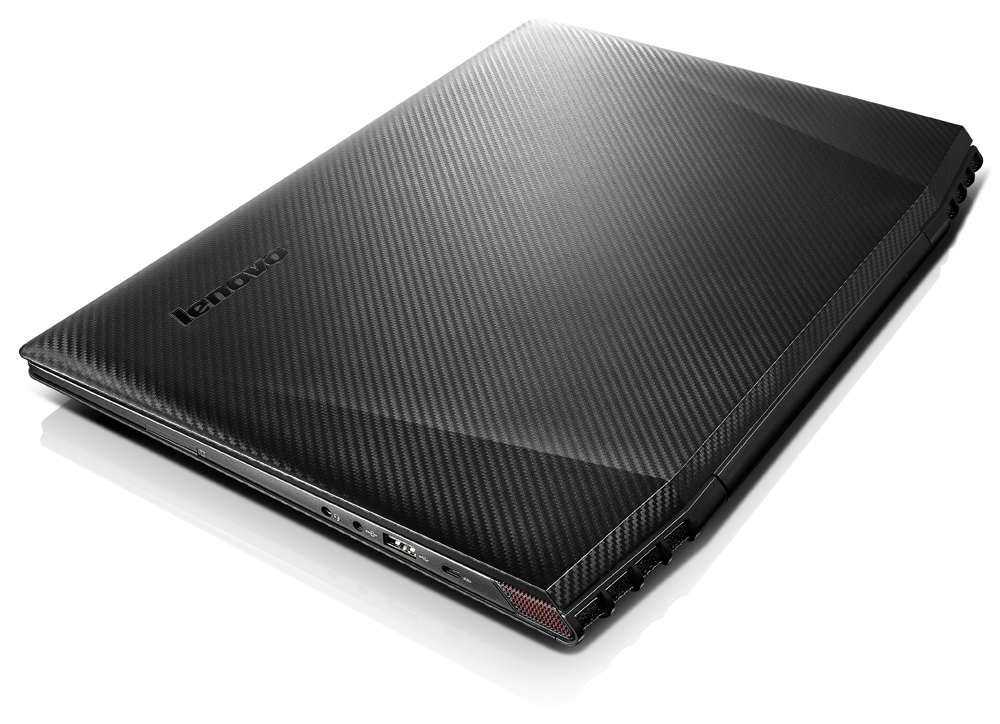

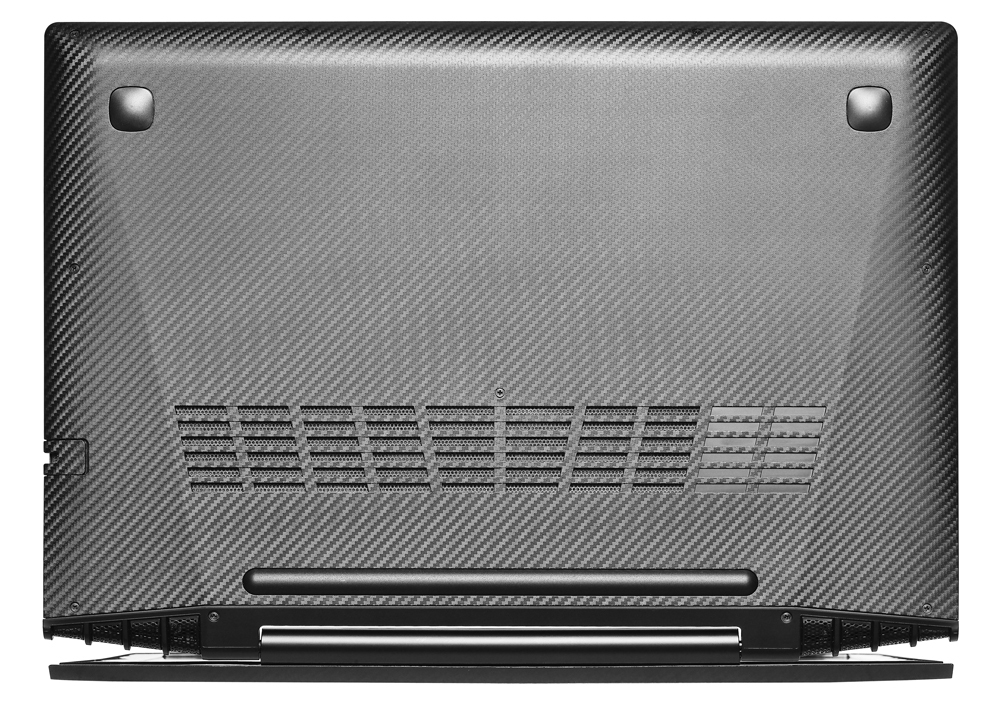

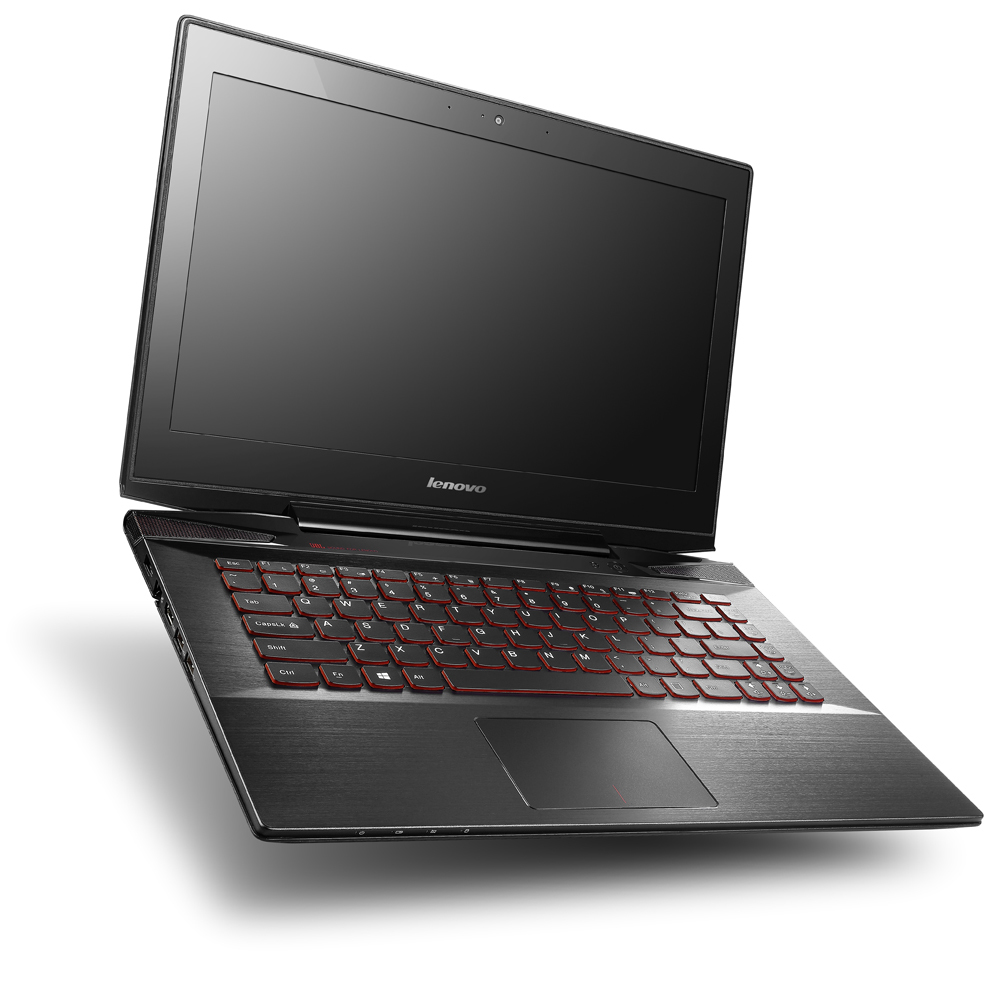

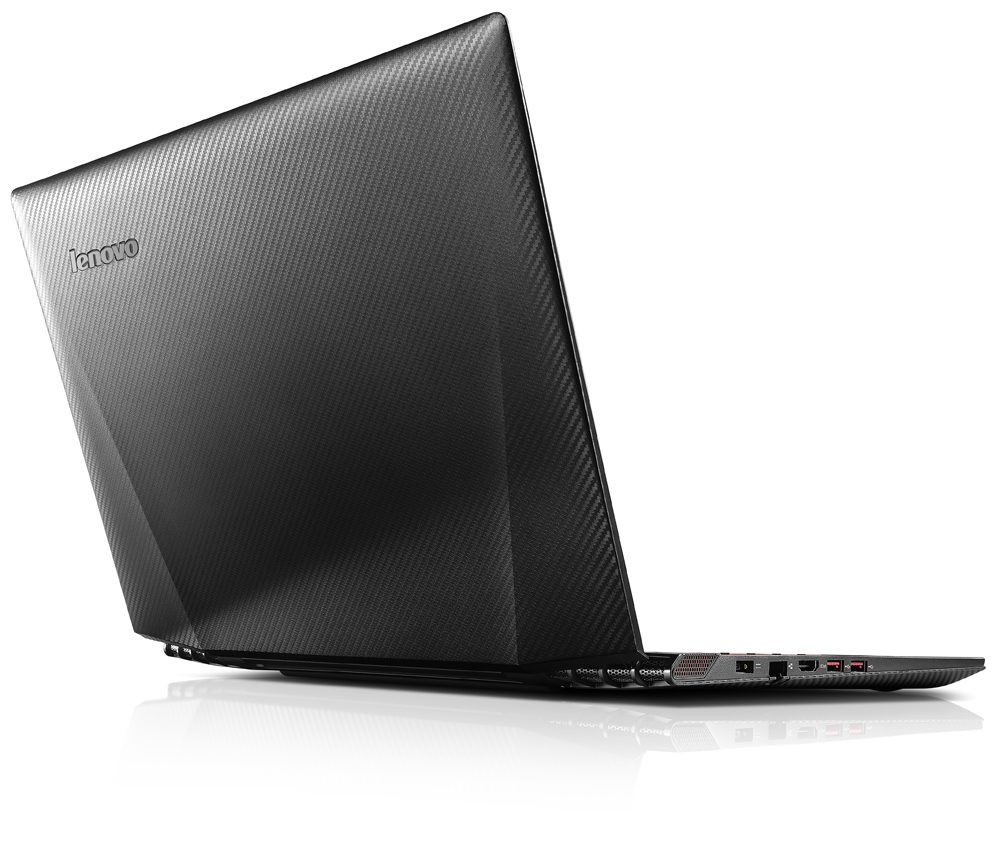

Lenovo Y40 Intel® Core™ i7 i7-5500U Laptop

35.6 cm (14") Touchscreen Full HD 8 GB DDR3L-SDRAM 512 GB SSD AMD Radeon R9 M275 Windows 8.1 Black

Model Y40Part no. 80FA0017USEAN 889233272251

175 specifications Checked 2 days ago

Display35.6 cm (14")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i7
Memory8 GB
Storage512 GB
GraphicsAMD Radeon R9 M275

See all specifications

Overview

Display: 35.6 cm (14")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i7
Memory: 8 GB
Storage: 512 GB
Graphics: AMD Radeon R9 M275

Brand: Lenovo
Category: Laptop
Model: Y40
Part numbers: 80FA0017US, 80FA001EUS, 80FA002BUS, 59416784, 59423032, 59423035 +2 more
EAN / UPC: 889233272251, 889561110874, 889233272220
Also known as: Lenovo Y40 Intel® Core™ i7 i7-5500U Laptop 35.6 cm (14") Touchscreen Full HD 8 GB DDR3L-SDRAM 512 GB SSD AMD Radeon R9 M275 Windows 8.1 Black

Specifications

175 specifications in 22 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Form factor	Clamshell

Display

Specification	Value
Display diagonal	35.6 cm (14")
Display resolution	1920 x 1080 pixels
Touchscreen	Yes
Touchscreen type	Capacitive
HD type	Full HD
Touch technology	Multi-touch
LED backlight	Yes
Native aspect ratio	16:9
Display brightness	220 cd/m²
Contrast ratio (typical)	400:1

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	5th gen Intel® Core™ i7
Processor model	i7-5500U
Processor cores	2
Processor threads	4
Processor boost frequency	3 GHz
Processor frequency	2.4 GHz
System bus rate	5 GT/s
Processor cache	4 MB
Processor cache type	L3
Processor socket	BGA 1168
Processor lithography	14 nm
Processor operating modes	32-bit, 64-bit
Processor series	Intel Core i7-5500 Mobile Series
Processor codename	Broadwell
Bus type	DMI2
FSB Parity	No
Stepping	F0
Thermal Design Power (TDP)	15 W
Configurable TDP-down	7.5 W
Configurable TDP-down frequency	0.6 GHz
Tjunction	105 °C
Maximum number of PCI Express lanes	12
PCI Express configurations	4x1, 2x4
PCI Express slots version	2.0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR3L-SDRAM
Memory clock speed	1600 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	1 x 8 GB
Memory slots	2x SO-DIMM
Maximum internal memory	16 GB
Maximum internal memory (64-bit)	16 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	SATA III
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MMC, SD, SDHC, SDXC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	AMD Radeon R9 M275
Discrete graphics card memory	4 GB
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 5500
Maximum on-board graphics card memory	16 GB
On-board graphics card base frequency	300 MHz
On-board graphics card dynamic frequency (max)	950 MHz
On-board graphics card DirectX version	11.2
On-board graphics card ID	0x1616
Number of discrete graphics cards installed	1
Graphics card Open GL support	Yes

Audio

Specification	Value
Audio system	Dolby Home Theater v2
Number of built-in speakers	2
Speakers manufacturer	JBL
Speaker power	2 W
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	1 MP

Optical drive

Specification	Value
LightScribe	No

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wi-Fi data rate (max)	433 Mbit/s
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	4.0

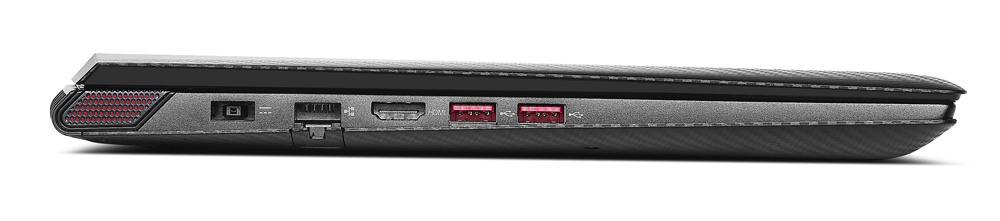

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	0
Thunderbolt ports quantity	0
S/PDIF out port	Yes
Combo headphone/mic port	Yes
Docking connector	No
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
USB Sleep-and-Charge	Yes
USB Sleep-and-Charge ports	1

Performance

Specification	Value
Motherboard chipset	Intel SoC

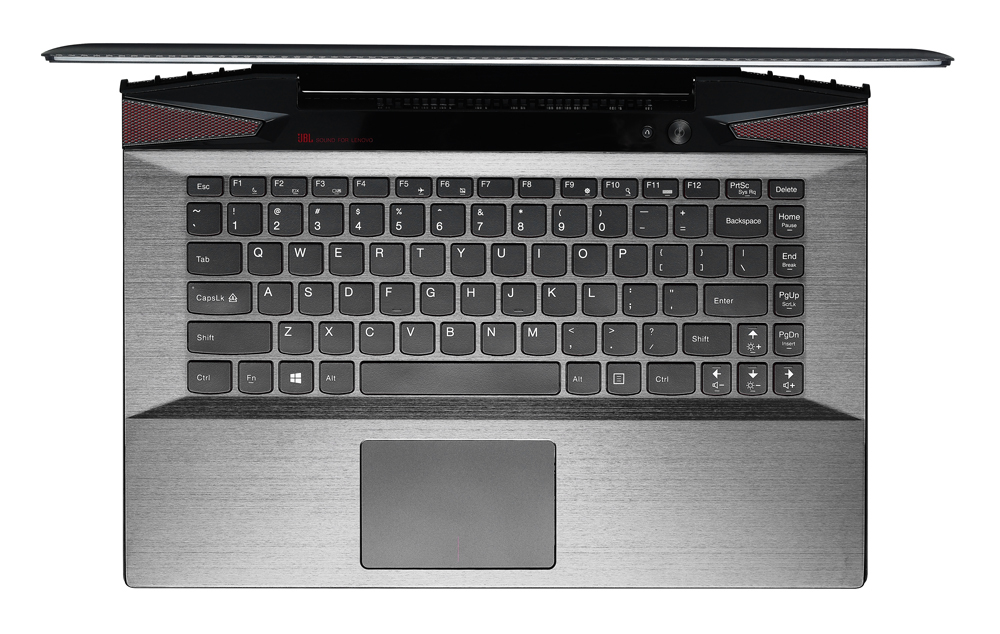

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	No
Island-style keyboard	Yes
Windows keys	Yes

Software

Specification	Value
Operating system installed	Windows 8.1
Operating system architecture	64-bit

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	14 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Smart Response Technology version	1.00
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	No
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	Yes
Intel® Smart Cache	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	2.0
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
Processor ARK ID	85214
Processor code	SR23W
Processor package size	40 x 24 x 1.3 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Battery

Specification	Value
Number of battery cells	4
Battery capacity	48 Wh
Battery life (max)	5 h

Power

Specification	Value
AC adapter power	90 W
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Fingerprint reader	No
Password protection	Yes
Password protection type	HDD, Power on, Supervisor

Certificates

Specification	Value
Compliance certificates	RoHS

Sustainability

Specification	Value
Sustainability certificates	EPEAT Silver, ENERGY STAR

Weight & dimensions

Specification	Value
Weight	2.2 kg
Width	350 mm
Depth	249 mm
Height	23.8 mm

Packaging content

Specification	Value
AC adapter included	Yes
