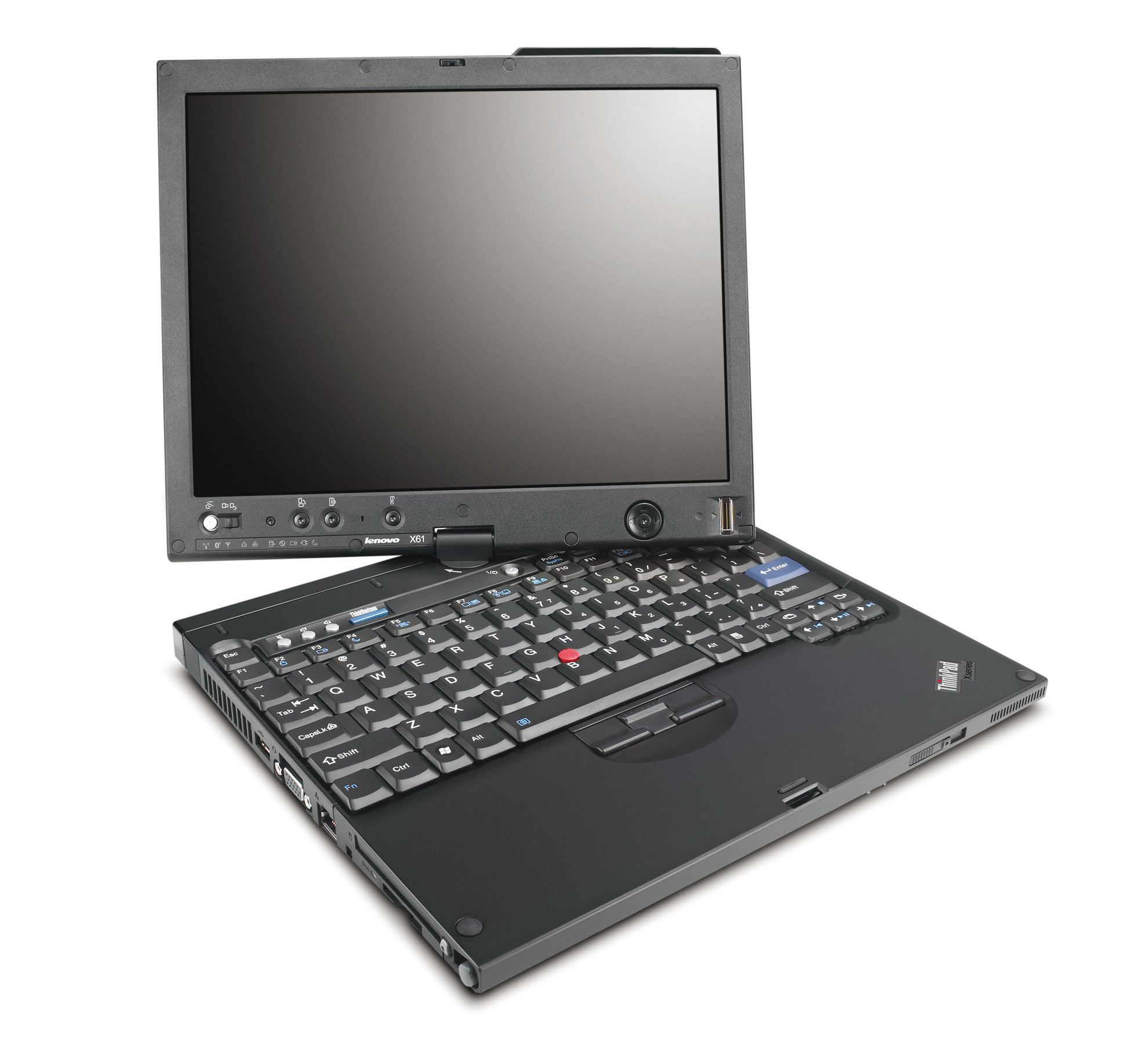

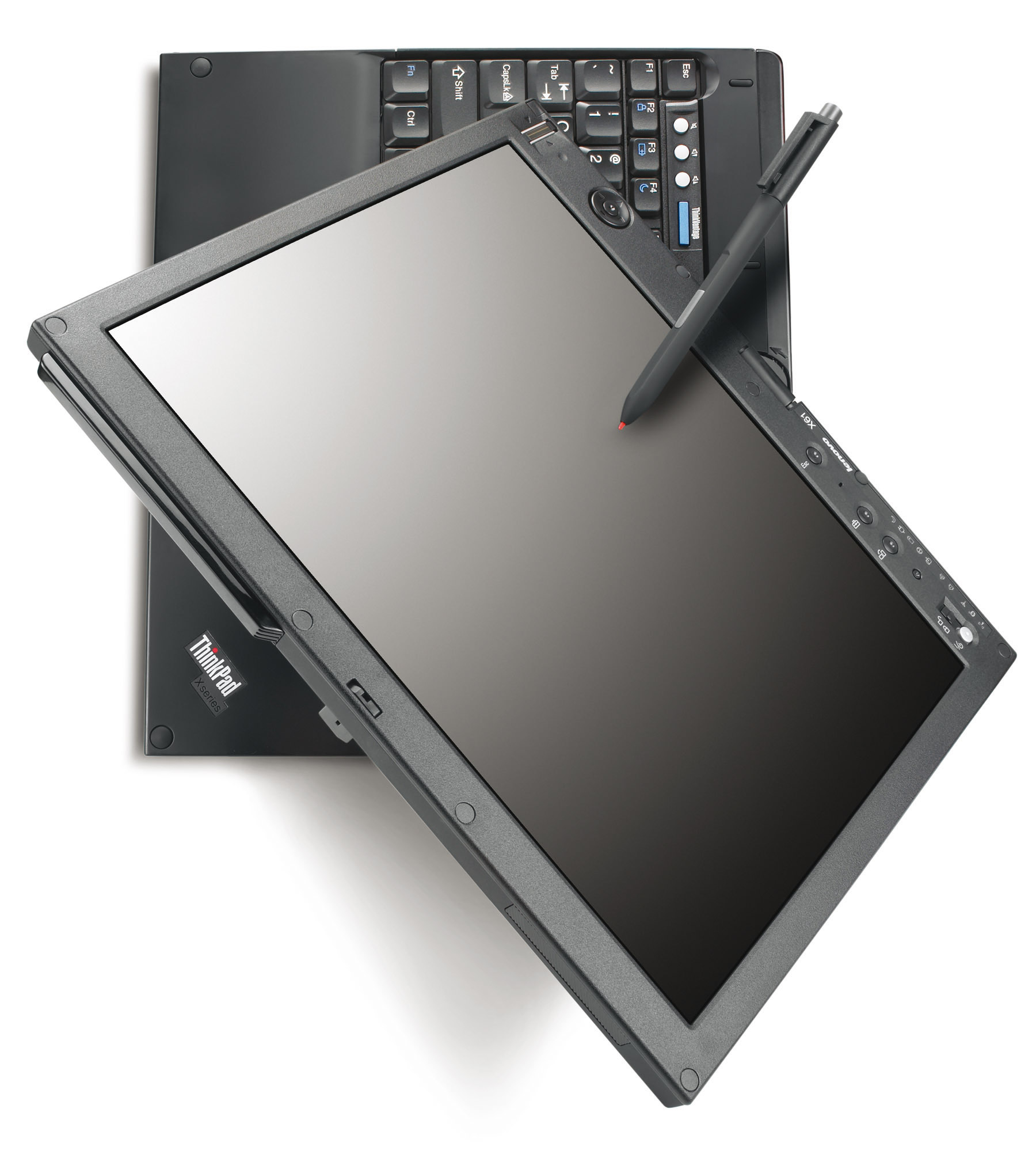

Lenovo X61 Tablet

Model X61 TabletPart no. 7762B6UEAN 883609244736

138 specifications Checked 3 days ago

Display30.7 cm (12.1")
Resolution1024 x 768 pixels
ProcessorIntel® Core™2 Duo
Memory1 GB
Storage80 GB
TypeHybrid (2-in-1)

See all specifications

Overview

Display: 30.7 cm (12.1")
Resolution: 1024 x 768 pixels
Processor: Intel® Core™2 Duo
Memory: 1 GB
Storage: 80 GB
Type: Hybrid (2-in-1)

Brand: Lenovo
Category: Laptop
Model: X61 Tablet
Part numbers: 7762B6U, 776295U, 776298U, 776202U, 776258U, 7762B5U +5 more
EAN / UPC: 883609244736, 883609244743, 883609244729
Also known as: Lenovo X61 Tablet Intel® Core™2 Duo L7500 Hybrid (2-in-1) 30.7 cm (12.1") Touchscreen 1 GB 80 GB Windows Vista Business Black

Specifications

138 specifications in 22 groups

Design

Specification	Value
Product type	Hybrid (2-in-1)
Product colour	Black
Form factor	Convertible (Swivel)

Display

Specification	Value
Display diagonal	30.7 cm (12.1")
Display resolution	1024 x 768 pixels
Touchscreen	Yes
LED backlight	No
Native aspect ratio	4:3
Dual-screen	No

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	L7500
Processor cores	2
Processor threads	2
Processor frequency	1.6 GHz
Processor cache	4 MB
Processor cache type	L2
Processor front side bus	800 MHz
Processor socket	Socket 479
Processor lithography	65 nm
Processor operating modes	64-bit
Processor series	Intel Core 2 Duo L7000 Series
Processor codename	Merom
Bus type	FSB
FSB Parity	No
Thermal Design Power (TDP)	17 W
Tjunction	100 °C
Number of Processing Die Transistors	291 M
Processing Die size	143 mm²
CPU multiplier (bus/core ratio)	8
ECC supported by processor	No

Memory

Specification	Value
Internal memory	1 GB
Memory clock speed	667 MHz
Memory layout (slots x size)	1 x 1 GB
Memory slots	2x SO-DIMM
Maximum internal memory	4 GB

Storage

Specification	Value
Total storage capacity	80 GB
HDD capacity	80 GB
HDD interface	SATA
HDD speed	5400 RPM
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD

Graphics

Specification	Value
Graphics card family	Intel
Graphics card	GMA X3100

Audio

Specification	Value
Audio system	AD1984 Codec
Number of built-in speakers	1
Built-in microphone	Yes

Camera

Specification	Value
Front camera	No

Network

Specification	Value
Networking features	Gigabit Ethernet
Bluetooth	Yes
Cabling technology	10/100/1000Base-T(X)

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	1
Headphone outputs	1
Microphone in	Yes
Docking connector	No
ExpressCard slot	No
CardBus PCMCIA slots quantity	1
CardBus PCMCIA slot type	Type II
SmartCard slot	No
Modem (RJ-11) ports	1
TV-in port	No
TV-out	No
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0
USB 1.1 ports quantity	0

Performance

Specification	Value
Motherboard chipset	Intel® GM965
GPS (satellite)	No

Keyboard

Specification	Value
Keyboard number of keys	89

Software

Specification	Value
Operating system installed	Windows Vista Business
Operating system architecture	32-bit
Drivers included	Yes

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	29757
Processor package size	35 x 35 mm
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	8

Power

Specification	Value
AC adapter power	65 W
AC adapter frequency	50 - 60 Hz
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	No
Fingerprint reader	Yes
Trusted Platform Module (TPM)	No
HDD user password	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 80%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 2438 m

Certificates

Specification	Value
Certification	FCC, VCCI, CISPR22, UL 60950, CSA, NOM, SASO, IEC 60950, ACA, MPR-II, CE Mark, CCC, BSMI, CER

Weight & dimensions

Specification	Value
Weight	1.93 kg
Width	274 mm
Depth	266.7 mm

Packaging content

Specification	Value
Mouse included	No

Other features

Specification	Value
Infrared data port	No
Power requirements	230 V
Internal modem	Yes
TV tuner integrated	No
Modem speed	56 Kbit/s
Supplied AC adapter type	AC
