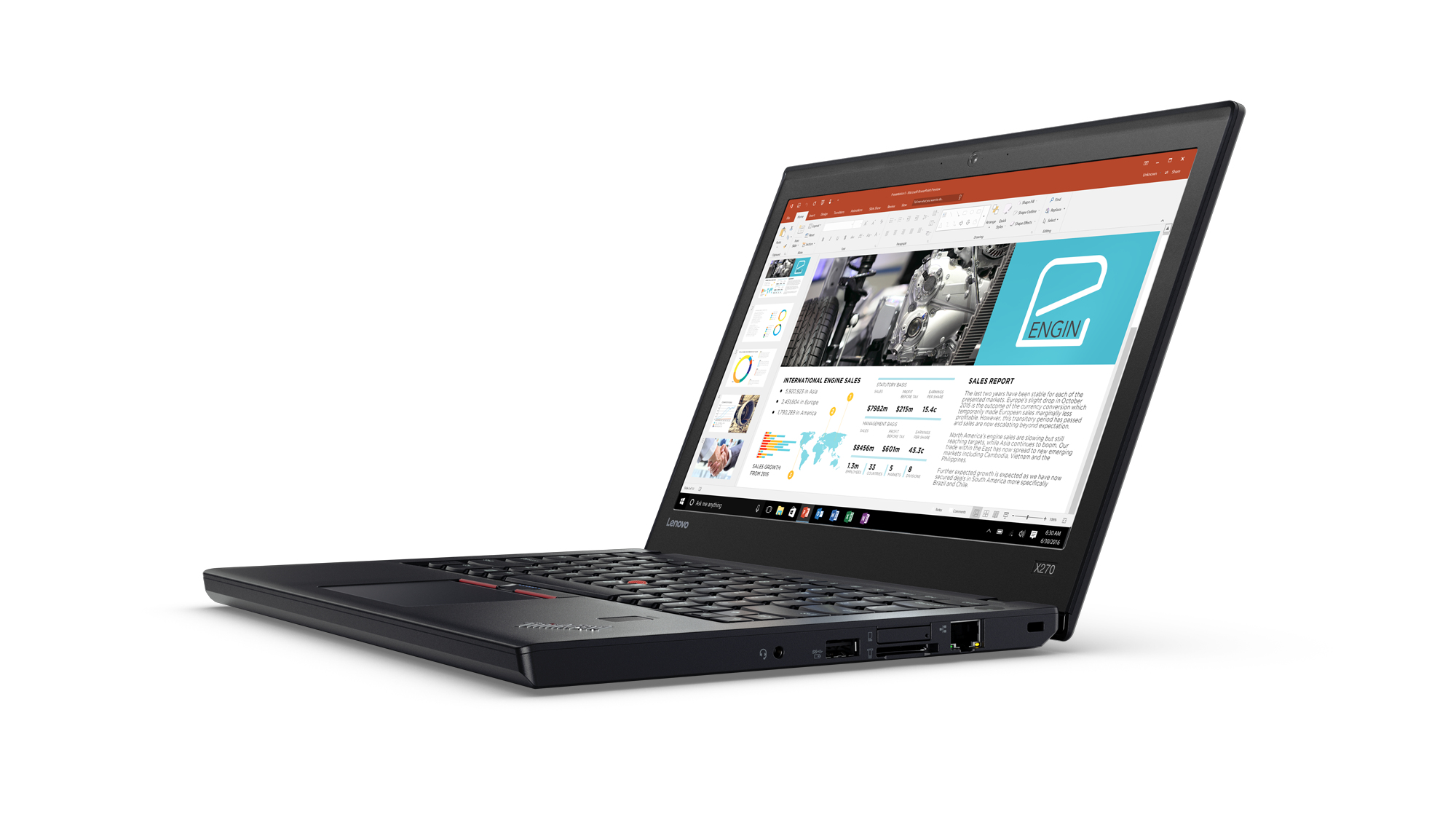

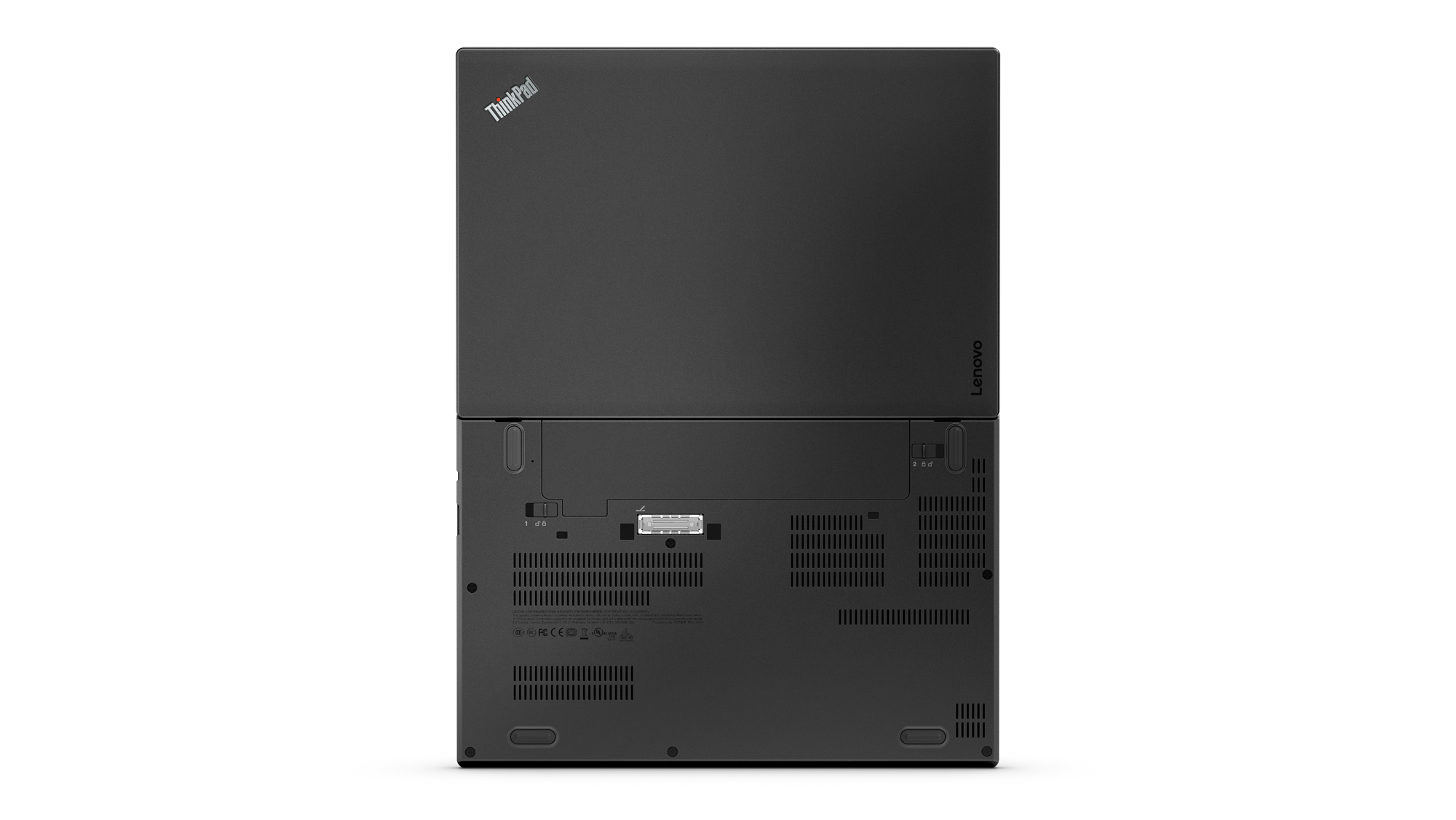

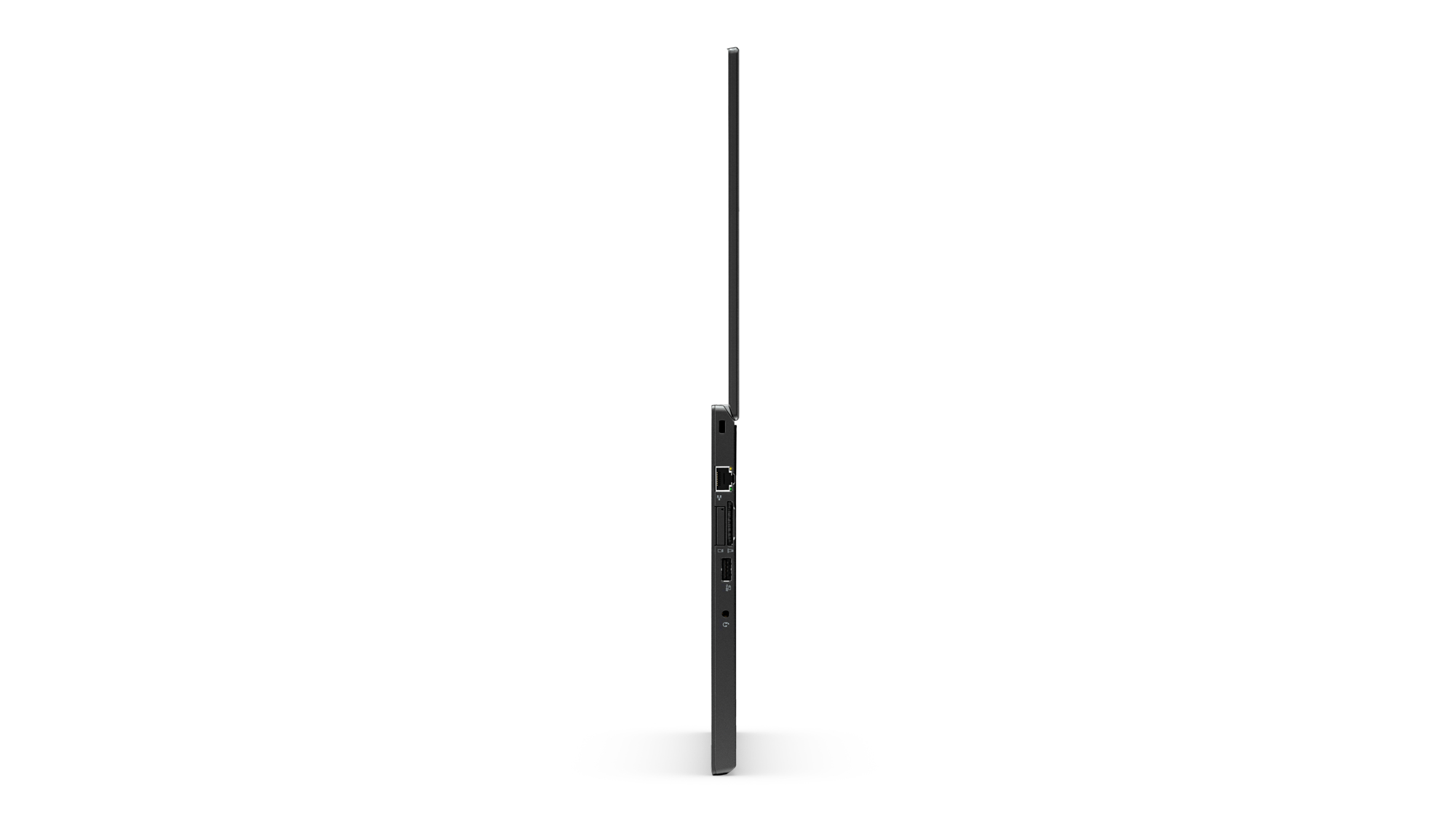

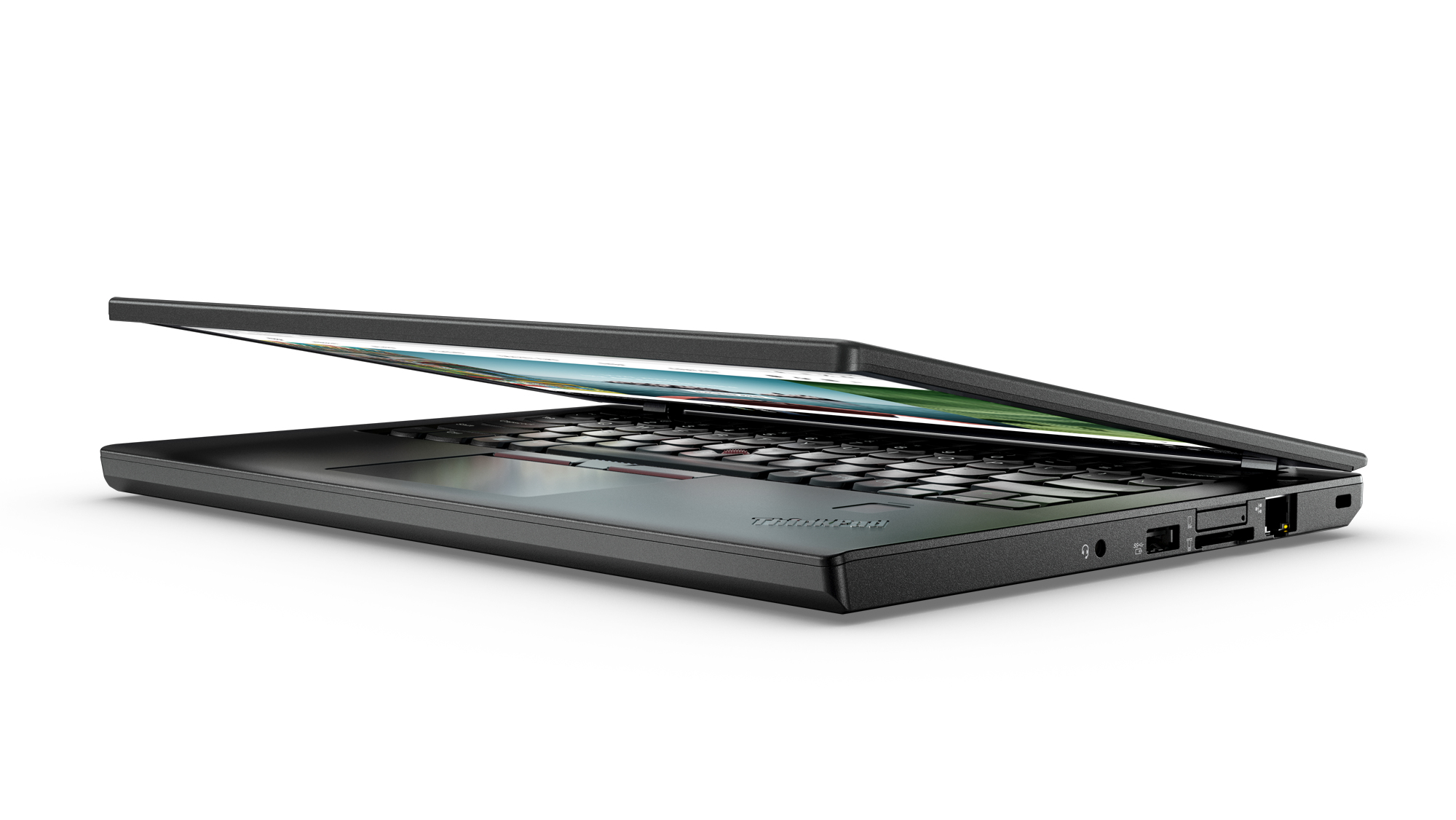

Lenovo ThinkPad X270 Intel® Core™ i7 i7-7500U Laptop

31.8 cm (12.5") Full HD 16 GB DDR4-SDRAM 512 GB SSD Windows 10 Pro Black QWERTY US English

Model X270Part no. 20HMS0HU18EAN 191927856006

192 specifications Checked 3 days ago

Display31.8 cm (12.5")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i7
Memory16 GB
Storage512 GB
Battery23.2 Wh

See all specifications

Overview

Display: 31.8 cm (12.5")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i7
Memory: 16 GB
Storage: 512 GB
Battery: 23.2 Wh

Brand: Lenovo
Category: Laptop
Model: X270
Part numbers: 20HMS0HU18, 20HMS0HU0D, 20HNS04L00, 20HMS15N00, 20K5S0LM00, 20HMS0HU1N +34 more
EAN / UPC: 191927856006, 191800692905, 191999596930, 191376684762 +17 more
Also known as: Lenovo ThinkPad X270 Intel® Core™ i7 i7-7500U Laptop 31.8 cm (12.5") Full HD 16 GB DDR4-SDRAM 512 GB SSD Windows 10 Pro Black QWERTY US English

Specifications

192 specifications in 22 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Colour name	Black
Form factor	Clamshell
Housing material	Glass-reinforced plastic (GRP)
Market positioning	Business

Display

Specification	Value
Display diagonal	31.8 cm (12.5")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:9
Screen shape	Flat

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	7th gen Intel® Core™ i7
Processor model	i7-7500U
Processor cores	2
Processor threads	4
Processor boost frequency	3.5 GHz
Processor frequency	2.7 GHz
System bus rate	4 GT/s
Processor cache	4 MB
Processor cache type	Smart Cache
Processor socket	BGA 1356
Processor lithography	14 nm
Processor operating modes	64-bit
Processor codename	Kaby Lake
Bus type	OPI
Stepping	H0
Thermal Design Power (TDP)	15 W
Configurable TDP-up frequency	2.9 GHz
Configurable TDP-up	25 W
Configurable TDP-down	7.5 W
Configurable TDP-down frequency	0.8 GHz
Tjunction	100 °C
Maximum number of PCI Express lanes	12
PCI Express configurations	1x2+2x1, 1x4, 2x2, 4x1
PCI Express slots version	3.0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	2133 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	1 x 16 GB
Memory slots	1x SO-DIMM
Maximum internal memory	16 GB
Maximum internal memory (64-bit)	16 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
NVMe	Yes
SSD interface	NVMe 3.0
SSD form factor	2.5"
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MMC, SD, SDHC, SDXC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 620
Maximum on-board graphics card memory	32 GB
On-board graphics card base frequency	300 MHz
On-board graphics card dynamic frequency (max)	1050 MHz
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.4
On-board graphics card ID	0x5916

Audio

Specification	Value
Audio chip	Realtek ALC3268
Number of built-in speakers	2
Speaker power	1.5 W
Built-in microphone	Yes

Camera

Specification	Value
Front camera signal format	720p

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Antenna type	2x2
WLAN controller model	Intel Dual Band Wireless-AC 8265
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	4.1
Near Field Communication (NFC)	No
WWAN	Not installed
LAN controller	Intel® I219-V

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	1.4b
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	0
Thunderbolt ports quantity	0
Thunderbolt 3 ports quantity	0
Headphone outputs	0
Combo headphone/mic port	Yes
Microphone in	No
Docking connector	Yes
SmartCard slot	No
USB Sleep-and-Charge	Yes
USB Sleep-and-Charge ports	1

Performance

Specification	Value
Motherboard chipset	Intel SoC
Accelerometer	Yes
Ambient light sensor	No
Electronic compass	No
GPS (satellite)	No
Gyroscope	No
Proximity sensor	No

Keyboard

Specification	Value
Pointing device	ThinkPad UltraNav
Keyboard backlit	Yes
Numeric keypad	No
Spill-resistant keyboard	Yes
Full-size keyboard	No
Windows keys	Yes
Keyboard layout	QWERTY
Keyboard language	US English
Number of pointing stick buttons	1
Number of touchpad buttons	3

Software

Specification	Value
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	14 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Smart Response Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	95451
Processor code	SR2ZV
Processor package size	42 x 24 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Battery

Specification	Value
Number of battery cells	3+3
Battery capacity	23.2 Wh

Power

Specification	Value
AC adapter power	65 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes
Password protection	Yes
Password protection type	HDD, Power on, Supervisor

Certificates

Specification	Value
Compliance certificates	RoHS

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Weight & dimensions

Specification	Value
Weight	1.4 kg
Width	305.5 mm
Depth	208.5 mm
Height	20.3 mm

Packaging content

Specification	Value
AC adapter included	Yes
Stylus pen	No
Manual	Yes
Power cord included	Yes
Quick start guide	Yes

Other features

Specification	Value
Colour sensor	No
L2 cache	512 KB
Number of WLAN antennas	2
Intel segment tagging	Home office, Small Business
