Lenovo X220 Tablet

Model X220 TabletPart no. NYN4BGEEAN 645743285941

118 specifications Checked 3 days ago

Display31.8 cm (12.5")
Resolution1366 x 768 pixels
ProcessorIntel® Core™ i7
Memory4 GB
Storage160 GB
TypeHybrid (2-in-1)

See all specifications

Overview

Display: 31.8 cm (12.5")
Resolution: 1366 x 768 pixels
Processor: Intel® Core™ i7
Memory: 4 GB
Storage: 160 GB
Type: Hybrid (2-in-1)

Brand: Lenovo
Category: Laptop
Model: X220 Tablet
Part numbers: NYN4BGE, NYM3YUK, NYN4BAT, NYN35AT, NYM42AT, NYN35UK +34 more
EAN / UPC: 645743285941, 645743286115, 645743285804, 645743868694 +15 more
Also known as: Lenovo ThinkPad X220 Tablet Intel® Core™ i7 i7-2620M Hybrid (2-in-1) 31.8 cm (12.5") Touchscreen 4 GB Windows 7 Professional Black

Specifications

118 specifications in 17 groups

Design

Specification	Value
Product type	Hybrid (2-in-1)
Product colour	Black
Form factor	Convertible (Swivel)

Display

Specification	Value

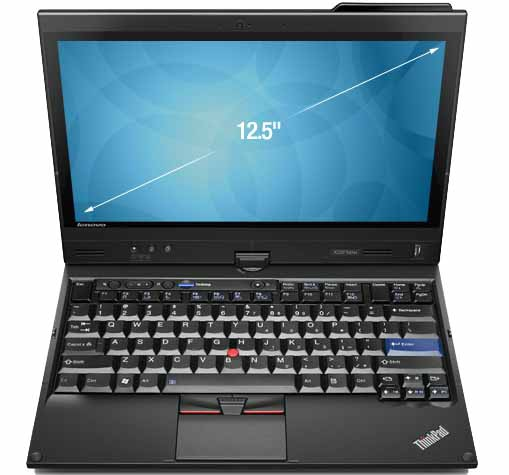

Display diagonal	31.8 cm (12.5")
Display resolution	1366 x 768 pixels
Touchscreen	Yes
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	2nd gen Intel® Core™ i7
Processor model	i7-2620M
Processor cores	2
Processor threads	4
Processor boost frequency	3.4 GHz
Processor frequency	2.7 GHz
System bus rate	5 GT/s
Processor cache	4 MB
Processor cache type	Smart Cache
Processor socket	BGA 1023
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-2600 Mobile Series
Processor codename	Sandy Bridge
Bus type	DMI
FSB Parity	No
Stepping	J1
Thermal Design Power (TDP)	35 W
Tjunction	100 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	2.0
CPU multiplier (bus/core ratio)	27
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Memory clock speed	1333 MHz
Memory slots	2x SO-DIMM
Maximum internal memory	8 GB

Storage

Specification	Value
HDD capacity	160 GB
HDD interface	SATA
SSD capacity	160 GB
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD

Graphics

Specification	Value
On-board graphics card	Yes
Graphics card family	Intel
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 3000
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1300 MHz
On-board graphics card ID	0x116
Maximum resolution	1366 x 768 pixels
Graphics card	HD Graphics

Audio

Specification	Value
Speaker power	2 W
Built-in microphone	Yes
Audio included	Mute Button, Speakers (integrated)

Network

Specification	Value
Wireless technology	WWAN; LAN
Bluetooth	No
Integrated 4G WiMAX	Yes

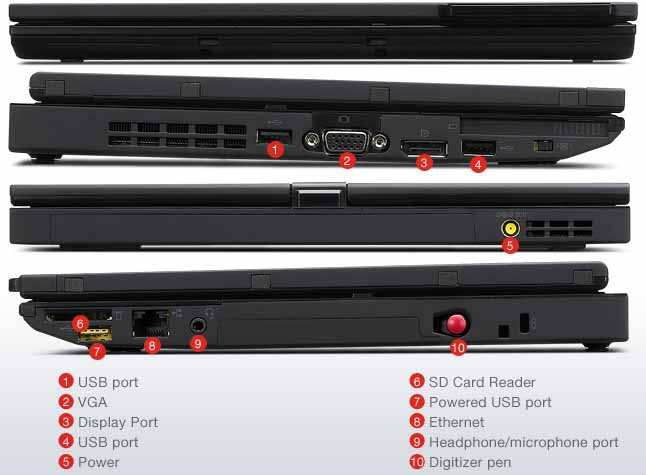

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
Ethernet LAN (RJ-45) ports	1
VGA (D-Sub) ports quantity	1
Headphone outputs	1
Microphone in	Yes
Docking connector	No

Performance

Specification	Value
GPS (satellite)	No

Keyboard

Specification	Value

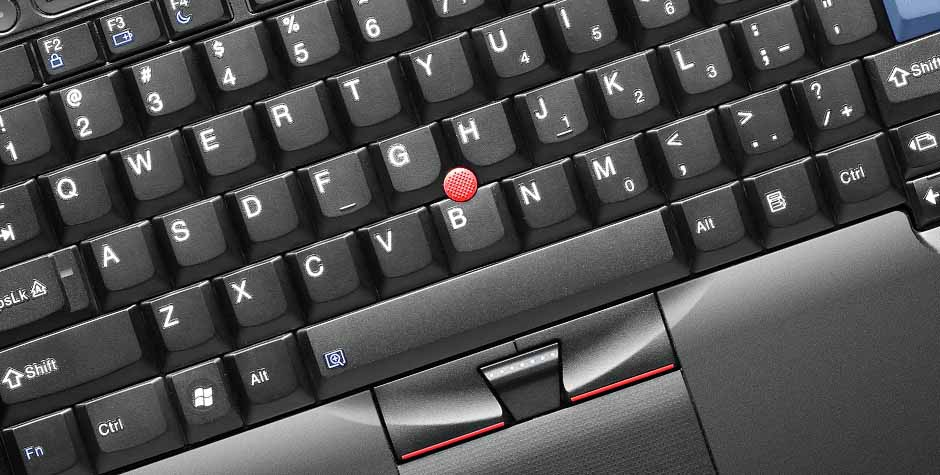

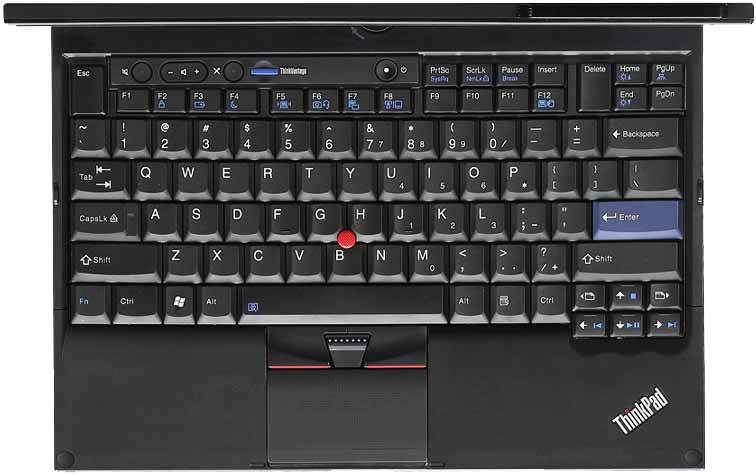

Keyboard type	7-row with Trackpoint

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit
Compatible operating systems	Windows 7

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	32 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	52231
Processor code	SR041
Processor package size	37.5 x 37.5 (rPGA988B); 31 x 24 (BGA1023)
Supported instruction sets	AVX
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)

Power

Specification	Value
AC adapter power	65 W
DC-in jack	Yes

Weight & dimensions

Specification	Value
Weight	1.76 kg
Width	305 mm
Depth	295 mm
Height	20.7 mm

Other features

Specification	Value
Security features	Hard disk drive password, Norton Internet Security, Power on password, Security Slot Fingerprint Reader
Battery type	6 Cell Lithium-Ion
Modem type	No
Manageability features	1-Button system recovery, Automatic software and driver updates, Help, Lenovo Care, Password management, Simple network connectivity
