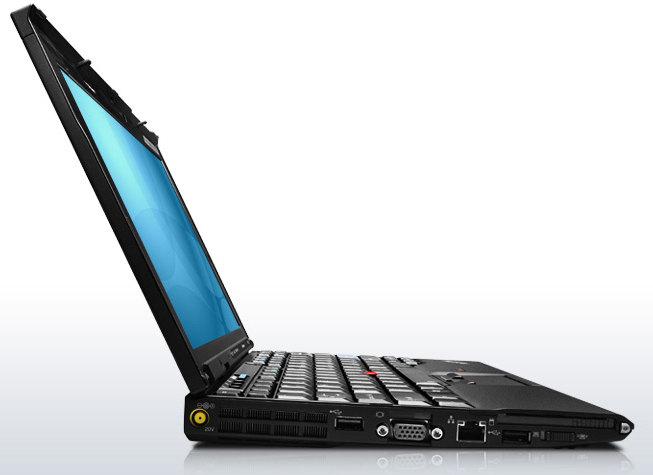

Lenovo ThinkPad X201s Intel® Core™ i7 i7-640LM

30.7 cm (12.1") 3 GB DDR3-SDRAM 320 GB Intel® HD Graphics Windows 7 Professional Black

Model X201sPart no. NU2FEMHEAN 885600437667

135 specifications Checked 2 days ago

Display30.7 cm (12.1")
Resolution1440 x 900 pixels
ProcessorIntel® Core™ i7
Memory3 GB
Storage320 GB
GraphicsIntel® HD Graphics

See all specifications

Overview

Display: 30.7 cm (12.1")
Resolution: 1440 x 900 pixels
Processor: Intel® Core™ i7
Memory: 3 GB
Storage: 320 GB
Graphics: Intel® HD Graphics

Brand: Lenovo
Category: Laptop
Model: X201s
Part numbers: NU2FEMH, NU2F7GE, NU2FEGE, NU3FFGE, NU2F5GE, NU2F6GE +34 more
EAN / UPC: 885600437667, 885600951408
Also known as: Lenovo ThinkPad X201s Intel® Core™ i7 i7-640LM 30.7 cm (12.1") 3 GB DDR3-SDRAM 320 GB Intel® HD Graphics Windows 7 Professional Black

Specifications

135 specifications in 18 groups

Design

Specification	Value
Product colour	Black

Display

Specification	Value
Display diagonal	30.7 cm (12.1")
Display resolution	1440 x 900 pixels
LED backlight	Yes
Native aspect ratio	16:10
Display brightness	250 cd/m²
Contrast ratio (typical)	300:1

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	Intel® Core™ i7
Processor model	i7-640LM
Processor cores	2
Processor threads	4
Processor boost frequency	2.93 GHz
Processor frequency	2.13 GHz
System bus rate	2.5 GT/s
Processor cache	4 MB
Processor cache type	Smart Cache
Processor socket	BGA 1288
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-600 Mobile Series
Processor codename	Arrandale
Bus type	DMI
FSB Parity	No
Stepping	C2
Thermal Design Power (TDP)	25 W
Tjunction	105 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16
PCI Express slots version	2.0
Number of Processing Die Transistors	382 M
Processing Die size	81 mm²
CPU multiplier (bus/core ratio)	16
ECC supported by processor	No

Memory

Specification	Value
Internal memory	3 GB
Internal memory type	DDR3-SDRAM
Memory clock speed	1066 MHz
Memory layout (slots x size)	1 x 1 + 1 x 2 GB
Memory slots	2x SO-DIMM
Maximum internal memory	8 GB

Storage

Specification	Value
Total storage capacity	320 GB
HDD interface	SATA
HDD speed	7200 RPM
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), MMC, MS PRO, SD, SDHC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	Intel® HD Graphics
Graphics card family	Intel
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
On-board graphics card base frequency	266 MHz
On-board graphics card dynamic frequency (max)	566 MHz

Audio

Specification	Value
Audio system	High Definition Audio

Network

Specification	Value
Wi-Fi	Yes
Networking features	Gigabit Ethernet
Ethernet LAN	Yes
Bluetooth	Yes
Bluetooth version	2.1+EDR

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
Ethernet LAN (RJ-45) ports	1
DVI port	No
VGA (D-Sub) ports quantity	1
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	Yes
ExpressCard slot	Yes
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	Yes
Modem (RJ-11) ports	1
TV-out	No

Performance

Specification	Value
Motherboard chipset	Intel® QM57 Express

Keyboard

Specification	Value

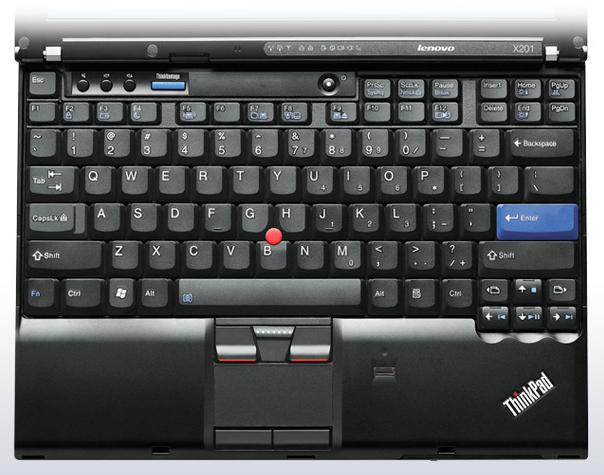

Pointing device	ThinkPad UltraNav

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	32-bit

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	45 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	1.0
Physical Address Extension (PAE)	36 bit
Physical Address Extension (PAE)	Yes
Processor ARK ID	43563
Processor code	SLBMK
Processor package size	BGA 34 x 28
Supported instruction sets	SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	9
Battery life (max)	12.3 h

Power

Specification	Value
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	IBM

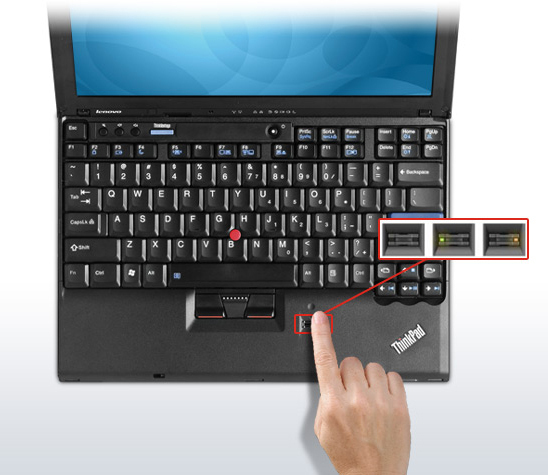

Fingerprint reader	Yes
HDD user password	Yes

Weight & dimensions

Specification	Value
Weight	1.39 kg
Width	295 mm
Depth	234 mm
Height (front)	2.07 cm
Height (rear)	3.53 cm

Other features

Specification	Value
Infrared data port	No
Internal modem	Yes
Modem speed	56 Kbit/s
Modem type	V.92
Supplied AC adapter type	AC
