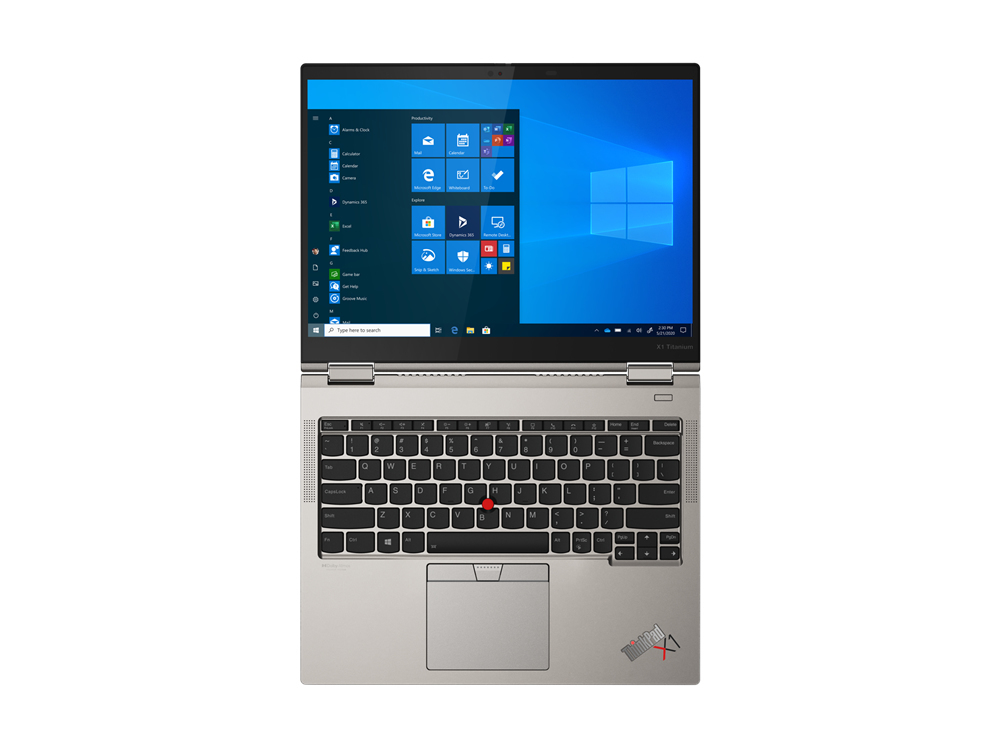

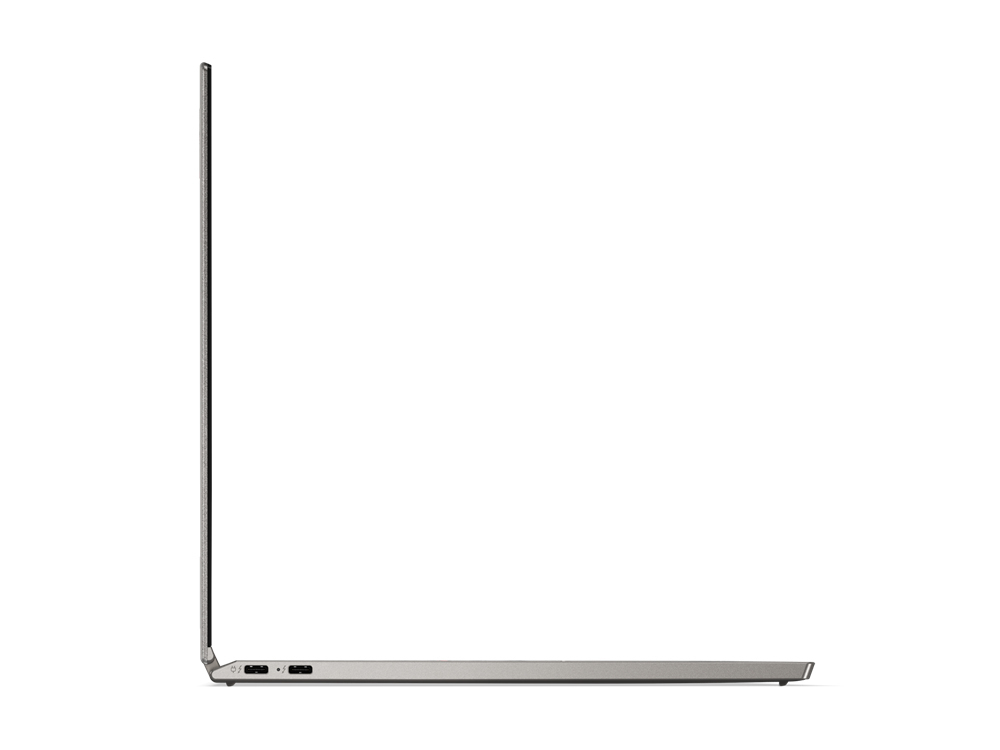

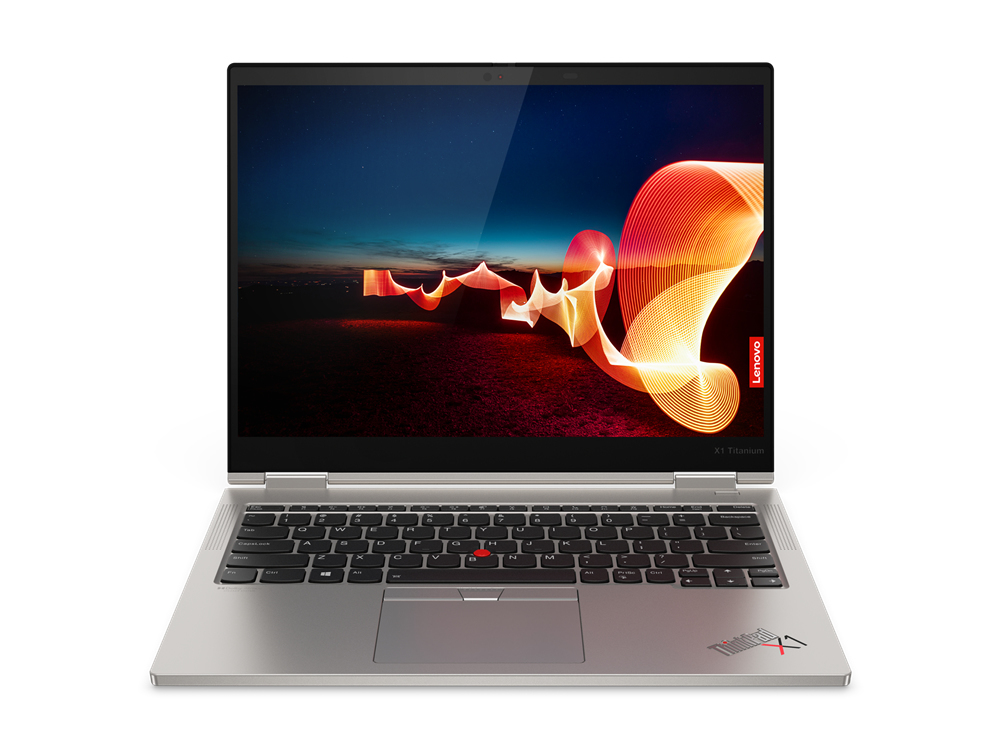

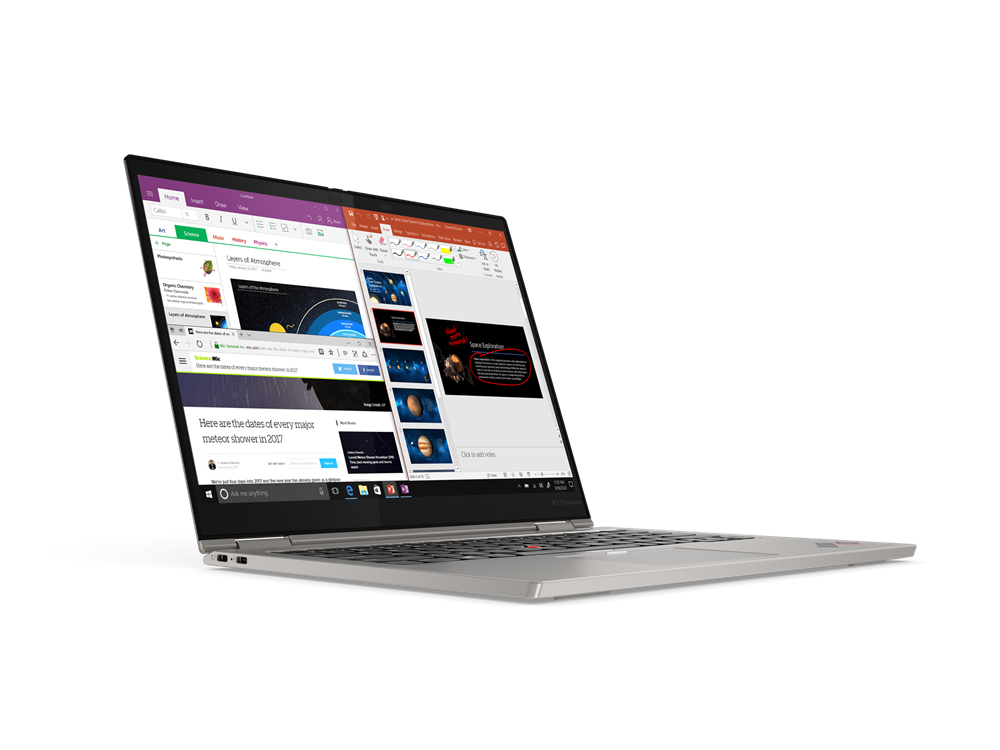

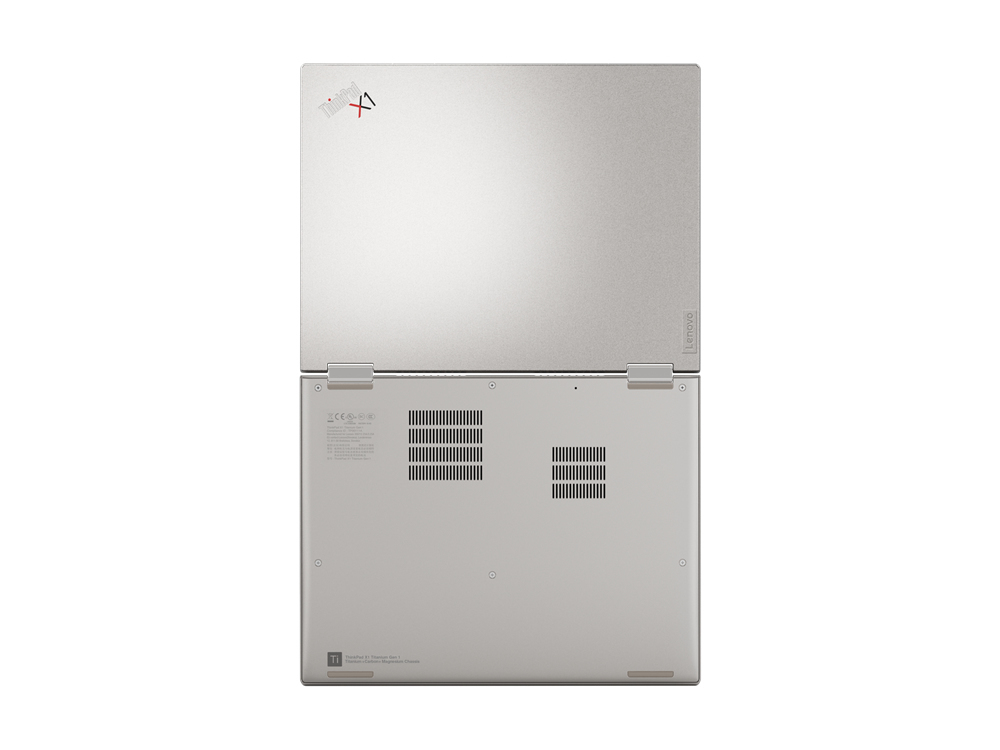

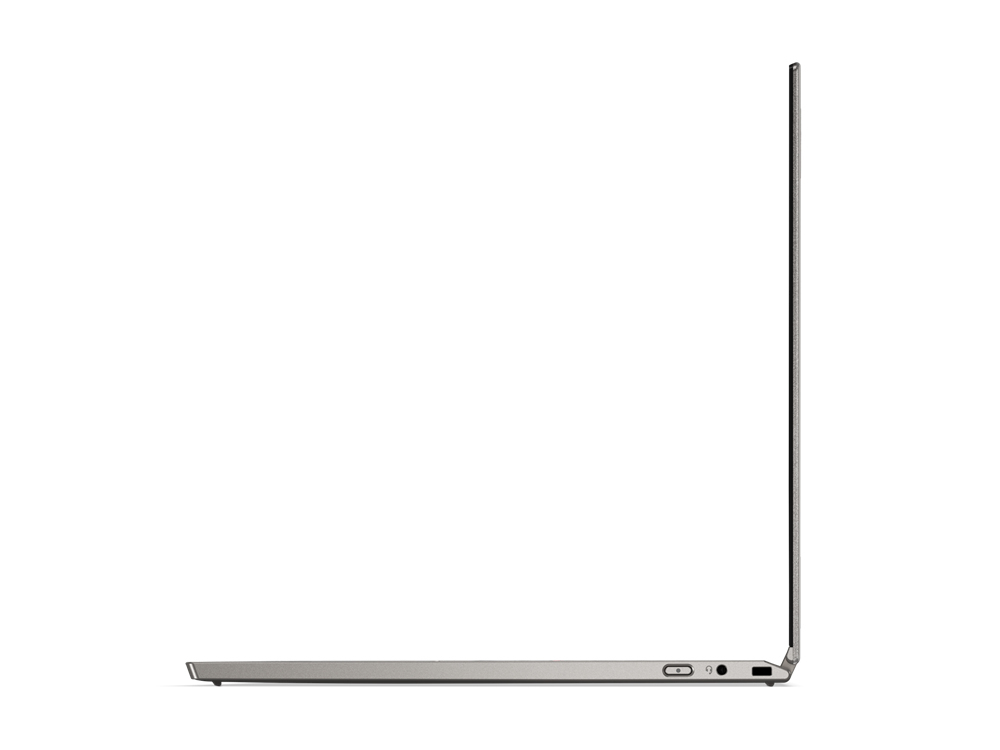

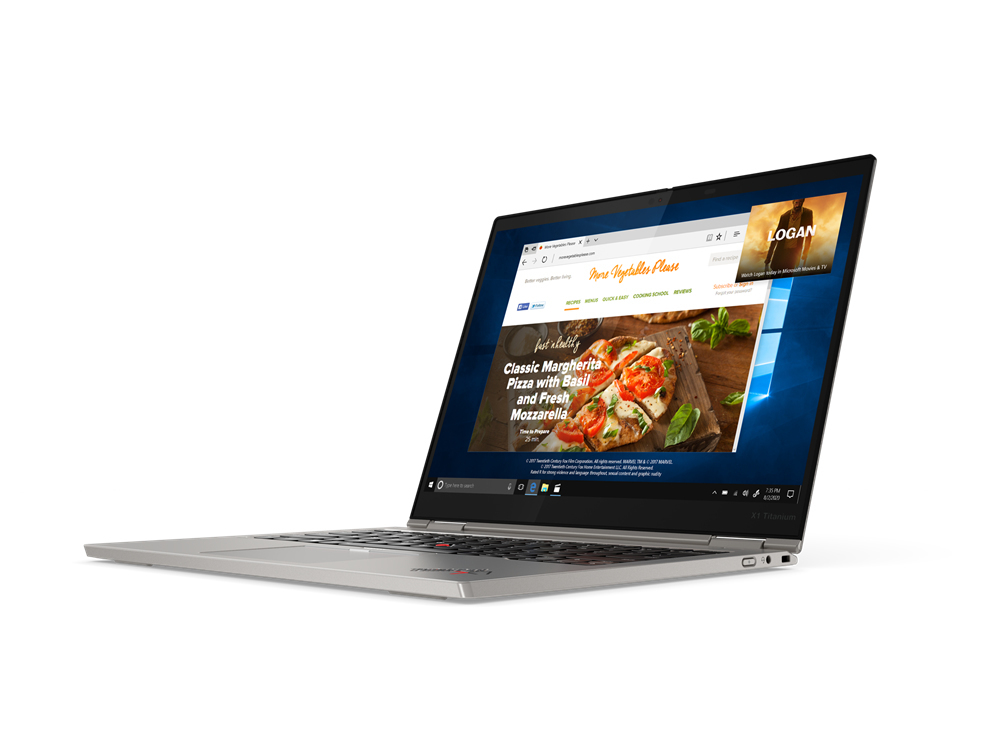

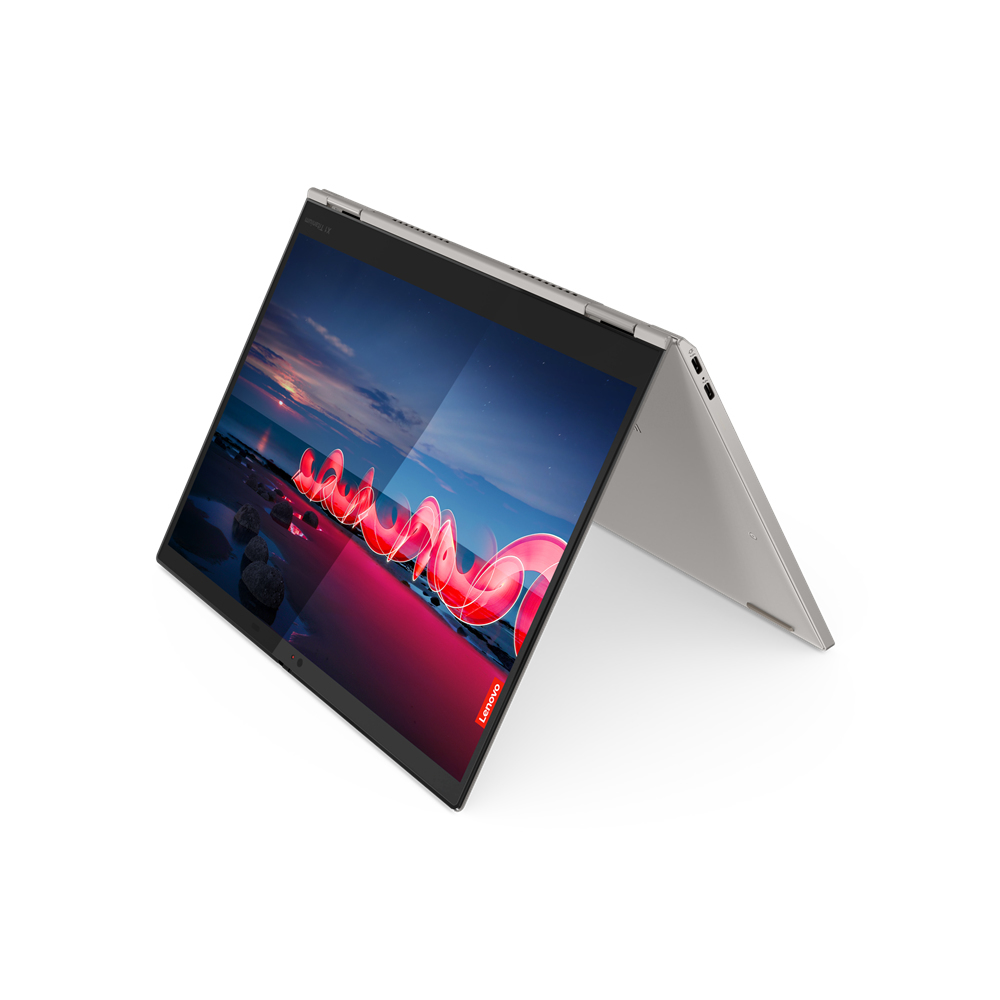

X1 Titanium Yoga
Model X1 Titanium YogaPart no. 20QA001EAU-BAGMOUSE
111 specifications Checked today
- Display34.3 cm (13.5")
- Resolution2256 x 1504 pixels
- ProcessorIntel® Core™ i5
- Memory8 GB
- Storage512 GB
- GraphicsNot available
Overview
- Display
- 34.3 cm (13.5")
- Resolution
- 2256 x 1504 pixels
- Processor
- Intel® Core™ i5
- Memory
- 8 GB
- Storage
- 512 GB
- Graphics
- Not available
- Brand
- Lenovo
- Category
- Laptop
- Model
- X1 Titanium Yoga
- Part numbers
- 20QA001EAU-BAGMOUSE, 20QA0011AU-W, 20QA0017AU-W, 20QA0014AU-W, 20QA001EAU-W, 20QA0018AU-W +34 more
- Also known as
- Lenovo ThinkPad X1 Titanium Yoga Intel® Core™ i5 i5-1130G7 Hybrid (2-in-1) 34.3 cm (13.5") Touchscreen Quad HD 8 GB LPDDR4x-SDRAM 512 GB SSD Wi-Fi 6 (802.11ax)
Specifications
111 specifications in 19 groups
Design
| Specification | Value |
|---|---|
| Product type | Hybrid (2-in-1) |
| Product colour | Titanium |
| Form factor | Convertible (Folder) |
| Market positioning | Business |
Display
| Specification | Value |
|---|---|
| Display diagonal | 34.3 cm (13.5") |
| Display resolution | 2256 x 1504 pixels |
| Touchscreen | Yes |
| Touchscreen type | Capacitive |
| HD type | Quad HD |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 3:2 |
| Display brightness | 450 cd/m² |
| Contrast ratio (typical) | 1200:1 |

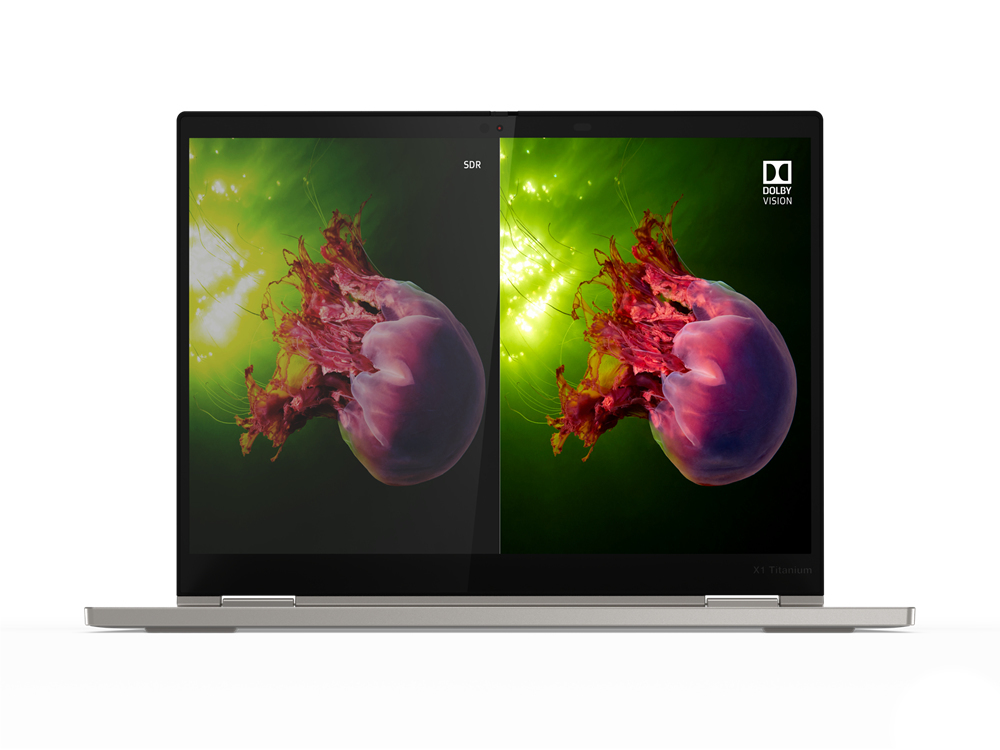

| High Dynamic Range (HDR) technology | Dolby Vision |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 11th gen Intel® Core™ i5 |
| Processor model | i5-1130G7 |
| Processor cores | 4 |
| Processor boost frequency | 4 GHz |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Configurable TDP-up frequency | 1.8 GHz |
| Configurable TDP-up | 15 W |
| Configurable TDP-down | 7 W |
| Configurable TDP-down frequency | 0.8 GHz |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | LPDDR4x-SDRAM |
| Memory clock speed | 4266 MHz |
| Memory form factor | On-board |
| Maximum internal memory | 8 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 512 GB |
| Storage media | SSD |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express 3.0 |
| SSD form factor | M.2 |
| Optical drive type | No |
| Card reader integrated | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel Iris Xe Graphics |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC3286 |
| Audio system | Dolby Atmos |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Built-in microphone | Yes |
| Number of microphones | 4 |
Camera
| Specification | Value |
|---|---|
| Front camera | Yes |
| Front camera HD type | HD |
| Infrared (IR) camera | Yes |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
Network
| Specification | Value |
|---|---|
| Mobile network connection | No |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| WLAN controller manufacturer | Intel |
| WLAN controller model | Intel Wi-Fi 6 AX201 |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Near Field Communication (NFC) | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 0 |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel SoC |
| Accelerometer | Yes |
| Gyroscope | Yes |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | ThinkPad UltraNav |
| Keyboard backlit | Yes |
| Numeric keypad | No |
| Spill-resistant keyboard | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Pro |
| Operating system architecture | 64-bit |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Idle States | Yes |
| Intel Software Guard Extensions (Intel SGX) | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium Polymer (LiPo) |
| Battery capacity | 44.5 Wh |
| Battery life (max) | 11.7 h |
Power
| Specification | Value |
|---|---|
| AC adapter power | 65 W |
| USB Power Delivery (USB PD) | Yes |
Security
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Fingerprint reader | Yes |
| Windows Hello | Yes |
| Password protection | Yes |
| Password protection type | HDD, Power on, Supervisor |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | 5 - 43 °C |
| Operating relative humidity (H-H) | 8 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.15 kg |
| Width | 297.5 mm |
| Depth | 232.7 mm |
| Height | 11.5 mm |
