Lenovo X1 Carbon + 04W8199

Model X1 Carbon + 04W8199Part no. N3N7ZMHBUNDELQ4

155 specifications Checked 3 days ago

Display35.6 cm (14")
Resolution1600 x 900 pixels
ProcessorIntel® Core™ i7
Memory8 GB
Storage180 GB
TypeUltrabook

See all specifications

Overview

Display: 35.6 cm (14")
Resolution: 1600 x 900 pixels
Processor: Intel® Core™ i7
Memory: 8 GB
Storage: 180 GB
Type: Ultrabook

Brand: Lenovo
Category: Laptop
Model: X1 Carbon + 04W8199
Part number: N3N7ZMHBUNDELQ4
Also known as: Lenovo ThinkPad X1 Carbon + 04W8199 Intel® Core™ i7 i7-3667U Ultrabook 35.6 cm (14") HD+ 8 GB DDR3-SDRAM 180 GB SSD Windows 7 Professional Black

Specifications

155 specifications in 21 groups

Design

Specification	Value
Product type	Ultrabook
Product colour	Black
Form factor	Clamshell
Housing material	Carbon

Display

Specification	Value
Display diagonal	35.6 cm (14")
Display resolution	1600 x 900 pixels
Touchscreen	No
HD type	HD+
LED backlight	Yes
Native aspect ratio	16:9
Display brightness	300 cd/m²

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	3rd gen Intel® Core™ i7
Processor model	i7-3667U
Processor cores	2
Processor threads	4
Processor boost frequency	3.2 GHz
Processor frequency	2 GHz
System bus rate	5 GT/s
Processor cache	4 MB
Processor cache type	Smart Cache
Processor socket	BGA 1023
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-3600 Mobile series
Processor codename	Ivy Bridge
Bus type	DMI
FSB Parity	No
Stepping	L1
Thermal Design Power (TDP)	17 W
Tjunction	105 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x8, 1x16, 2x4, 2x8
PCI Express slots version	2.0
CPU multiplier (bus/core ratio)	20
ECC supported by processor	No

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR3-SDRAM
Memory clock speed	1333 MHz
Maximum internal memory	8 GB

Storage

Specification	Value
Total storage capacity	180 GB
Storage media	SSD
Number of SSDs installed	1
SSD capacity	180 GB
SSD interface	SATA
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MMC, SD, SDHC, SDXC

Graphics

Specification	Value
On-board graphics card	Yes
Graphics card family	Intel
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 4000
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1150 MHz
On-board graphics card ID	0x166

Audio

Specification	Value
Audio system	Dolby Home Theater v4
Built-in speaker(s)	Yes
Number of built-in speakers	2
Built-in microphone	Yes

Optical drive

Specification	Value
LightScribe	No

Network

Specification	Value
Wi-Fi	Yes
Networking features	Gigabit Ethernet
Wi-Fi standards	802.11a, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	No
Integrated 4G WiMAX	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
eSATA/USB 2.0 ports quantity	0
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
DisplayPorts quantity	0
Mini DisplayPorts quantity	1
DVI port	No
VGA (D-Sub) ports quantity	0
Firewire (IEEE 1394) ports	0
Thunderbolt ports quantity	0
Headphone outputs	1
S/PDIF out port	No
Combo headphone/mic port	Yes
Microphone in	Yes
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No

Performance

Specification	Value
Motherboard chipset	Intel® QS77 Express

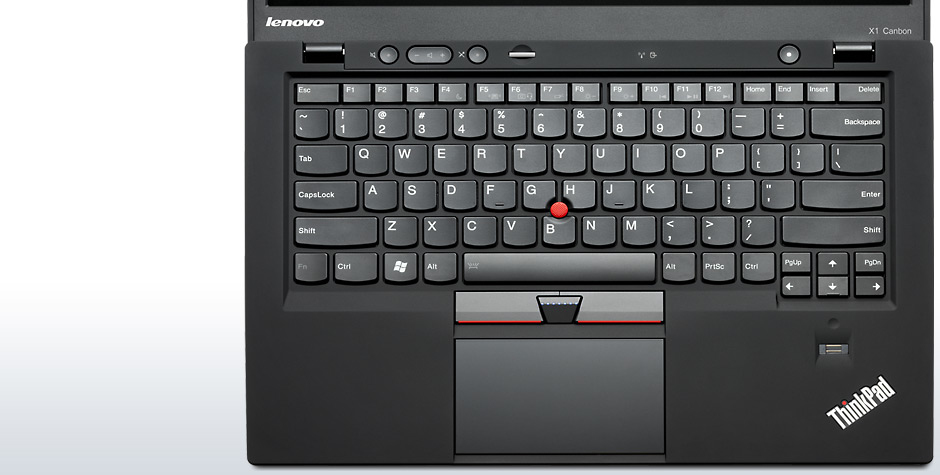

Keyboard

Specification	Value
Pointing device	ThinkPad UltraNav
Numeric keypad	No
Spill-resistant keyboard	Yes
Full-size keyboard	Yes
Windows keys	Yes

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit
Recovery operating system	Windows 8 Pro

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	64898
Processor code	SR0N5
Processor package size	31 x 24 mm
Supported instruction sets	AVX
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Battery

Specification	Value
Battery life (max)	6.5 h

Power

Specification	Value
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes

Sustainability

Specification	Value
Sustainability certificates	EPEAT Gold, ENERGY STAR

Weight & dimensions

Specification	Value
Weight	1.4 kg
Width	331 mm
Depth	226 mm
Height	18.9 mm
Width (imperial)	33.1 cm (13")
Depth (imperial)	22.6 cm (8.9")
Height (imperial)	1.88 cm (0.74")

Packaging content

Specification	Value
AC adapter included	Yes

Other features

Specification	Value
Infrared data port	No
Intel segment tagging	Enterprise, Small Business
