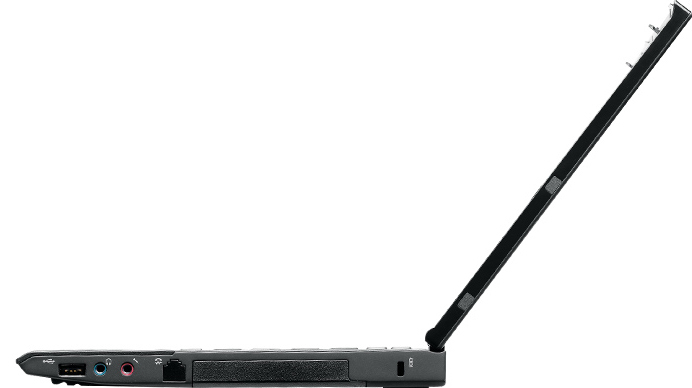

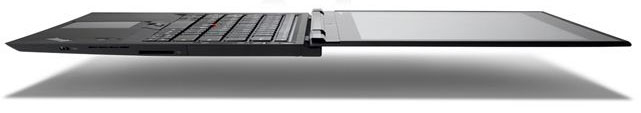

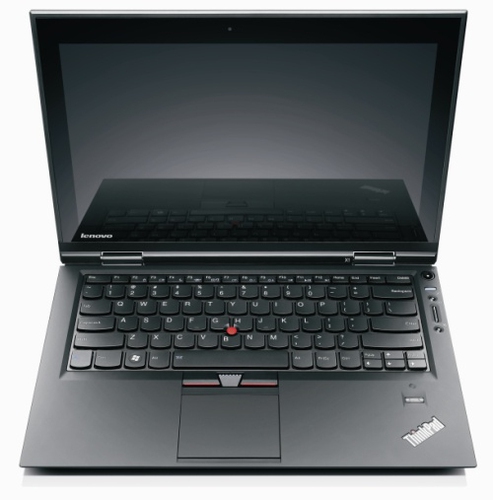

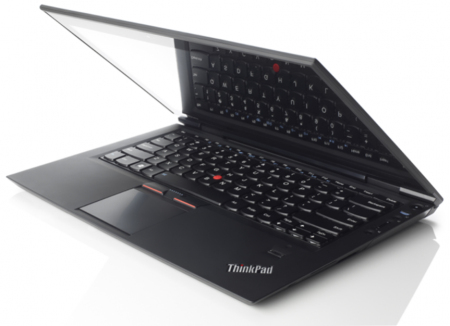

Lenovo X1 Carbon

Model X1 CarbonPart no. N3N2SMHEAN 887263494520

145 specifications Checked 3 days ago

Display33.8 cm (13.3")
Resolution1366 x 768 pixels
ProcessorIntel® Core™ i5
Memory8 GB
Storage160 GB
GraphicsIntel® HD Graphics

See all specifications

Overview

Display: 33.8 cm (13.3")
Resolution: 1366 x 768 pixels
Processor: Intel® Core™ i5
Memory: 8 GB
Storage: 160 GB
Graphics: Intel® HD Graphics

Brand: Lenovo
Category: Laptop
Model: X1 Carbon
Part numbers: N3N2SMH, NWK2NSP, NWK2NIX, N3N2SMS, N3N2SMD, N3N34MH +34 more
EAN / UPC: 887263494520, 645743525740, 645743525665, 887263497446 +56 more
Also known as: Lenovo ThinkPad X1 Carbon Intel® Core™ i5 i5-2520M Ultrabook 33.8 cm (13.3") 8 GB DDR3-SDRAM 160 GB Intel® HD Graphics Windows 7 Professional Black

Specifications

145 specifications in 19 groups

Design

Specification	Value
Product type	Ultrabook
Product colour	Black

Display

Specification	Value
Display diagonal	33.8 cm (13.3")
Display resolution	1366 x 768 pixels
Touchscreen	No
Native aspect ratio	16:9
Display brightness	350 cd/m²

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	2nd gen Intel® Core™ i5
Processor model	i5-2520M
Processor cores	2
Processor threads	4
Processor boost frequency	3.2 GHz
Processor frequency	2.5 GHz
System bus rate	5 GT/s
Processor cache	3 MB
Processor cache type	Smart Cache
Processor socket	Socket 988
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Core i5-2500 Mobile Series
Processor codename	Sandy Bridge
Bus type	DMI
FSB Parity	No
Stepping	J1
Thermal Design Power (TDP)	35 W
Tjunction	100 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	2.0
CPU multiplier (bus/core ratio)	25
ECC supported by processor	No

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR3-SDRAM
Memory clock speed	1333 MHz
Memory layout (slots x size)	1 x 8 GB
Memory slots	1x SO-DIMM
Maximum internal memory	8 GB

Storage

Specification	Value
Total storage capacity	160 GB
Number of HDDs installed	1
SSD capacity	160 GB
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MMC, SD, SDHC, SDXC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	Intel® HD Graphics
Graphics card family	Intel
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 3000
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1300 MHz
On-board graphics card ID	0x116

Audio

Specification	Value
Audio system	Dolby Home Theater
Number of built-in speakers	2

Camera

Specification	Value
Front camera resolution (numeric)	1.3 MP
Swivel webcam	No

Network

Specification	Value
Wi-Fi	Yes
Networking features	Gigabit Ethernet, WLAN
Ethernet LAN	Yes
Bluetooth	Yes
Bluetooth version	3.0+HS
Cabling technology	10/100/1000Base-T(X)
Integrated 4G WiMAX	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
eSATA/USB 2.0 ports quantity	1
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	1.4a
DisplayPorts quantity	0
Mini DisplayPorts quantity	1
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Thunderbolt ports quantity	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
TV-out	No

Keyboard

Specification	Value
Pointing device	ThinkPad UltraNav

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	32 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	52229
Processor code	SR048
Processor package size	37.5 x 37.5 (rPGA988B); 31 x 24 (BGA1023)
Supported instruction sets	AVX
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Battery

Specification	Value
Battery life (max)	5.2 h

Power

Specification	Value
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	No
Fingerprint reader	Yes

Weight & dimensions

Specification	Value
Weight	1.69 kg
Width	337 mm
Depth	231 mm
Height (front)	1.65 cm
Height (rear)	2.13 cm

Packaging content

Specification	Value
AC adapter included	Yes

Other features

Specification	Value
Infrared data port	No
Power requirements	100 - 240V
Power supply type	AC
TV tuner integrated	No
Intel segment tagging	Enterprise, Small Business
