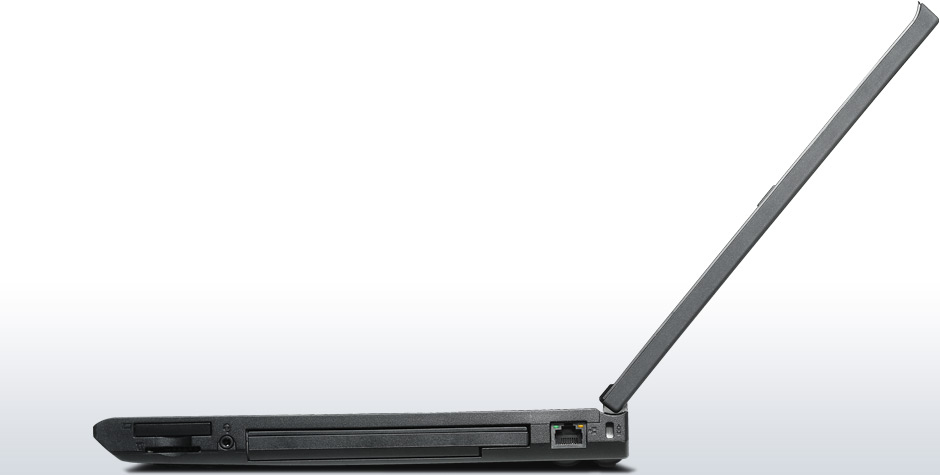

Lenovo ThinkPad W530 Intel High End Desktop Processors i7-3820QM Mobile workstation

39.6 cm (15.6") Full HD 8 GB DDR3-SDRAM 500 GB HDD Windows 7 Professional Bl

Model W530Part no. 24473SUEAN 886843912607

135 specifications Checked 3 days ago

Display39.6 cm (15.6")
Resolution1920 x 1080 pixels
Processori7-3820QM
Memory8 GB
Storage500 GB
TypeMobile workstation

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1920 x 1080 pixels
Processor: i7-3820QM
Memory: 8 GB
Storage: 500 GB
Type: Mobile workstation

Brand: Lenovo
Category: Laptop
Model: W530
Part numbers: 24473SU, N1K2AMH, N1K2BMH, N1K2BFR, N1K2BUK, N1K2EUK +34 more
EAN / UPC: 886843912607, 887037791855, 887037791169, 887037791268 +55 more
Also known as: Lenovo ThinkPad W530 Intel High End Desktop Processors i7-3820QM Mobile workstation 39.6 cm (15.6") Full HD 8 GB DDR3-SDRAM 500 GB HDD Windows 7 Professional Bl

Specifications

135 specifications in 18 groups

Design

Specification	Value
Product type	Mobile workstation
Product colour	Black
Form factor	Clamshell

Display

Specification	Value

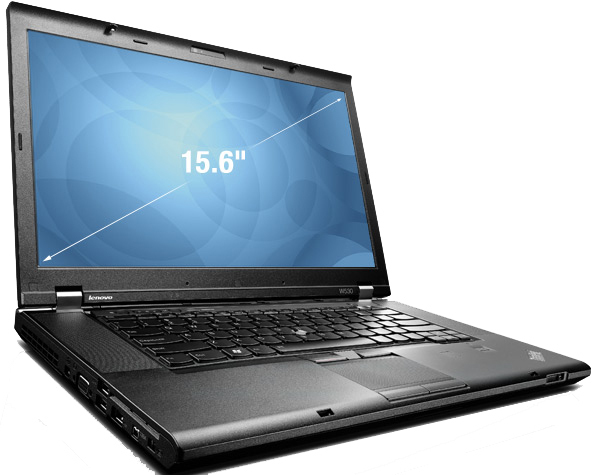

Display diagonal	39.6 cm (15.6")
Display resolution	1920 x 1080 pixels
HD type	Full HD
LED backlight	Yes
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel High End Desktop Processors
Processor model	i7-3820QM
Processor cores	4
Processor threads	8
Processor boost frequency	3.7 GHz
Processor frequency	2.7 GHz
System bus rate	5 GT/s
Processor cache	8 MB
Processor cache type	Smart Cache
Processor socket	BGA 1224
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-3800 Mobile Series
Processor codename	Ivy Bridge
Bus type	DMI
FSB Parity	No
Stepping	E1
Thermal Design Power (TDP)	45 W
Tjunction	105 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x8, 1x16, 2x4, 2x8
PCI Express slots version	3.0
CPU multiplier (bus/core ratio)	27
ECC supported by processor	No

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR3-SDRAM
Maximum internal memory	32 GB

Storage

Specification	Value
Total storage capacity	500 GB
Storage media	HDD
Number of HDDs installed	1
HDD capacity	500 GB
HDD interface	SATA
HDD speed	7200 RPM
Optical drive type	DVD-RW
Card reader integrated	Yes

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card memory	2 GB
Graphics card family	Intel, NVIDIA
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 4000
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1250 MHz
On-board graphics card ID	0x166

Audio

Specification	Value
Audio system	Dolby Home Theater
Built-in microphone	Yes

Network

Specification	Value
Wi-Fi	Yes
Networking features	Gigabit Ethernet
Wireless technology	Wi-Fi
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	No
Built-in Wi-Fi switch	Yes
Integrated 4G WiMAX	Yes

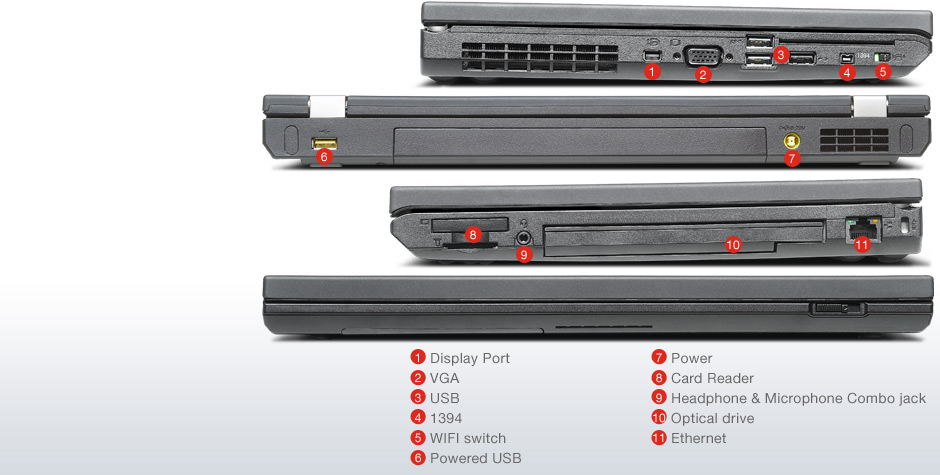

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
eSATA/USB 2.0 ports quantity	0
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
DisplayPorts quantity	0
Mini DisplayPorts quantity	1
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	1
Thunderbolt ports quantity	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
TV-out	No

Keyboard

Specification	Value

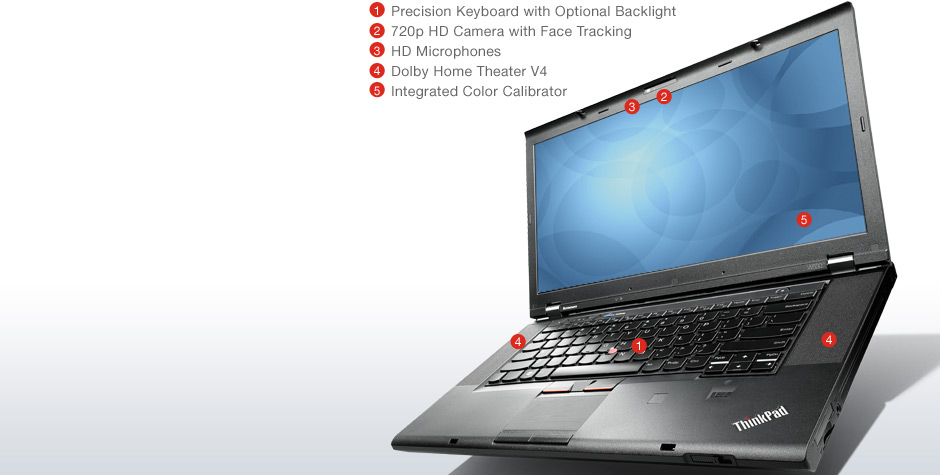

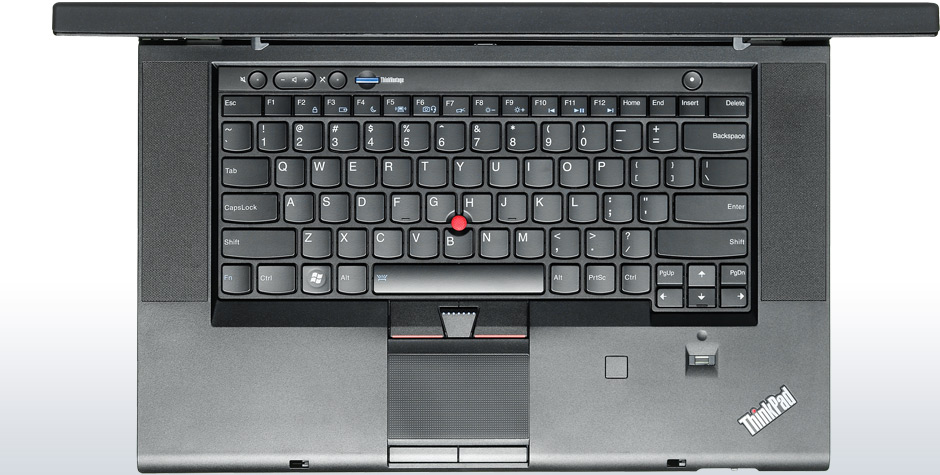

Pointing device	ThinkPad UltraNav
Numeric keypad	No
Windows keys	Yes

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	64889
Processor code	SR0MK
Processor package size	37.5 x 37.5 (rPGA988B); 31.0 x 24.0 (BGA1224)
Supported instruction sets	AVX
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)

Power

Specification	Value
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes

Weight & dimensions

Specification	Value
Weight	2.7 kg

Packaging content

Specification	Value
AC adapter included	Yes

Other features

Specification	Value
Infrared data port	No
Intel segment tagging	Professional
