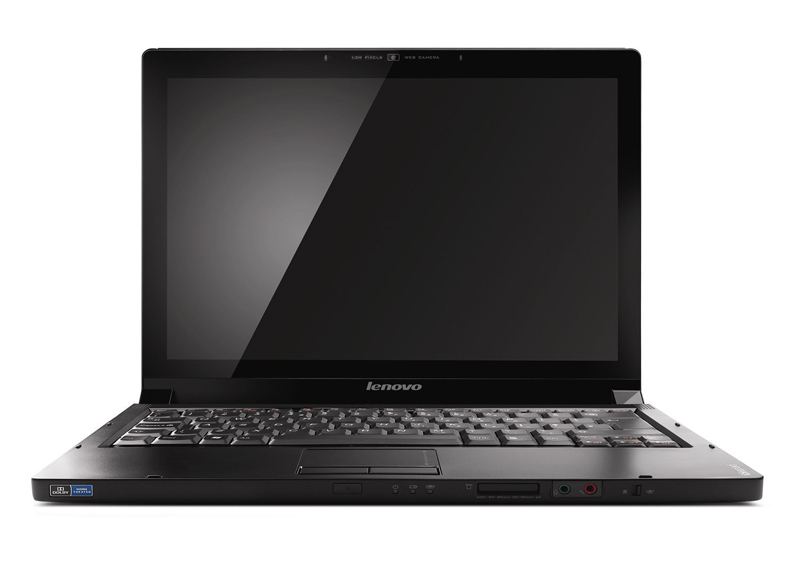

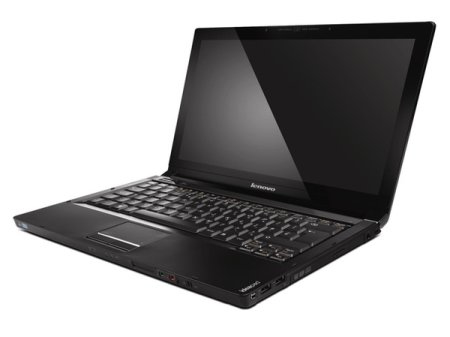

Lenovo IdeaPad U330 Intel Pentium Mobile T4200

33.8 cm (13.3") 3 GB DDR3-SDRAM 320 GB Intel® GMA 4500MHD Windows XP Professional Black

Model U330Part no. 59-407215EAN 888965257086

131 specifications Checked 3 days ago

Display33.8 cm (13.3")
Resolution1280 x 800 pixels
ProcessorIntel Pentium Mobile
Memory3 GB
Storage320 GB
GraphicsIntel® GMA 4500MHD

See all specifications

Overview

Display: 33.8 cm (13.3")
Resolution: 1280 x 800 pixels
Processor: Intel Pentium Mobile
Memory: 3 GB
Storage: 320 GB
Graphics: Intel® GMA 4500MHD

Brand: Lenovo
Category: Laptop
Model: U330
Part numbers: 59-407215, 59425824, 59432972, 59436247, 226758U, 59372351 +1 more
EAN / UPC: 888965257086, 888965650030, 887770756296, 888440130309
Also known as: Lenovo IdeaPad U330 Intel Pentium Mobile T4200 33.8 cm (13.3") 3 GB DDR3-SDRAM 320 GB Intel® GMA 4500MHD Windows XP Professional Black

Specifications

131 specifications in 21 groups

Design

Specification	Value
Product colour	Black

Display

Specification	Value
Display diagonal	33.8 cm (13.3")
Display resolution	1280 x 800 pixels
Native aspect ratio	16:10
Display surface	Gloss
Contrast ratio (typical)	300:1

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Pentium Mobile
Processor model	T4200
Processor cores	2
Processor threads	2
Processor frequency	2 GHz
Processor cache	1 MB
Processor cache type	L2
Processor front side bus	800 MHz
Processor socket	LGA 3647 (Socket P)
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Pentium T4000 Series for Mobile
Processor codename	Penryn
Bus type	FSB
FSB Parity	No
Stepping	R0
Thermal Design Power (TDP)	35 W
Tjunction	105 °C
Number of Processing Die Transistors	410 M
Processing Die size	107 mm²
CPU multiplier (bus/core ratio)	10
ECC supported by processor	No

Memory

Specification	Value
Internal memory	3 GB
Internal memory type	DDR3-SDRAM
Memory clock speed	1066 MHz
Memory layout (slots x size)	1 x 1 + 1 x 2 GB
Memory slots	2x SO-DIMM
Maximum internal memory	4 GB

Storage

Specification	Value
Total storage capacity	320 GB
HDD capacity	320 GB
HDD interface	SATA
HDD speed	5400 RPM
Optical drive type	DVD Super Multi DL
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), MMC, MS PRO, SD, SDHC, xD

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	Intel® GMA 4500MHD
Graphics card family	Intel

Audio

Specification	Value
Audio system	Dolby Digital
Number of built-in speakers	2

Camera

Specification	Value
Front camera resolution (numeric)	1.3 MP

Network

Specification	Value
Wi-Fi	Yes
Ethernet LAN	Yes
Bluetooth	Yes
Bluetooth version	2.0+EDR
Cabling technology	10/100Base-T(X)

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
eSATA/USB 2.0 ports quantity	0
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	1
Thunderbolt ports quantity	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	Yes
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
TV-out	No

Performance

Specification	Value
Motherboard chipset	Intel® GM45 Express

Keyboard

Specification	Value
Pointing device	Touchpad
Full-size keyboard	Yes
Keyboard number of keys	84

Software

Specification	Value
Operating system installed	Windows XP Professional
Operating system architecture	32-bit

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	37251
Processor code	SLGJN
Processor package size	35 x 35 mm
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	6
Battery capacity	5200 mAh
Battery life (max)	5.5 h

Power

Specification	Value
AC adapter power	90 W
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	No
Fingerprint reader	No
Password protection type	HDD, Supervisor

Certificates

Specification	Value
Certification	RoHS

Weight & dimensions

Specification	Value
Weight	1.96 kg
Width	318 mm
Depth	237 mm
Height (front)	2.3 cm
Height (rear)	2.8 cm

Packaging content

Specification	Value
AC adapter included	Yes

Other features

Specification	Value
Infrared data port	No
3D	No
Internal modem	No
TV tuner integrated	No
